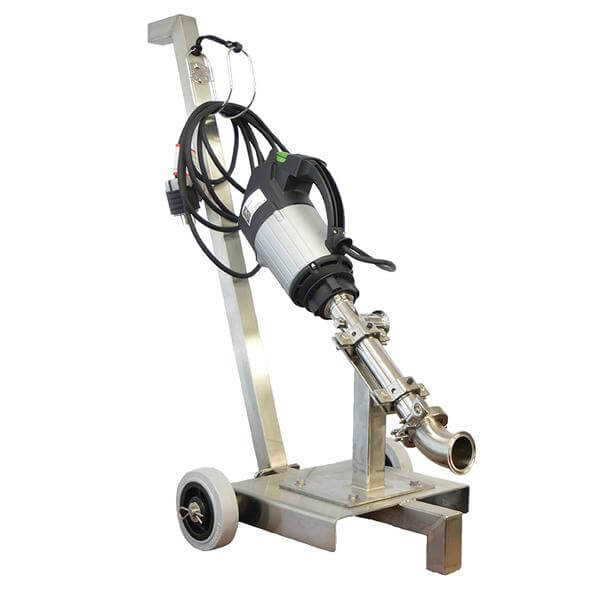

High Proof Alcohol Portable Variable Speed Pump Assembly

The High Proof Alcohol Portable Variable Speed Pump Assembly is one of the only variable speed explosion proof alcohol pumps of it's scale on the market. Made for moving small batches of neutral grain spirits in craft distilleries, it provides an easy knob based speed controls that other NGS pumps do not have.

Features:

• Explosion-proof
• Variable Speed
• 220V single phase electric, 230 Watts
• 1 ½” Tri-clamp discharge
• 2” Tri-clamp inlet
• 316 SS / PTFE Fitted / ETFE impeller
• Up to 1000 CPS
• Up to 42 GPM (based on water)
• Up to 30’ head
• Easy to clean – top pull-out
• 220 volt variable speed motor with no-volt release safety circuit
• Tested and certified according to ATEX-Directive 94/9/EC,
  category 2 for use in Zone 1
• Mounted on a stainless steel cart

This is a premade assembly with 220V single-phase power. This assembly will ship out within 48 hours.

Seals:

Standard seal

• Material: PTFE / FKM

Ultra low-temperature seal

• Designed for ethanol extraction and can handle ultra-low temperatures
• Material: FEP / PTFE
