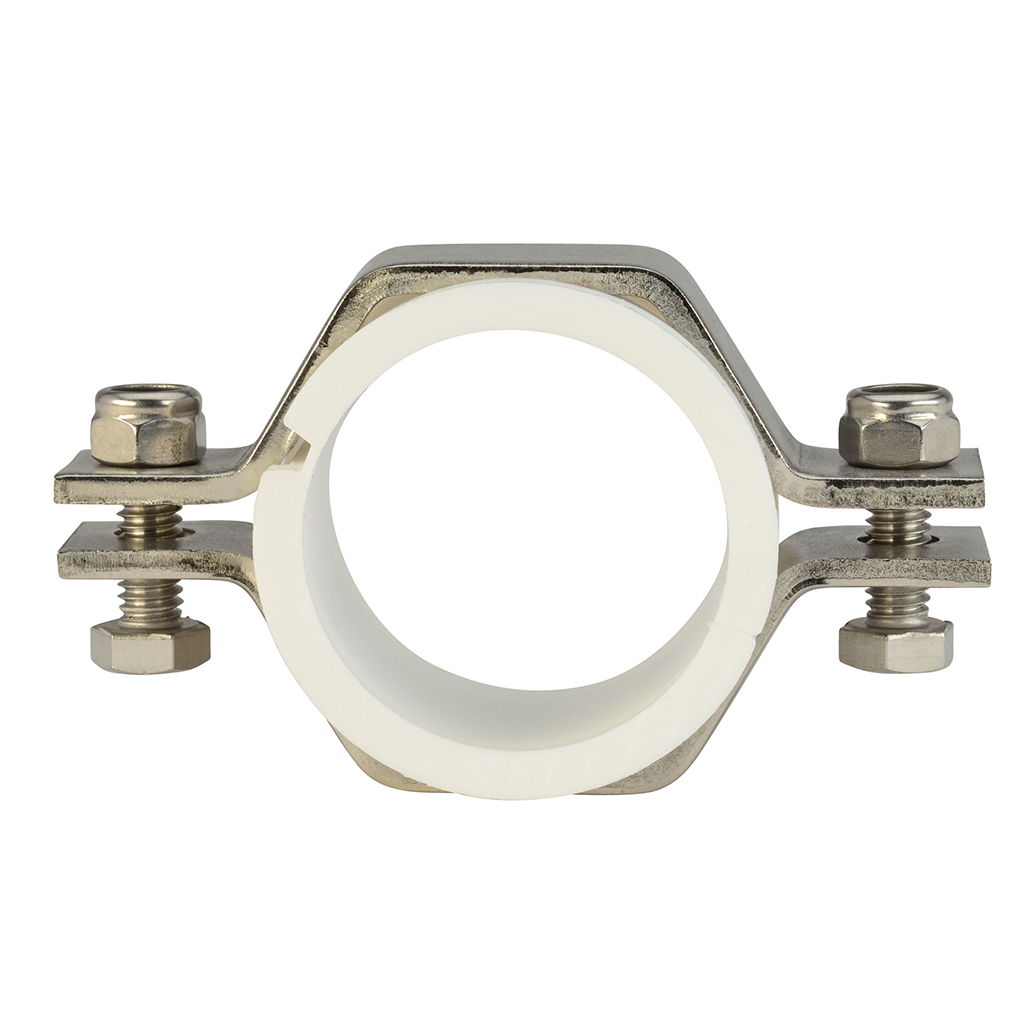

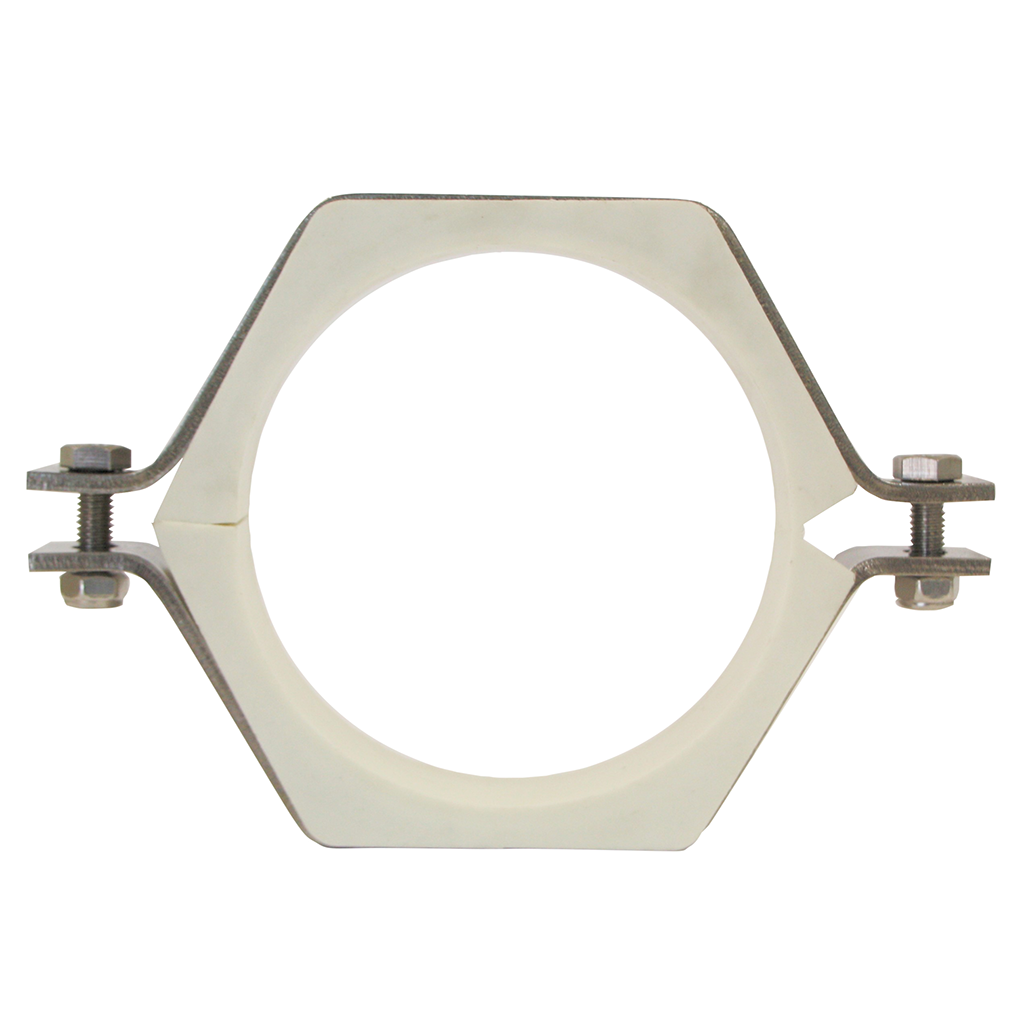

The PVCT Tube Hex Hanger with a PVC Sleeve is available in a range of sizes between 1/2" and 8". Other sizes are available by special order. Please call with any inquiries.

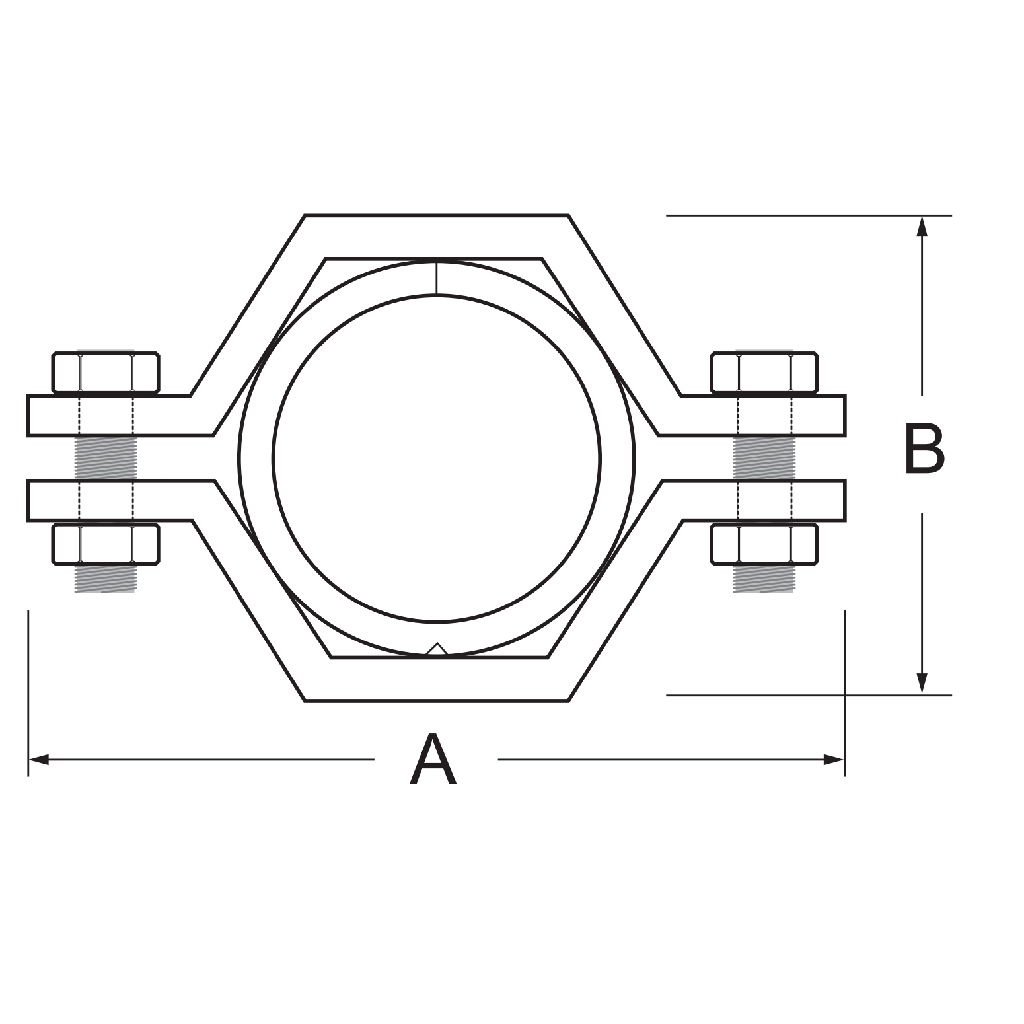

Tube O.D. | A | B |
1/2" | 2.52 | 1.00 |
3/4" | 2.94 | 1.24 |
1" | 3.13 | 1.50 |
1-1/2" | 3.70 | 2.00 |
2" | 4.28 | 2.50 |
2-1/2" | 4.80 | 2.96 |
3" | 5.45 | 3.50 |
4" | 6.70 | 4.50 |
6" | 9.20 | 6.30 |
8" | 11.50 | 8.62 |
10" | 14.50 | 10.50 |
12" | 16.62 | 13.00 |
