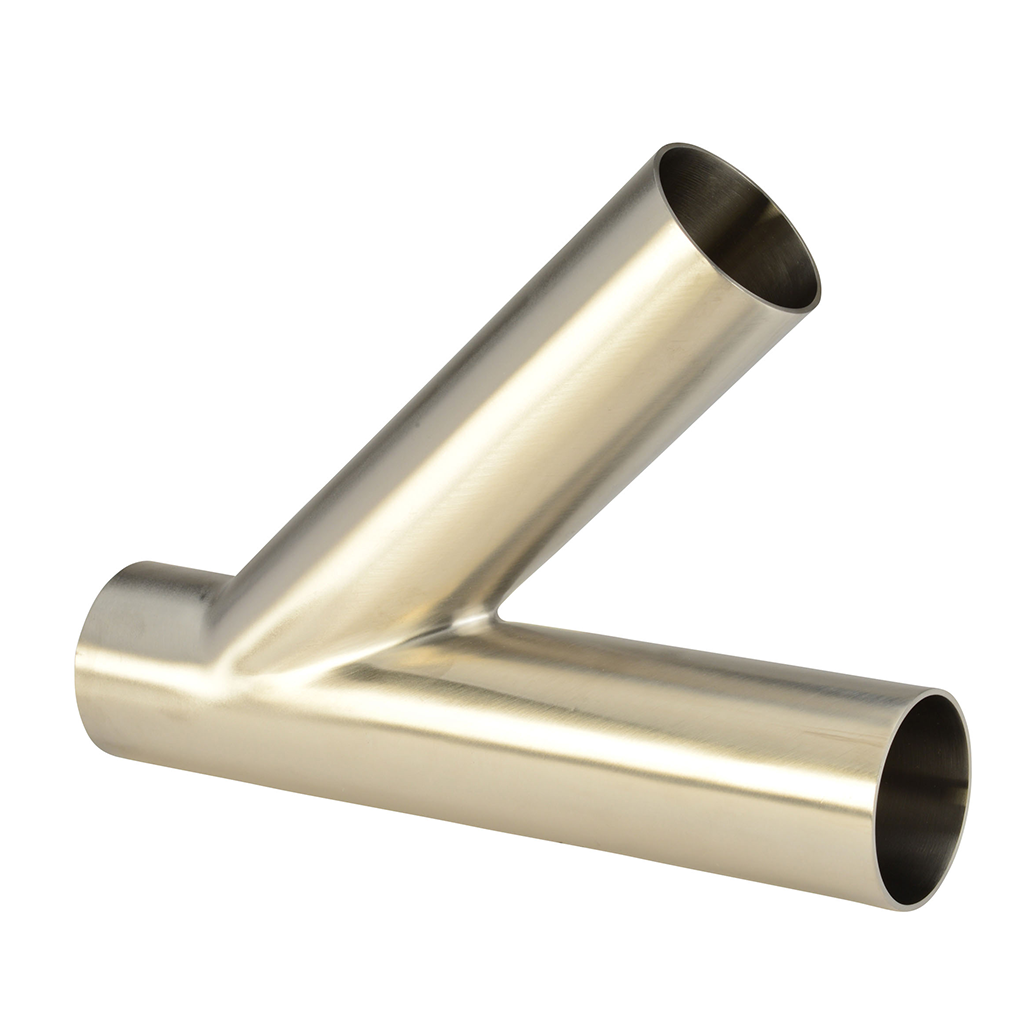

28WA - Butt-Weld Lateral Wye - Polished
From$84.88
Unit price
/
Unavailable
Description
Description
The 28WA Butt-Weld Lateral Wye is a 3A-certified sanitary fitting designed to be welded into permanent piping lines. The lateral wye is made of 316L stainless steel and is polished to 32Ra ID/OD. Other sizes and materials are available upon request. Please call with any inquiries.

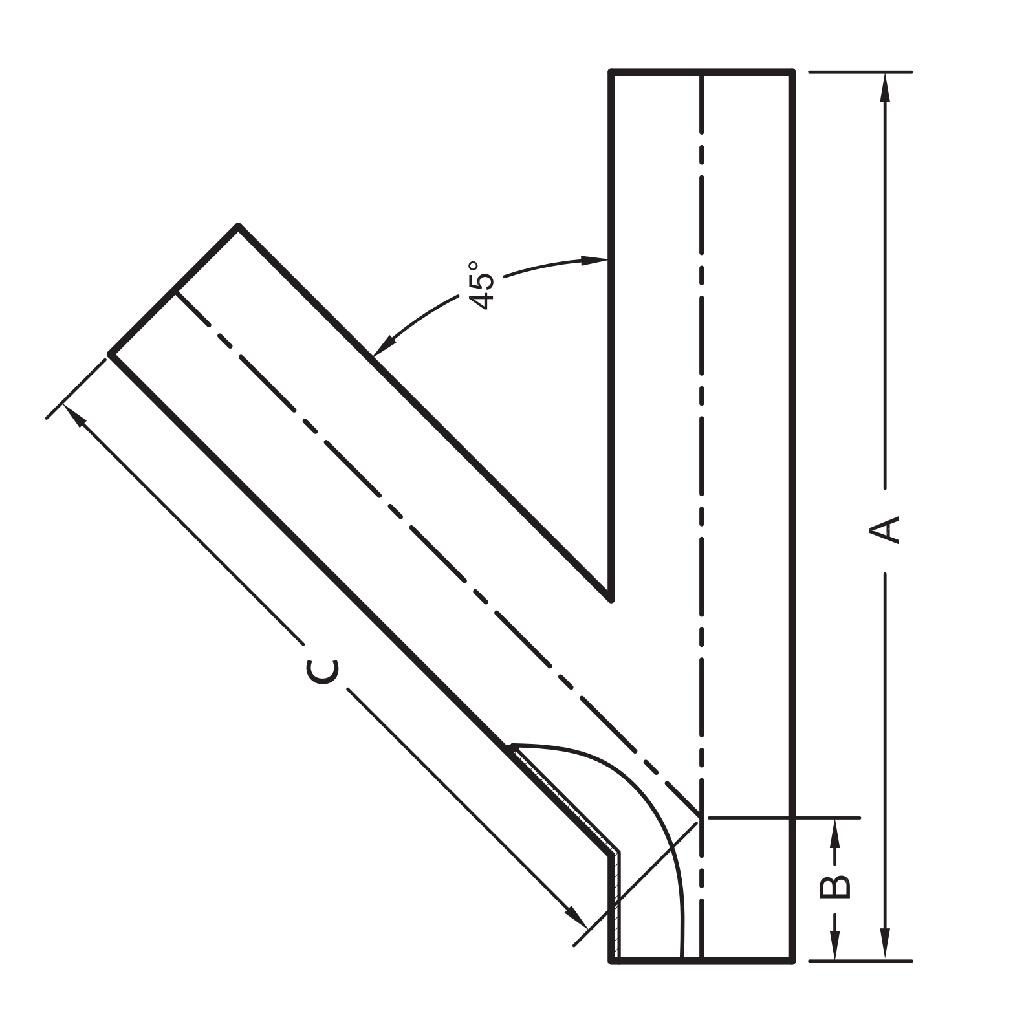

| Tube O.D. | A | B | C |
| 1" | 6.00 | 1.00 | 5.00 |
| 1-1/2" | 7.37 | 1.19 | 6.19 |
| 2" | 8.75 | 1.62 | 7.12 |
| 2-1/2" | 10.00 | 1.50 | 8.50 |
| 3" | 10.75 | 1.87 | 8.87 |
| 4" | 12.81 | 2.01 | 10.75 |
| 6" | 18.00 | 3.50 | 14.50 |
