Stainless Steel Washdown Motor
Description
Description

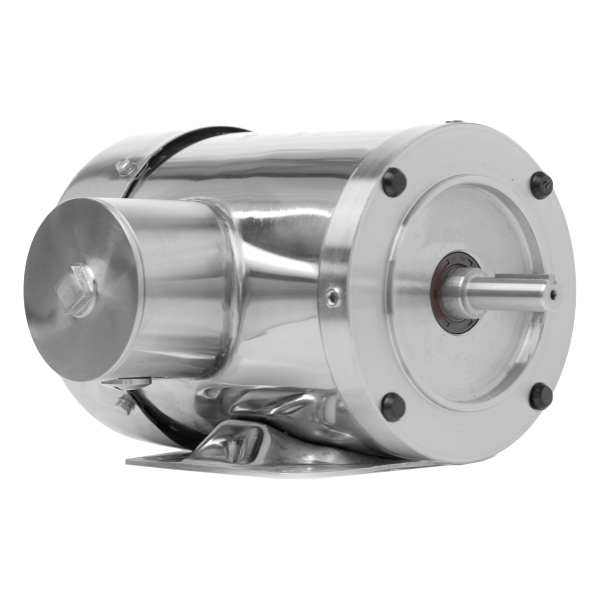

The Stainless Steel Washdown Motor is a direct replacement motor for CPE pump assemblies. These washdown motors are constructed of stainless steel and are totally enclosed and fan cooled (TEFC), meaning they are sealed off from the environment with an IP69 rating. The durable design and corrosion resistance makes this motor ideal for the tough environment faced in sanitary processing facilities. This electric motor is designed specifically for washdown duty and is perfect for food and beverage processing and specialty chemical applications.
Features include:
- Totally Enclosed Fan Cooled (TEFC) Enclosure
- C-Face with Feet and C-Face Round Body
- Encapsulated Windings
- Round Welded Junction Box with Epoxy Potted Leads
- 304 Stainless Steel Frame, End Bracket, Junction Box (F1), and Hardware<
- Stainless Steel Shaft and Key
- IP69K Protection
- BEAG Certified – Formerly BISSC
- Class F Insulation with Class B Temperature Rise
- NEMA Premium Efficiency
- NEMA Design B
- Continuous Duty
- 1.15 SF
- Suitable for 50 Hz, 190/380V, 1.15 SF (Derate in HP)
- Viton Oil Seal on DE and ODE
- Double Sealed Bearings
- Inverter Duty – 10:1 Constant Torque (CT) / 20:1 Variable Torque (VT)
- Factory Certified Class 1 Division 2 Groups A, B, C, D – Temperature Code T2B
- Ambient -20◦C to +40◦C, Altitude up to 3300 Feet Above Sea Level (FASL)
- Bi-directional Rotation
While selecting a replacement motor please ensure that the Horsepower, RPM, and frame size are the same as your current motor. If you wish to change any of these aspects please contact our sales team to ensure that it is compatible.
