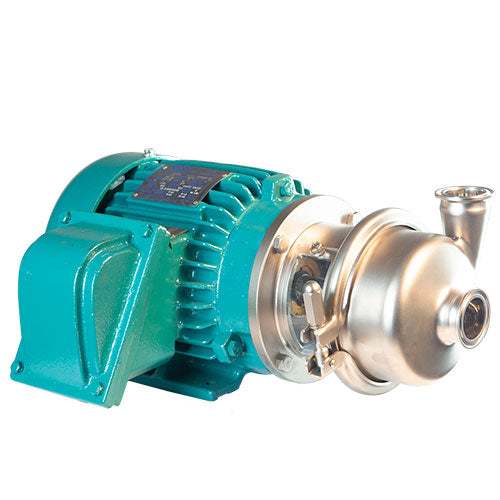

INOXPA Hyginox SEN-15 Centrifugal Pump With Explosion Proof Motor

The INOXPA Hyginox SEN-15 Internal Seal Pump

The INOXPA HYGINOX SEN-15 pump is perfect for small batch distilleries. A sanitary centrifugal pump, the Hyginox series comes with long-lasting internal mechanical seals that reduce product build-up, leaking and improve reliability. It’s a pump that just keeps going without hassle. The explosion proof motor makes this pump suitable for use with high proof alcohol, ethanol, and other flammable liquids. It is ideal for use in distilling, making alcohol blended drinks, and for herbal extractions.

The motor is a NEMA 7/9 Frame C-face Premium Efficiency Explosion Proof Motor with Cast iron construction. It is UL/CSA Approved for Class 1 Group D and Class 2 Groups F,G.

The explosion-proof Sen15 is only available in three-phase power and is compatible with 460V and 230V. Single-phase motors are available upon request, please contact us for a quote.

Horsepower	Max Pressure (ft. head)	Max Flow (gpm)
1	55	55
1 1/2	65	55
2	70	65

No manual available for download.
