QDB Dry Blender

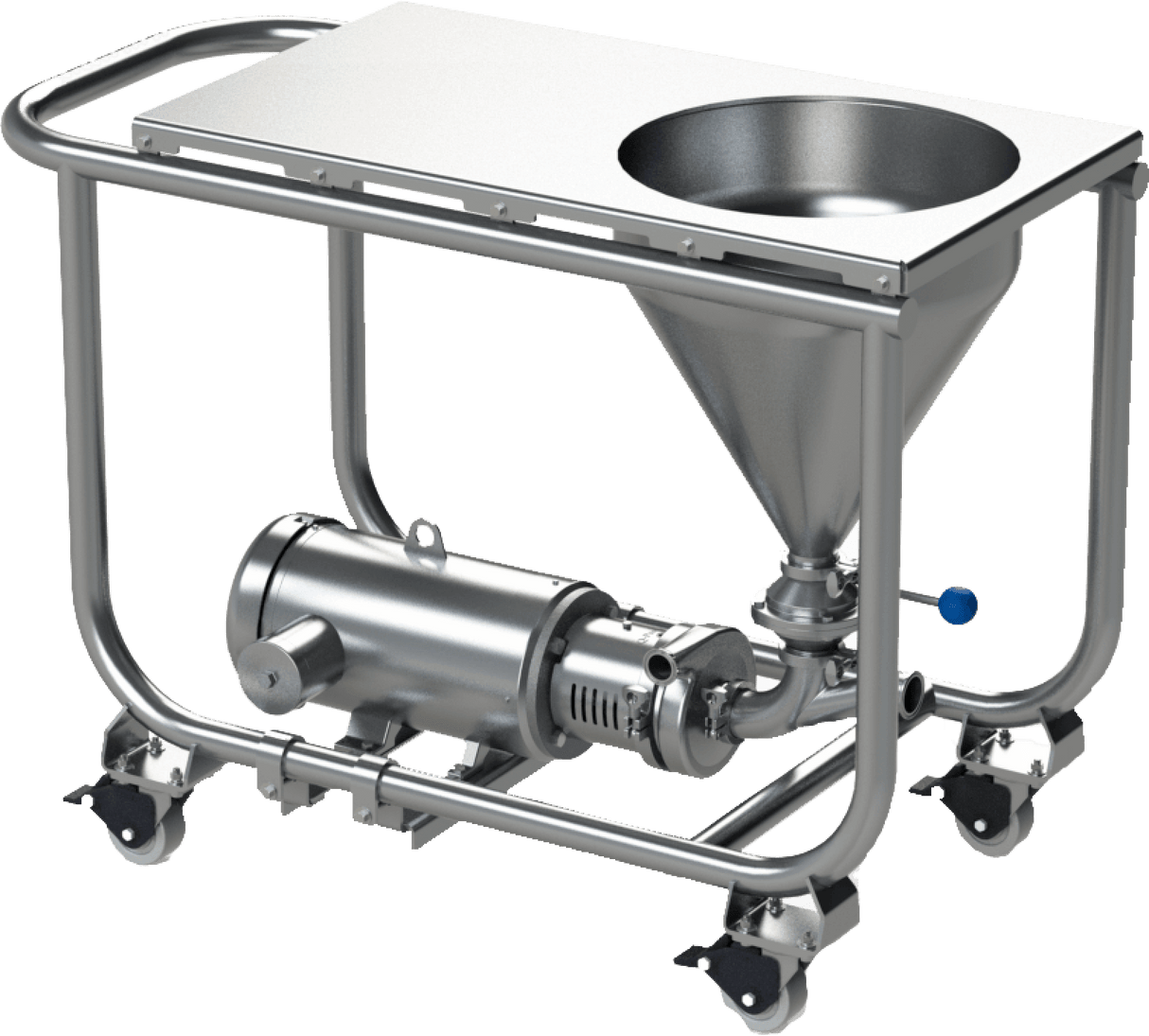

The QDB Dry Blender is a modular sanitary blender designed to seamlessly integrate dry ingredients into product lines in sanitary processing applications. The QDB dry blender is composed of the QIM inline mixer, a cone, a work table, and a wheeled cart. The system is controlled with a ball-valve that allows for control while still allowing partial solids to pass without clogs. The modular design and stainless steel construction makes this dry blender easy to move, maintain, and clean unlike built-in units. The QDB can be easily moved between systems and applications. The Dry Blender is used in a variety of sanitary industries for applications including emulsifying, mixing, and hydrating powdered products. The QDB can handle a variety of products including oils, solids, and powders. This mobile blending unit is the ultimate versatile addition to any processing facility.

The QDB is available in four sizes: QDB-214, QDB-316, QDB-318, and QDB-428. The QIM pump is available with 4 different stators allowing you to tailor the QDB to a specific application. Additional features, including a lid for the hopper, a pneumatic vibrator to preventing clumping, and a VFD controller are available on special order.

The QDB needs to be custom sized for the application and must be ordered through a CPE Systems team member so we can ensure it meets your needs.

Please contact us to place an order

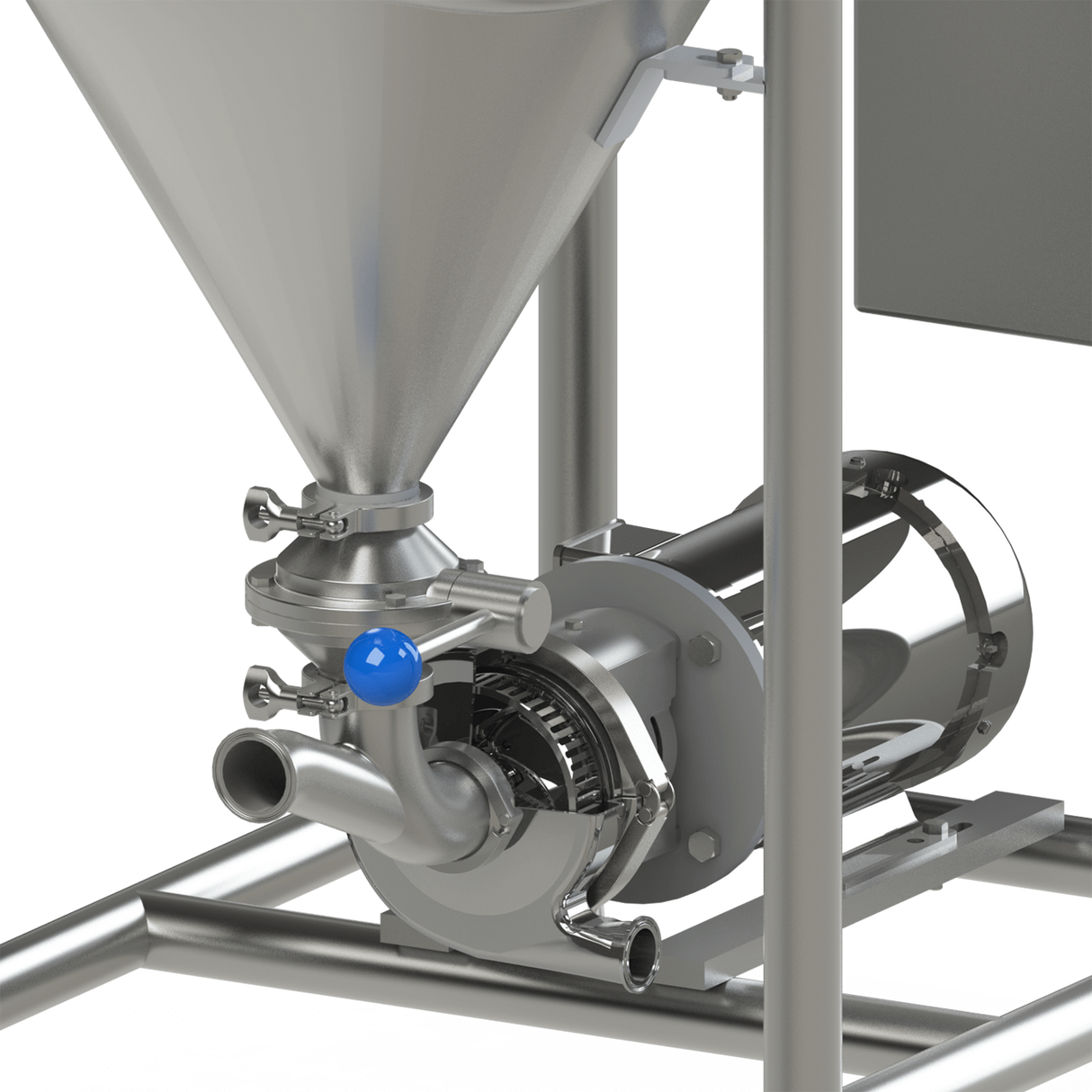

QDB Dry Blender Components:

• QIM Inline mixer
• Work table
• Cone
• Integrated ball valve

QDB Technical Specifications

QDB	Horsepower	Inlet/ Outlet	RPM	Viscosity	Flow	Powder Rate	Discharge Pressure
QDB-214	2 HP	2" x 1.5"	2900	1 cp	90 GPM (20.5 m3/h)	36 kg/min (79 lb/min)	5 PSI
	3 HP	2" x 1.5"	3500	1 cp	110 GPM (25 m3/h)	43 kg/min (94 lb/min)	6.4 PSI
QDB-316	7.5 HP	2.5" x 1.5"	2900	1 cp	200 GPM (45.5 m3/h)	45 kg/min (100 lb/min)	10 PSI
	15 HP	2.5" x 1.5"	3500	1 cp	230 GPM (52.3 m3/h)	55 kg/min (120 lb/min)	17 PSI
QDB-318	20 HP	3" x 1.5"	2900	1 cp	235 GPM (53.4 m3/h)	68 kg/min (149 lb/min)	30 PSI
	40 HP	3" x 1.5"	3500	1 cp	285 GPM (64.8 m3/h)	81 kg/min (178 lb/min)	44 PSI
QDB-428	30 HP	4" x 2"	2900	1 cp	340 GPM (77.3 m3/h)	250 kg/min (550 lb/min)	28 PSI
	50 HP	4" x 2"	3500	1 cp	400 GPM (90.9 m3/h)	300 kg/min (660 lb/min)	44 PSI



QDB Stator Options

	Straight Radial Slots	Small Radial Holes	Large Radial Holes
Sizes:	1/"8, 3/16", 1/4"	1/8", 3/16", 1/4"	3/8", 5/8", 7/8"
Suggested Application:	Powder mixing and lump disintegration	Emulsification	Chopping soft solids into smaller particles

Dry Blender Applications

The QDB is used in a variety of industries including food, beverage, dairy, and cosmetic. Applications range from emulsifying, to product integration, to product mixing, and more.

Applications the dry blender is designed for include:

• Dairy Products
• Dough
• Pastas
• Sauces
• Confectionery
• Dressings
• Powders
• Purees
