Pumps for Purees

As production scales, transferring purees can become a challenge, especially when moving from boxes to barrels. This often leaves craft beverage and food manufacturers wondering about the best ways to transfer purees without damaging the product or introducing excess O2, all while making sure nothing goes to waste.

At CPE Systems, we have two solutions which we feel capture most use cases.

Barrel Pumps Diaphragm Pumps

Barrel Pumps

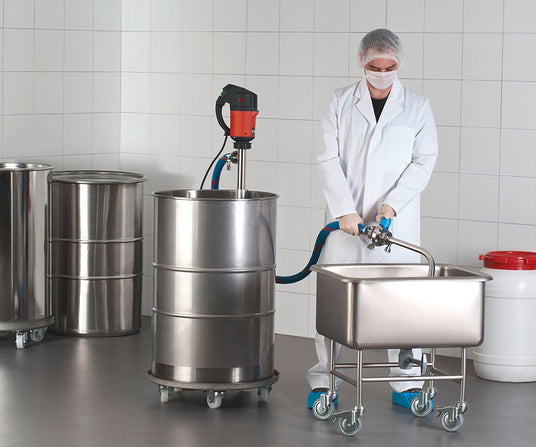

Barrel Pumps are the easiest way to manage transfers from totes and barrels. Built to interface directly with them, these permit the transfer of purees quickly and easily, while also being portable and easy to clean. The design of these pumps allows them to transfer from the bottom up, minimizing oxygen ingress and reducing waste.

When choosing a barrel pump, it’s important to look at the viscosity of the liquid you plan to transfer. Axial-flow impeller models like the F427 and FP430 top out at 1,000 mPas which can make it harder to move some high viscosity ingredients. Meanwhile, the F570’s progressive cavity pump can transfer up to 100,000 mPas, but due to its low flow rate (13 GPM) it can be too slow for large volumes.

Benefits
  • Easy to use
  • Easy to clean
  • Low oxygen ingress
  • Low waste
  • Ideal for frequent transfers
Considerations
  • Lower flow rate than some AODD pumps, especially with thicker products
  • Need the correct immersion length for your totes or barrels
  • Purpose specific
FLUX F427 Hygienic Drum Pump (3A Approved)
View details
FLUX FP 430 Explosion Proof Sanitary Drum Pump
View details

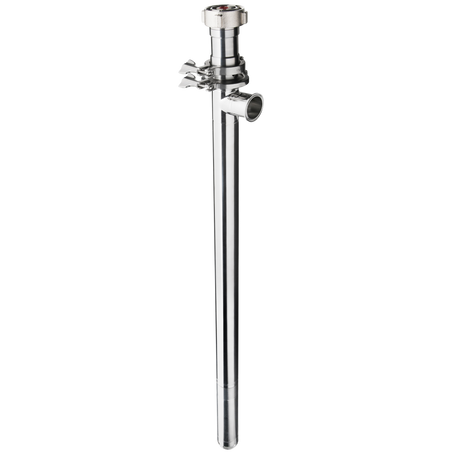

FLUX F570 VISCOPOWER FDA Hygienic Drum Pump
View details
Price
Price
From$3,561.00
From$2,953.00
From$5,915.00
Immersion Length
Immersion Length27", 39", 47"27", 39", 47"27", 39", 47", 60"
Pump Design
Pump Design
Axial-Flow Propeller Pump
Axial-Flow Propeller Pump
Progressive cavity pump
Max Viscosity
Max Viscosity

1,000 mPas

1,000 mPas

100,000 mPas

Max Flow Rate
Max Flow Rate

63 GPM

63 GPM

13 GPM

Use Case
Use Case

Low viscosity fluids

High-proof alcohol and other volatile media

High viscosity substances

Diaphragm Pumps

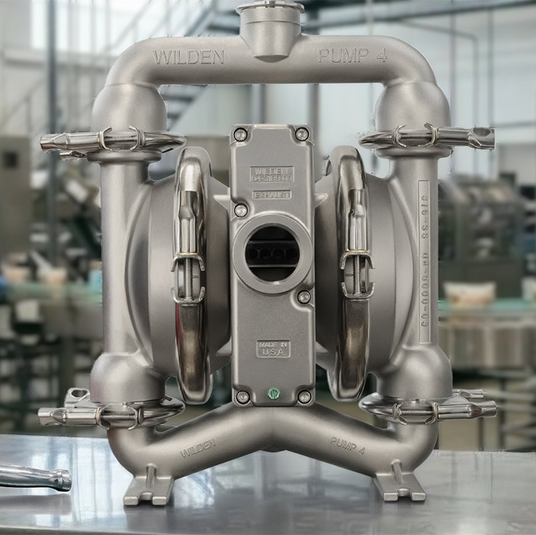

Diaphragm pumps are the Swiss Army Knife approach to tote transfer. A multi-purpose pump suitable for various functions across a facility; they’re often used in puree transfers due to their ability to handle extremely high viscosity, their self-priming capability, and capacity for suspended solids. Depending on the model, they can also often transfer faster than a barrel pump. However, while they can connect to the discharge port on IBC totes, pumping from barrels can present more of a challenge, requiring additional equipment.

While all the AODD pumps we carry are easy to disassemble and clean, the process is not as convenient as it is with a (much smaller) barrel pump.

Benefits
  • Multifunctional
  • Good for high viscosity
  • Can handle larger suspended solids
  • Potentially higher transfer rate
Considerations
  • May need additional equipment for barrels
  • More expensive
  • Awkward to move around
  • May require an air compressor

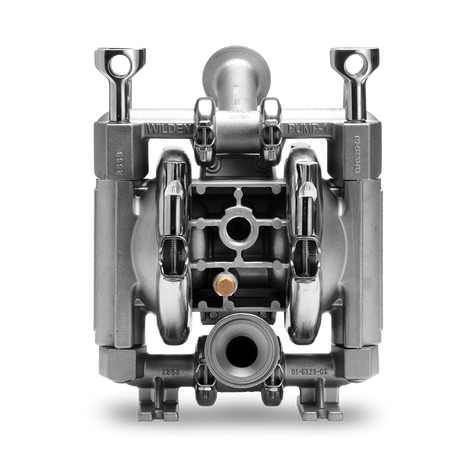

Wilden PS1 (1" Tri-Clamp) Saniflo FDA AODD Pump
View details

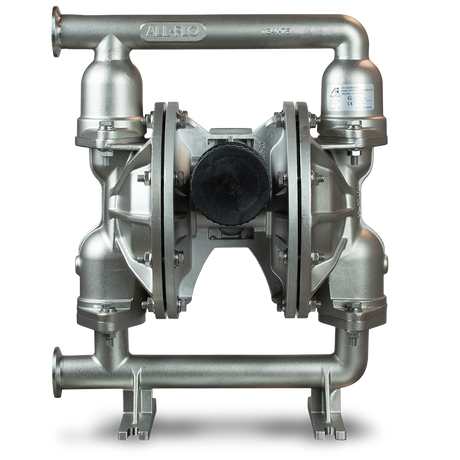

All-FLO "All-Pur" FDA Series AODD Pump
View details
Wilden PS2 (1") Saniflo Hygienic AODD Pump
View details
Price
Price
From$3,355.00

MAP

This is the minimum price we're permitted to display. If you have a business account, you can log in to see your price.
From$3,887.00
From$8,671.00

MAP

This is the minimum price we're permitted to display. If you have a business account, you can log in to see your price.
Max Viscosity
Max Viscosity

20,000 mPas

Starting at 25,185 mPas

20,000 mPas

Max Flow Rate
Max Flow Rate

15.9 GPM (rubber or TPE)

Starting at 48 gpm

32 GPM (rubber)

Use Case
Use Case

Low volume, medium to high viscosity products.

All-purpose hygienic pumping

High-clean environments
Application Pump Reason
Low Viscosity F427 / FP430 Axial impellers produce high flow rates while gently moving low-viscosity products like juices, thin concentrates, and thin fruit purees.
High Viscosity F570 / Diaphragm Pump Progressive cavity pumps maintain nearly constant flow regardless of viscosity. Diaphragm Pump pumps also handle highly viscous products well and tolerate changing viscosities.
Shear-Sensitive F570 Smooth, continuous flow minimizes shear.
Large Suspended Solids Diaphragm Pump Diaphragm Pump pumps have large internal passages.
Foaming F570 Continuous, low-pulsation flow reduces agitation and helps minimize foam formation.
Aseptic Bags Diaphragm Pump / F570 High suction-lift make both pumps suitable for evacuating collapsing bag liners.
Drums F 427 / FP 430 / F570 Drum pumps are purpose-built for transferring products directly from drums with minimal residual product.
Small Batch Additions F 427 / FP 430 / F570 Easy operator control for dispensing ingredients into kettles or mixers. Progressive cavity pumps provide a steadier flow for batching.
