C100MD Pump With TEFC Motor
Free Gift

  • 650.00

Call for Pricing

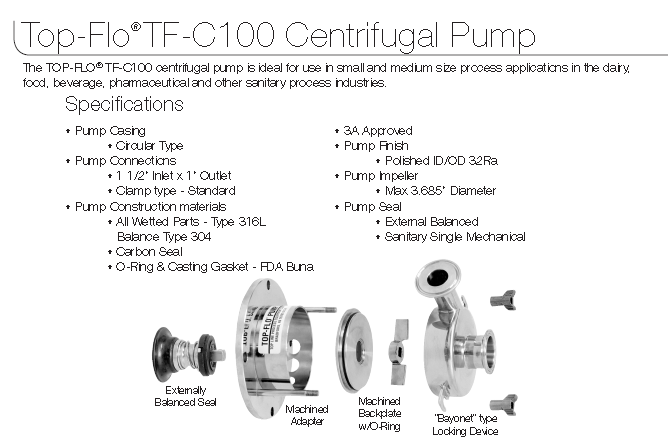

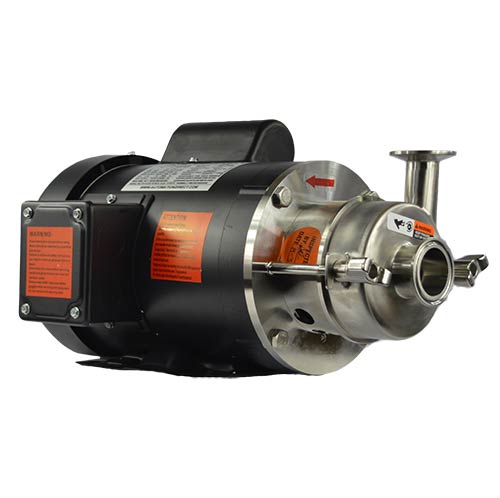

The C100 centrifugal pump is ideal for use in small and medium size process applications in the dairy, food, beverage, pharmaceutical and other sanitary process industries. The C100 Pump has an adapter and backplate made from precision machined stainless steel. An O-ring on the backplate provides a tight, secure seal with the casing for longer trouble-free operation. Because all of the other C100 Pump components remain the same, existing pumps can be easily retrofitted to the new designed adapter and backplate. Includes an IronHorse AC induction motor, 1 hp, 3600 RPM, TEFC, 56C frame, rolled steel, Class F insulation, NEMA design B, removable bolt-on base

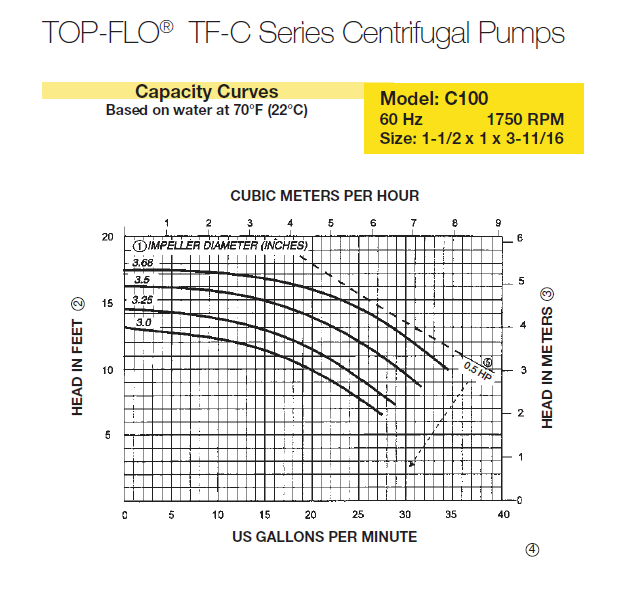

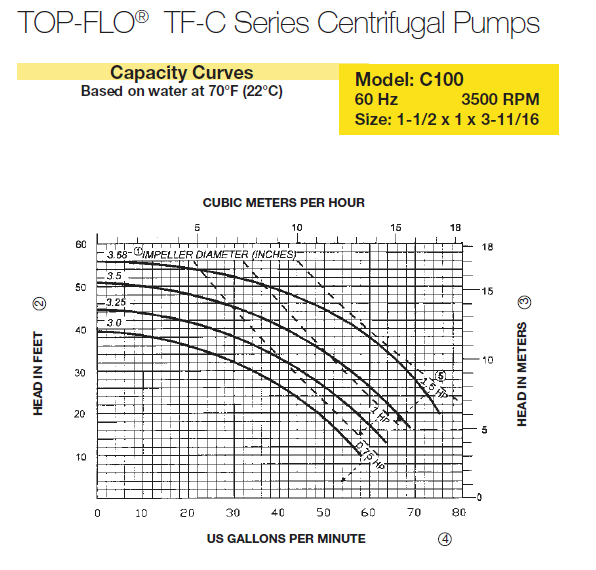

Capacity 60 GPM

Head 55 feet

Connections  1 1/2" X 1" Tri-Clamp



Sold Out
