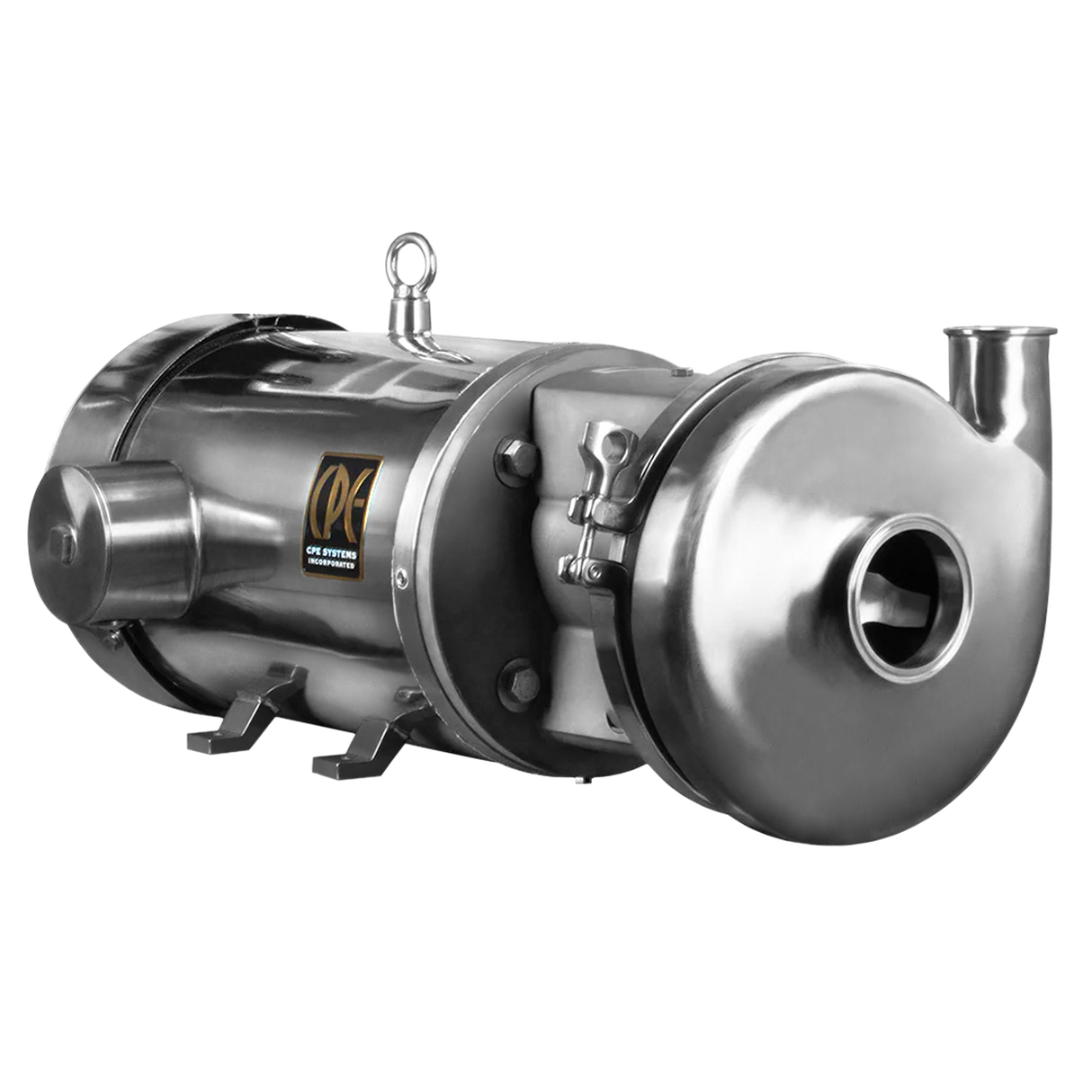

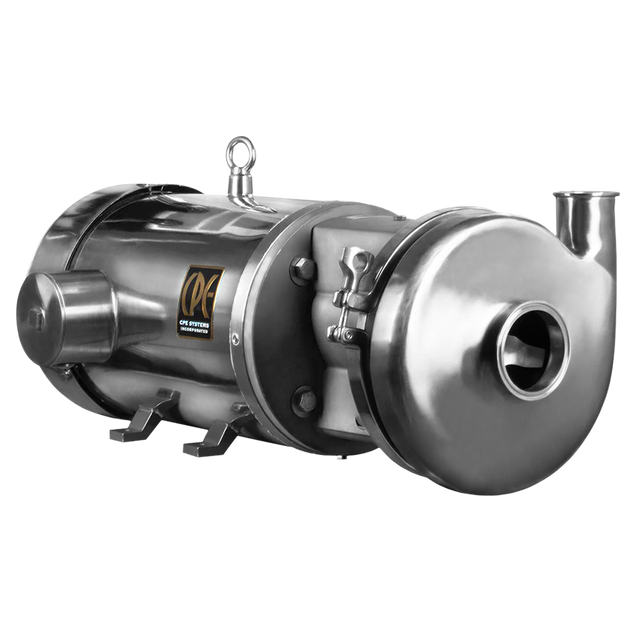

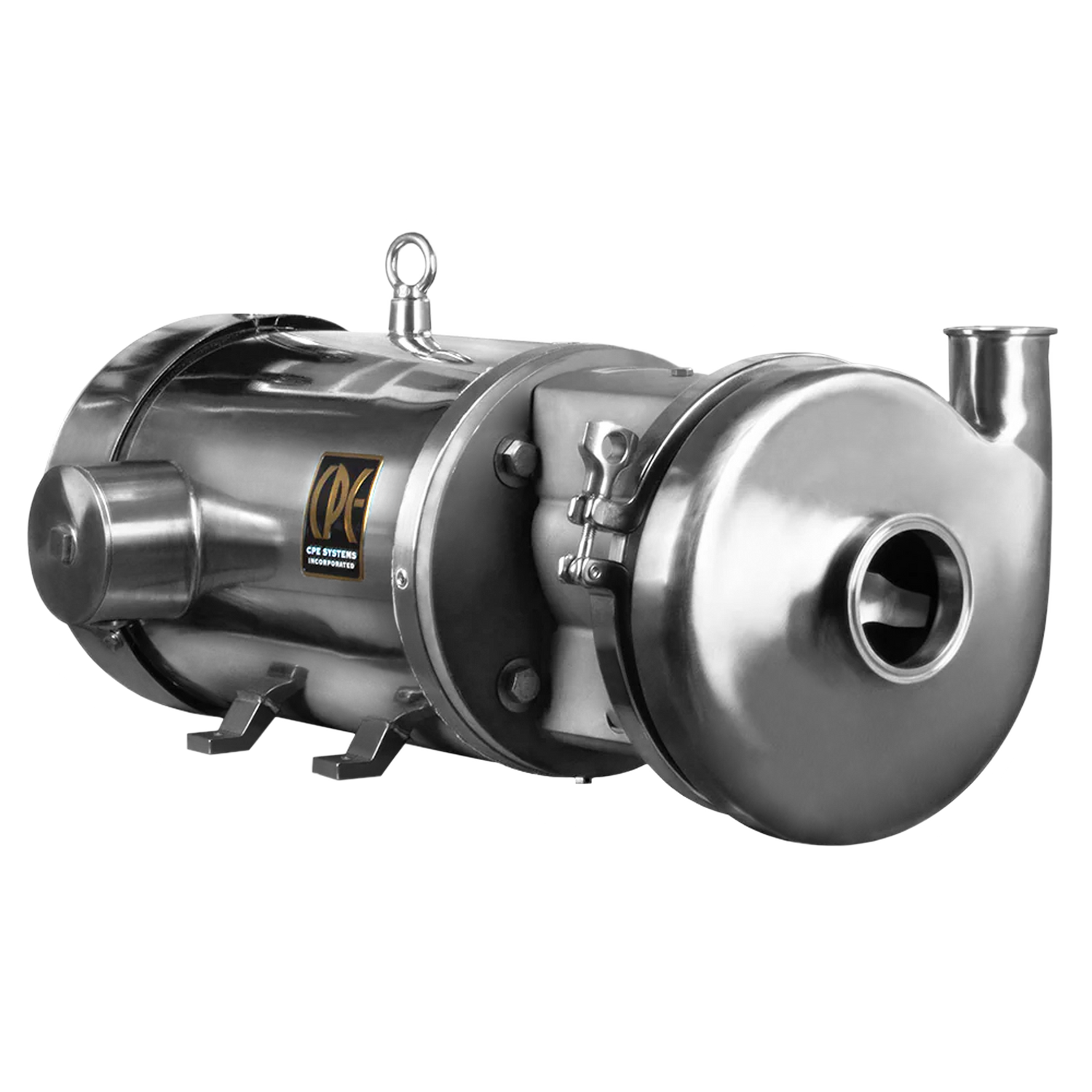

C218/318MD Centrifugal Pump (7 1/2- 15 HP)

The CPE C218/318MD is ideal for large production breweries and wineries with models up to 40 HP and flow capacity up to 500 GPM.

The CPE C218/318MD is part of the C-series centrifugal pump family. These pumps are built with a stainless steel washdown motor that makes cleaning easier and quicker, reducing the issues caused by spillage. They are workhorses that will give you years of excellent service, and when needed replacement parts are interchangeable with most major brands of sanitary C-series centrifugal pumps.

The C218 provides a 2 inch inlet, 1 1/2 inch outlet, and an 8 inch impeller, making it a very flexible pump for medium to large volume fluid processing.

The C318MD is a C218MD pump with an enlarged inlet for higher volumes and reduced NPSH requirements. This model provides a 3 inch inlet, 1 1/2 inch outlet, and an 8 inch impeller, making it a very dependable pump for large volume fluid processing.

All pumps come standard with Tri-Clamp connections, but we can supply other connection types by special order. To order a pump larger than 15 HP please call us.

CPE C218/318MD Portable Pump Features and Options

• 2" X 1-1/2" Tri-clamp connections (C218)
• 3" X 1-1/2" Tri-clamp connections (C318)
• All stainless steel construction
• 25 ft cord with a standard NEMA locking plug
• NEMA 4X digital VFD
• Stainless steel cart

Voltage Options:

• 230/460 volt 3 phase

Seal Options:

• "D" Single mechanical external seal
• "DG" Single mechanical external seal with replaceable ceramic seat
• "F" Single mechanical external seal with water cascade

7 1/2 HP: The capacity of this pump is 170 GPM and it will put out 55 ft of head pressure

10 HP: The capacity of this pump is 225 GPM and it will put out 150 ft of head pressure

15 HP: The capacity of this pump is 250 GPM and it will put out 175 ft of head pressure
