QIM+214 Shear Pump
Regular priceFrom
$4,250.00
Unit price
Description
Description

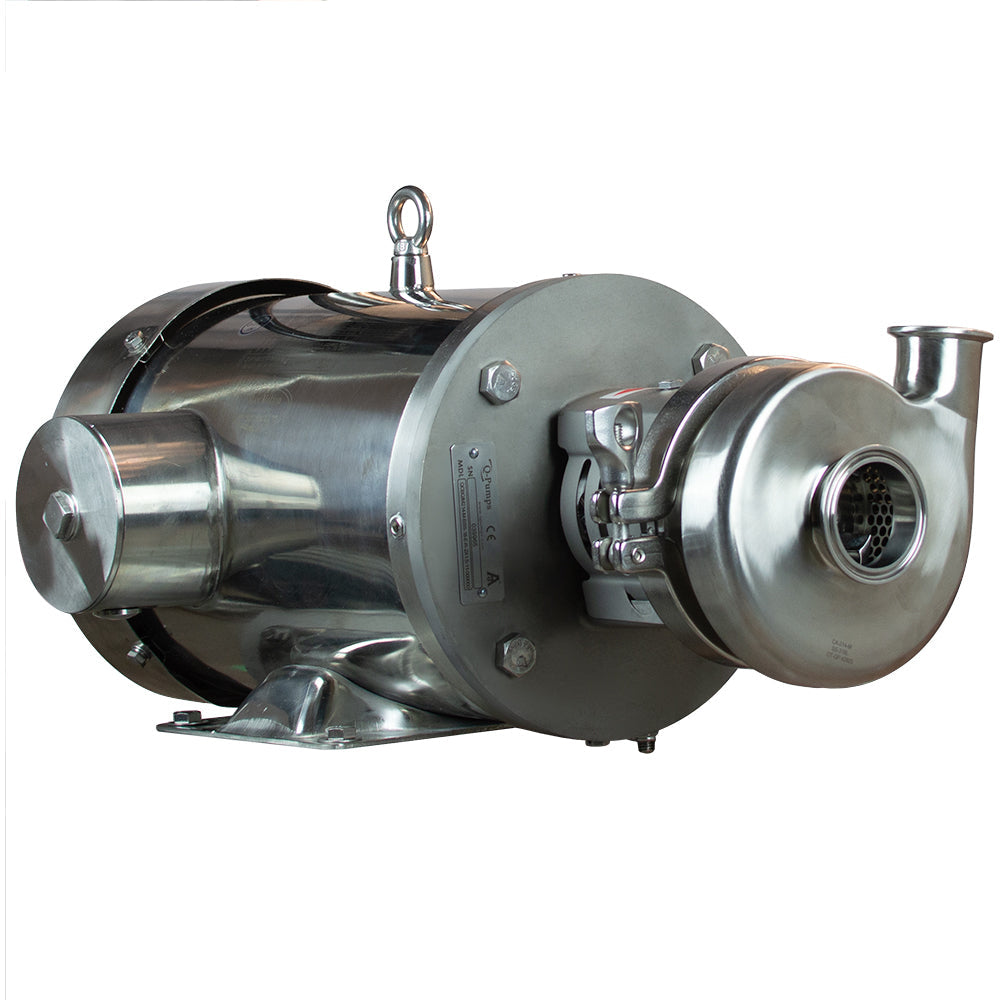

The QIM shear pump is an inline centrifugal mixer/shear pump. The semi-open impeller is paired with a unique perforated backplate. The radial flow through the perforations creates a shear effect. The backplate is available in two stator designs straight radial slots and radial holes of different widths and diameters. The QIM+214 pump head is attached to our stainless steel washdown motor.
QIM+214 Stator Designs
| Straight Radial Slots | Small Radial Holes | Large Radial Holes | |

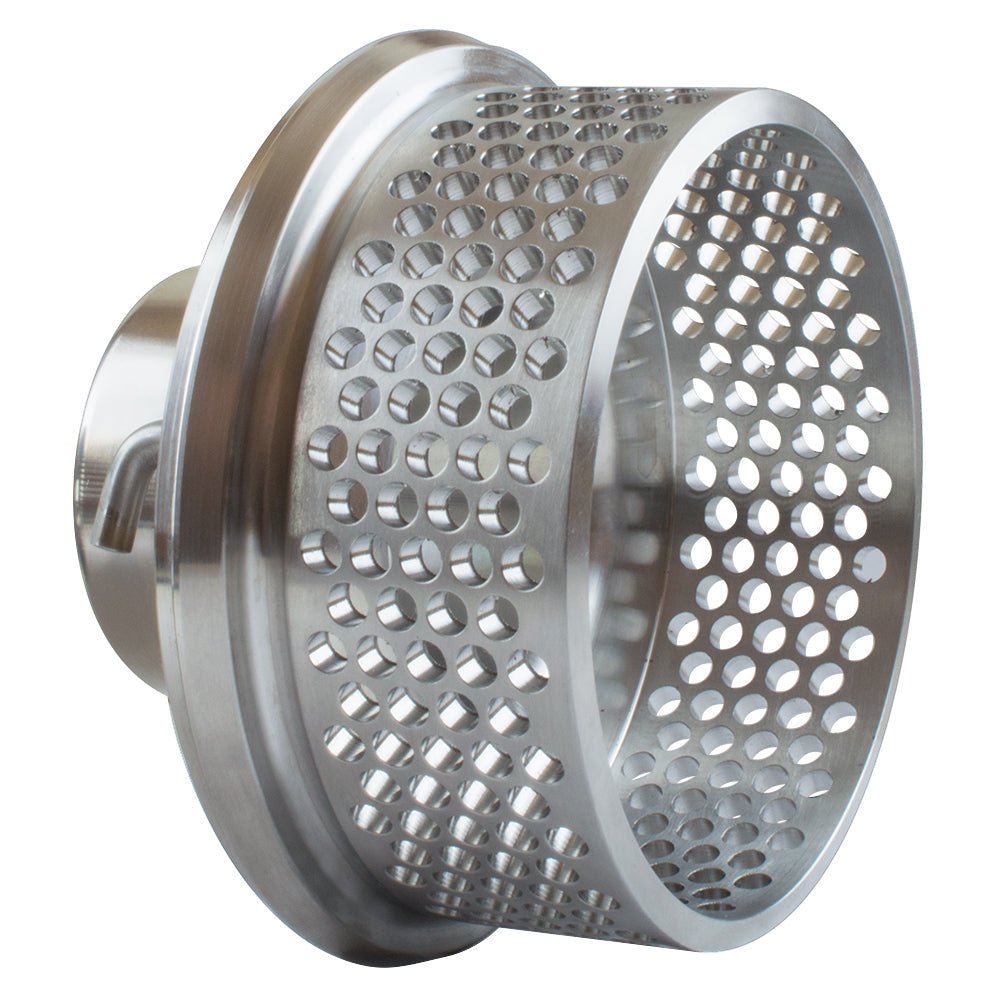

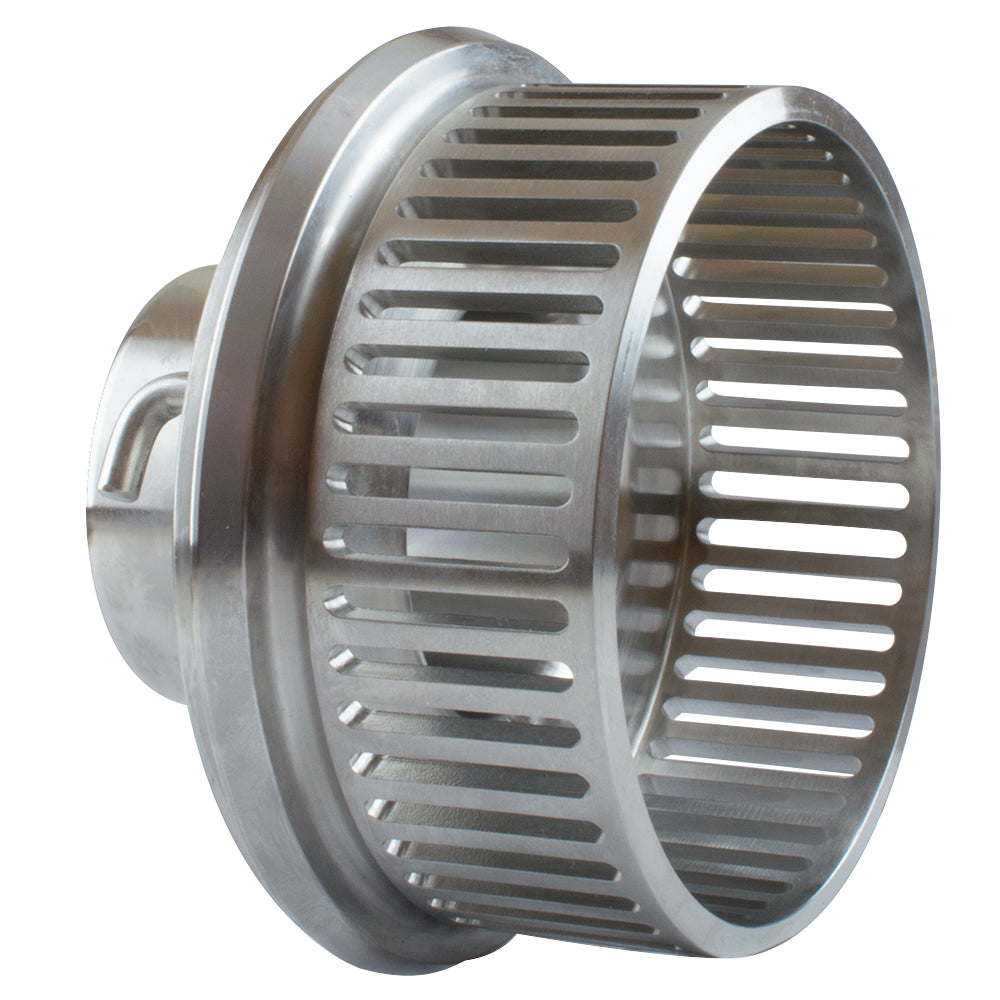

| Sizes: | 1/"8, 3/16", 1/4" | 1/8", 3/16", 1/4" | 3/8", 5/8", 7/8" |
| Suggested Application: | Powder mixing and lump disintegration | Emulsification | Chopping soft solids into smaller particles |
 |
 |
 |
QIM+214 Features
- Self-lubricating internal seal
- Casing o-ring to allow for maximum sealing
- Easy to maintain
- High flow rates
- High shear stator-rotor mixer technology
- Meets 3-A standards (approval pending)
