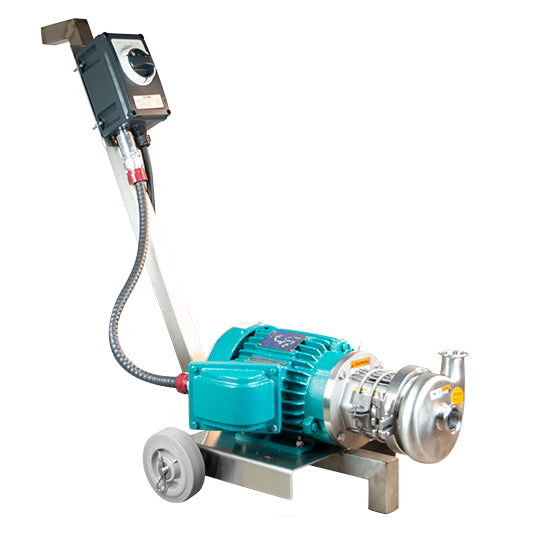

C114MD Pump Assembly With Explosion Proof Motor (1/2 - 2 HP)


The C114MD Explosion Proof Portable Pump

The CPE C114 Portable Pump is perfect for systems up to 30 barrels (depending on the application). The C114 is a durable, and reliable workhorse. These pumps will give you years of excellent service and when needed replacement parts are interchangeable with most major brands of sanitary C-series pumps. This pump comes with a cast iron explosion proof motor that makes cleaning easier and quicker, reducing the issues caused by spillage. The explosion proof motor makes this pump suitable for use with high proof alcohol, ethanol, and other flammable liquids. It is ideal for use in distilling, making blended alcohol drinks, and for herbal extractions.

The C114 assembly comes with our heavy duty Canadian made stainless steel cart, and a heavy duty explosion proof switch. Our carts are custom designed and built in Canada from sanitary stainless steel with non-marring heavy duty wheels. The start/stop control is made by Scame and has a NEMA 7/9 enclosure. The starter and the plug are both certified as explosion proof.

The motor is a NEMA 7/9 Frame C-face Premium Efficiency Explosion Proof Motor with Cast iron construction. It is UL/CSA Approved for Class 1 Group C  and Class 2 Groups F,G.

The explosion-proof C114 is only available in three-phase power and is compatible with 460V and 230V. All pumps come standard with Tri-clamp connections, but we can supply other connection types by special order.


CPE C114MD Portable Pump Features:

  • 1 1/2" X 1 1/2" Tri-clamp connections
  • All stainless steel construction
  • 25 ft cord with an explosion proof plug
  • Scame explosion proof start/stop switch
  • Stainless steel cart

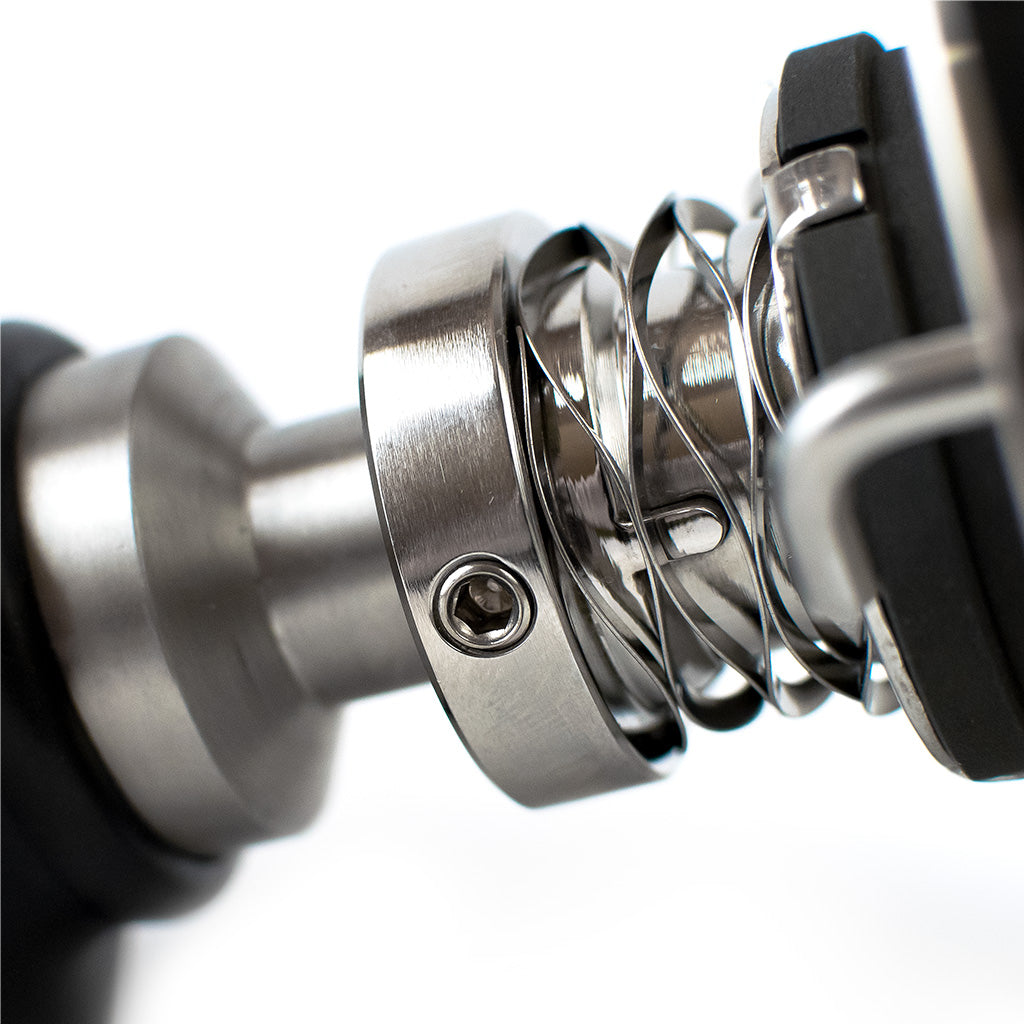

Seal Options:

"D" Single mechanical external seal

"DG" Single mechanical external seal with a replaceable ceramic seat

"F" Single mechanical external seal with a water cascade

1 HP: The capacity of this pump is 50 GPM and it will put out 45 ft of head pressure, ideal for distilleries between 5 and 10 BBLs.

1 1/2 HP: The capacity of this pump is 100 GPM and it will put out 60 ft of head pressure, ideal for distilleries between 10 and 15 BBLs.

2 HP: The capacity of this pump is 125 GPM and it will put out 65 ft of head pressure, ideal for distilleries of 15 BBLs and above.
