C114MD Pump Assembly With Explosion Proof Motor (1/2 - 2 HP)

$2,580.00

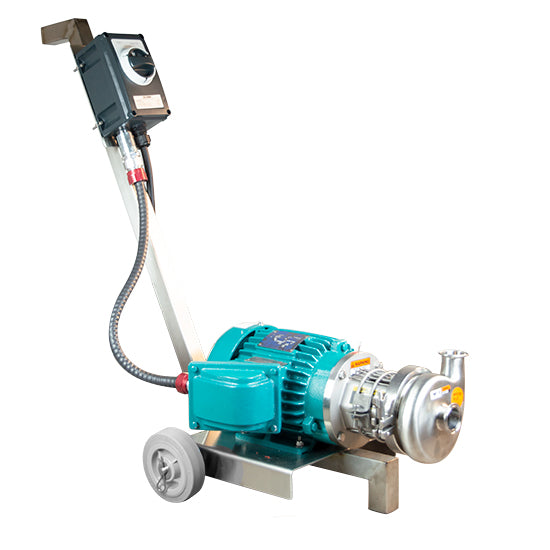

The C114MD Explosion Proof Portable Pump

The CPE C114 Portable Pump is perfect for systems up to 30 barrels (depending on the application). The C114 is a durable and reliable workhorse. These pumps will give you years of excellent service and when needed replacement parts are interchangeable with most major brands of sanitary C-series pumps. This pump is fully explosion-proof making it suitable for use with high proof alcohol, ethanol, and other flammable liquids. It is ideal for use in distilling, making blended alcohol drinks, and for herbal extractions.

The C114 explosion-proof assembly features a C114 pump head, an explosion-proof motor, a stainless steel cart, and an explosion-proof shut-off switch. The motor is a NEMA 7/9 Frame C-face Premium Efficiency Explosion Proof Motor, it is UL/CSA Approved for Class 1 Group D and Class 2 Groups F,G. Our carts are custom designed and built in Canada from sanitary stainless steel with non-marring heavy duty wheels. The shut-off switch has a NEMA 7/9 enclosure. Explosion-proof pumps are shipped without plugs. Customer must install a plug that meets local regulations and electrical code.

The explosion-proof C114 is only available in three-phase power and is compatible with 460V and 230V. Single-phase motors are available upon request, please contact us for a quote. All pumps come standard with Tri-clamp connections, but we can supply other connection types by special order.



CPE C114MD Portable Pump Features:

  • 1 1/2" X 1 1/2" Tri-clamp connections
  • All stainless steel construction
  • 25 ft cord
  • Explosion-proof shut-off switch
  • Stainless steel cart

Seal Options:

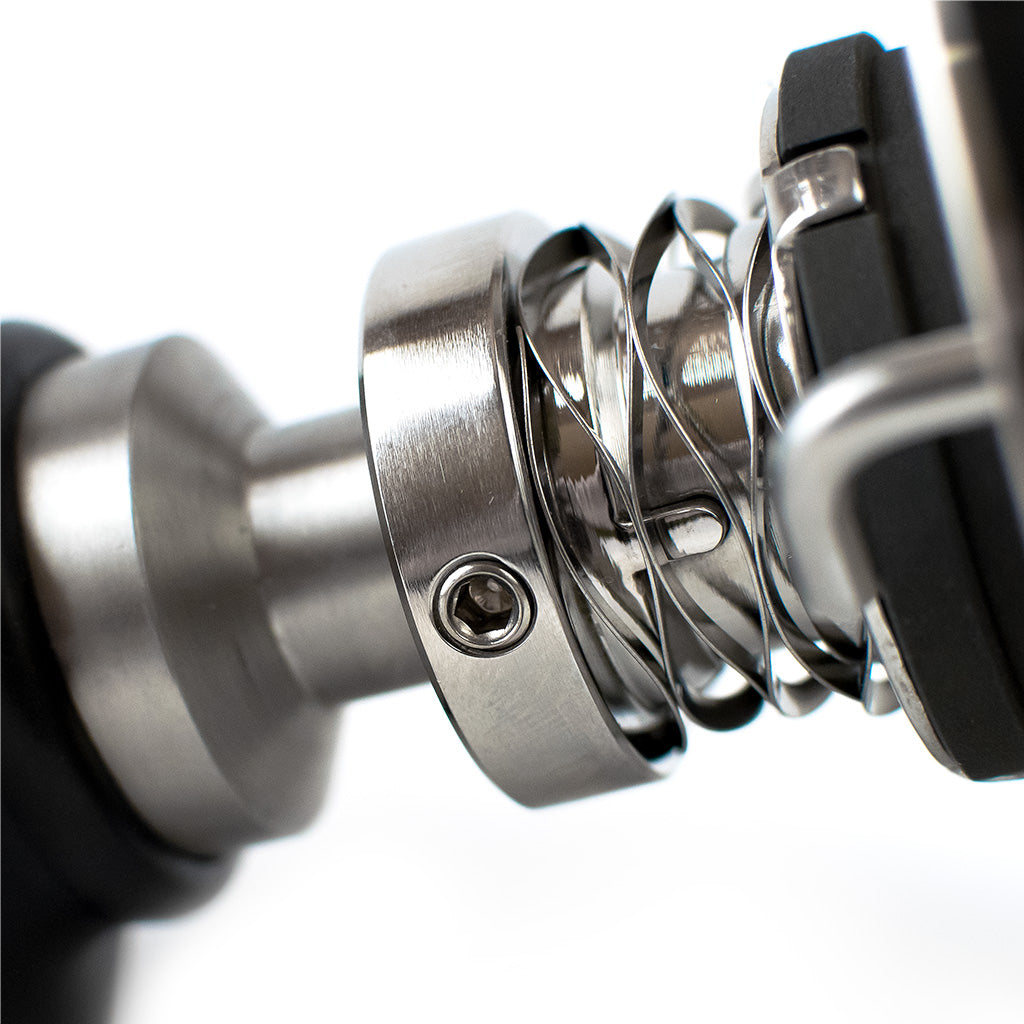

"D" Single mechanical external seal

"DG" Single mechanical external seal with a replaceable ceramic seat

"F" Single mechanical external seal with a water cascade

1 HP: The capacity of this pump is 50 GPM and it will put out 45 ft of head pressure, ideal for distilleries between 5 and 10 BBLs.

1 1/2 HP: The capacity of this pump is 100 GPM and it will put out 60 ft of head pressure, ideal for distilleries between 10 and 15 BBLs.

2 HP: The capacity of this pump is 125 GPM and it will put out 65 ft of head pressure, ideal for distilleries of 15 BBLs and above.





"We have been using CPE systems as a pump and sensor vendor for 3 years now and we really couldn’t be happier with them. They deliver a great product, on time, to spec, and at a fair price. They are always very helpful and friendly when we call with questions. We highly recommend them and look forward to a long relationship with them."

- Bridgetown Brew Systems
