INOXPA Hyginox SEN-15 Centrifugal Pump Assembly With Explosion Proof Motor

$2,610.00

Hyginox SEN 15 Internally Sealed Portable Pump

The INOXPA HYGINOX SEN-15 pump is perfect for small distilleries. A sanitary centrifugal pump, the Hyginox series comes with a long-lasting internal mechanical seal to help reduce product build-up and leaking and improve reliability. It’s a pump that just keeps going without hassle - exactly what you need when starting a distillery. The explosion-proof motor makes this pump suitable for use with high proof alcohol, ethanol, and other flammable liquids. It is ideal for use in distilling, making alcohol blended drinks, and for herbal extractions.

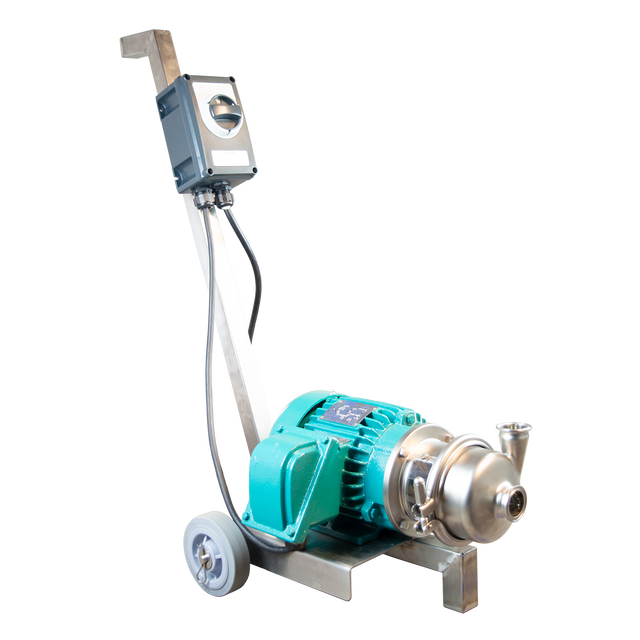

The SEN-15 explosion-proof assembly features an INOXPA SEN15 pump head, an explosion-proof motor, a stainless steel cart, and an explosion-proof shut-off switch. The motor is a NEMA 7/9 Frame C-face Premium Efficiency Explosion Proof Motor, it is UL/CSA Approved for Class 1 Group D and Class 2 Groups F,G. Our carts are custom designed and built in Canada from sanitary stainless steel with non-marring heavy duty wheels. The shut-off switch has a NEMA 7/9 enclosure. Explosion-proof pumps are shipped without plugs. Customer must install a plug that meets local regulations and electrical code.

The explosion-proof SEN 15 is only available in three-phase power and is compatible with 460V and 230V. Single-phase motors are available upon request, please contact us for a quote. All pumps come standard with Tri-clamp connections, but we can supply other connection types by special order.

 Horsepower Max Pressure (ft. head) Max Flow (gpm)
1 55 55
1 1/2 65 55
2 70 65
3 80 82.5


INOXPA Hyginox SEN 15 Specs:

Inlets: 1 1/2" Clamp

Outlets: 1 1/2" Clamp

Seal: Single Mechanical Internal seal Carbon/Silicon Carbide

Nominal pressure: 40 PSI

Maximum flow: 75 US GPM

Maximum speed: 3500 rpm
