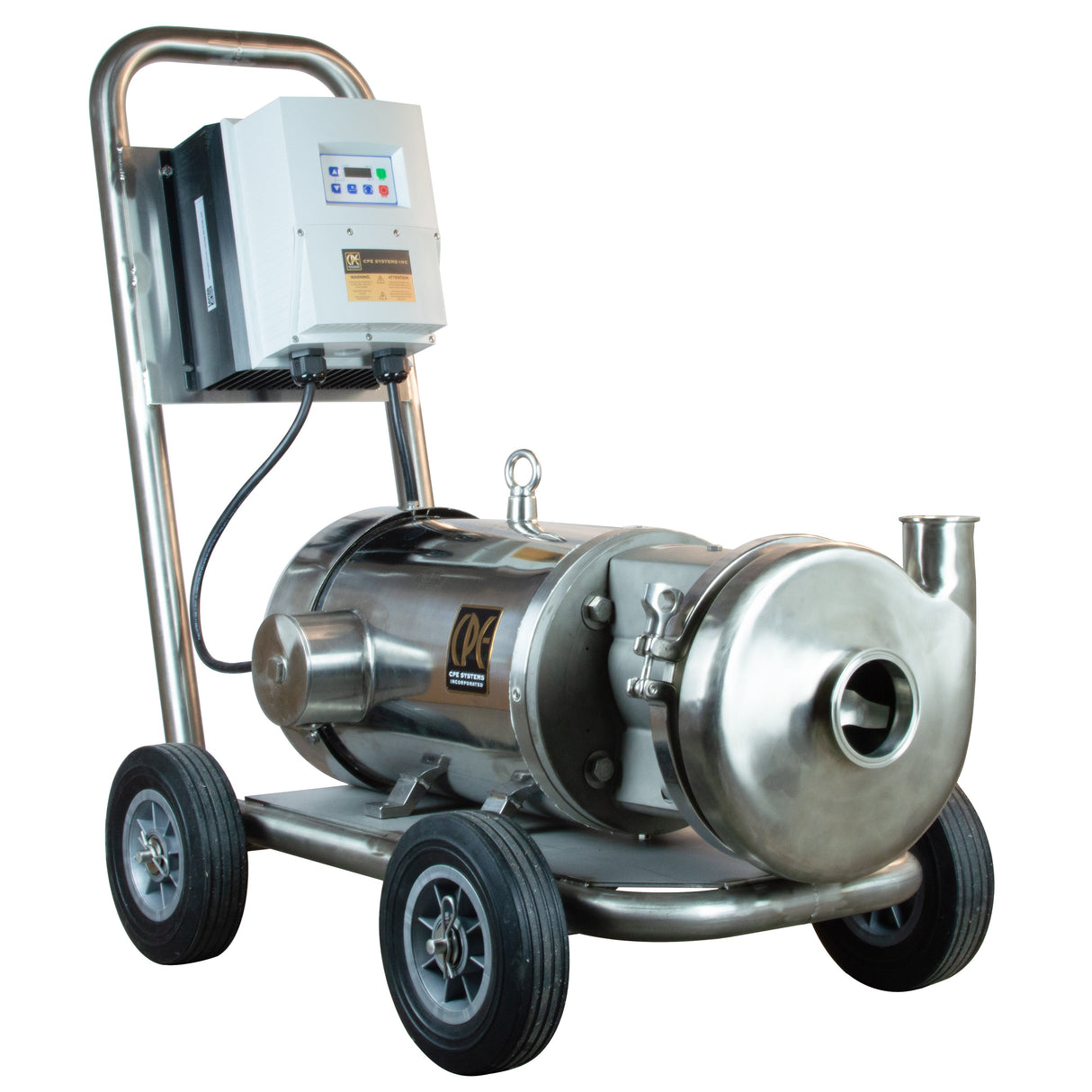

C+328MD Centrifugal Pump Assembly (7 1/2- 15 HP)

The CPE C+328MD Portable Pump is ideal for large production breweries and wineries with models up to 50 HP and flow capacity up to near 700 GPM.

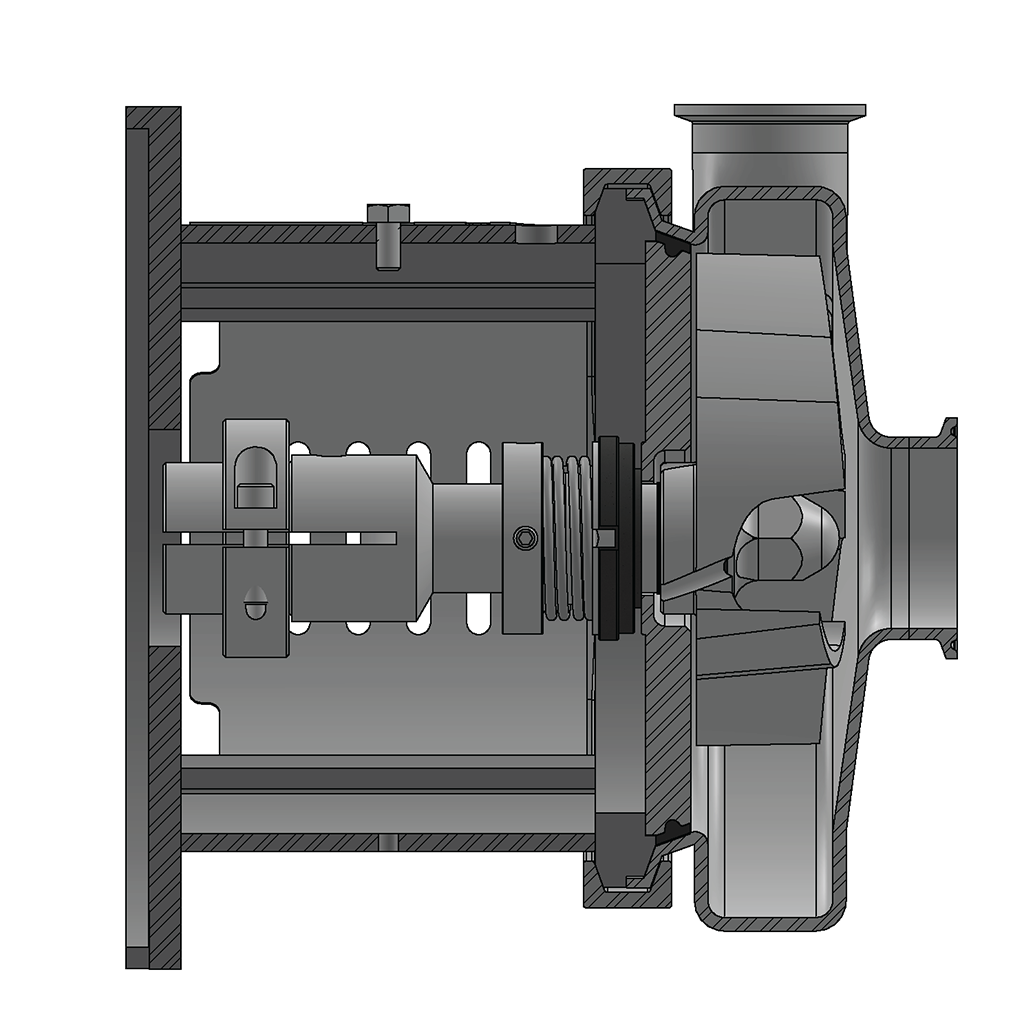

The CPE C+328MD Portable Pump belongs to the C+series centrifugal pump family. This family of pumps are based on the C-Series, but includes both a collar that clamps down on the drive shaft over the full 360 degrees removing the minor wobble that can occur from set screwed shafts and two specialized gaskets to seal the shaft while still allowing a CIP procedure to clean behind the impeller. This model provides a 3 inch inlet, 2 inch outlet, and an 8 inch impeller, allowing it to move high volumes of fluid at lower NPSH. It is built with a stainless steel washdown motor that makes cleaning easier and quicker, reducing the issues caused by spillage.

These pumps are designed specifically for the tough conditions found in food and beverage production. The carts are custom designed and built in Canada completely of stainless steel with non-marring heavy duty wheels. The pump head and motor are stainless steel, and interchangeable with other C-series pumps. The C+328 Portable Assembly will give you years of reliable and excellent service.

​All pumps come standard with Tri-Clamp connections, but we can supply other connection types by special order. To order a pump larger than 15 HP please call us so we can help you select the correct configuration.

C+328 Pump Curve

CPE C+328MD Portable Pump​ Features and Options

• 3" X 2" Tri-clamp connections
• All stainless steel construction
• 25 ft cord with a standard NEMA locking plug

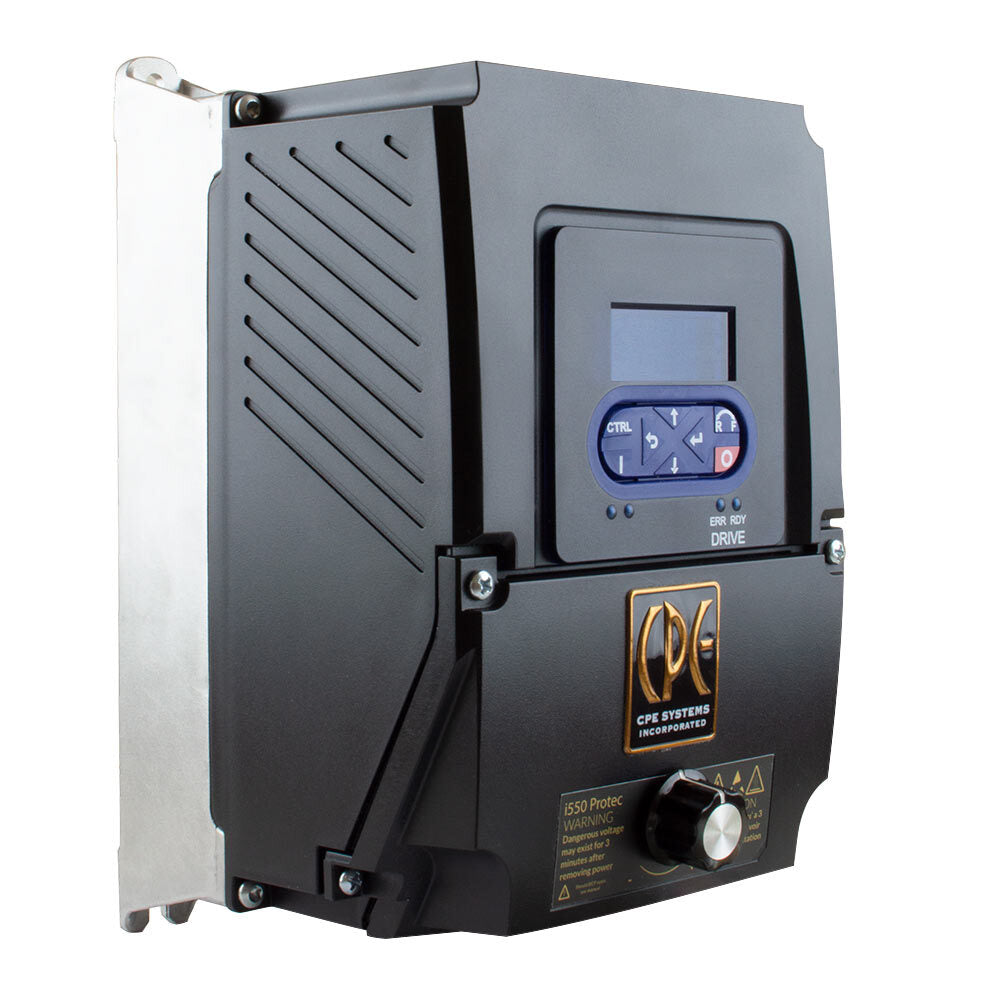

• NEMA 4X digital VFD with a potentiometer
• Stainless steel cart

Voltage Options:

• 230-volt 3 phase (L15-20P)
• 460-volt 3 phase (L16-20P)

Seal Options:

• "D" Single mechanical external seal
• "DG" Single mechanical external seal with replaceable silicone carbide seat
• "F" Single mechanical external seal with water cascade

7 1/2 HP: The capacity of this pump is 350 GPM and it will put out 55 ft of head pressure

10 HP: The capacity of this pump is 425 GPM and it will put out 55 ft of head pressure

15 HP: The capacity of this pump is 525 GPM and it will put out 160 ft of head pressure
