C114MD Barrel Filling Pump Assembly (1 - 3 HP)

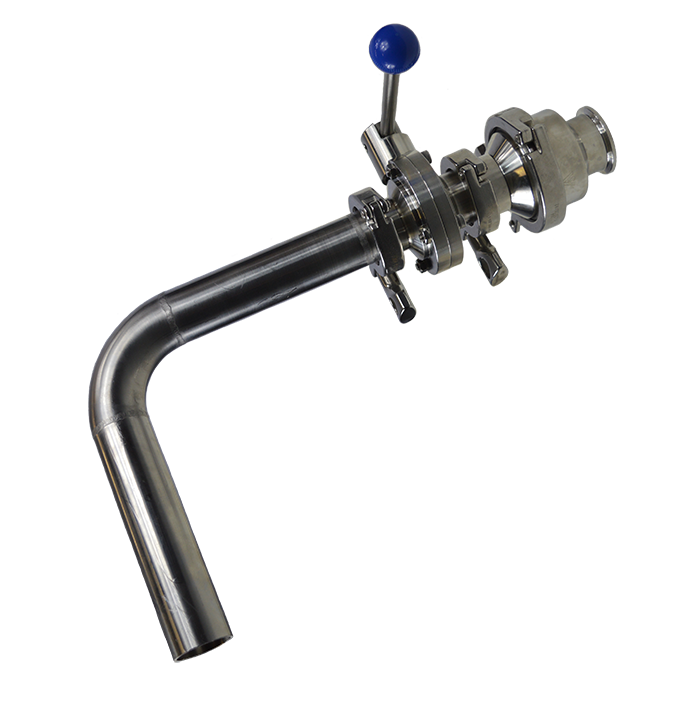

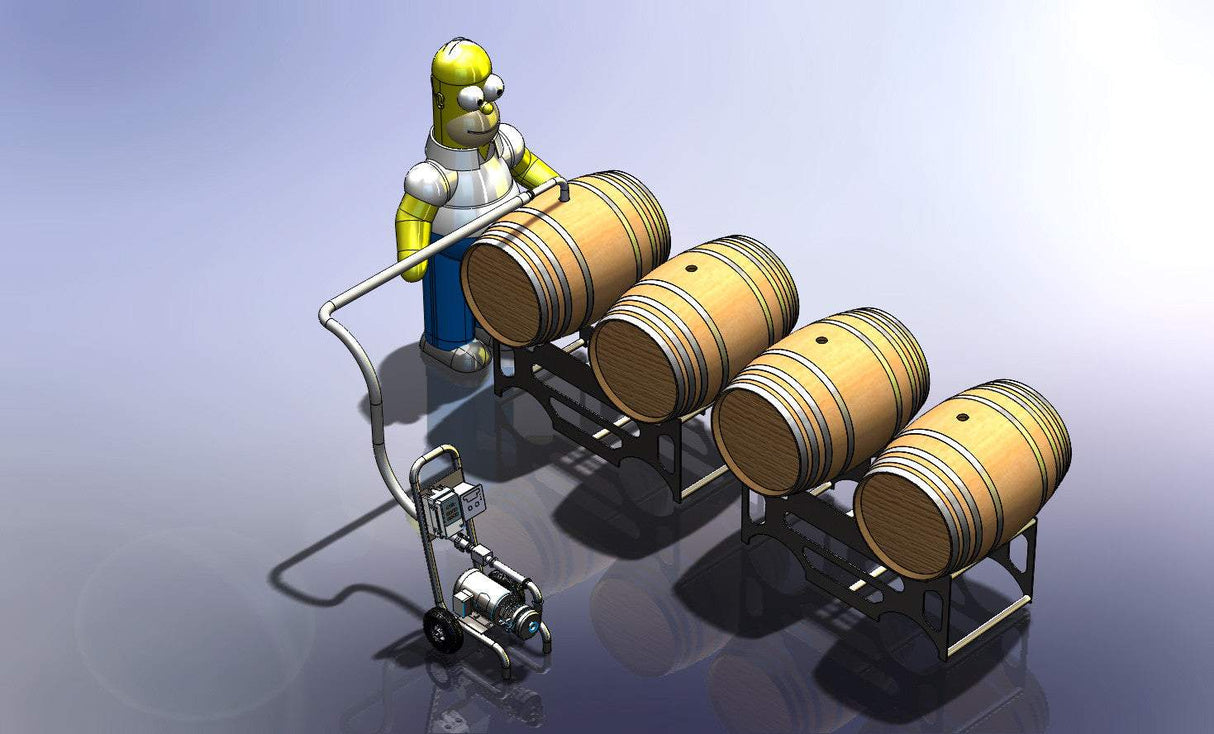

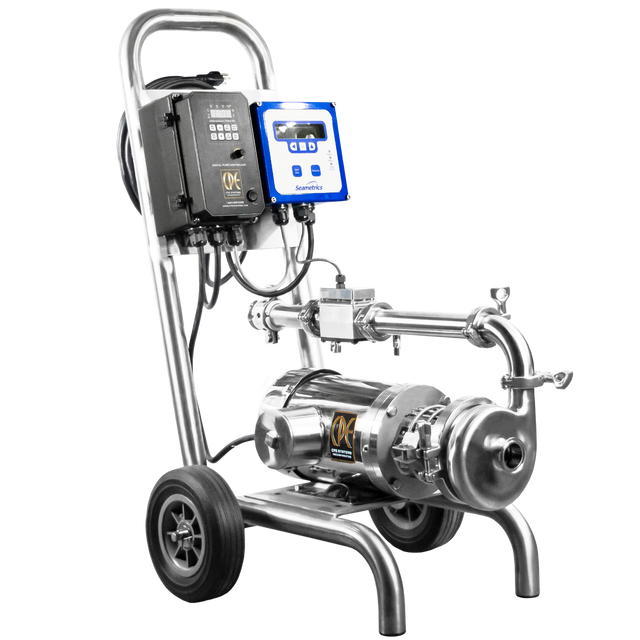

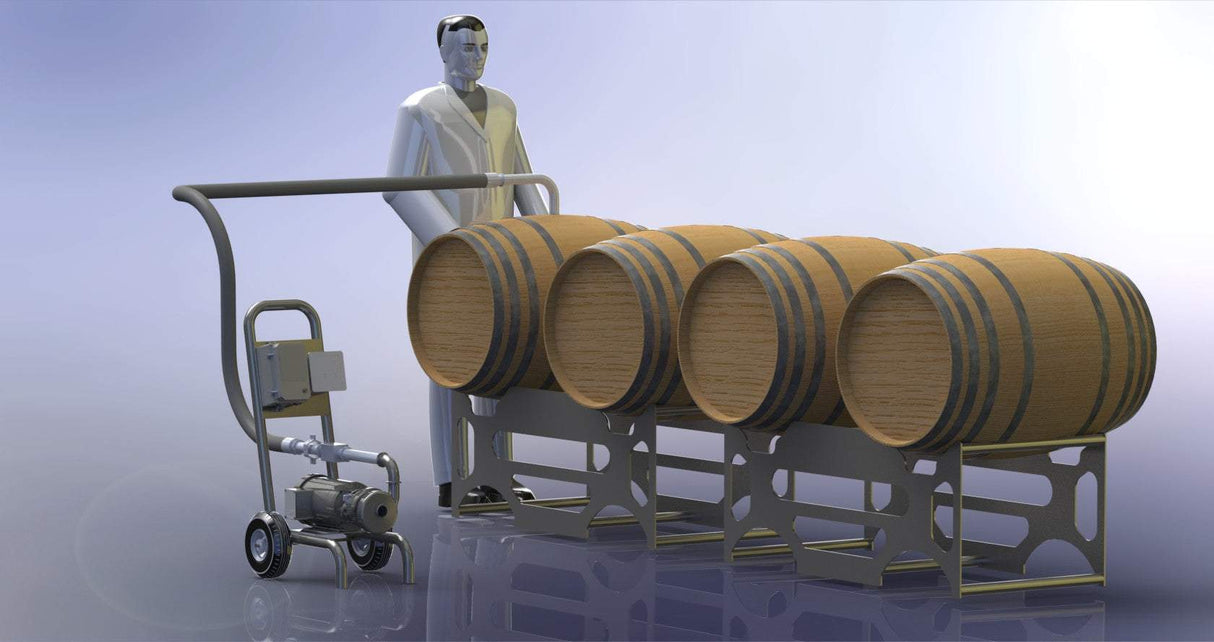

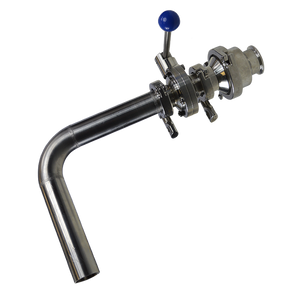

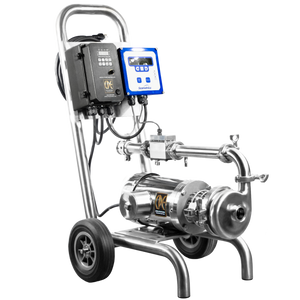

The CPE Barrel Filling Portable Pump is a custom system designed specifically to assist breweries and wineries in filling barrels (see visual examples to the left). Equipped with a C114MD pump complete with a stainless steel washdown motor. Mounted on a heavy duty stainless steel cart to withstand the tough conditions found in a brewery or winery. You can manage the speed and levels with its digital VFD speed control, the turbine meter and batch flow processor. Also included is all the fittings and valve attachments with a nozzle for the end of the hose for filling barrels.

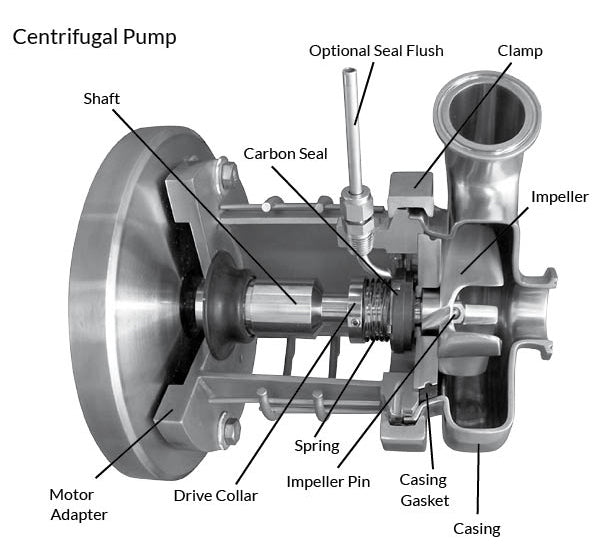

The C114 model is a workhorse pump that will give you years of excellent service and when needed replacement parts are interchangeable with most major brands of sanitary C series pumps.
- 1 1/2" X 1 1/2" Tri-clamp connections
- All stainless steel construction
- 25 ft cord with an 115-volt plug or with a standard NEMA locking plug

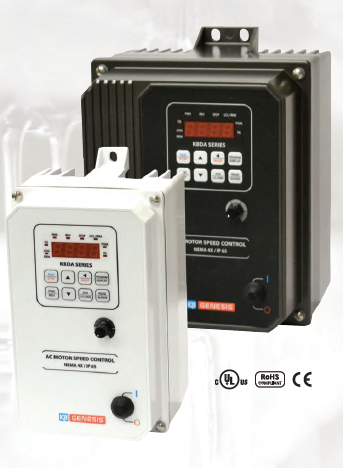

- NEMA 4X digital VFD
115-volt single phase (up to 1 1/2 HP only)
230-volt single phase (L14-20P)
230 volt 3 phase (L15-20P)
460 volt 3 phase (L16-20P)

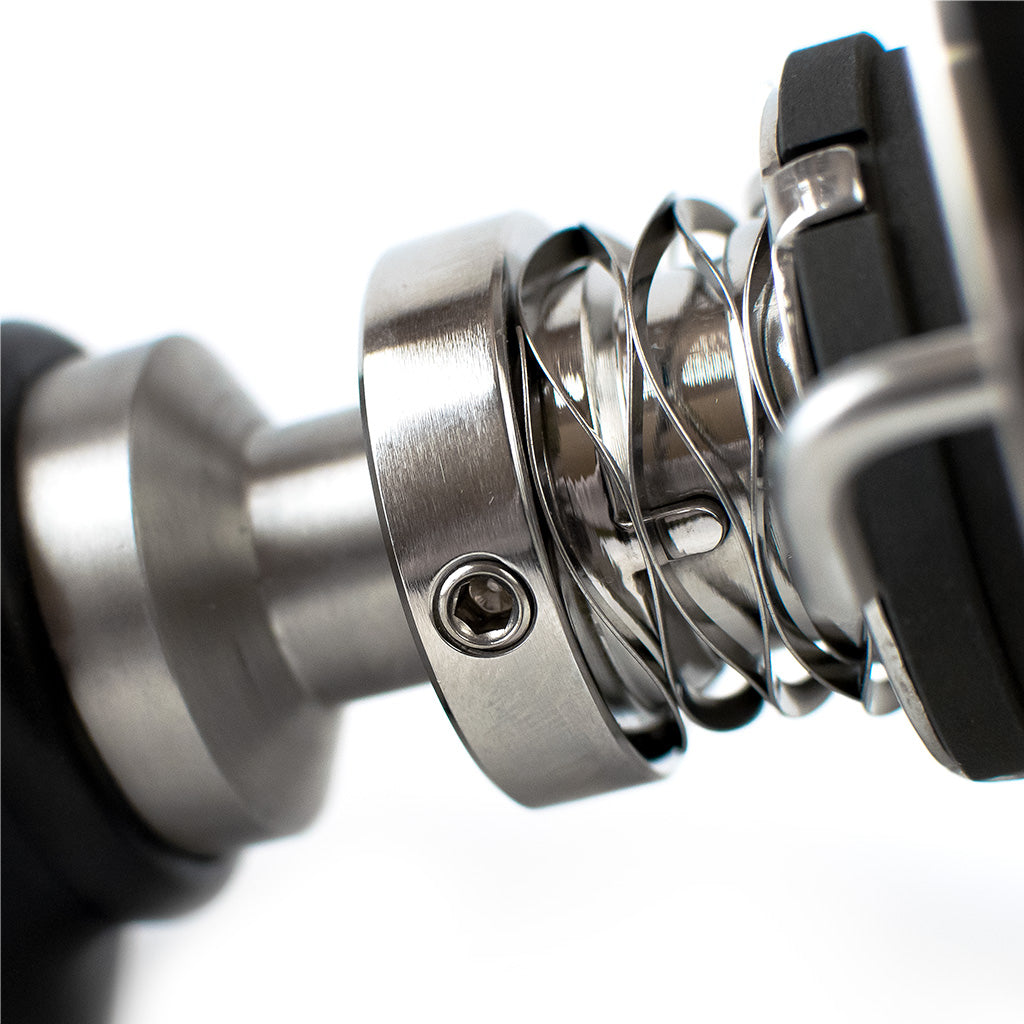

"D" Single mechanical external seal
"DG" Single mechanical external seal with replaceable ceramic seat
"F" Single mechanical external seal with water cascade
The capacity of this pump is 75 GPM and it will put out 65 ft of head pressure, ideal for microbreweries (5 - 10 BBL) and estate wineries.
1 1/2 HP
The capacity of this pump is 100 GPM and it will put out 75 ft of head pressure, ideal for microbreweries (10 - 15 BBL) and estate wineries.
The capacity of this pump is 125 GPM and it will put out 75 ft of head pressure, ideal for microbreweries (> 15 BBL) and larger estate wineries.
The capacity of this pump is 150 GPM and it will put out 75 ft of head pressure, ideal for larger microbreweries (> 25 BBL) and larger estate wineries.
*Larger Sizes Available
