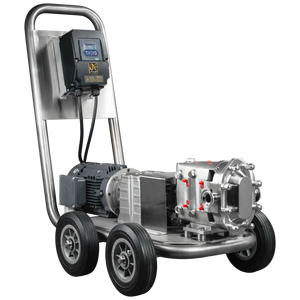

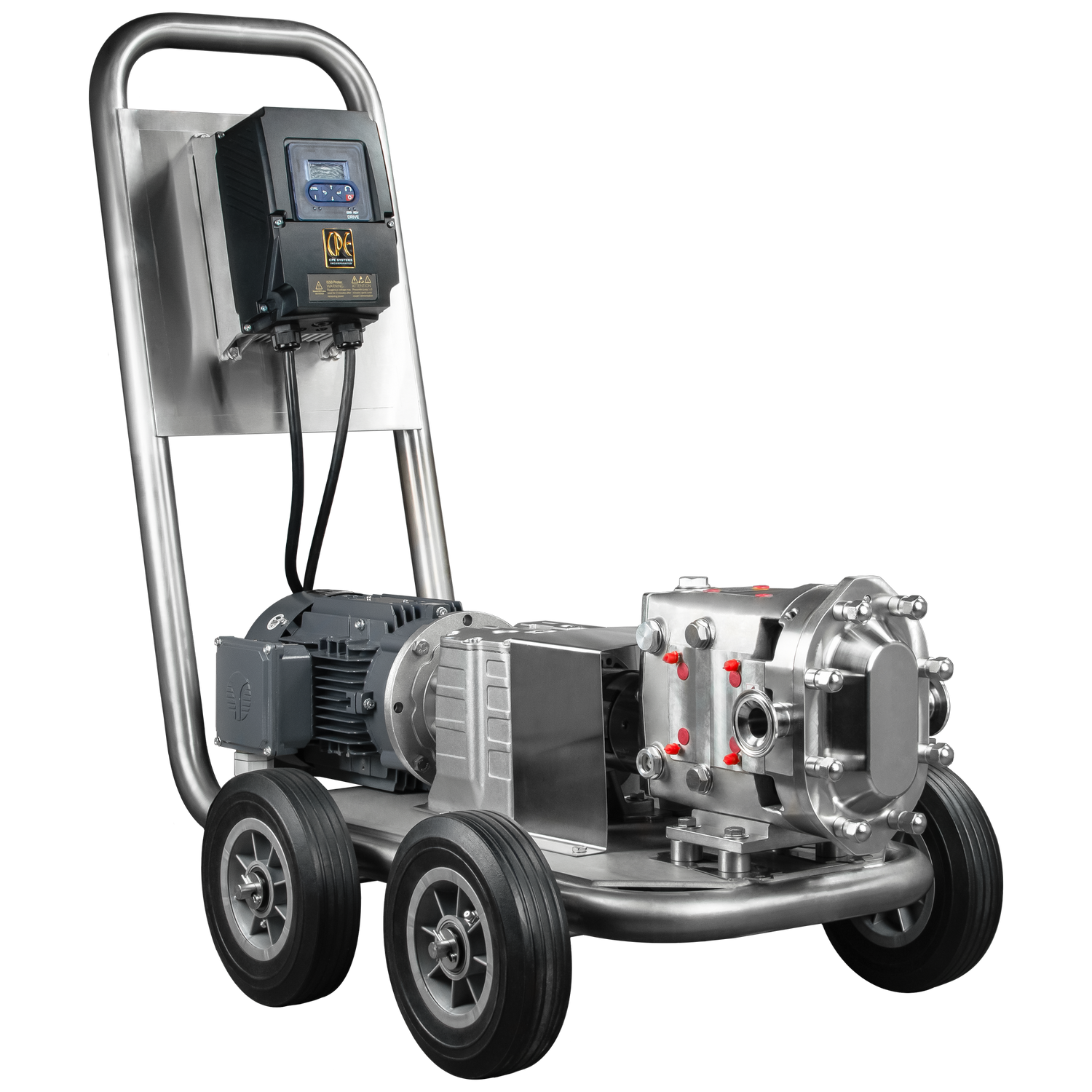

CPEU1 Circumferential Piston Pump Assembly With DMS Seal

$8,630.00
SKU: PP/CPEU1-006-DMS-1HP-115/1/60
Positive Displacement Pump
Pump Model
Horsepower
Voltage

The CPEU1 Circumferential Piston Pump is a sanitary pump designed for use in the food, beverage, pharmaceutical, and dairy industries. This pump can handle both high and low viscosity products due to its tight internal design. Helical timing gears, a stainless steel housing, solid 17-4 PH stainless steel shafts, and Alloy 88 rotors are all features of this pump. The CPEU1 is complete with a helical inline gear motor and is mounted on a stainless steel cart with a NEMA 4X VFD. Interchangeable with the most popular North American brands.

Description

The CPEU1 Circumferential Piston Pump is a sanitary pump designed for use in the food, beverage, pharmaceutical, and dairy industries. This pump can handle both high and low viscosity products due to its tight internal design. Helical timing gears, a stainless steel housing, solid 17-4 PH stainless steel shafts, and Alloy 88 rotors are all features of this pump. The CPEU1 is complete with a helical inline gear motor and is mounted on a stainless steel cart with a NEMA 4X VFD. Interchangeable with the most popular North American brands.

Features:

  • 304 Stainless Steel Gearbox STANDARD

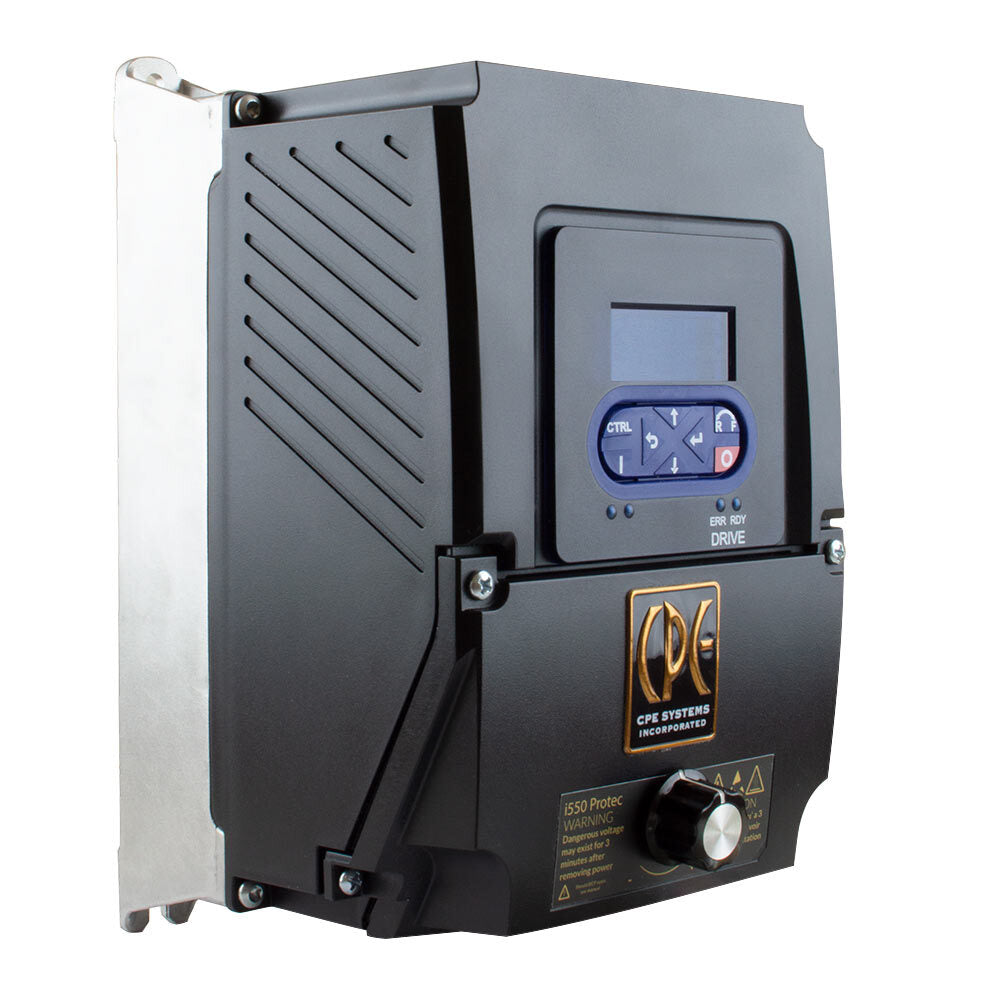

  • NEMA 4X VFD with a potentiometer
  • 3A Certified
  • Reversible Flow
  • Universal (4-way) mounting position including vertical porting
  • Self-cleaning gaskets
  • Interchangeable and compatible with other major series in the market
  • Easy disassembly for CIP cleaning
  • Sealed stainless steel cleanout plugs
  • Grease fitting on both sides of the pump head
  • Threaded oil plugs with sight glasses
  • High torque single alloy shafts

Seal Types

SOR Seal: Single o-ring

SMS Seal: Single mechanical seal

DMS Seal: Double mechanical seal with flush

Model Port Size Nominal Capacity Maximum Differential Pressure Displacement Maximum Speed
CPEU1 6 1.0" 7 gpm  200 psi 0.0082 gal/rev 800 rpm
CPEU1 15 1.5" 10 gpm  200 psi 0.0142 gal/rev 700 rpm
CPEU1 18 1.5" 17 gpm  200 psi 0.029 gal/rev 600 rpm
CPEU1 30 1.5"  36 gpm  200 psi 0.060 gal/rev 600 rpm
CPEU1 34 2.0"  24 gpm
 200 psi 0.060 gal/rev 400 rpm
CPEU1 40 2.0"  46 gpm 150 psi 0.076 gal/rev 600 rpm
CPEU1 60 2.5" 92 gpm  200 psi
 0.153 gal/rev 600 rpm
CPEU1 64 2.5" 61 gpm  200 psi 0.153 gal/rev 400 rpm
CPEU1 130 3.0" 152 gpm 200 psi 0.254 gal/rev 600 rpm

Specifications
  • O-Ring Seal Material: 17-4 SS sleeve w. Buna elastomers
  • Mechanical Seal Material: Silicon Carbide/ Carbon w. Buna elastomers
  • Temperature Range: -40  °F to 300°F (-40°C to 149°C)
  • Pressure capability: up to 200 psi
  • DMS Seal
