INOXPA Hyginox SEN-15 Portable Centrifugal Pump Assembly

$3,830.00
SKU: PP/C1B15-1700NA-1HP-115/1/60
Centrifugal Pump
Horsepower
Voltage

The INOXPA HYGINOX SEN-15 pump is perfect for new microbreweries. A sanitary centrifugal pump, the Hyginox series comes with a long-lasting internal mechanical seal to help reduce product build-up and leaking and improve reliability. It’s a pump that just keeps going without hassle - exactly what you need when starting a brewery.

Description

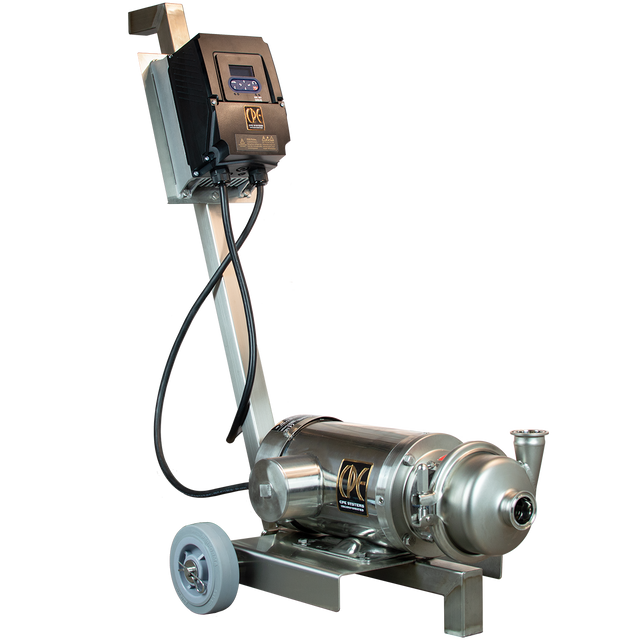

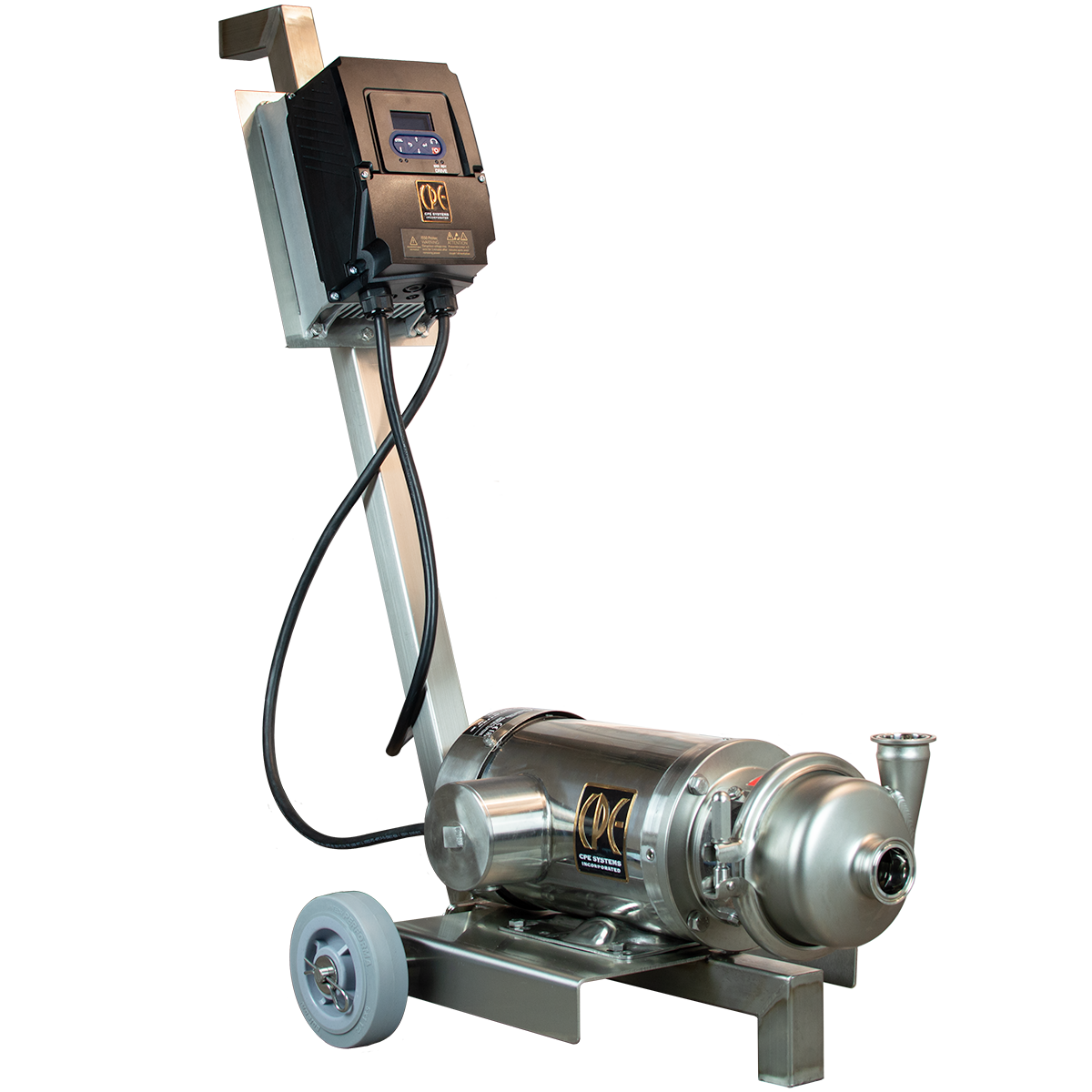

Hyginox SEN 15 Internally Sealed Portable Pump

The INOXPA HYGINOX SEN-15 pump is perfect for new microbreweries. A sanitary centrifugal pump, the Hyginox series comes with a long-lasting internal mechanical seal to help reduce product build-up and leaking and improve reliability. It’s a pump that just keeps going without hassle - exactly what you need when starting a brewery.

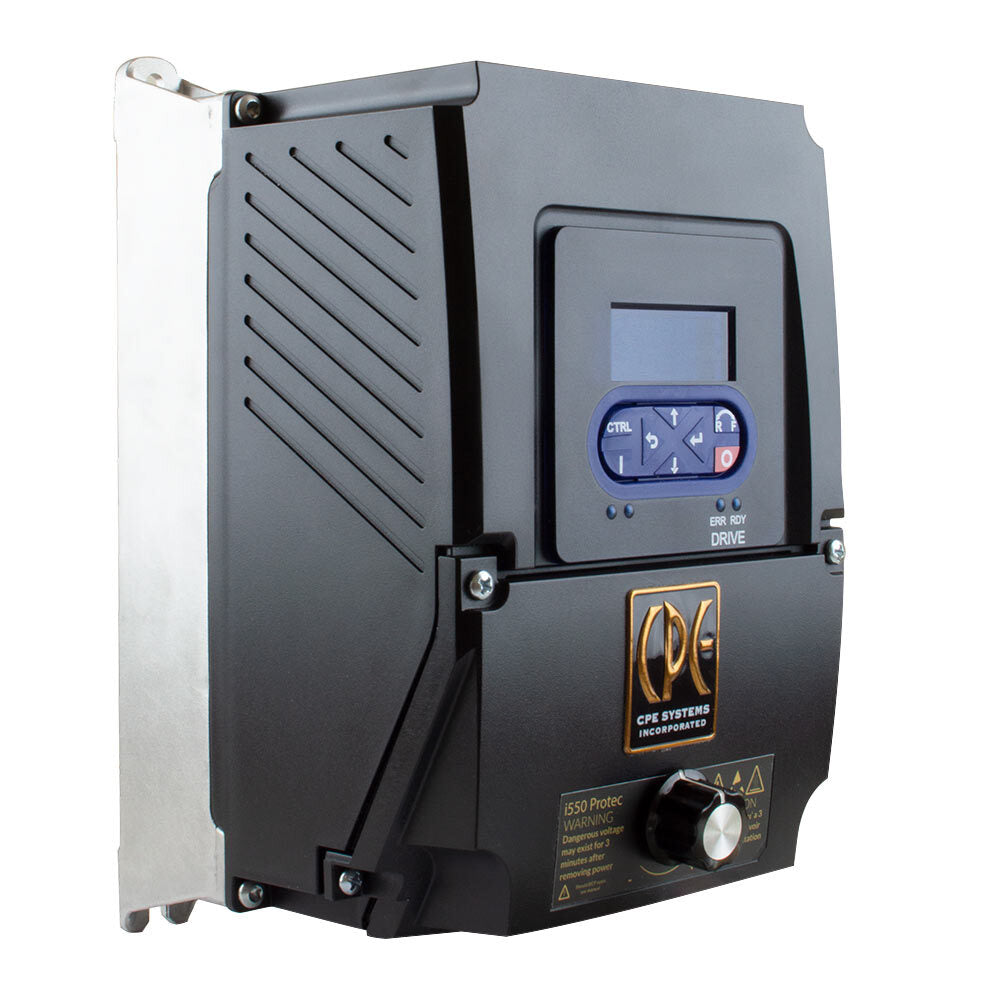

The SEN-15 assembly comes with our Canadian-made stainless steel cart and NEMA 4X digital VFDs. Our carts are custom designed and built in Canada from sanitary stainless steel with non-marring heavy-duty wheels. Our VFD’s provide excellent speed regulation from zero to full load over a wide frequency range, auto energy savings at light loads, and smooth motor torque operation.

All pumps come standard with Tri-clamp connections, but we can supply other connection types by special order.

 Horsepower Max Pressure (ft. head) Max Flow (gpm)
1 60 60
1 1/2 65 75
2 70 85

Specifications

Inlets: 1 -1/2" Clamp

Outlets: 1-1/2" Clamp

Seal: Single Mechanical Internal seal Carbon/Silicon Carbide

Nominal pressure: 40 PSI

Maximum flow: 75 US GPM

Maximum differential head: 95 m 310 ft

Maximum speed: 3500 rpm
