INOXPA Hyginox SEN-20 Portable Centrifugal Pump Assembly (3 - 10 HP)

Hyginox SEN 20 Internally Sealed Portable Pump

The INOXPA HYGINOX SEN-20 pump is perfect for busy breweries. A close-coupled, stainless steel centrifugal pump, the Hyginox series comes with a long lasting internal mechanical seal for minimal maintenance and increased durability. These internal seals help reduce product build-up and leaking and improve reliability, providing a pump that just keeps going without hassle or fuss.

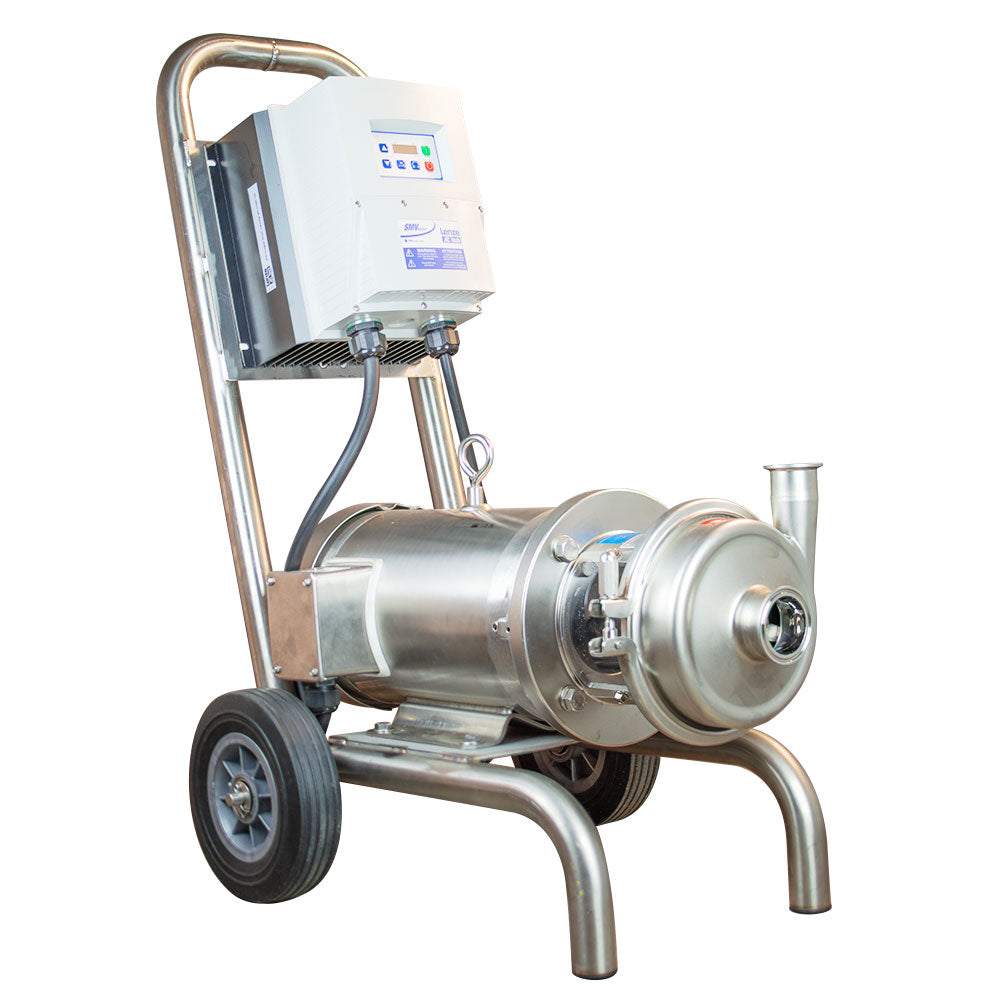

The SEN-20 assembly comes with our heavy duty Canadian made stainless steel cart, and a LENZE SMVector VFD. Our carts are custom designed and built in Canada from sanitary stainless steel with non-marring heavy-duty wheels. The LENZE SMVector VFD offers sophisticated auto-tuning, fast dynamic torque response with impressive low-speed operation all from a compact and simple to use package.

All pumps come standard with Tri-clamp connections, but we can supply other connection types by special order.

Horsepower	Max Pressure (ft. head)	Max Flow (gpm)
3	80	125
5	98	150
7 1/2	120	160
10	145	185
15	160	190

INOXPA Hyginox SEN 20 Specs:

Inlets: 2" Tri-clamp

Outlets: 1 1/2" Tri-clamp

Seal: Single Mechanical Internal seal Carbon/Silicon Carbide

Nominal pressure: 75 PSI

Maximum flow: 190 US GPM

Maximum differential head: 95 m 310 ft

Maximum speed: 3500 rpm

Technical Specifications
