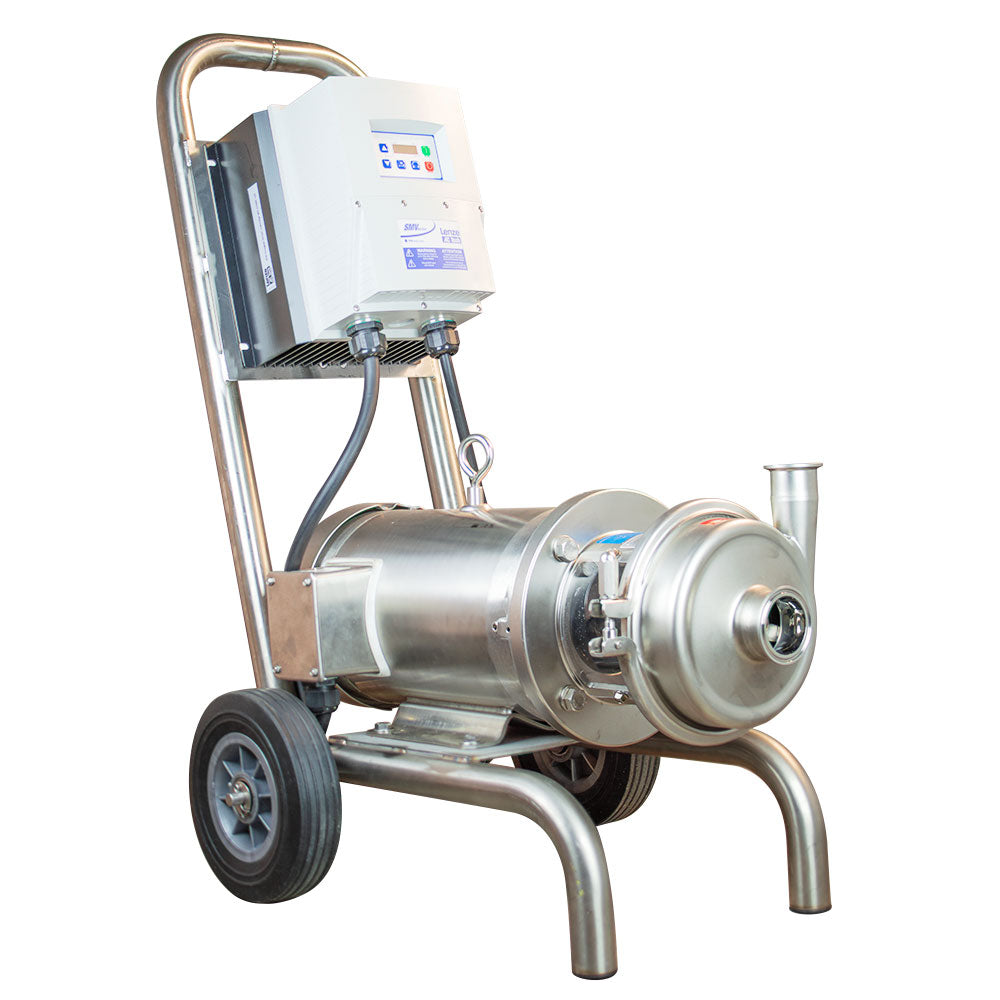

Hyginox SEN 20 Internally Sealed Portable Pump
The INOXPA HYGINOX SEN-20 pump is perfect for busy breweries. A close-coupled, stainless steel centrifugal pump, the Hyginox series comes with a long lasting internal mechanical seal for minimal maintenance and increased durability. These internal seals help reduce product build-up and leaking and improve reliability, providing a pump that just keeps going without hassle or fuss.
The SEN-20 assembly comes with our heavy duty Canadian made stainless steel cart, and a LENZE SMVector VFD. Our carts are custom designed and built in Canada from sanitary stainless steel with non-marring heavy-duty wheels. The LENZE SMVector VFD offers sophisticated auto-tuning, fast dynamic torque response with impressive low-speed operation all from a compact and simple to use package.
All pumps come standard with Tri-clamp connections, but we can supply other connection types by special order.
|Horsepower||Max Pressure (ft. head)||Max Flow (gpm)|
INOXPA Hyginox SEN 20 Specs:
Inlets: 2" Tri-clamp
Outlets: 1 1/2" Tri-clamp
Seal: Single Mechanical Internal seal Carbon/Silicon Carbide
Nominal pressure: 75 PSI
Maximum flow: 190 US GPM
Maximum differential head: 95 m 310 ft
Maximum speed: 3500 rpm
