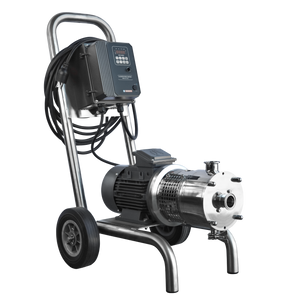

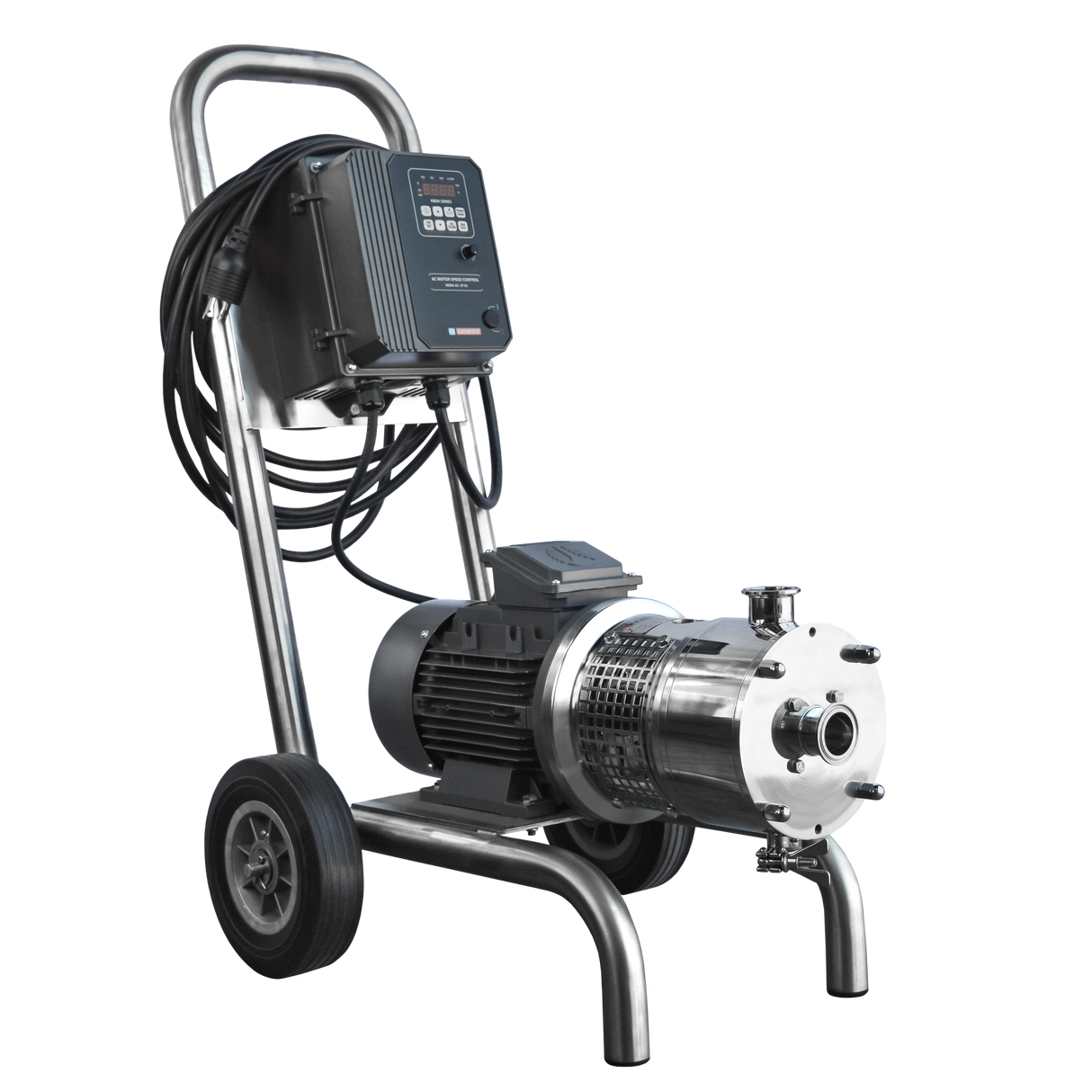

The Portable Shear Pump Assembly is a sanitary pump and blender in one, breaking up solids in your line and blending lumpy substances.
The shear pump is ideal for smoothly introducing ingredients to liquid products. High shear, particle size reduction to less than 100 microns is possible.
The applications include:
- removing lumps from sauces,
- grinding hops, berries etc.
- blending liquids and solids together
- and mixing a variety of liquids.
In the beer industry, the shear pump is particularly suited to grinding hops. Grinding allows for a greater surface area of hops to be exposed and more oils to be released, resulting in enhanced flavors and aroma. Plus, when the hops are ground less are required to achieve the same flavor profile.
3 HP 3600 RPM TEFC motor
Contact Parts AISI 316L
Other stainless steel parts AISI 304
Seal C / SiC / EPDM
Surface finish Ra ≤ 0.8μm
1 1/2" X 1 1/2" Tri-clamp connections
All stainless steel construction

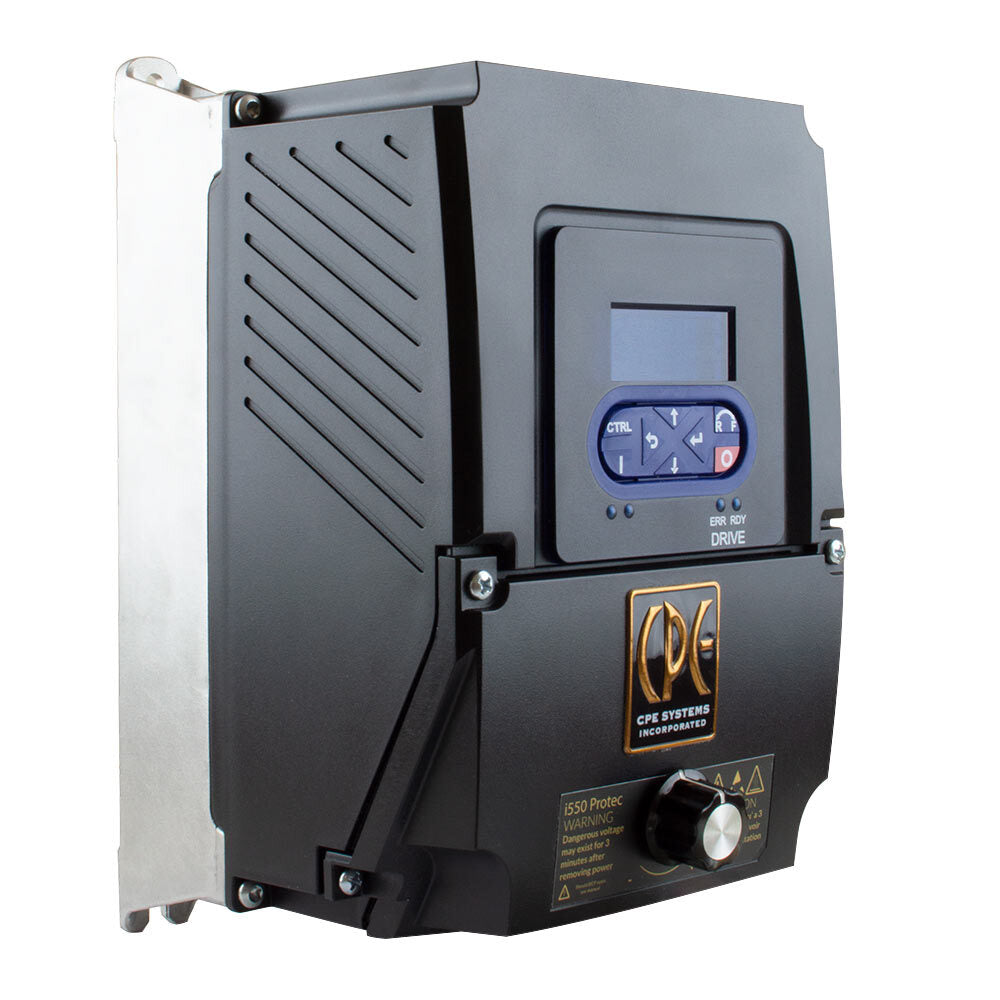

NEMA IV Digital VFD with 25 ft cord with NEMA locking plug
230-volt single phase (L14-20P)
230 volt 3 phase (L15-20P)
460 volt 3 phase (L16-20P)
