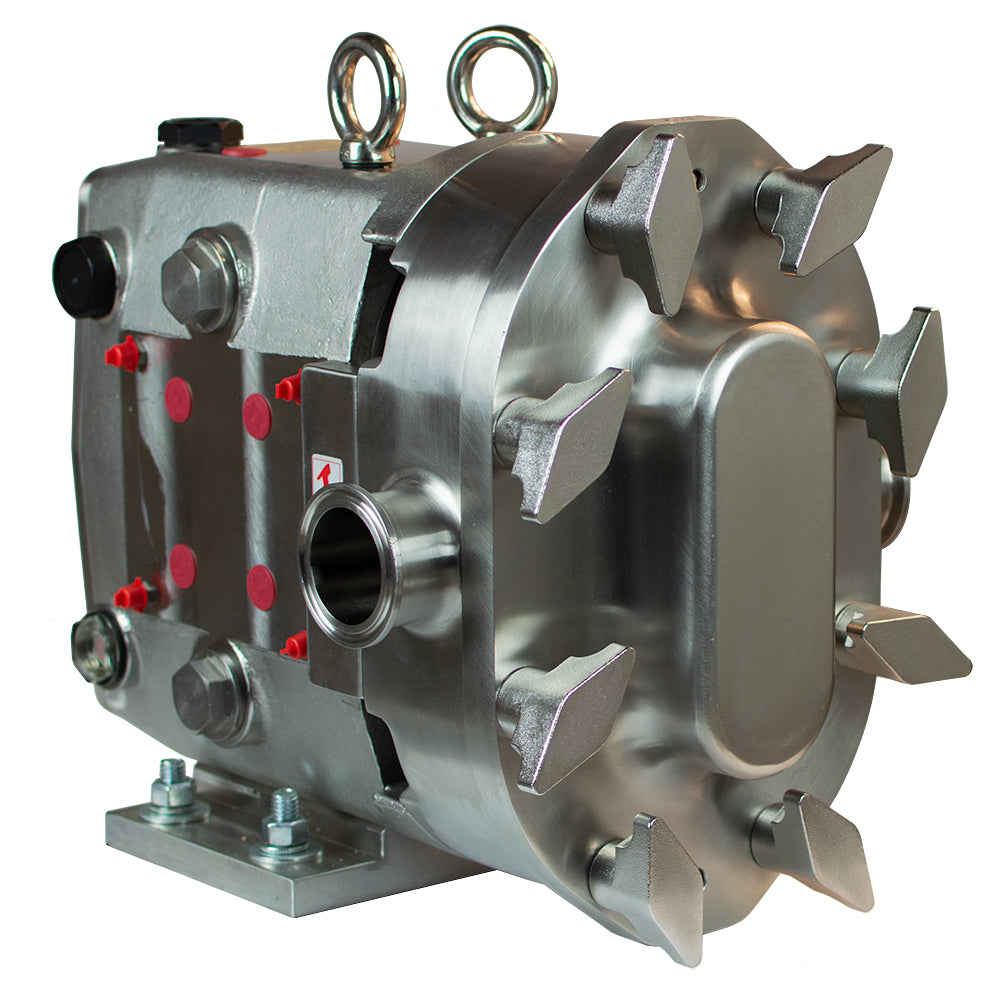

CPEU1 Circumferential Piston Pump

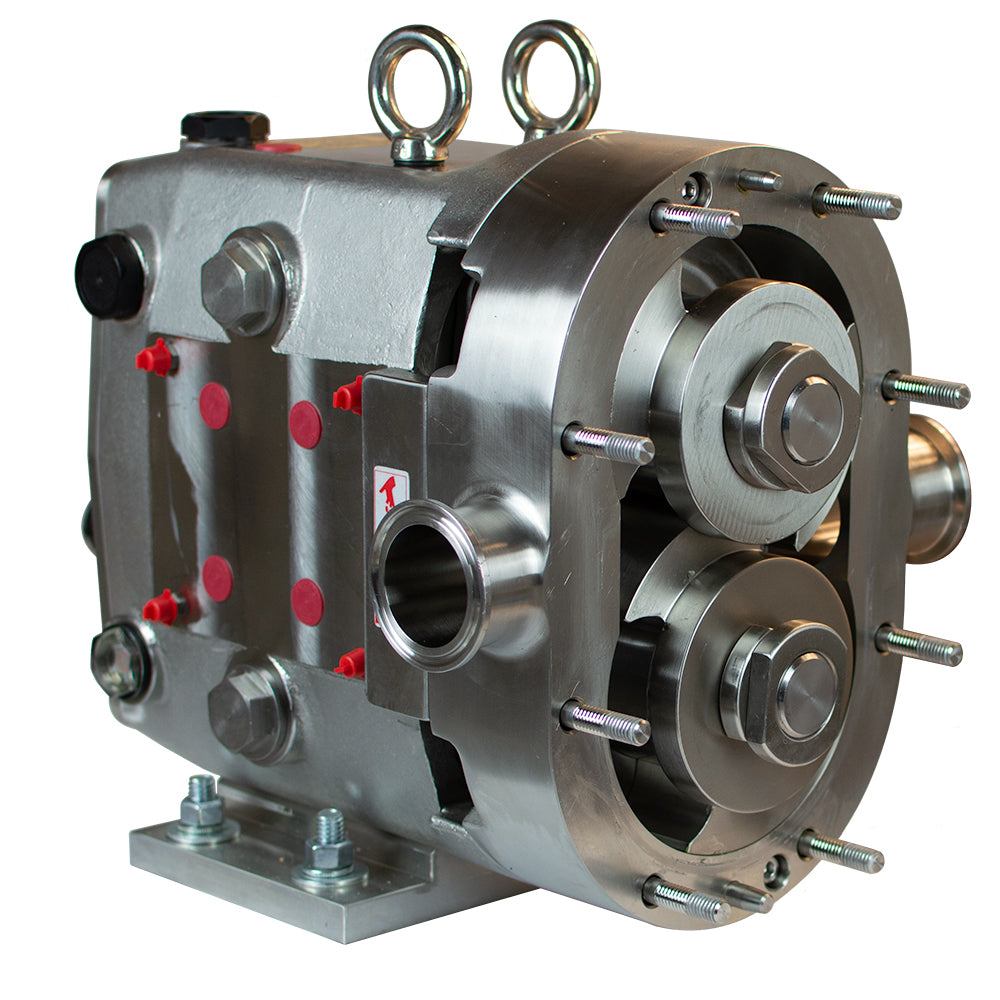

The CPEU1 Circumferential Piston Pump is a hygienic pump specifically designed for the food, beverage, pharmaceutical, and dairy industries. The tight internal design allows this pump to handle both high and low viscosity products. This pump features helical timing gears, a stainless steel housing, solid 17-4 PH stainless steel shafts, and Alloy 88 rotors.

This product is only a pump head and does not come with a motor.  For a full pump and motor package please contact sales@cpesystems.com

Features:

• 304 Stainless Steel Gearbox STANDARD
• Reversible Flow
• Universal (4-way) mounting position including vertical porting
• 3A Certified

• Self-cleaning gaskets
• Interchangeable and compatible with other major series in the market
• Easy disassembly for CIP cleaning
• Sealed stainless steel cleanout plugs
• Grease fitting on both sides of the pump head
• Threaded oil plugs with sight glasses
• High torque single alloy shafts
• EPDM gaskets

CPEU1 Seal Types

Single O-Ring

OSS: SS316L Sleeve

OSZ: Zirconia Sleeve

Double o-ring seal with flush

ODS: SS316L Sleeve

Single mechanical seal

SCC: Silicon - Silicon

SCN: Silicon - Carbon

Double mechanical seal with flush

DCNN: Silicon - Carbon - Carbon

Triple Lip Seal

LSS: SS316L Sleeve



Model	Port Size	Nominal Capacity	Maximum Differential Pressure	Displacement	Maximum Speed
CPEU1 6	1.0"	7 gpm	200 psi	0.0082 gal/rev	800 rpm
CPEU1 15	1.5"	10 gpm	200 psi	0.0142 gal/rev	700 rpm
CPEU1 18	1.5"	17 gpm	200 psi	0.029 gal/rev	600 rpm
CPEU1 30	1.5"	36 gpm	200 psi	0.060 gal/rev	600 rpm
CPEU1 34	2.0"	24 gpm	200 psi	0.060 gal/rev	400 rpm
CPEU1 40	2.0"	46 gpm	150 psi	0.076 gal/rev	600 rpm
CPEU1 60	2.5"	92 gpm	200 psi	0.153 gal/rev	600 rpm
CPEU1 64	2.5"	61 gpm	200 psi	0.153 gal/rev	400 rpm
CPEU1 130	3.0"	152 gpm	200 psi	0.254 gal/rev	600 rpm
CPEU1 134	3.0"	102 gpm	200 psi	0.254 gal/rev	400 rpm
CPEU1 220	4.0"	313 gpm	200 psi	0.522 gal/rev	600 rpm
CPEU1 224	4.0"	208 gpm	200 psi	0.521 gal/rev	400 rpm
CPEU1 320	6.0"	452 gpm	200 psi	0.754 gal/rev	600 rpm
CPEU1 324	6.0"	301 gpm	200 psi	0.754 gal/rev	400 rpm
