Microbrew 100 Pump Parts
$0.66
Unit price
/
Unavailable
Description
Description
These pump parts are for the Microbrew 100 Pump.
Parts included in the seal kit or gasket kit are not available separately.

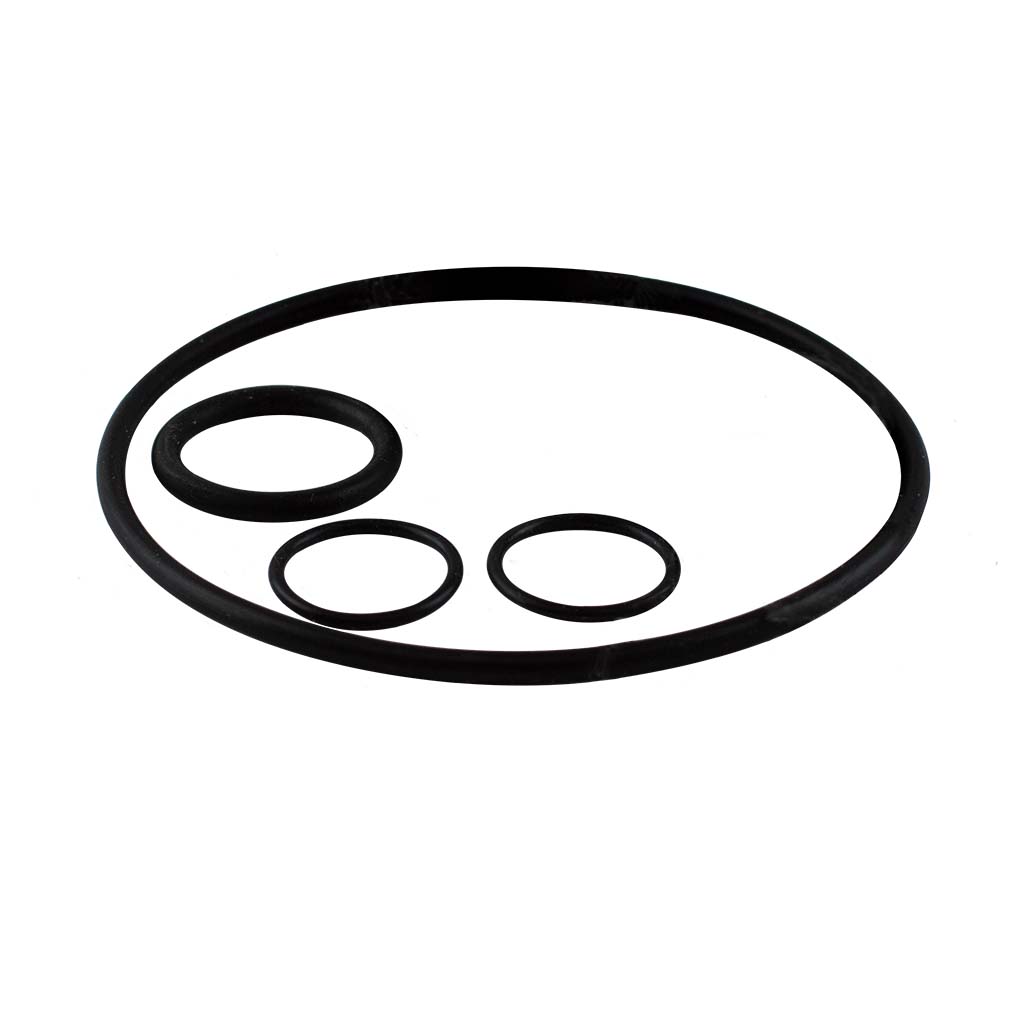

The gasket kit includes 1 of each of the following:
- 2. Casing Seal
- 4. Impeller o-ring
- 10. Stationary Seal O-Ring
- 15. Rotary Seal O-Ring

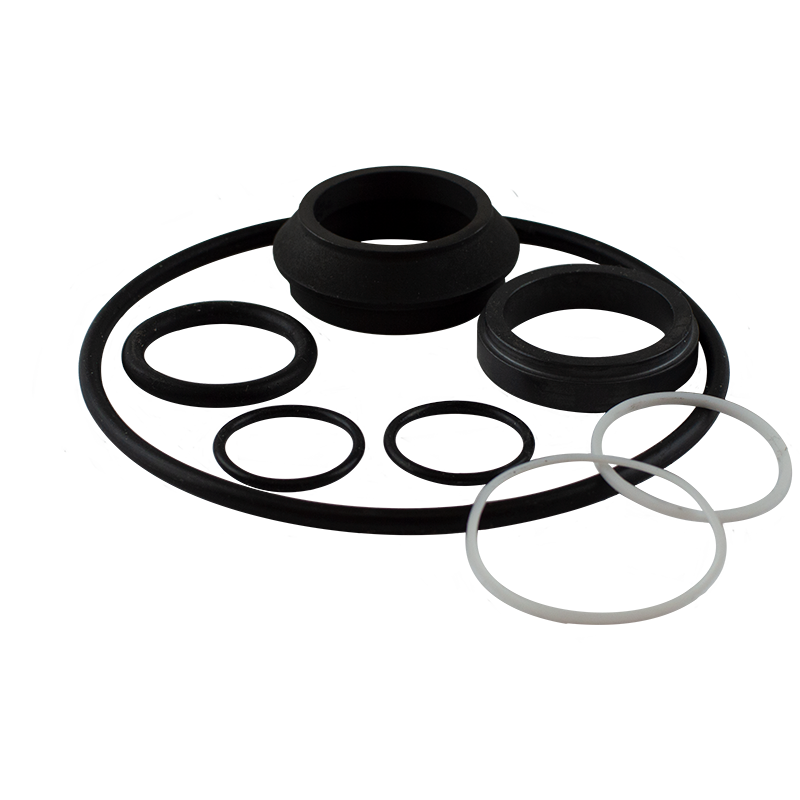

The Seal Kit Includes 1 of each of the following:
- 2. Casing Seal
- 4. Impeller O-Ring
- 8. Stationary Seal Gasket - Inner
- 9. Stationary Seal
- 10. Stationary Seal O-Ring
- 11. Stationary Seal Gasket - Outer
- 14. Rotary Seal
- 15. Rotary Seal O-Ring

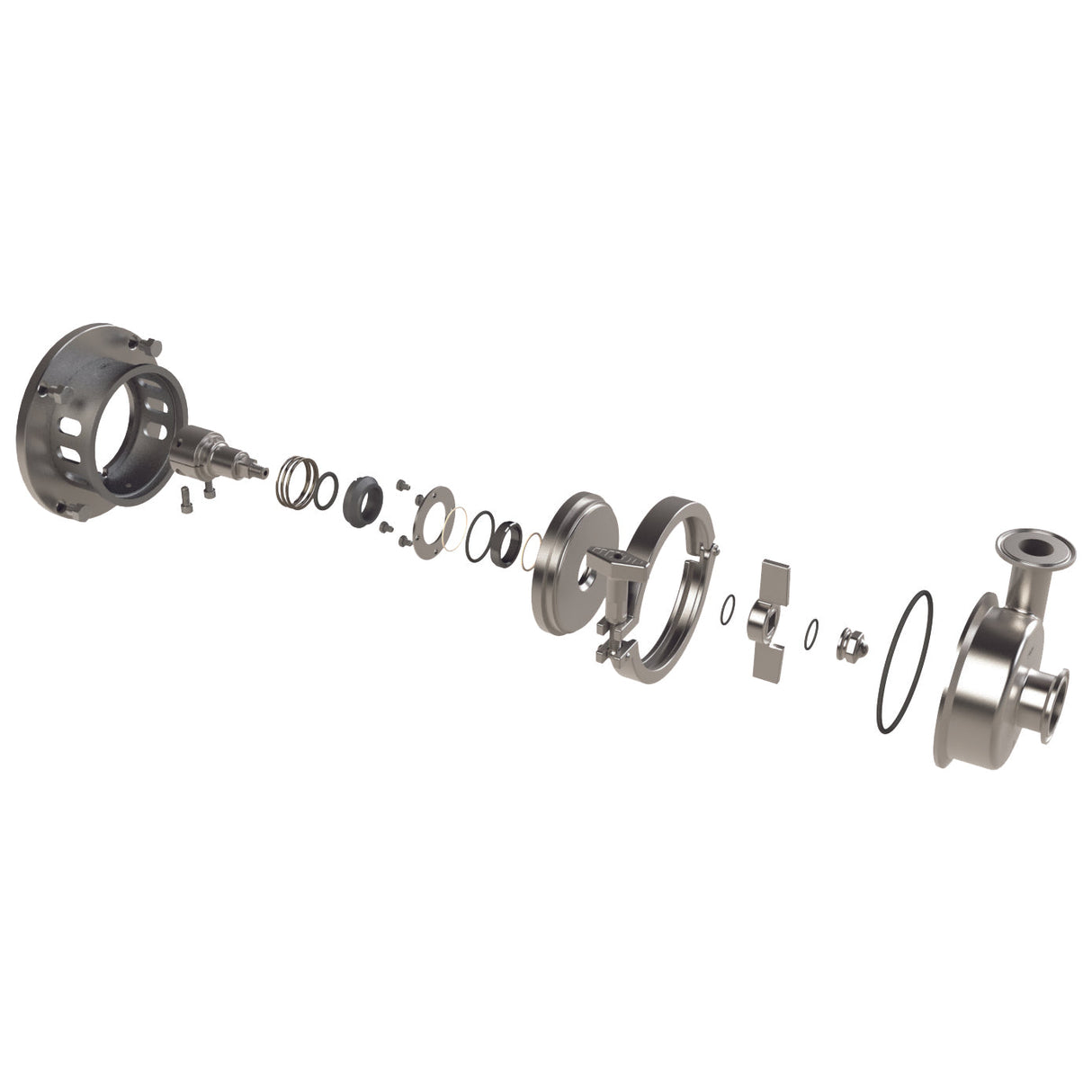

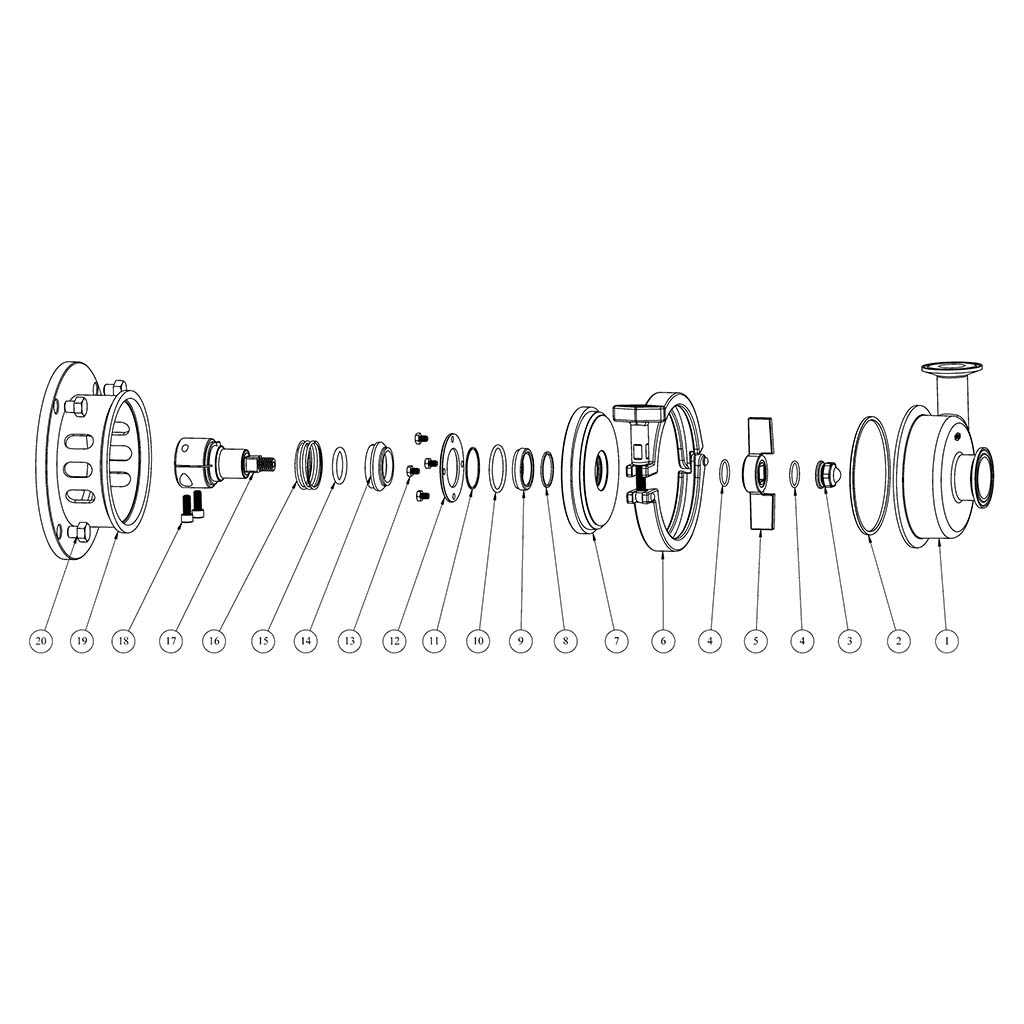

| Part Type | Item No. | Material | Quantity |

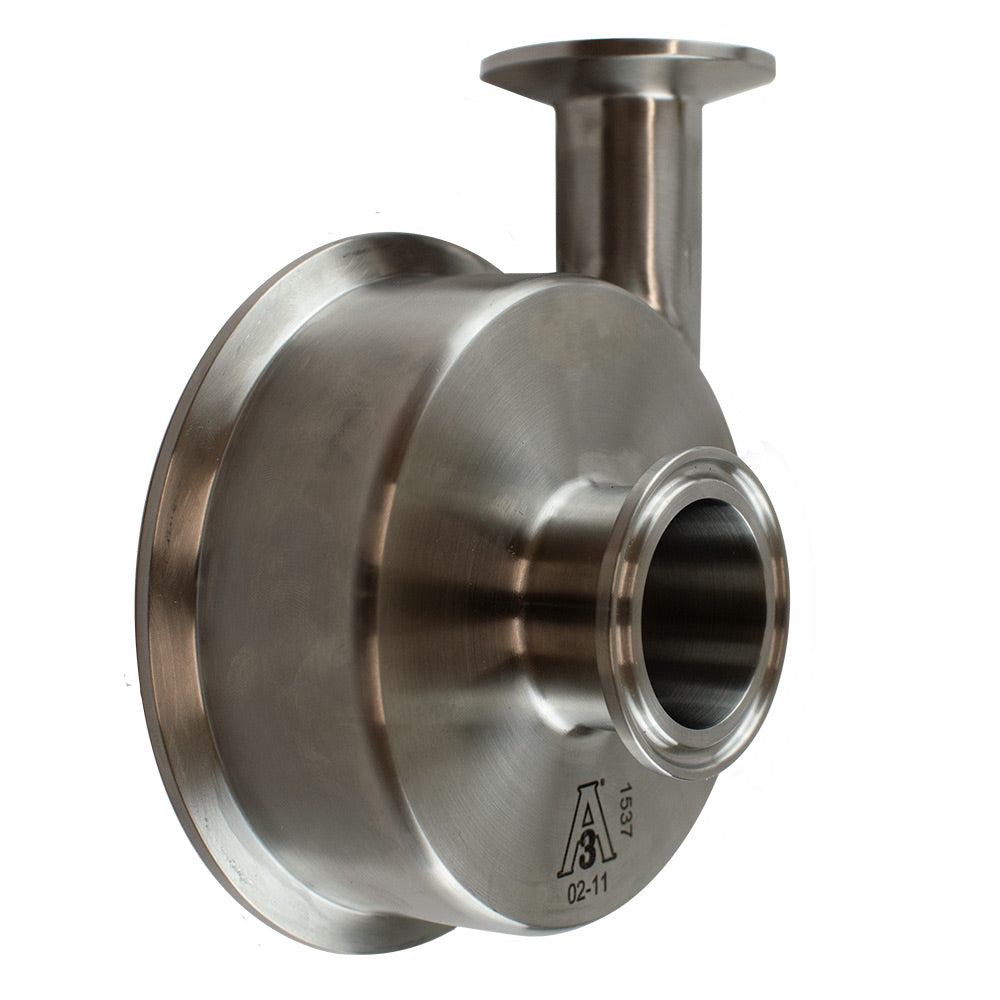

| Casing | 1 | 316L | 1 |

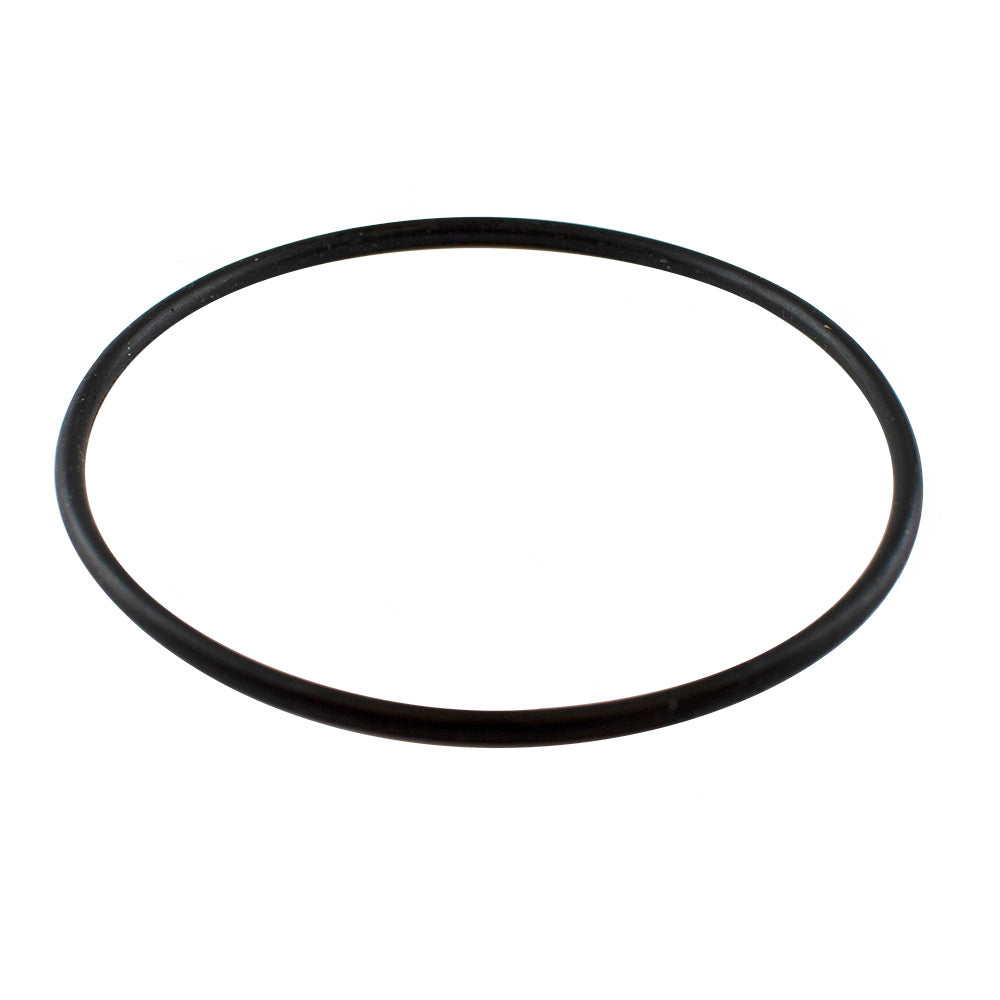

| Casing Seal | 2 | FKM | 1 |

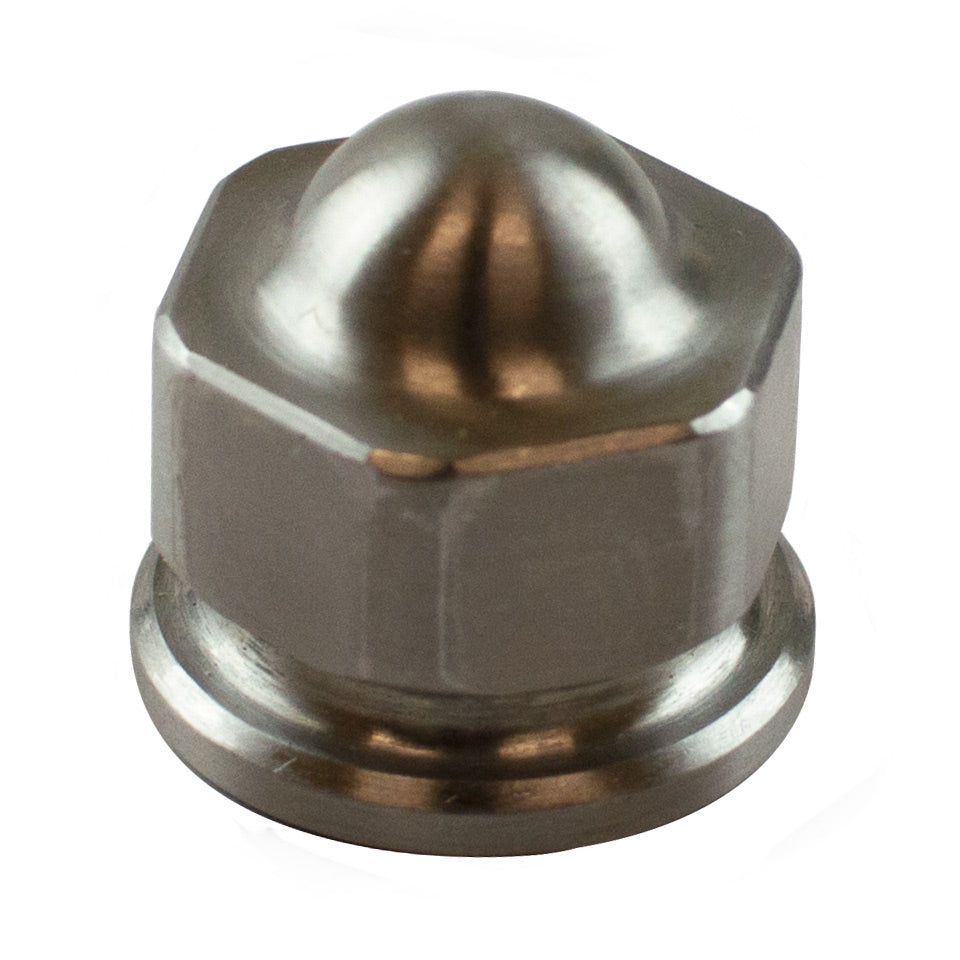

| Impeller Nut | 3 | 316L | 1 |

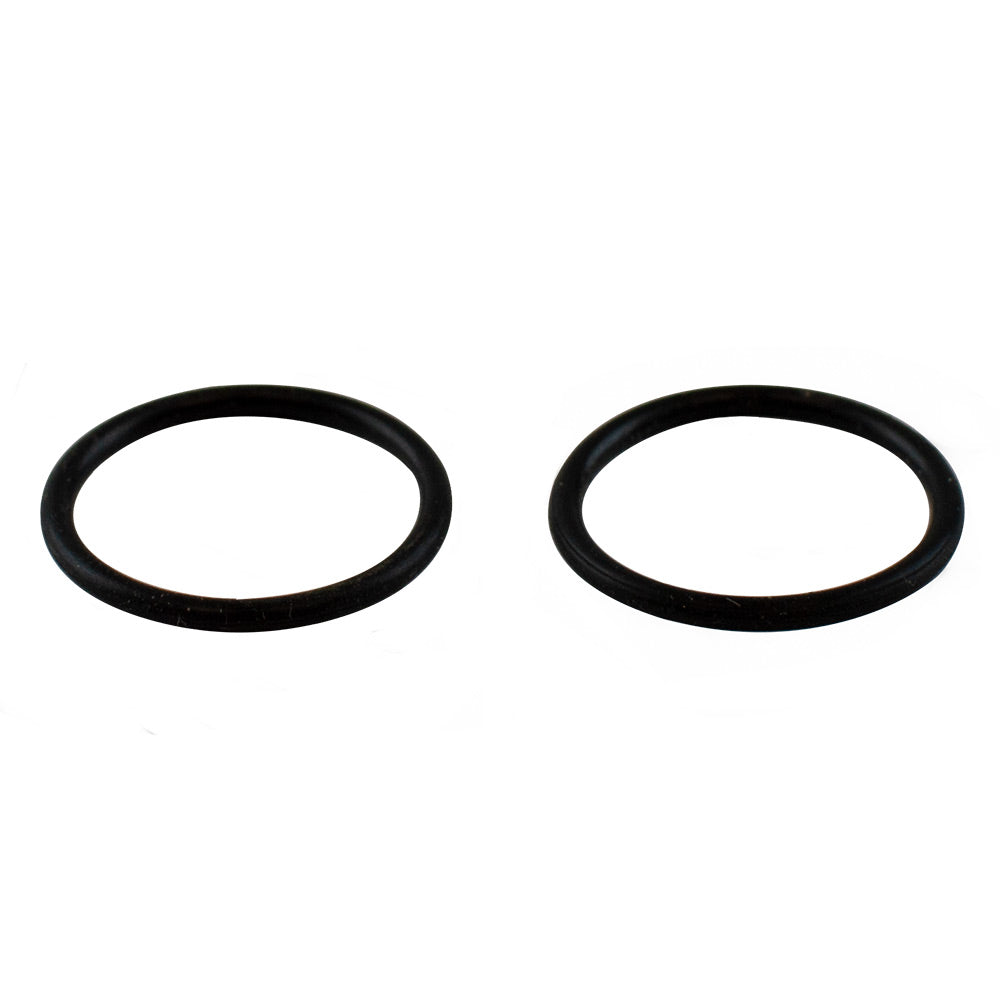

| Impeller O-Ring | 4 | FKM | 2 |

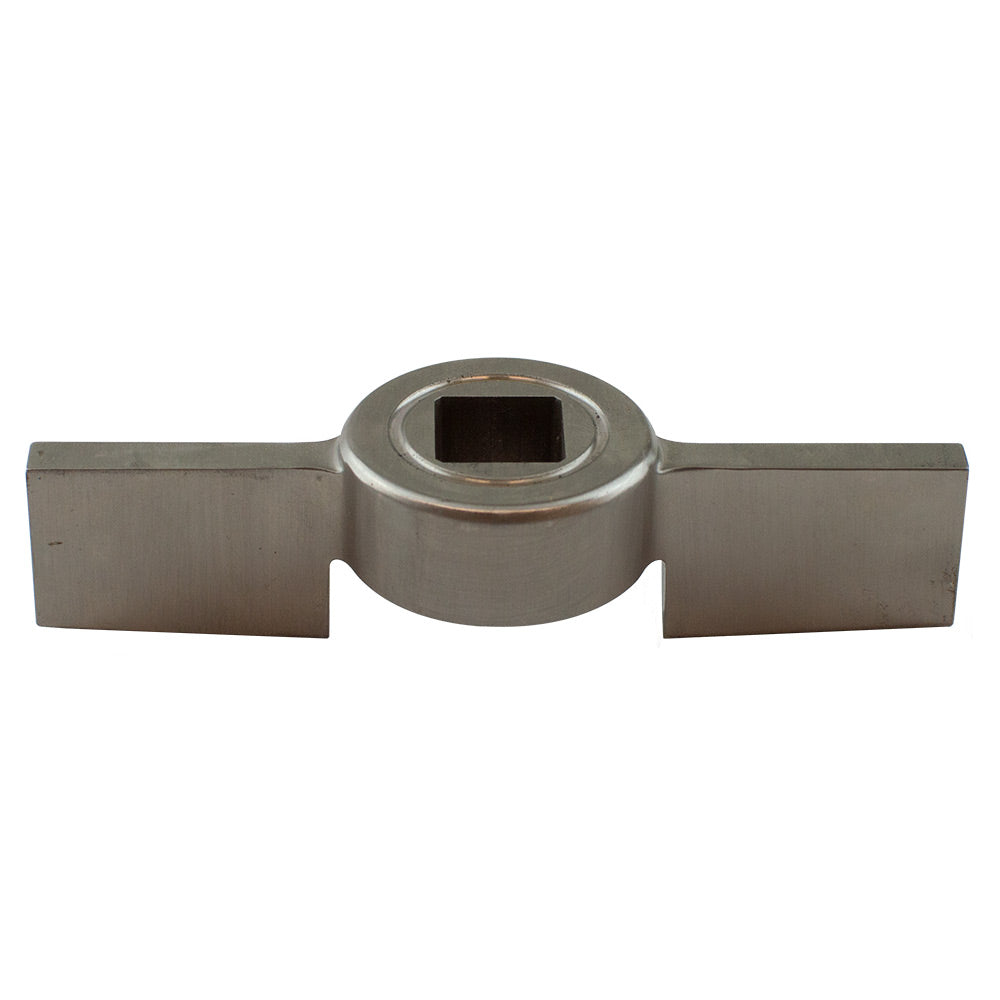

| Impeller | 5 | CF3M | 1 |

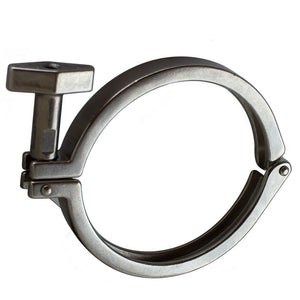

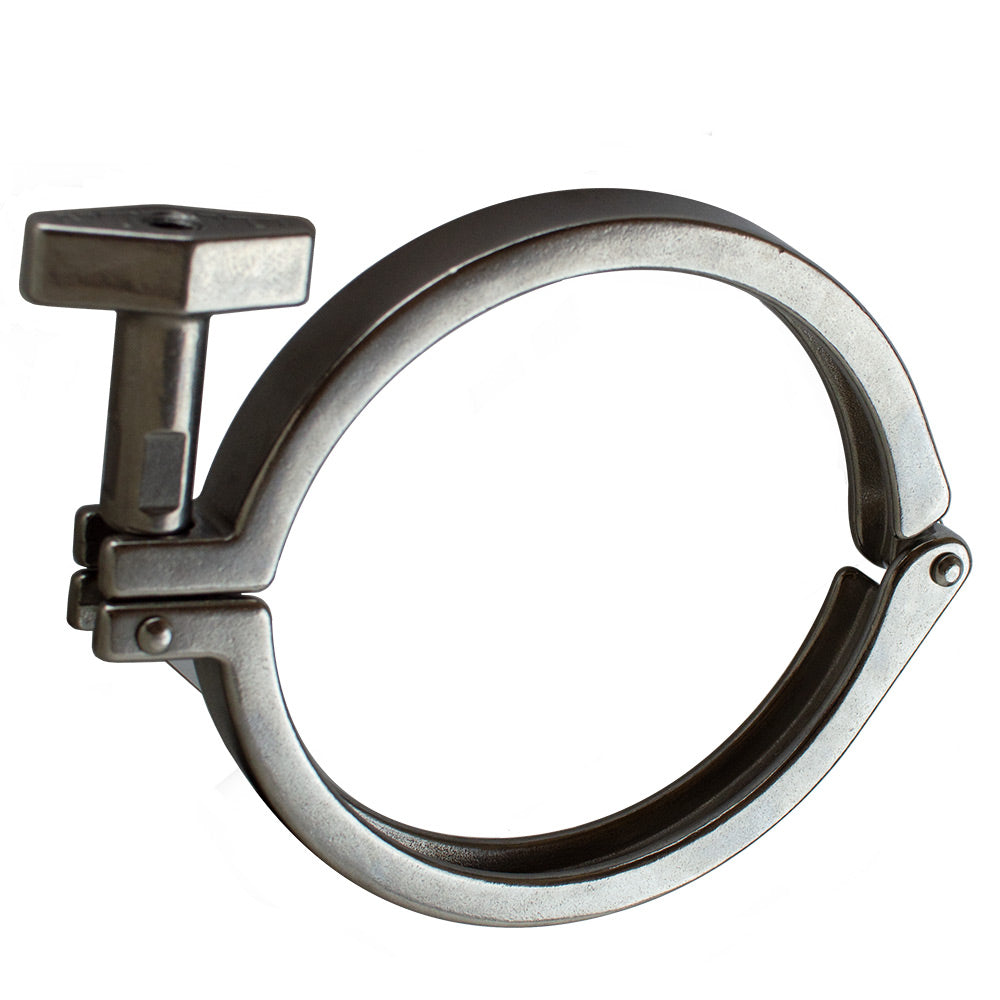

| Casing Clamp | 6 | CF8 | 1 |

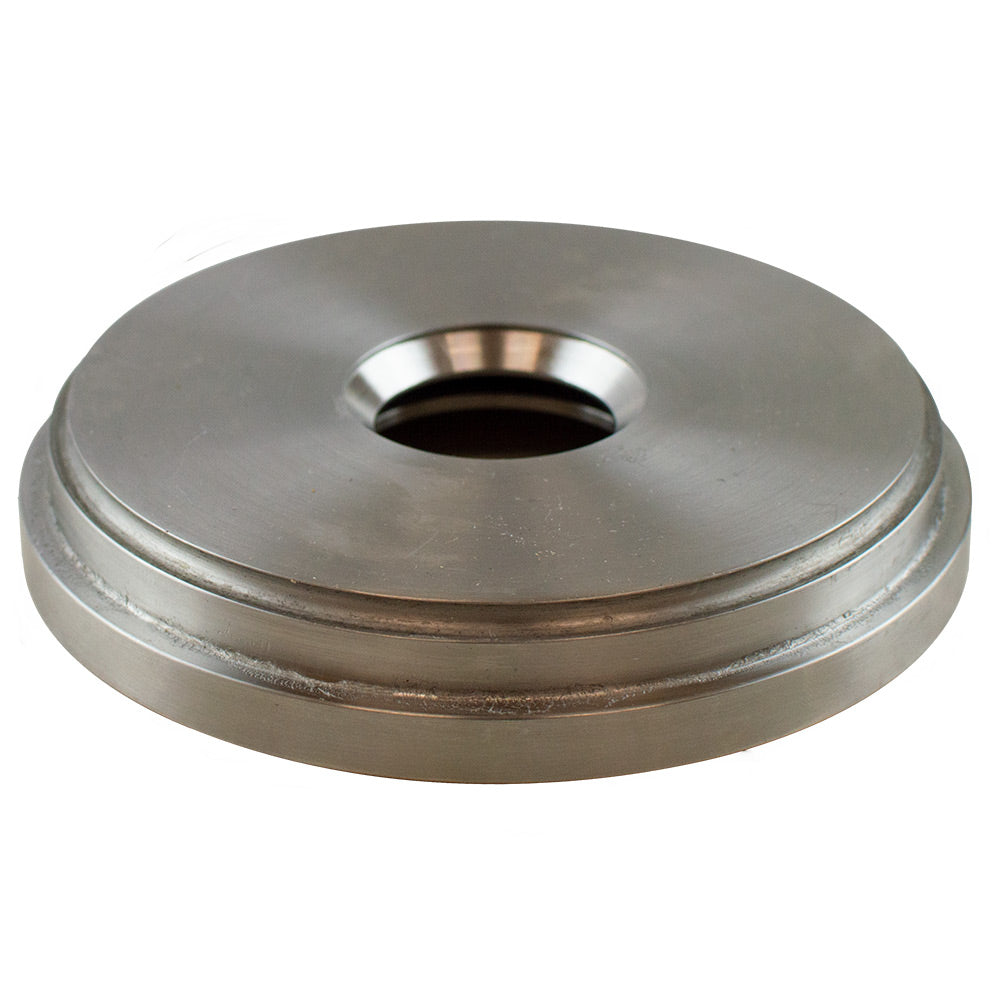

| Backplate | 7 | 316L | 1 |

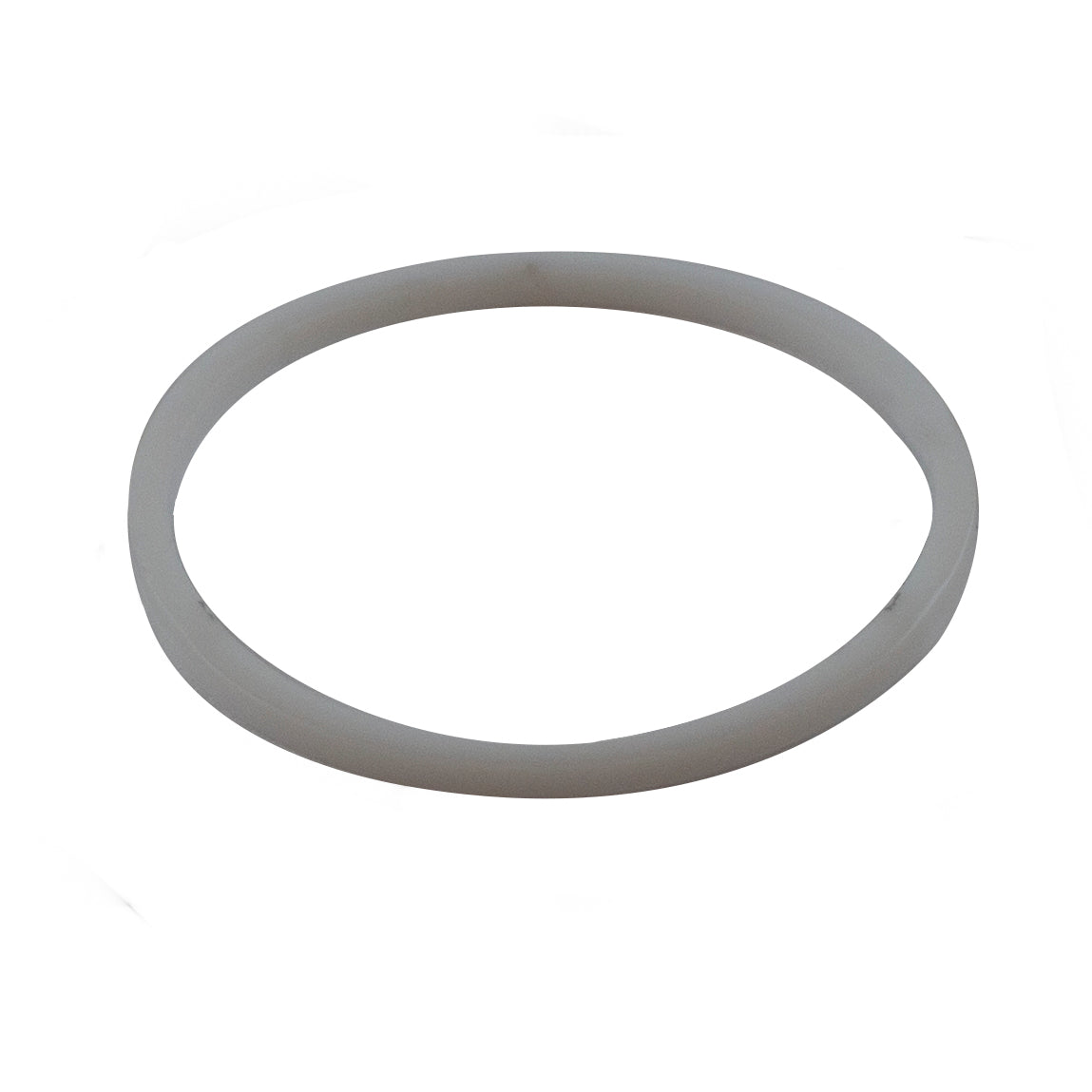

| Stationary Seal Gasket - Inner | 8 | PTFE | 1 |

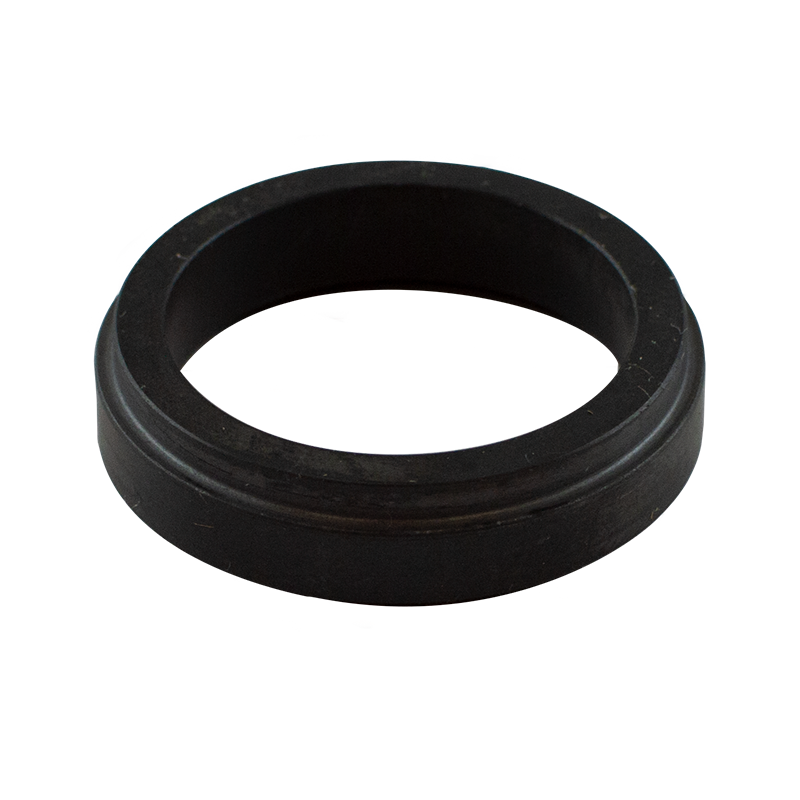

| Stationary Seal | 9 | Sintered Silicon Carbide | 1 |
| Stationary Seal O-Ring | 10 | FKM | 1 |

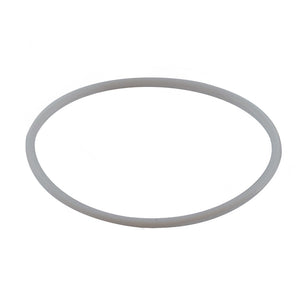

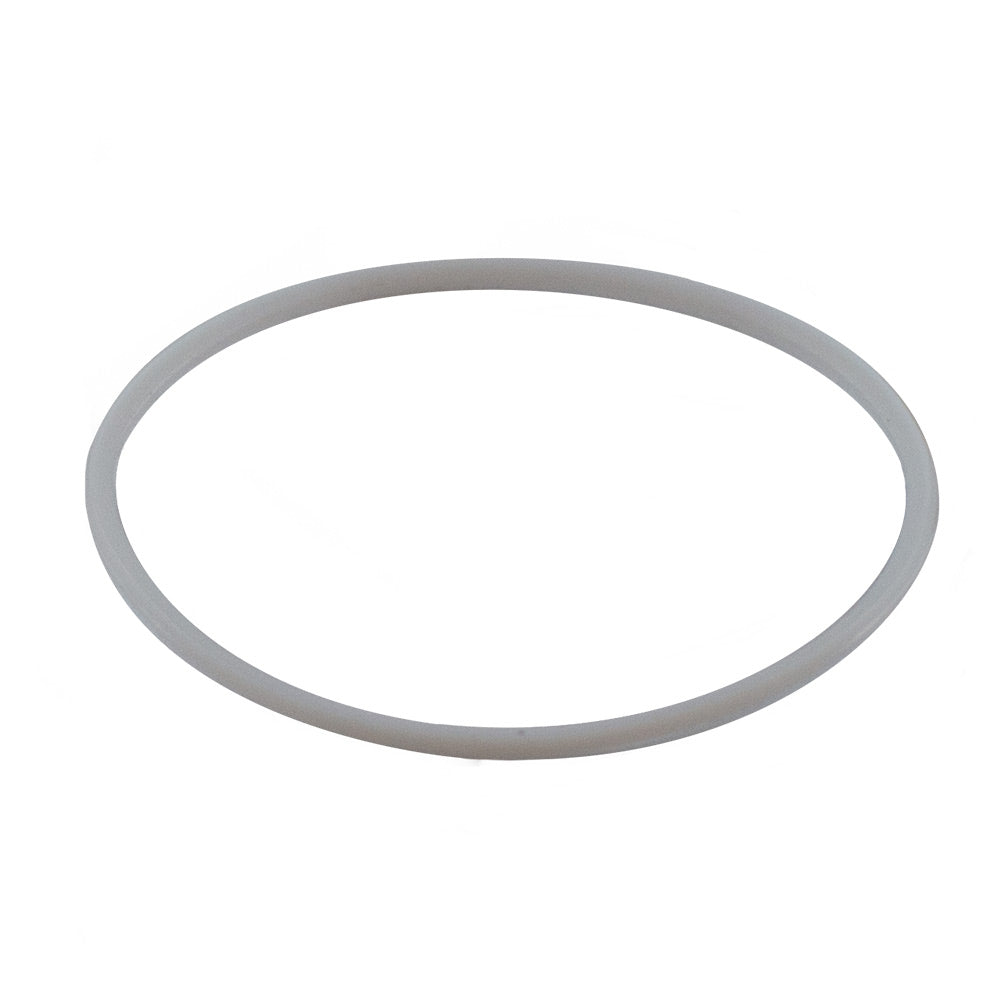

| Stationary Seal Gasket - Outer | 11 | PTFE | 1 |

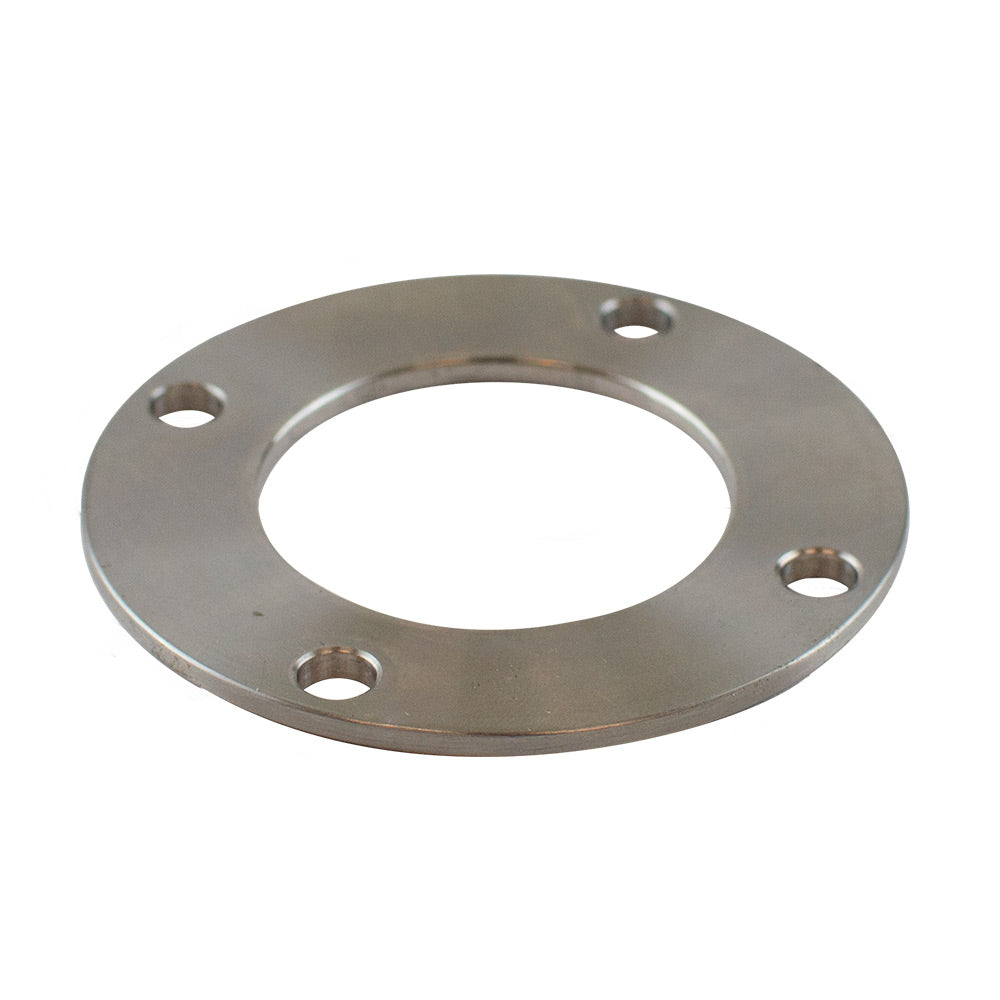

| Backplate Seal Ring | 12 | 304 | 1 |

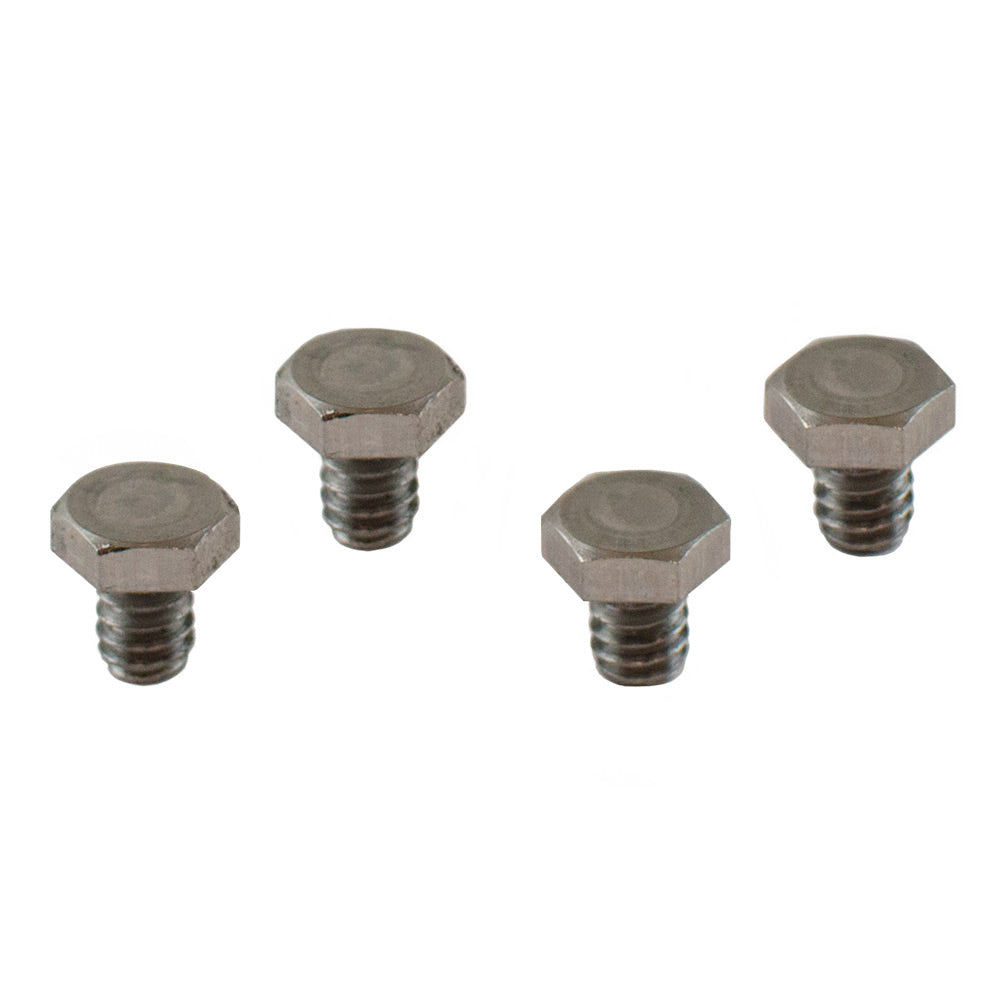

| Seal Plate Screw | 13 | 18-8 | 4 |

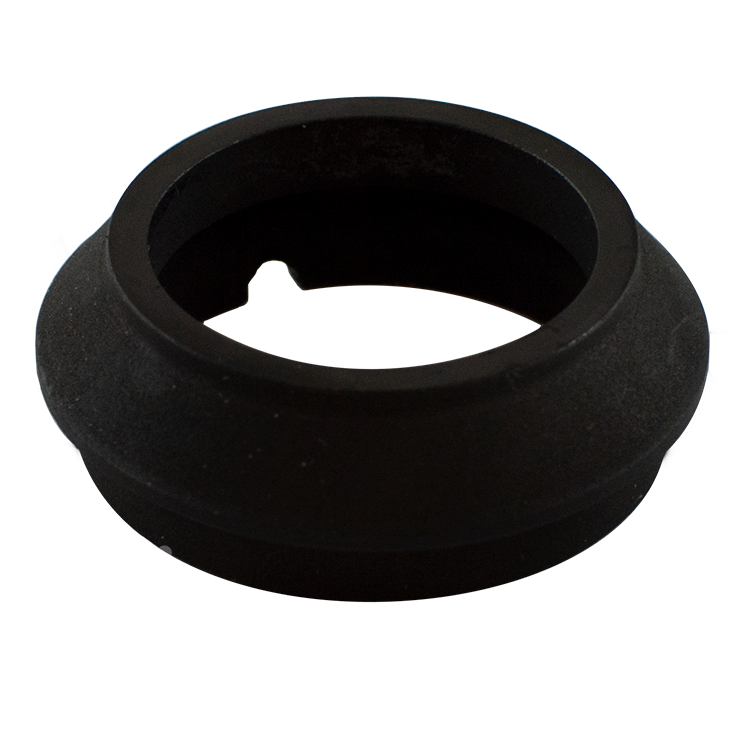

| Rotary Seal | 14 | Carbon | 1 |

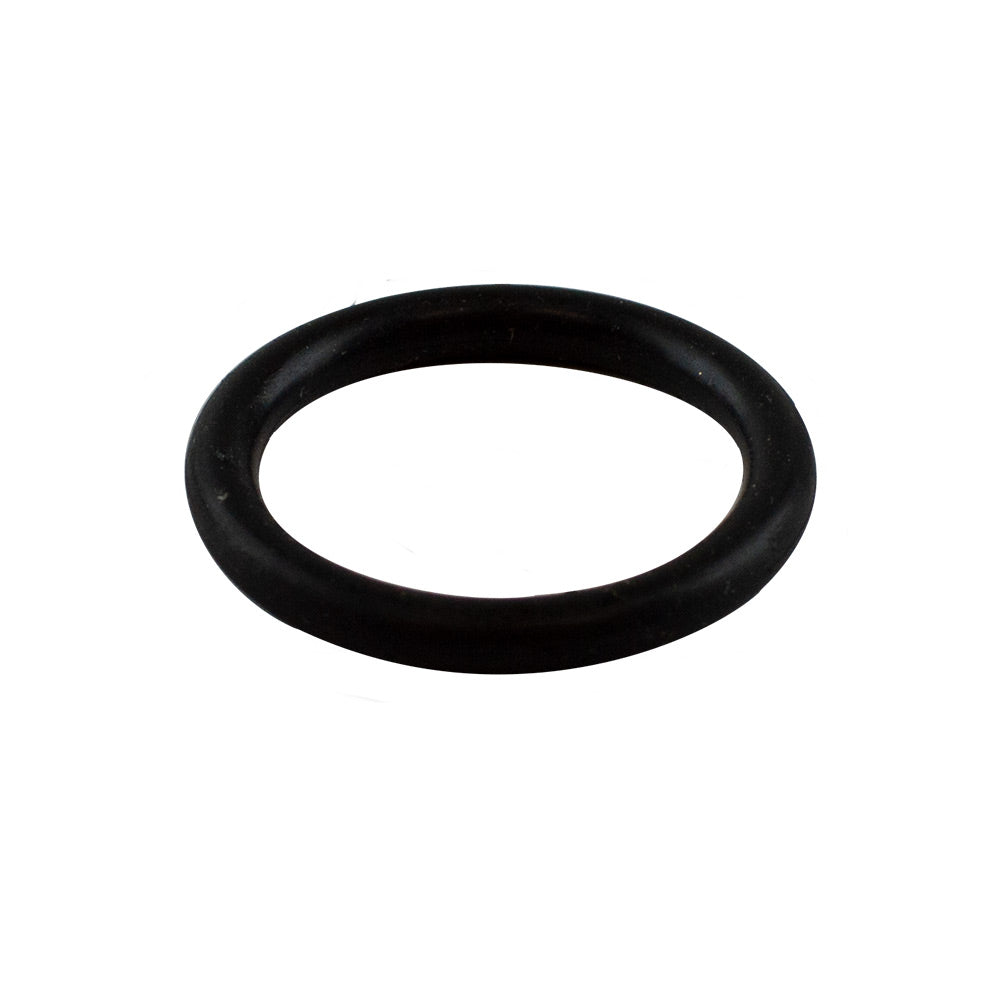

| Rotary Seal O-Ring | 15 | FKM | 1 |

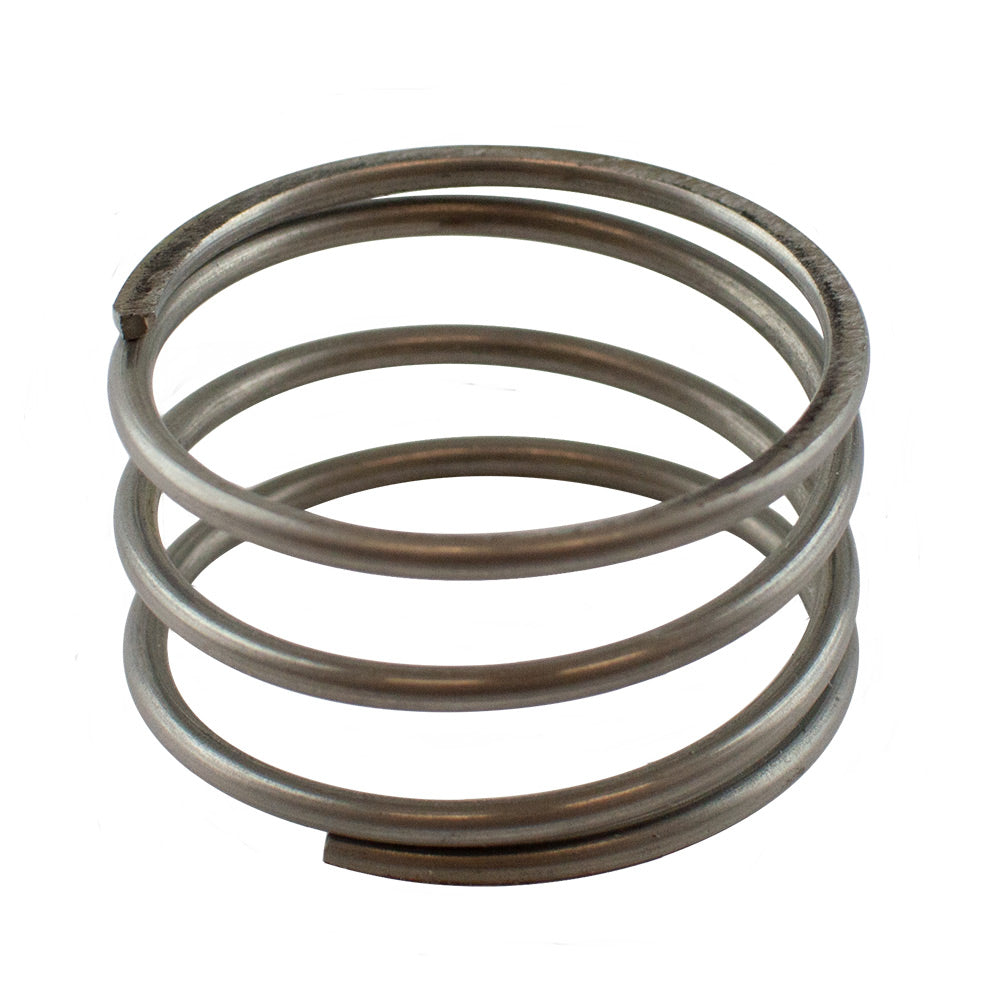

| Seal Spring | 16 | 304 | 1 |

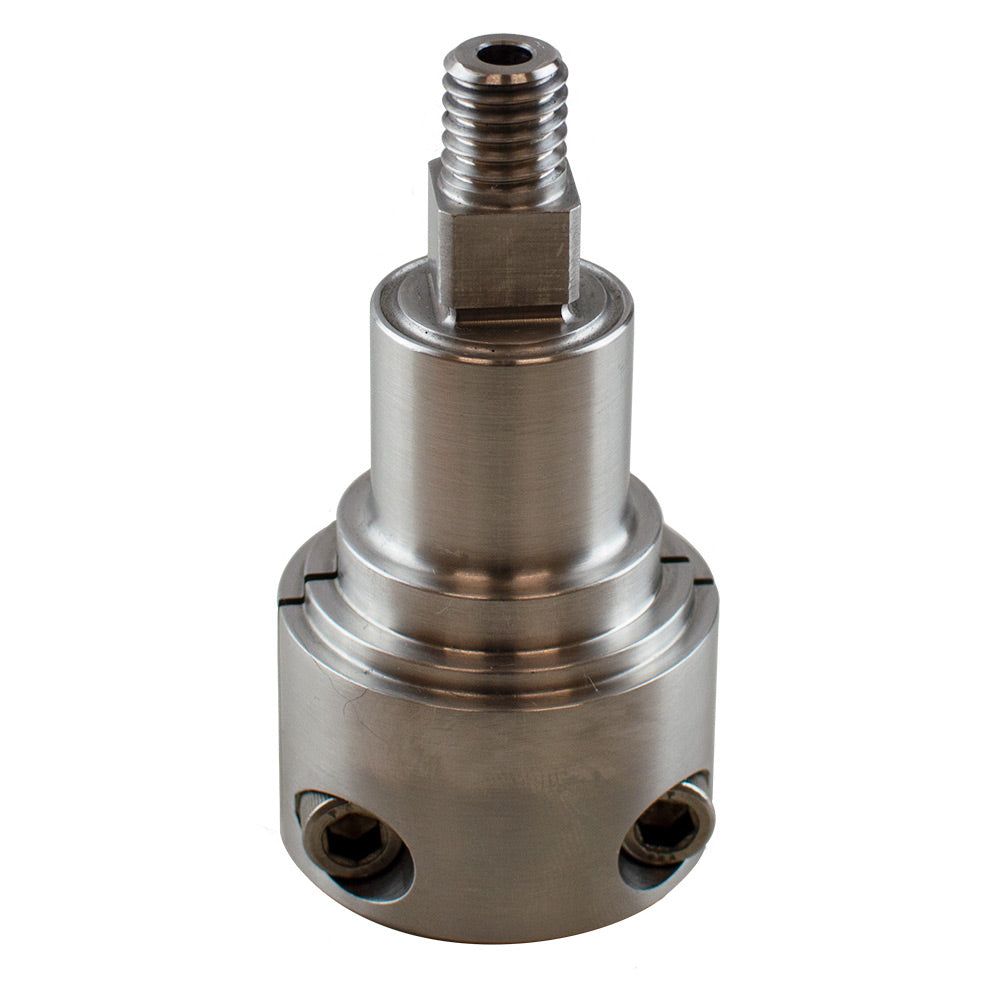

| Stub Shaft | 17 | 316L | 1 |
| Stub Shaft Bolt | 18 | 18-8 | 1 |

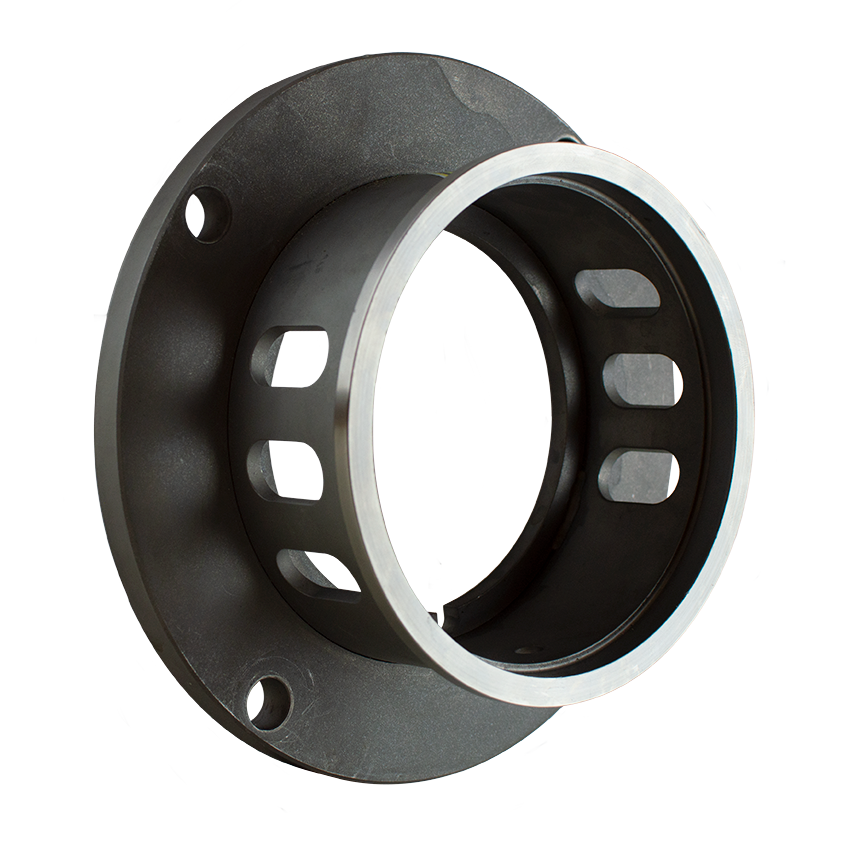

| Adapter | 19 | 304 | 1 |

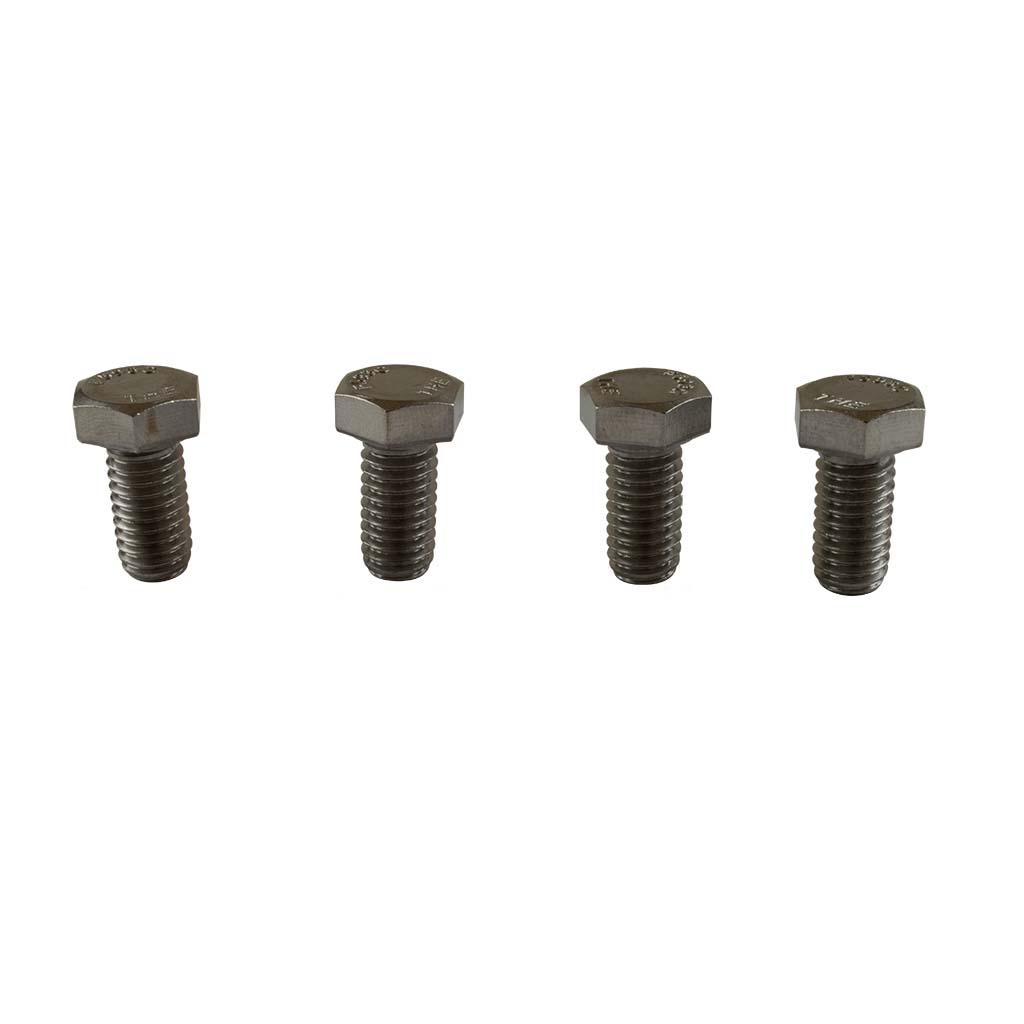

| Adapter Bolt | 20 | 18-8 | 4 |
