14MPHT - Tri-Clamp X Tygon Hose Adapter

$33.38

SKU: FI/14MPHT-.50-6

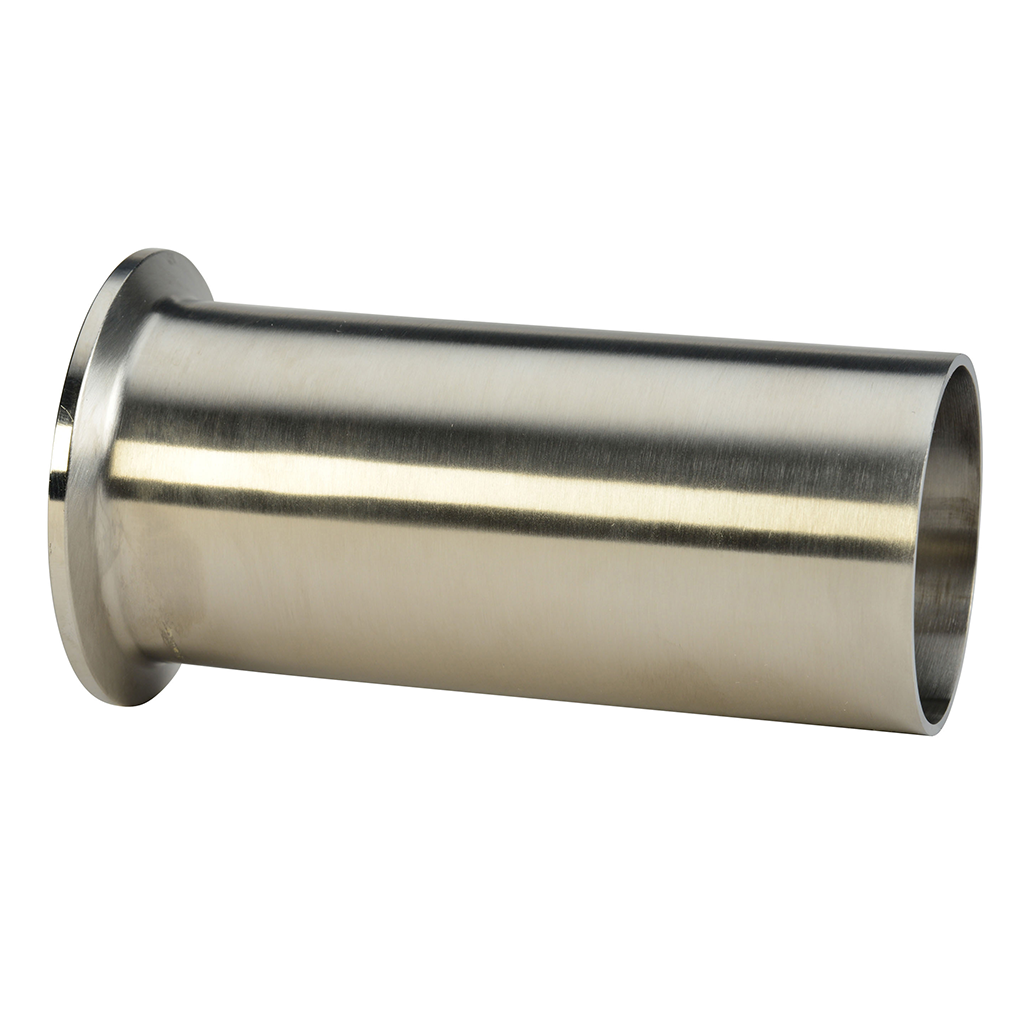

The 14MPHT Tygon Hose Adapter is a sanitary adapter that makes secure connections between Tri-Clamp ends and Tygon hose. This adapter is available in sizes ranging from 1/2" to 6". It is constructed of 316L stainless steel and is 3A certified for use in food and beverage processing industries.

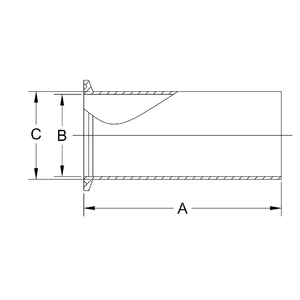

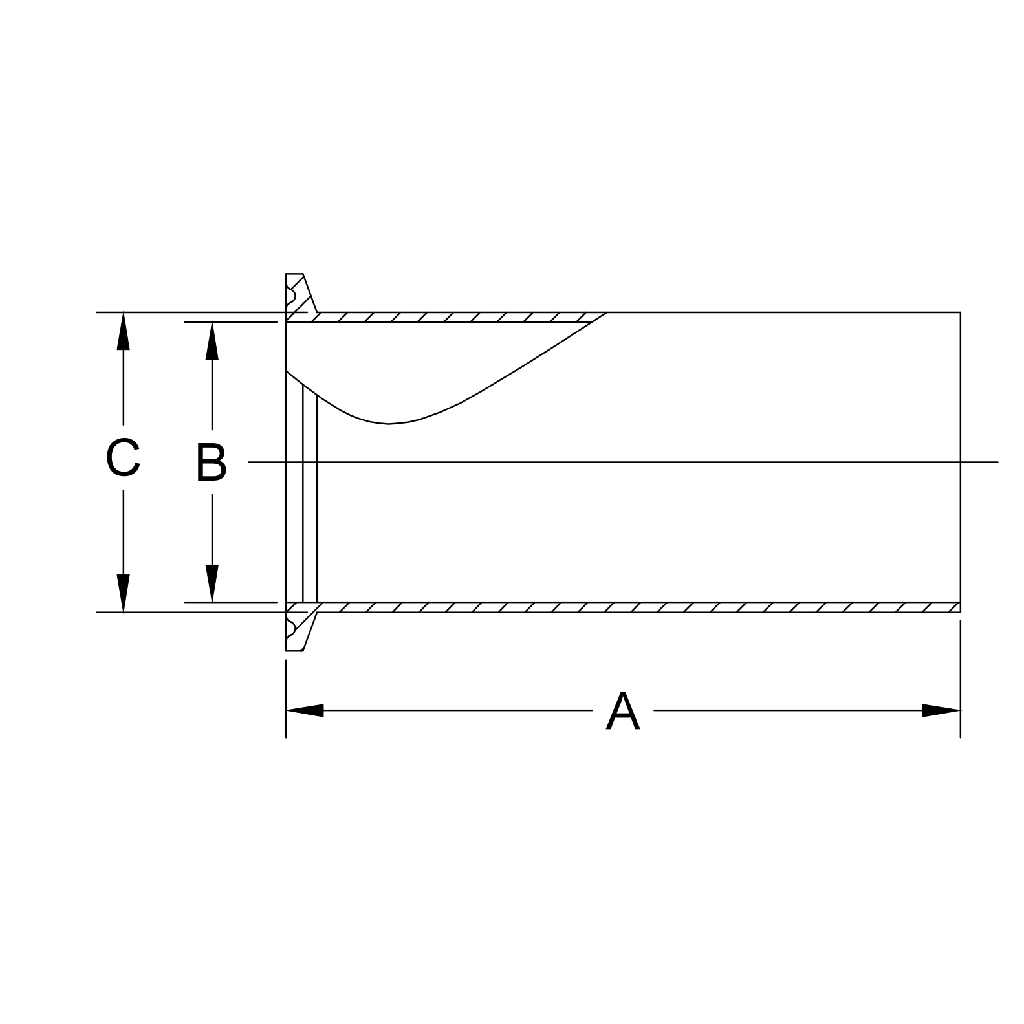

Tube O.D. A B C  Wall Thickness
1/2" 4.00 0.37 0.50 0.065"
3/4" 4.00 0.62 0.75 0.065"
1" 4.50 0.87 1.00 0.065"
1-1/2" 4.50 1.37 1.50 0.065"
2" 4.50 1.87 2.00 0.065"
2-1/2" 4.50 2.37 2.50 0.065"
3" 4.50 2.87 3.00 0.065"
4" 4.62 3.83 4.00 0.083"
6" 6.00 5.78 6.00 0.109"
