14WHR - Butt-Weld Hose Adapter - Polished
From$11.08
Unit price
/
Unavailable
Description
Description

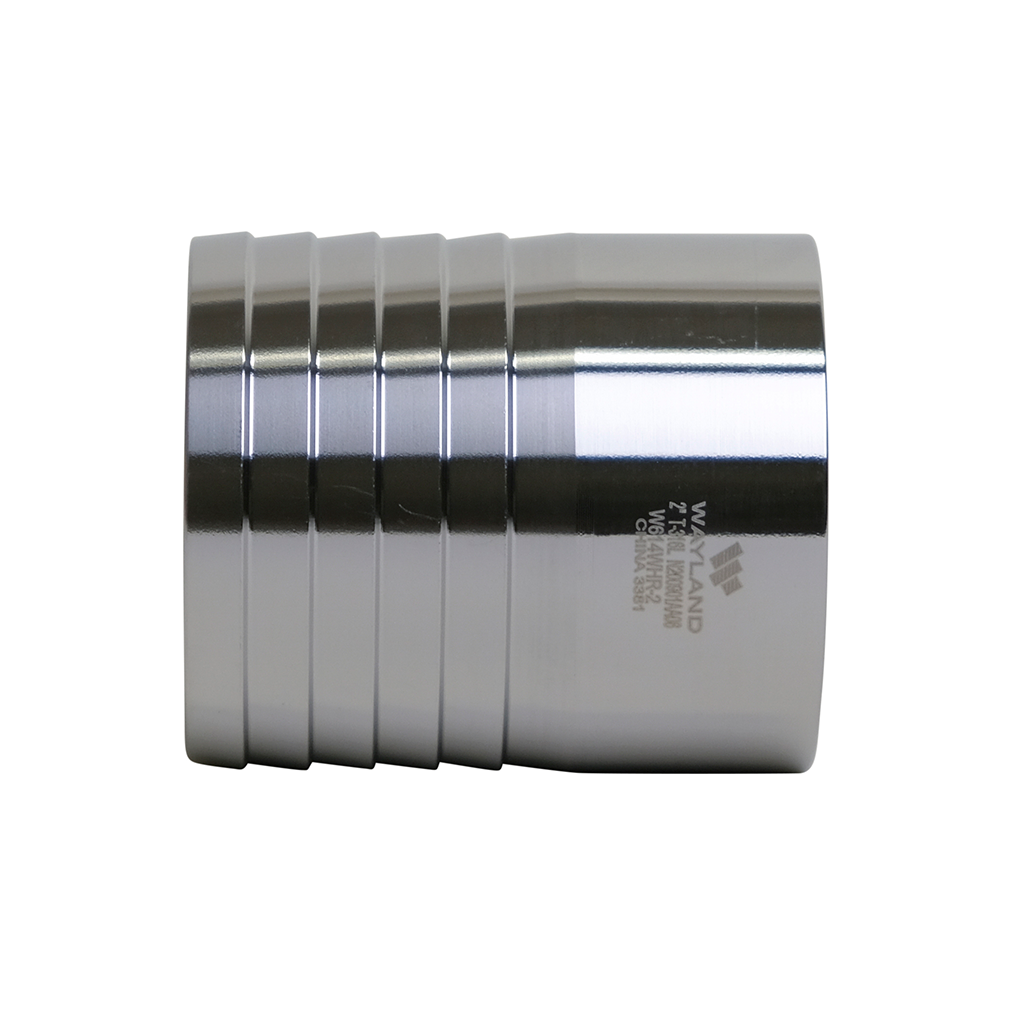

The 14WHR Butt-Weld Hose Adapter is a sanitary fitting designed to be welded into permanent piping systems to connect external hoses. This adapter is constructed of 316L stainless steel polished to 32Ra ID/OD and is available in sizes ranging from 1/2" to 4". Other sizes and materials are available by special order, please contact our sales team for more information.
| Tube O.D. | A |
| 1/2" | 1.50 |
| 3/4" | 1.50 |
| 1" | 1.69 |
| 1-1/2" | 1.69 |
| 2" | 2.31 |
| 2-1/2" | 2.00 |
| 3" | 3.09 |
| 4" | 3.41 |
Manuals
Manuals
No manual available for download.
