C+114MD 1 HP 115V Quick Ship Pump Assembly

$2,557.50

This assembly is quick ship and will ship within 48 hours

The C+114MD is the original C-series centrifugal pump re-imagined. It has kept the original casing design and popular external mechanical seal options, however it features a collar that clamps down on the drive shaft over a full 360 degrees removing the minor wobble that can occur from set screwed shafts. The impeller pin was also replaced with a threaded impeller nut that fully secures the impeller in place; there are two specialized gaskets to seal the shaft and to still allow a CIP procedure to clean behind the impeller. The collar and bolted impeller reduce rattling sounds at lower speeds.

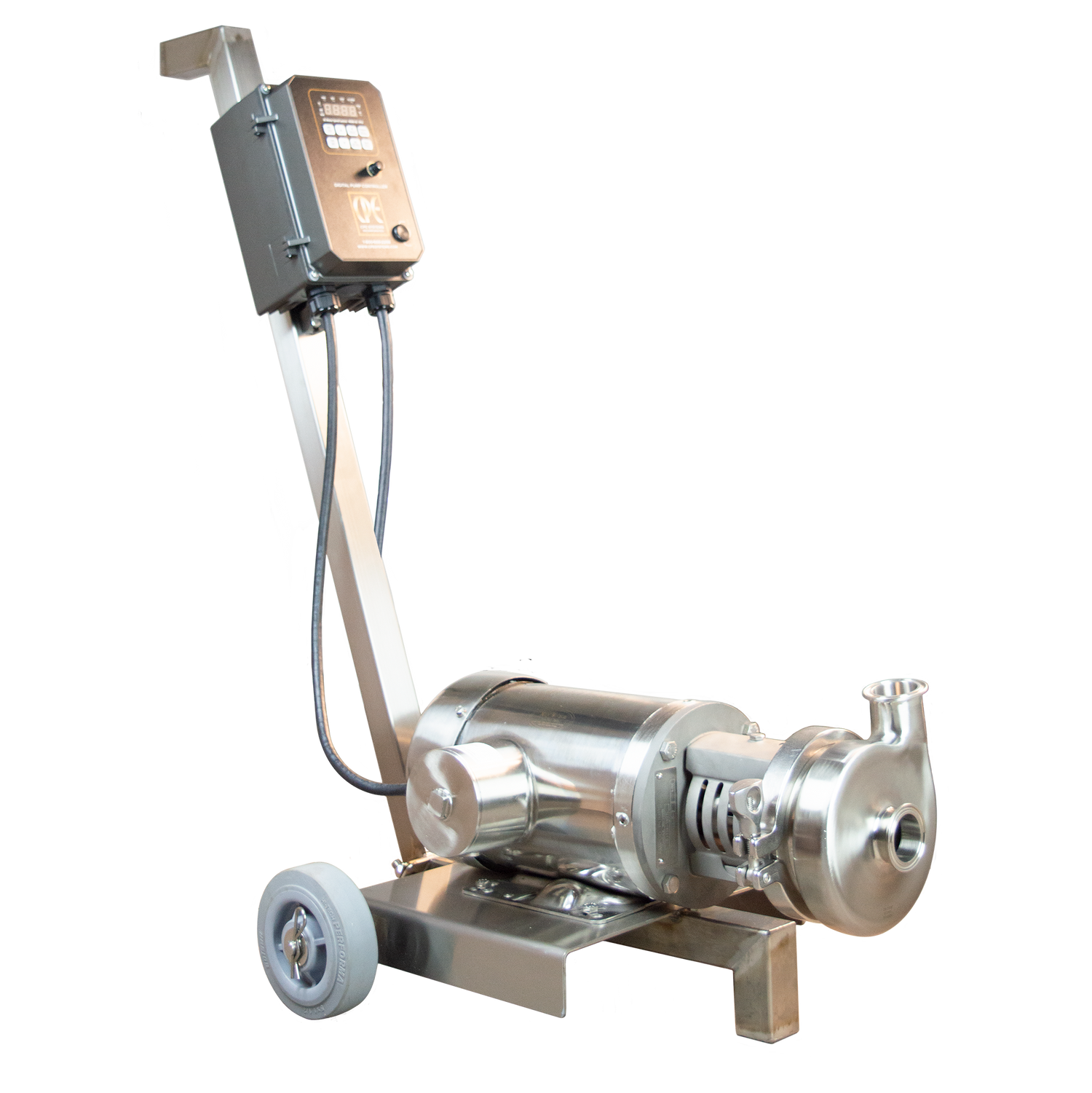

The C+114 pump head is attached to our stainless steel washdown motor, mounted on a Canadian made stainless steel cart, and fitted with a NEMA 4X variable speed control (VFD).

This is a premade C+114 1 HP assembly with 115V single-phase power and a KBDA VFD. This assembly will ship out within 48 hours.

Features:

  • 1 1/2" X 1 1/2" Tri-clamp connections
  • Stainless steel washdown motor
  • 316L stainless steel construction (wetted parts)
  • 304 stainless steel adapter

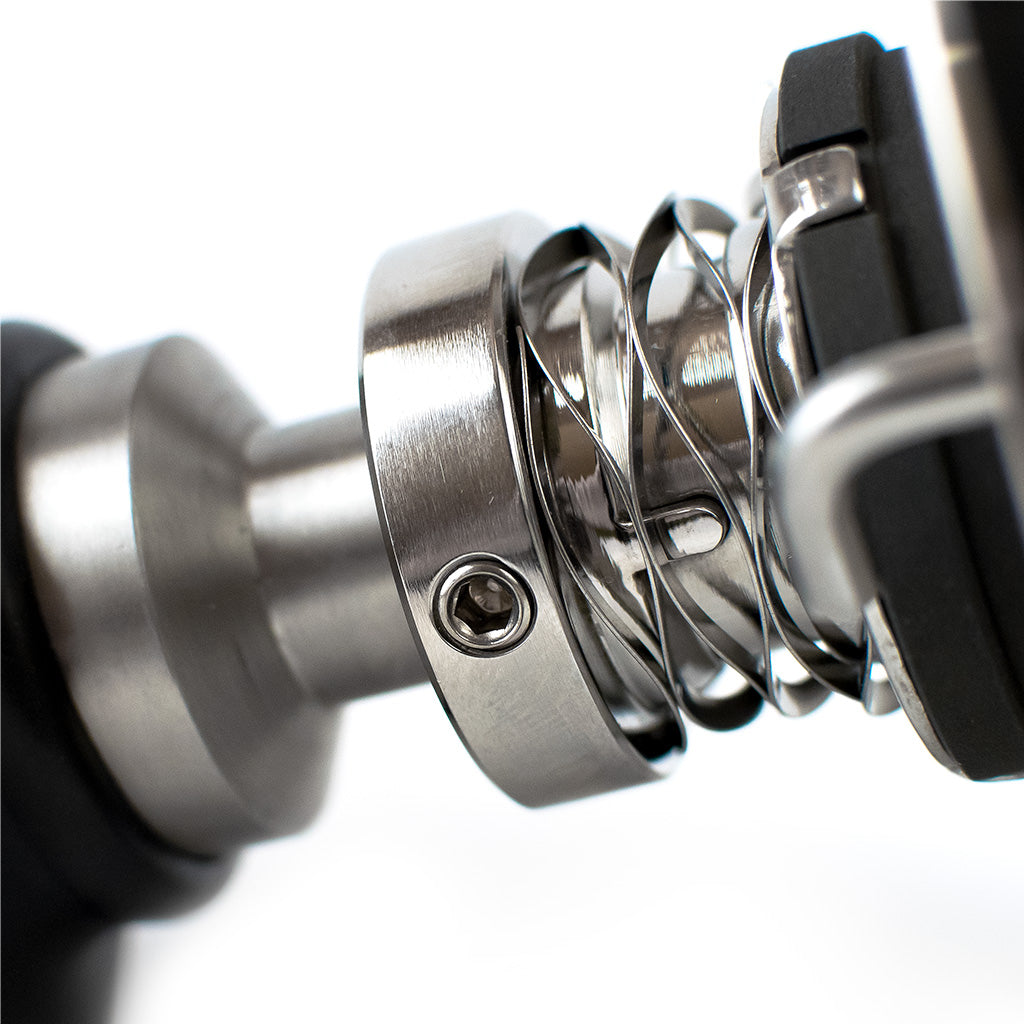

  • External mechanical seal
  • Canadian made stainless steel cart
  • NEMA 4X VFD
  • "D" Single mechanical external seal
  • 1 HP motor
  • 115 Volt Single Phase



Horsepower

1 HP: The capacity of this pump is 75 GPM and it will put out 65 ft of head pressure, ideal for microbreweries (5 - 10 BBL) and estate wineries.
