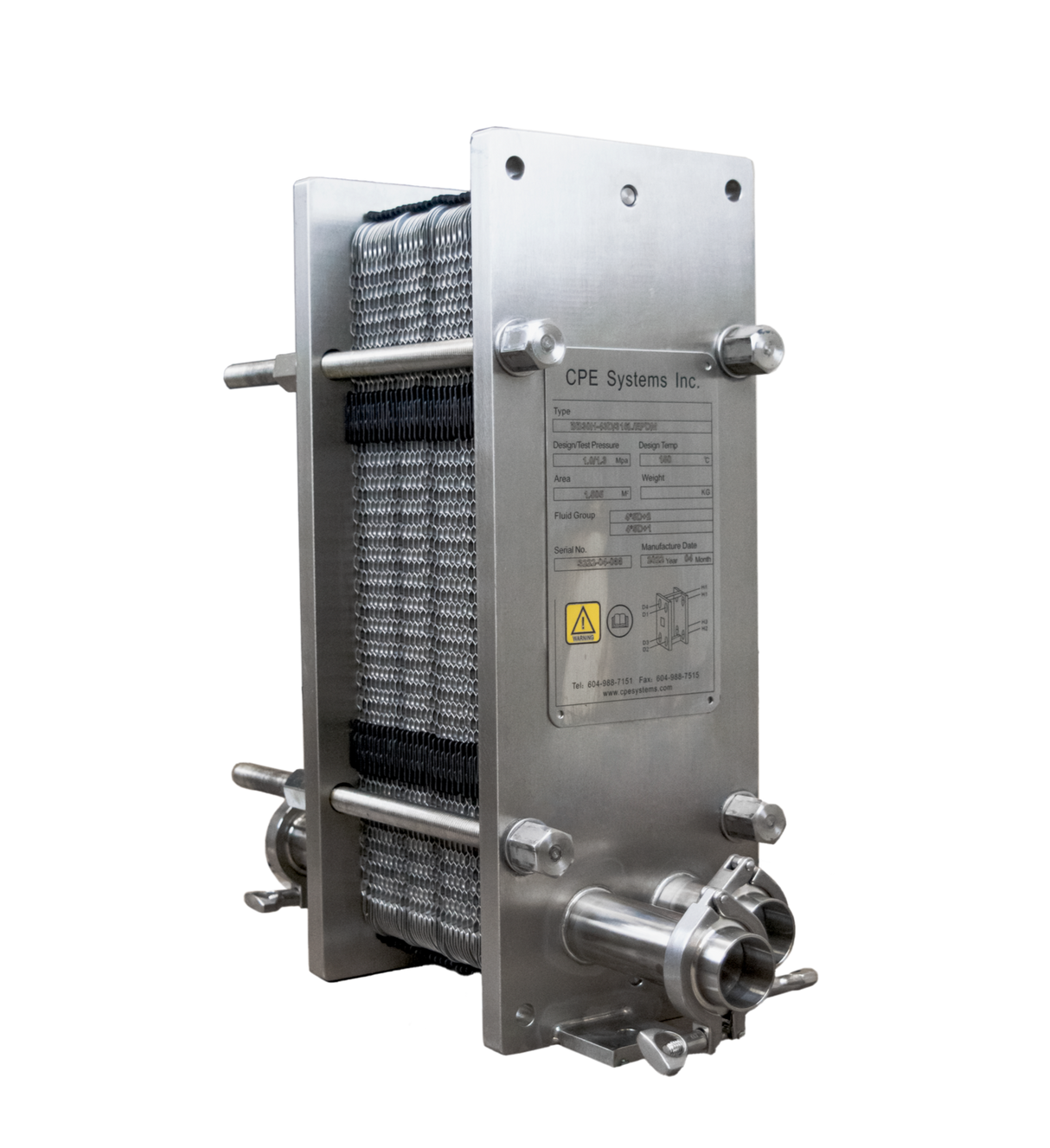

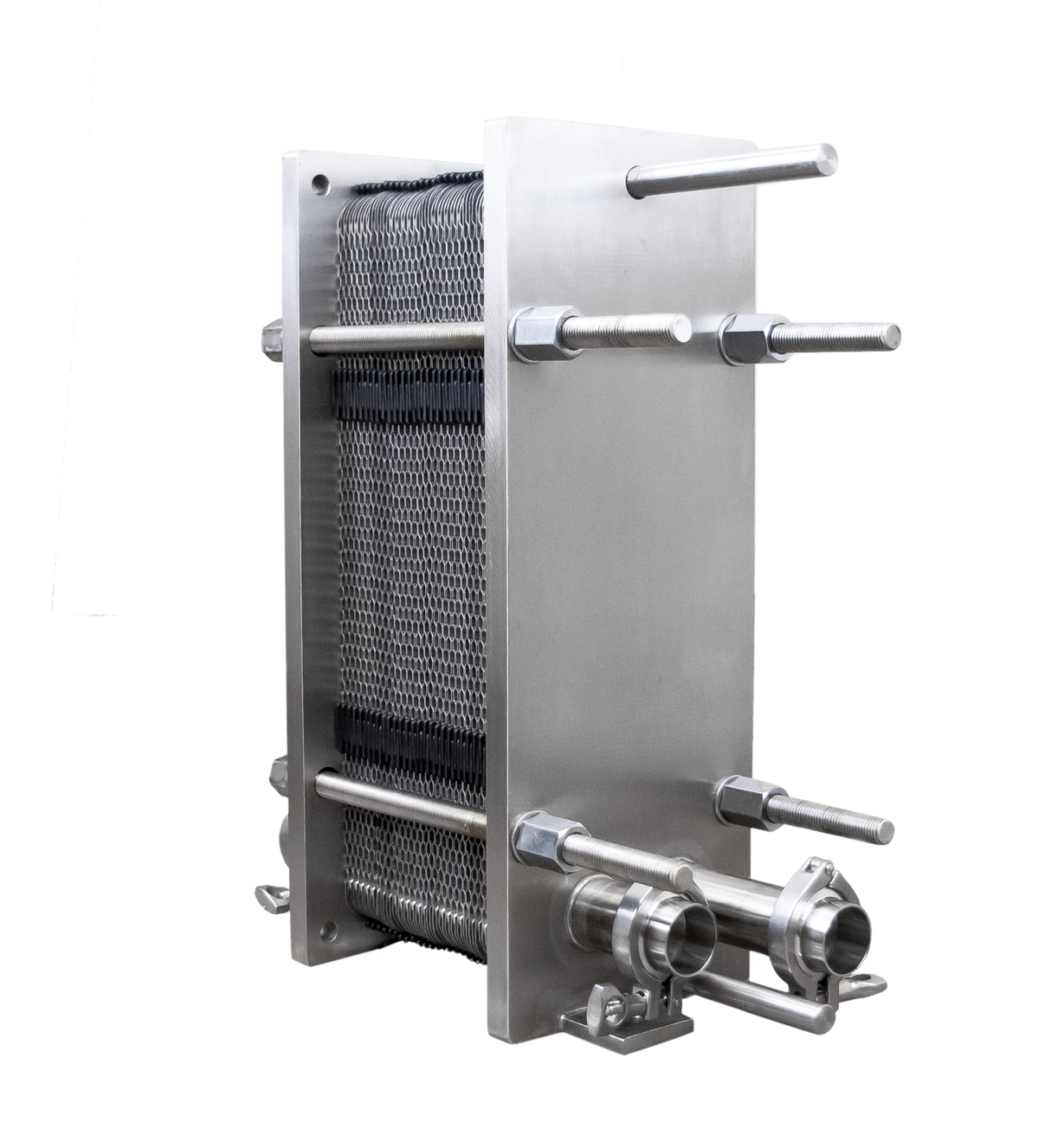

CPE30H-XXD Stainless Steel Plate Heat Exchanger
Regular priceFrom
$2,445.00
Unit price
Description
Description
HEAT EXCHANGER / WORT CHILLER
This is a stainless steel brewery heat exchanger for cooling wort from 200°F to 70°F using city water at around 50°F. This heat exchanger is designed so that the discharged water is hot enough to put into your HLT for your next brew. They are designed to cool a batch in approximately 30 minutes.
Frame Material: Stainless Steel
Surface Area: From 6.5 ft² to 20 ft²
Plates: 0.5mm 316ss,
Gaskets: EPDM clip on gaskets
Design: Dual pass flow
Connections: 1.5" Tri-Clamp Water connections X 1.5" Tri-Clamp Wort connections
Frame: 12L Frame length, Max plates: 81
