C+100 Series Pump Parts
From$1.21
Unit price
/
Unavailable
Description
Description
Pump parts can eventually wear out, break, or become lost and require a replacement. These spare parts are designed for C+100 pumps. They are compatible with most C+100 pumps from major brands, such as Q-Pump. However, they will not fit our older style C100 pumps or those from Topline and Purity. For C100 parts click here.

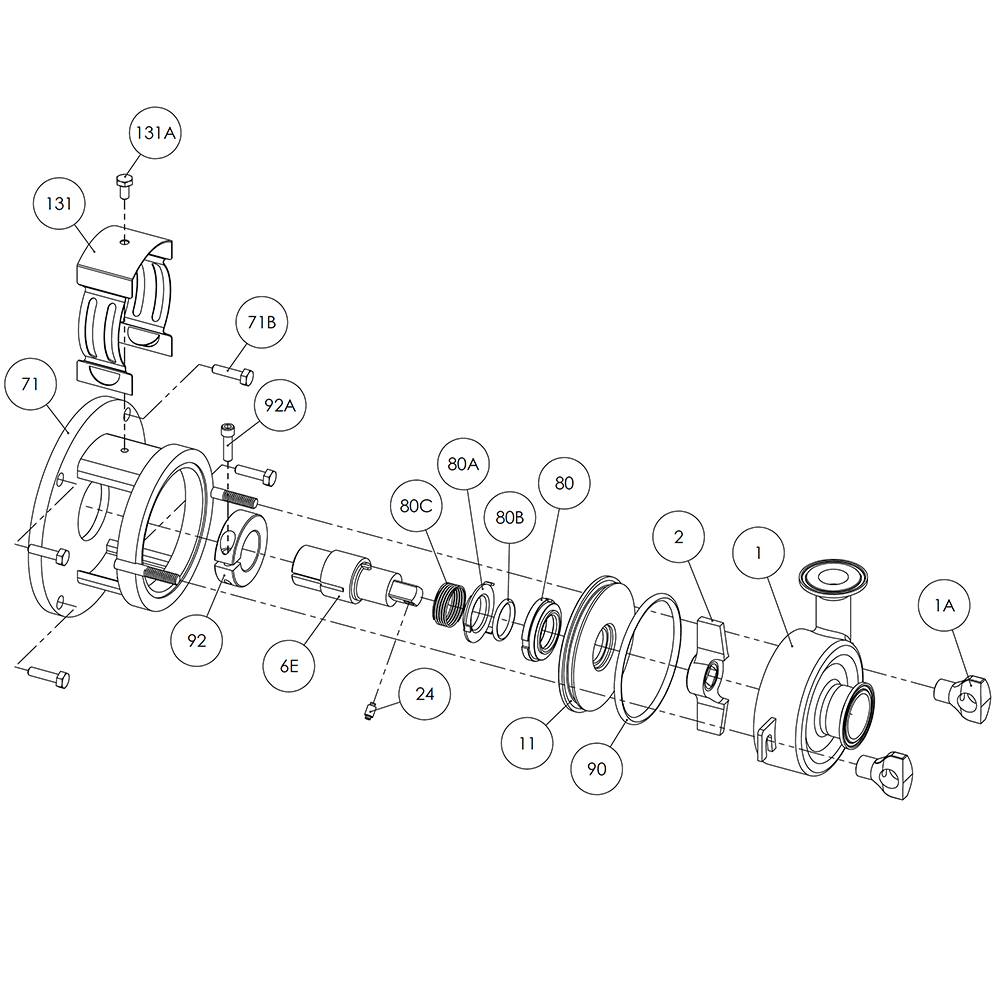

C+100 Spare Parts:
| Key | Description | Quantity |
| 1 | Casing | 1 |
| 1A | Casing Wing Nuts | 2 |
| 2 | Impeller | 1 |
| 92A | Shaft Collar Screw | 1 |
| 6E | Stub Shaft | 1 |
| 11 | Backplate | 1 |
| 24 | Impeller Retainer | 1 |
| 92 | Shaft Collar | 1 |
| 71 | Adapter | 1 |
| 71B | Adapter Mounting Screw | 4 |
| 80 | Carbon Seal | 1 |
| 80A | Cup | 1 |
| 80B | O-ring | 1 |
| 80BUR | Back-Up Ring | |
| 80C | Spring | 1 |
| 90 | Casing gasket | 1 |
| 131 | Seal Guard | 1 |
| 131A | Seal Guard Screw | 1 |
Manuals
Manuals
No manual available for download.
