C100MD Pump With Stainless Steel Washdown Motor (1/2 - 1 HP)
Free Gift

  • 950.00

Call for Pricing

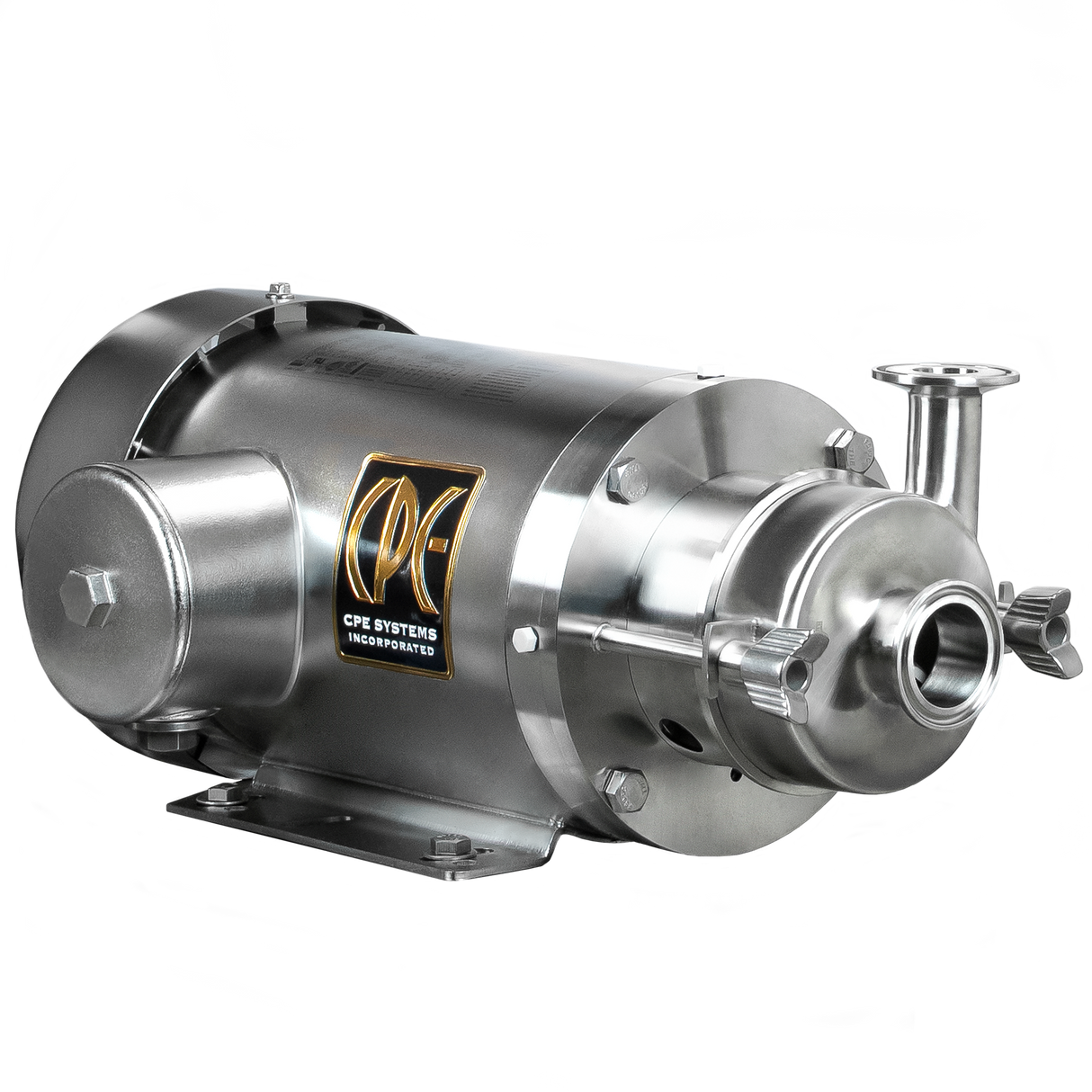

The C100 centrifugal pump is ideal for use in small and medium size process applications in the dairy, food, beverage, pharmaceutical, and other sanitary process industries. The C100 Pump has an adapter and a backplate made from precision machined stainless steel. An O-ring on the backplate provides a tight, secure seal with the casing for longer trouble-free operation. Because all of the other C100 Pump components remain the same, existing pumps can be easily retrofitted to the new designed adapter and backplate. Includes a MaxMotion AC induction motor, SS washdown, 56C frame, stainless steel, Class F insulation, NEMA design B, with base

Horsepower Max. Head Max Capacity
1/2 17' 30 gpm
3/4 55' 40 gpm
1 55' 60 gpm



Connections  1 1/2" X 1" Tri-Clamp

Technical Specifications
