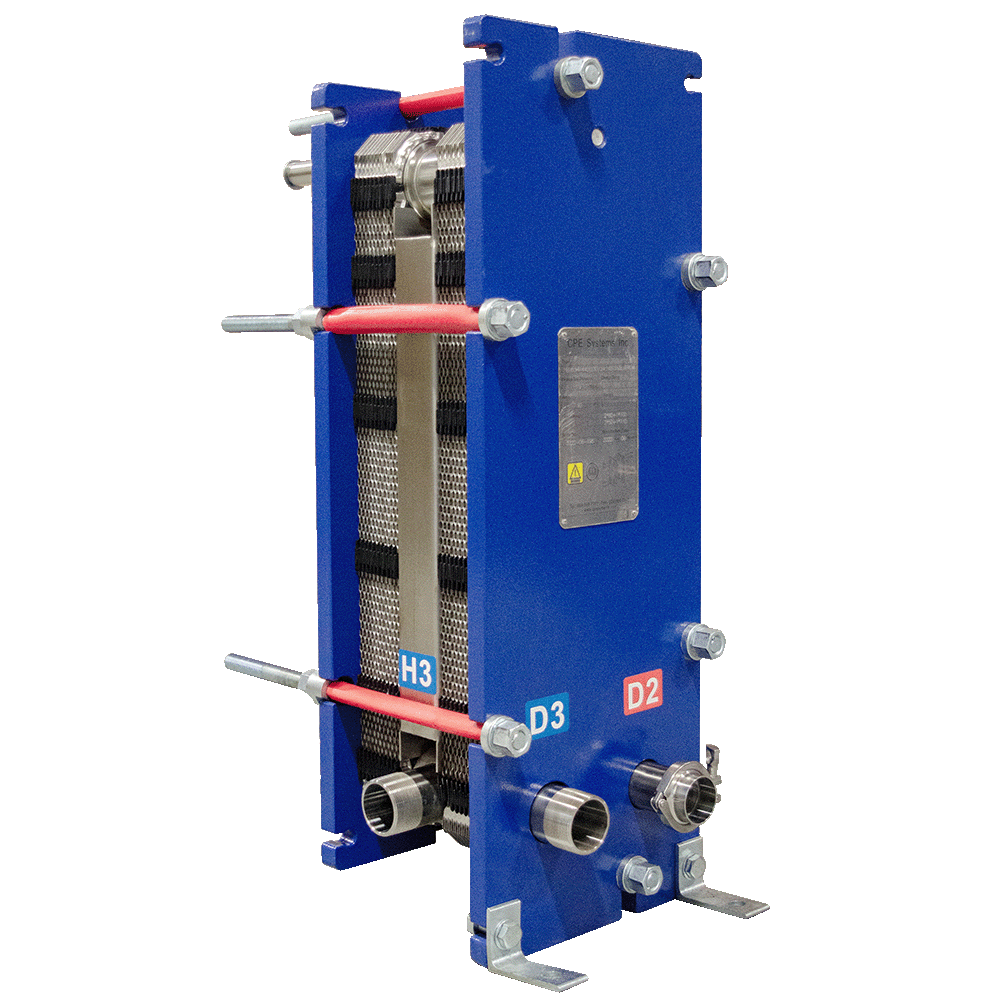

CPE60H-XXD-2S Heat Exchanger (2 Section)

CPE60H-XXD-2S Heat Exchanger (2 Section)
Free Gift

  • 3,175.00
  • Save $0.00

Call for Pricing

TWO SECTION WORT CHILLER

Brewery Heat Exchanger for cooling wort from 200 F to 70 F using city water and glycol.  This two section design is for breweries where the city water is not cool enough to bring the wort down to the desired temperature. We have added a second section to cool the wort using chilled glycol. This heat exchanger is designed so that the discharged water is hot enough to put into your HLT for your next brew. They are designed to cool a batch in approximately 30 minutes.

Technical Specifications

Frame Material: Carbon Steel

Surface Area: From 34 ft² to 177 ft²

Plates: 0.5mm 316ss

Gaskets: NBR clip on gaskets

Design: Dual pass flow

Connections: 2" Water connections X 2" Tri-Clamp Wort connections

Frame: 18L Frame length, Max plates: 112              24L Frame length, Max plates 140
