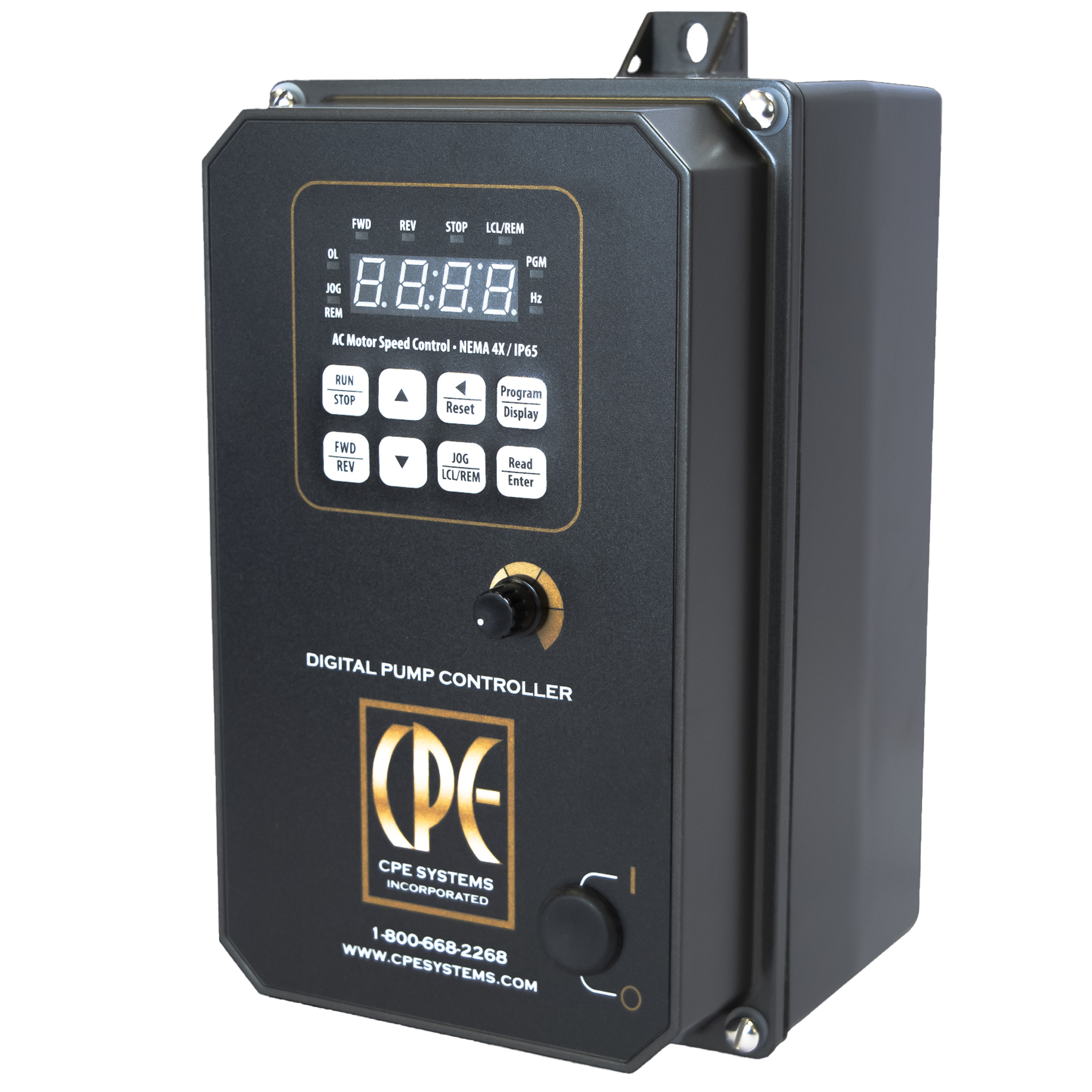

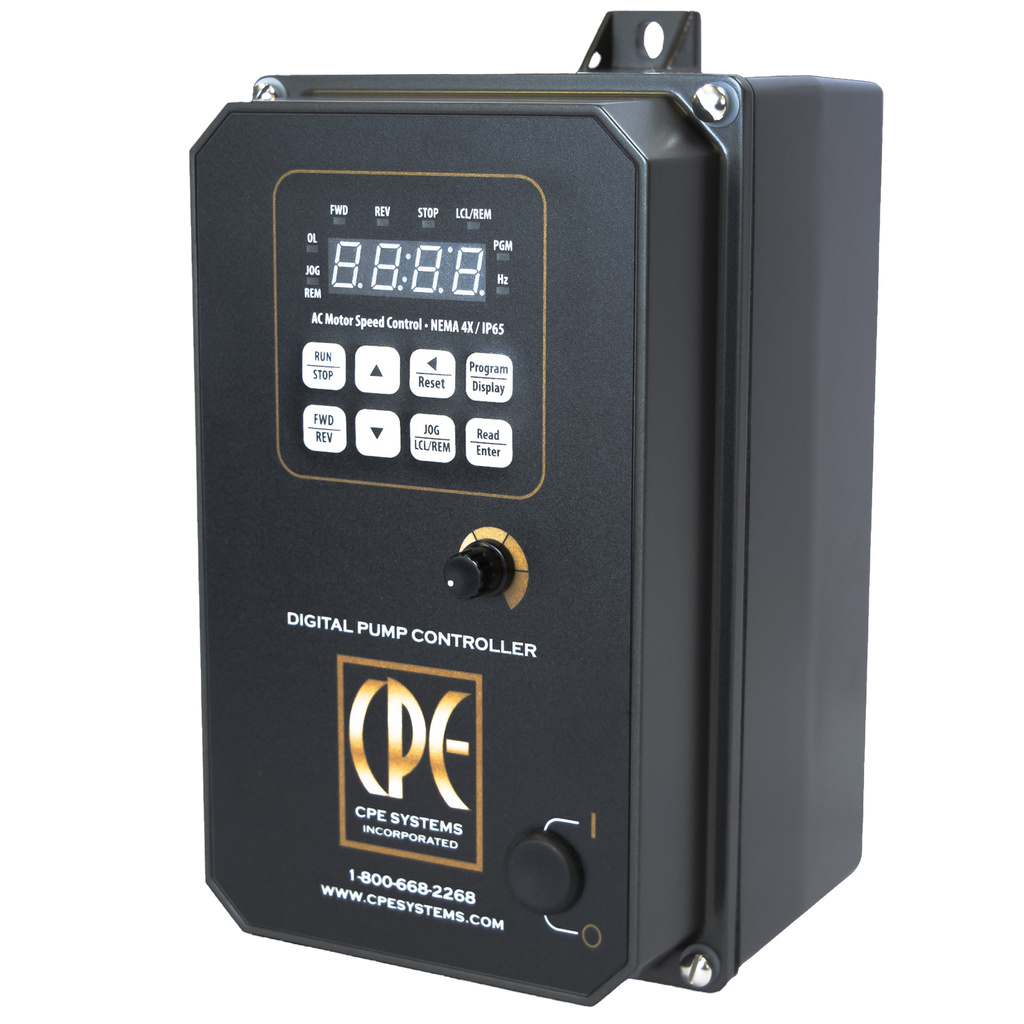

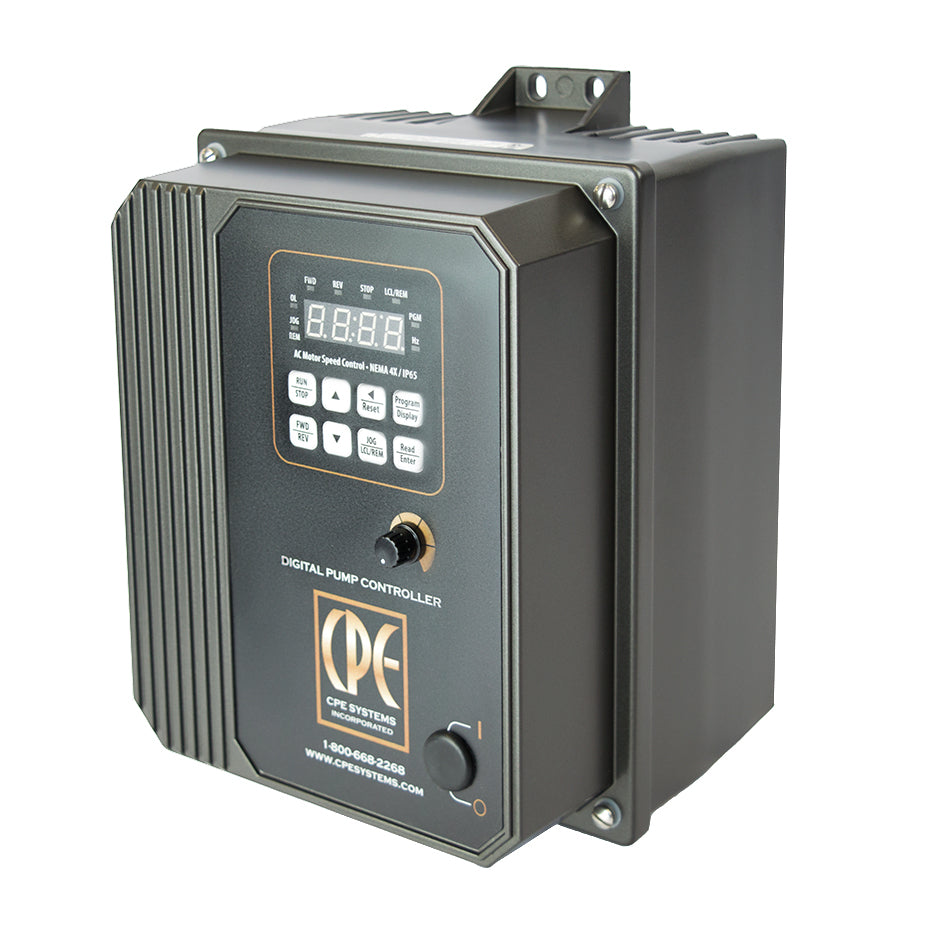

KBDA Digital VFD

$349.00

The KBDA variable frequency drive is easy to use, easy to install, and programmable.  There are eight models available ranging from 1 to 3 HP, in both single and three phase configurations. The casing is powder-coated aluminum and is NEMA 4X approved for wet locations, both indoor and outdoor.

Specifications:

  • Rugged Die-Cast Aluminum NEMA-4X/IP-65 Enclosure
  • Horsepower: 1HP - 3HP
  • Powerful 200% Starting Torque

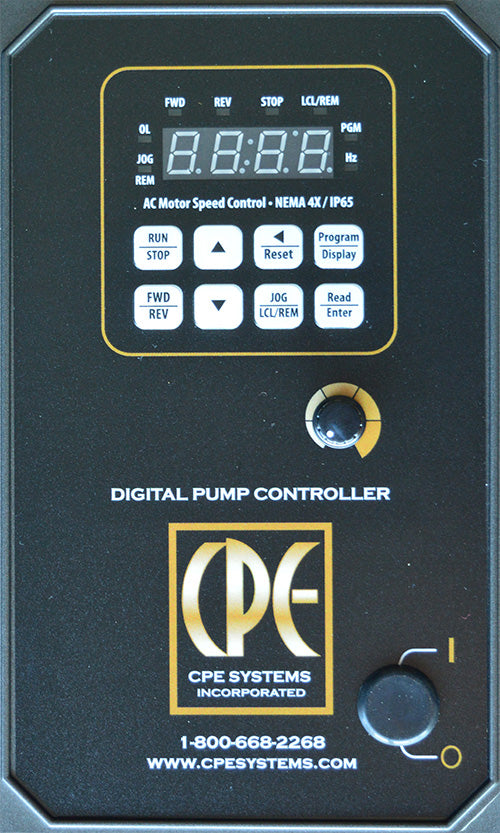

  • Digital Display with LED Status Indicators
  • Agency approvals:  UL, CE, CSA, C-Tick
  • Built-in Potentiometer

Features:

  • Sensorless Flux Vector Control
  • Electronic Inrush Current Limit (EICLTM) Protection
  • Run/Fault Relay Output Contacts
  • Jog-Local Remote
  • Holding Torque at Zero Speed in "Stop" mode
  • Undervoltage and Overvoltage Protection
  • Short Circuit Protection, phase to phase
  • Ride-Through momentary power loss
  • Regeneration eliminates tripping



Model HP Voltage Size

KBDA-24P

1  230 Volt Three Phase 9.5" X 5.5" X 5.9"

KBDA-24D

1 115/230 Volt Single Phase 9.5" X 5.5" X 5.9"

KBDA-27D

2 115/230 Volt Single Phase 9.8" X 7.6" X 7.3"

KBDA-29(1)P

3 230 Volt Single Phase 9.8" X 7.6" X 7.3"

KBDA-29P

3 230 Volt Three Phase 9.8" X 7.6" X 7.3"

KBDA-42

1 460 Volt Three Phase 9.5" X 5.5" X 5.9"

KBDA-45

3 460 Volt Three Phase 9.5" X 5.5" X 5.9"
