9WWWW - Butt-Weld Cross - Polished
From$23.38
Unit price
/
Unavailable
Description
Description

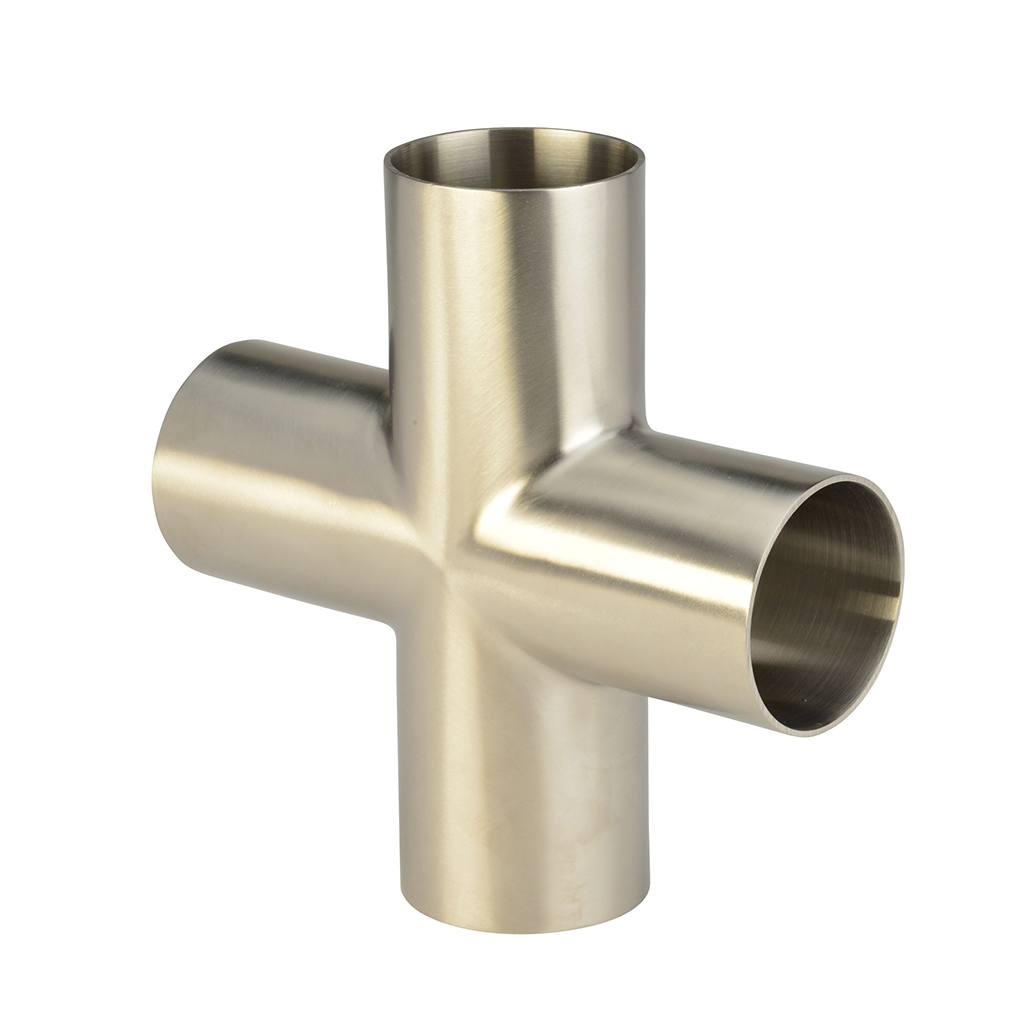

The 9WWWW Butt-Cross is a 3A certified sanitary fitting designed to be welded into permanent piping systems to connect two perpendicular tubing lines. This tee has four butt-weld ends of equal size. The 9WWWW is constructed of 316L stainless steel and is polished to 32Ra ID/OD.
This fitting is available in other sizes upon special request, please contact our sales team with any inquiries.

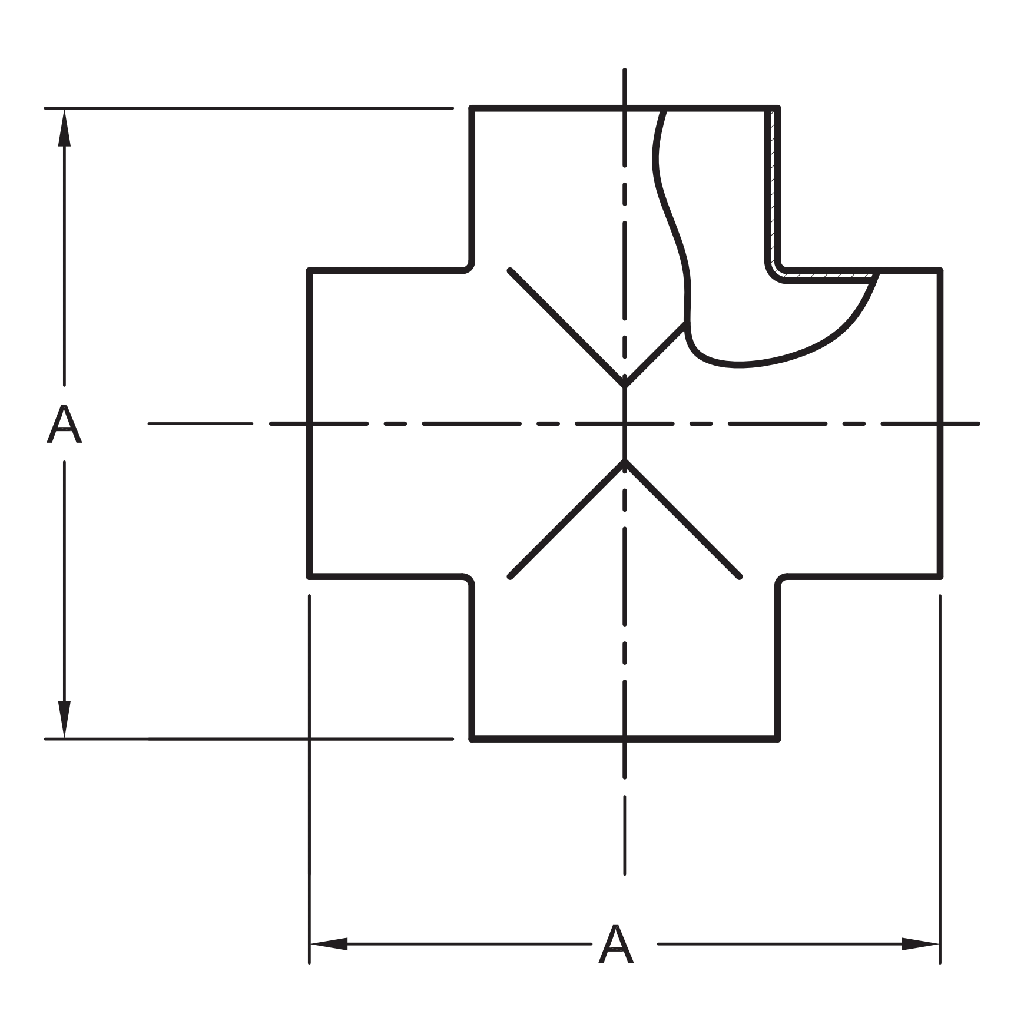

| Tube O.D. | A |
| 1/2" | 1.50 |
| 3/4" | 2.25 |
| 1" | 2.25 |
| 1-1/2" | 3.31 |
| 2" | 4.12 |
| 2-1/2" | 4.69 |
| 3" | 5.19 |
| 4" | 6.87 |
| 6" | 11.00 |
Manuals
Manuals
No manual available for download.
