C+114MD 3 HP 230V Fast Track Pump Assembly

$3,930.00

SKU: PP/FT-C+114MD-3HP-230/3/60

This is a Fast Track assembly and will ship within 7 days

The C+114MD is the original C-series centrifugal pump re-imagined. It has kept the original casing design and popular external mechanical seal options, however it features a collar that clamps down on the drive shaft over a full 360 degrees removing the minor wobble that can occur from set screwed shafts. The impeller pin was also replaced with a threaded impeller nut that fully secures the impeller in place; there are two specialized gaskets to seal the shaft and to still allow a CIP procedure to clean behind the impeller. The collar and bolted impeller reduce rattling sounds at lower speeds.

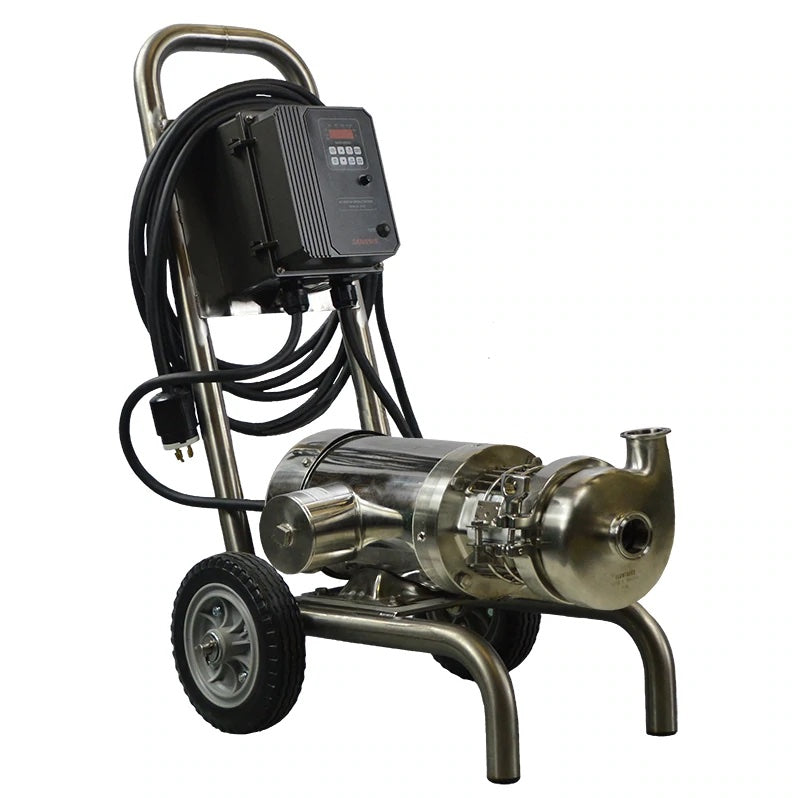

The C+114 pump head is attached to our stainless steel washdown motor, mounted on a Canadian-made stainless steel cart and fitted with a NEMA 4X variable speed control (VFD).

This is a Fast Track C+114MD 3 HP assembly with 230V three-phase power and a NEMA 4X VFD. All components for this pump are in stock and this assembly will ship out within 7 business days.


All pumps come standard with Tri-clamp connections, but we can supply other connection types by special order.


Features:

  • 1 1/2" X 1 1/2" Tri-clamp connections
  • Stainless steel washdown motor
  • 316L stainless steel construction (wetted parts)
  • 304 stainless steel adapter
  • External mechanical seal
  • Canadian made stainless steel cart
  • NEMA 4X VFD
  • "D" Single mechanical external seal
  • 3 HP motor
  • 230 Volt Three Phase



Horsepower

3 HP: The capacity of this pump is 150 GPM and it will put out 75 ft of head pressure, ideal for large microbreweries (>25 BBL) and larger estate wineries.
