FLUX F570 VISCOPOWER FDA ATEX Drum Pump

$6,525.00
SKU: PU/F570-FDA-Ex-700-FKMc-FKM-SP-TS-R52-PTFE-G16
Barrel Pumps
Immersion Length
Motor
Motor Option

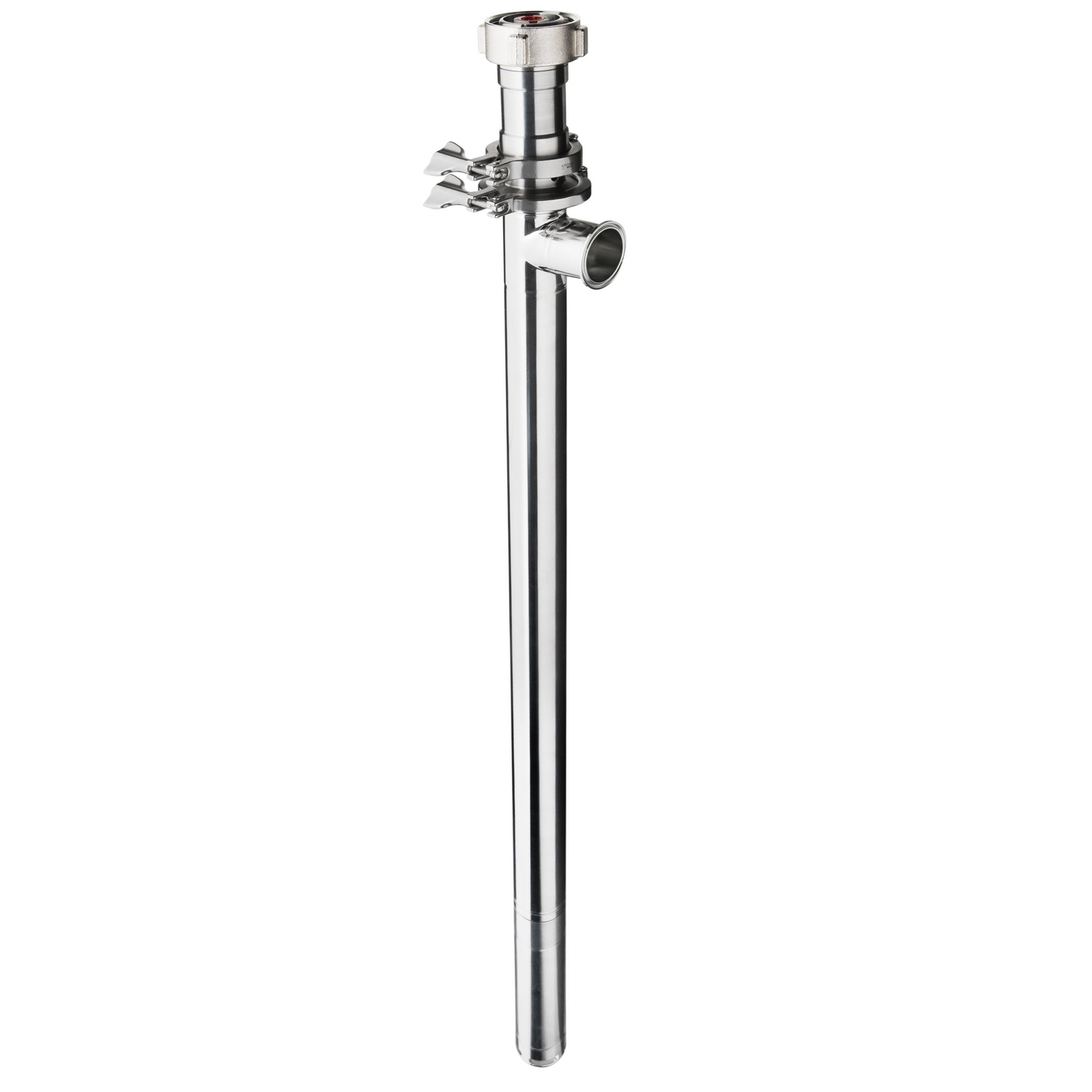

The VISCOPOWER F570 drum pump from FLUX is made for smooth, low-shear pumping out of IBCs, drums, and totes. As a progressive cavity barrel pump with a planetary gearbox, it is a versatile pump that can handle a range of viscosities and is easy to clean and maintain.

Description

The VISCOPOWER F570 drum pump from FLUX is made for smooth, low-shear pumping out of IBCs, drums, and totes. As a progressive cavity barrel pump with a planetary gearbox, it is a versatile pump that can handle a range of viscosities and is easy to clean and maintain.

This model is explosion-proof, has ATEX certification, and can come with three different explosion-proof motor options. The closed mechanical seal makes it fully sanitary, with FDA certification. It features many options to fine-tune it to your specific sanitary application.  If you require any materials, styles, or customization beyond what is shown here, please contact our sales team.


F570 Drum Pump Construction:

  • Seal: Closed Mechanical Seal
  • Pump Type: Progressive cavity w. 16:1 Gearbox
  • Construction Material: Stainless Steel
  • >Seal Material:>SiC
  • Elastomers Material: FKM
  • Pump Shaft: Torsion Shaft
  • Rotor: R52(R17 an R33 available upon request)
  • Stator Material: PTFE (NBR and FKM available on special order)
  • Immersion Depth:27”, 39”, 47”, 60”
  • Connections: 2” Tri-Clamp (Adapters available upon request)
  • Certifications: ATEX, FDA

F570 Drum Pump Technical Data:

  • Temperature: Up to 248°F (120°C)
  • Viscosity: 1 - 80,000 cPs
  • Flow rate: max 21.9 GPM (83 l/min)

F570 Drum Pump Compatible Motors

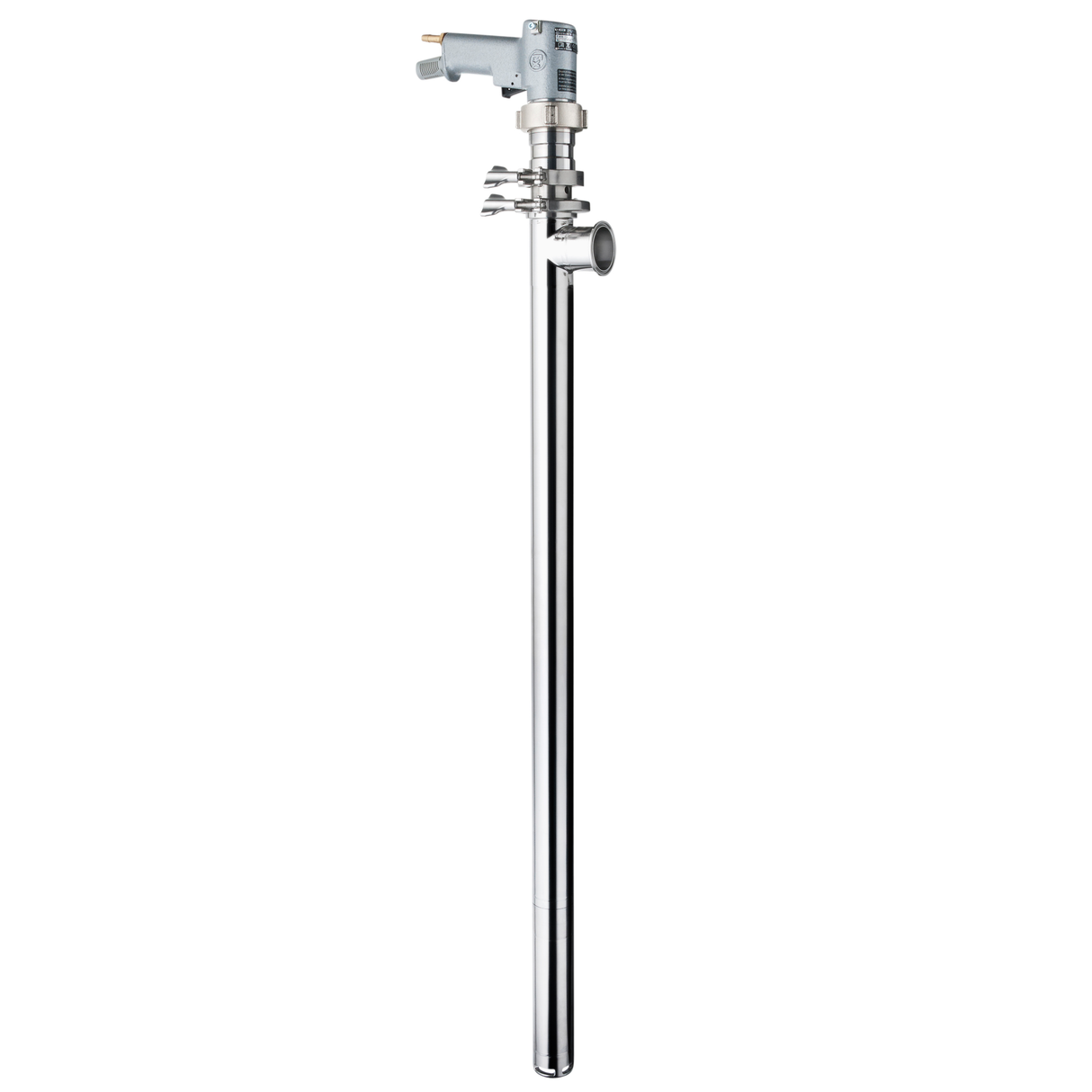

F416 Air Motor

The F416 is a lightweight and powerful explosion-proof air motor. This is a variable-speed motor, which is achieved by adjusting the input air operating pressure with a ball valve, needle valve, or a filter/regulator.

Technical Data:

  • Certifications: ATEX Ex II G IIC T6
  • Inlet Air Pressure: max 87 PSIG
  • Air Consumption: max 17 cfm
  • Capacity: 470 W
  • Ventilation: External
  • Variable Speed: Optional
  • Weight: 2 - 3 lbs (0.9 - 1.4 kg)

There are three options for this motor:

  • With trigger (A trigger operation, with no ball valve)
  • With ball valve (A ball valve but no trigger)
  • Without valve or trigger (No ball valve or trigger)

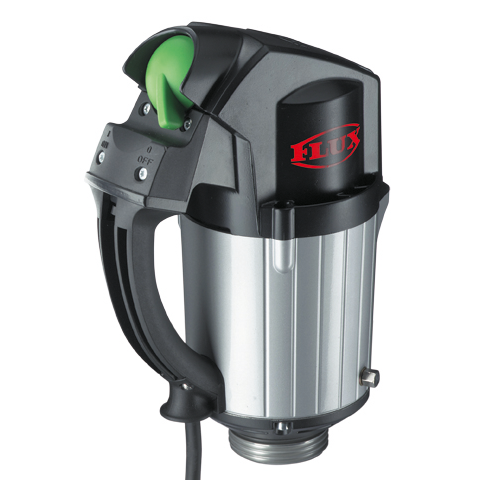

F460 ATEX Electric Motor

The F460 is an explosion-proof electric motor built for durability. This motor is designed to last, with an aluminum housing, corrosion-resistant painting, and optimized airflow. This motor is also available in variable speed, one of the only variable speed electric motors on the market.

Technical Data:

  • Enclosure: IP 55
  • Certifications: ATEX Ex II 2 G Ex d e IIC T6
  • Ventilation: External
  • Voltage: 120 volts or 230 volts (variable speed is only available in 230 V)
  • Frequency: 50 - 60 Hz
  • Capacity: 460/700 W
  • Weight: 11-13 lbs
