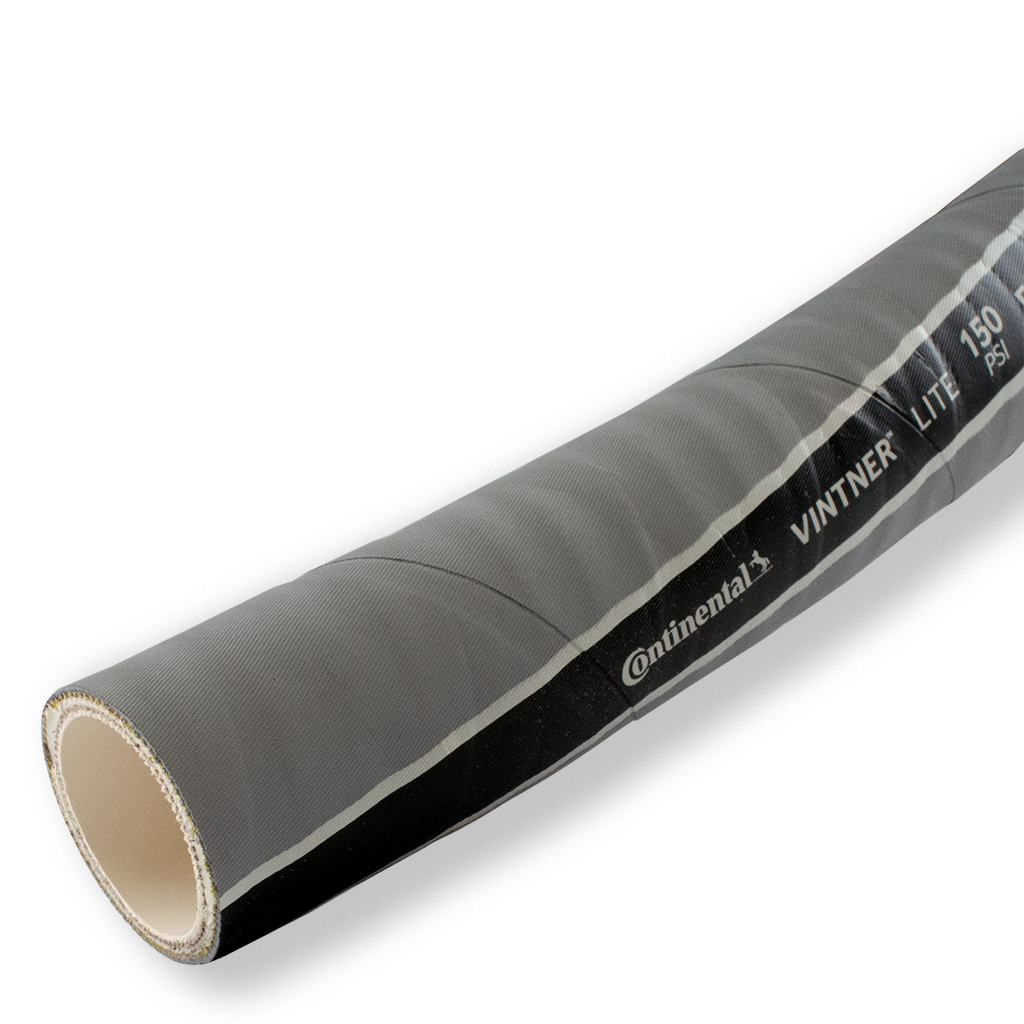

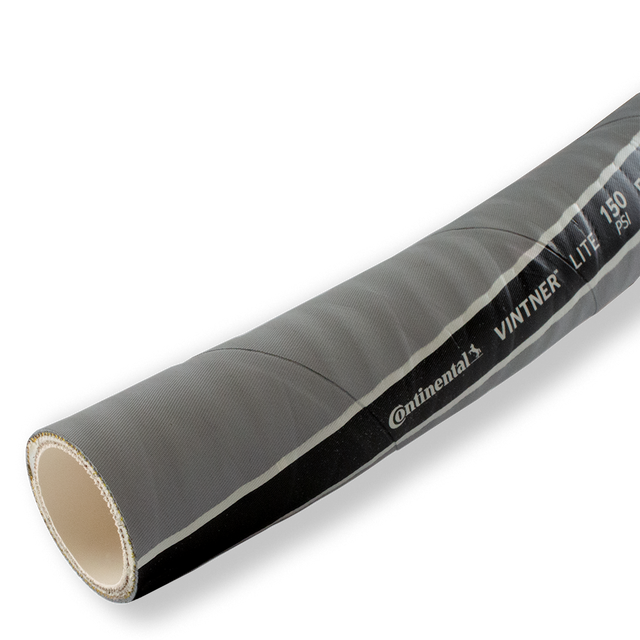

The Vintners Lite hose is a versatile, lightweight, EPDM hose. It was designed to be an easy-to-move heavy-duty hose. With the durability and heat resistance of a standard EPDM hose, the Vitner Lite remains light and easily maneuverable. The inner tube is slightly thinner than the Vintner reserve, meaning this hose is only appropriate for applications up to 150 PSI. Like the Vintner Reserve, this hose features a monofilament helix making it both rustproof and crush-resistant. The Vintner Lite is perfect for high-traffic areas as it is both crush-resistant and easy to transfer between applications. The white EPDM tube meets FDA, USDA & 3-A Sanitary Standard 18-03 Certificate standards.
Tube: White EPDM
Cover: Grey EPDM with wrapped impression
Reinforcement: Spiral-plied fabrics with monofilament helix
Temperature Range: -30°F to 220°F (-34°C to 104°C)
Working Pressure: 150 psi
| Inner Ø (in) | Outer Ø (in) | Weight (lbs/ft) | Bend Radius |
| 1" | 1.45" | 0.47 lbs |
4" |
| 1 1/2" | 1.95" |
0.66 lbs |
6" |
| 2" | 2.50" |
0.94 lbs |
9" |
| 3" | 3.66" |
1.88 lbs |
15" |
