C+ Series Seal Kit

C+ Series Seal Kits are for the maintenance of CPE C+ series pumps and AMPCO's line of AC+ pumps. We have a variety of seal kits based on seal kit type, seal type, and pump size. The Mechanical Seal Kit is a basic D seal replacement kit for the C+100, C+114, C+216, C+218, and C+328. The DG Seal Kit is a seal replacement kit for C+114, C+216, C+218, and C+328 pumps with a DG seal. The Ultimate Seal Kit is a complete service kit for centrifugal pumps with a D seal that have been in service for over a year and includes a spring and seal cup.

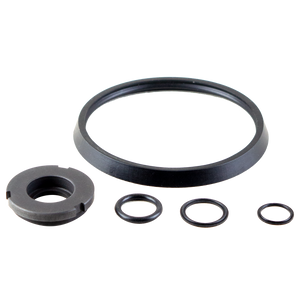

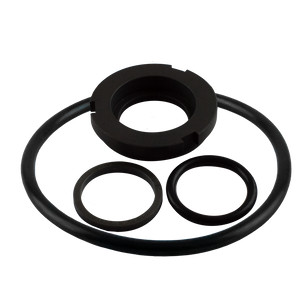

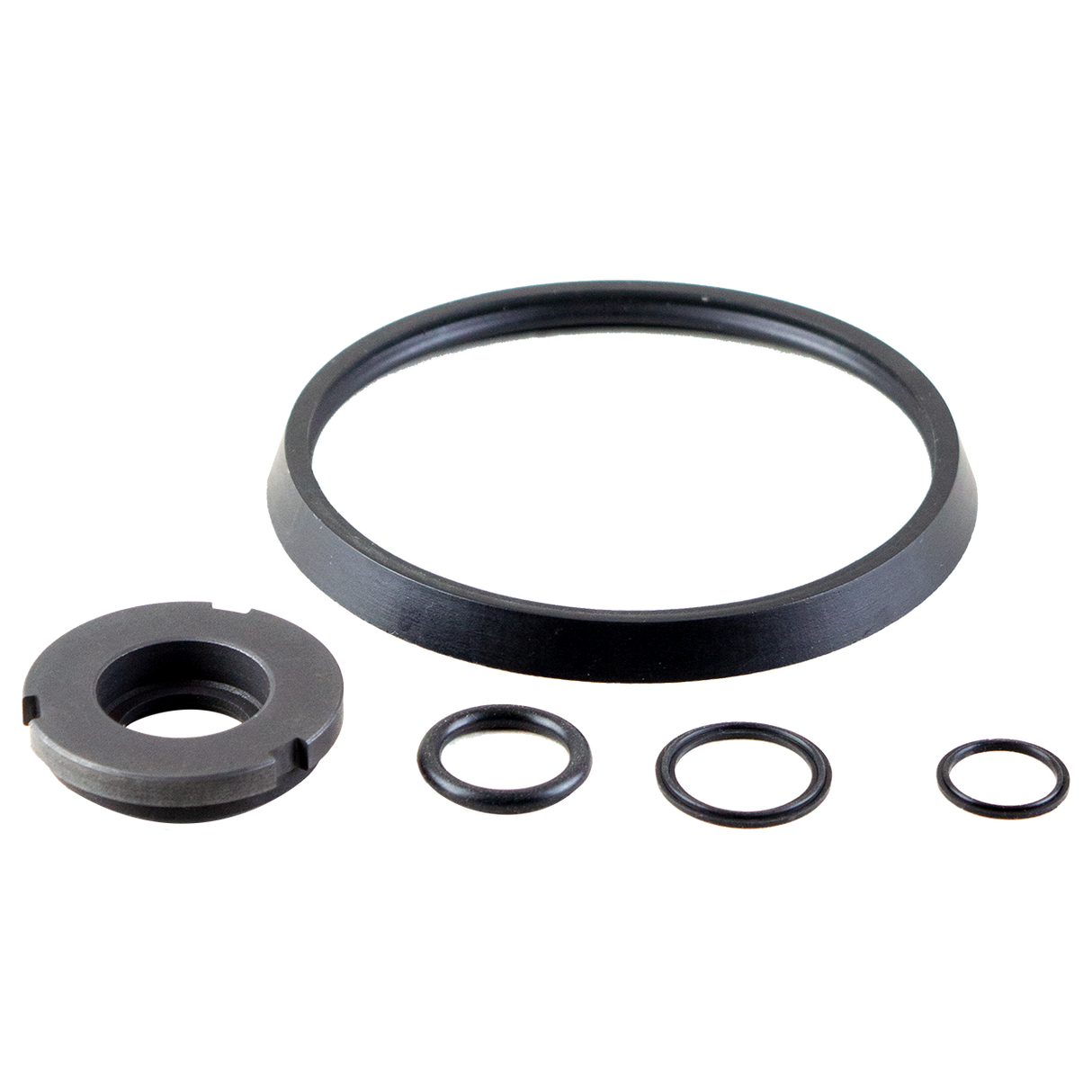

C+ Seal Kit:

• Casing gasket (EPDM)
• Rotating seal
• Seal o-ring (EPDM)
• Impeller nut gasket (EPDM) (not required on C+100)
• Impeller back gasket (EPDM) (not required on C+100)

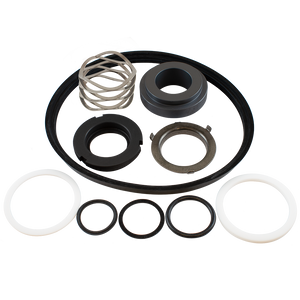

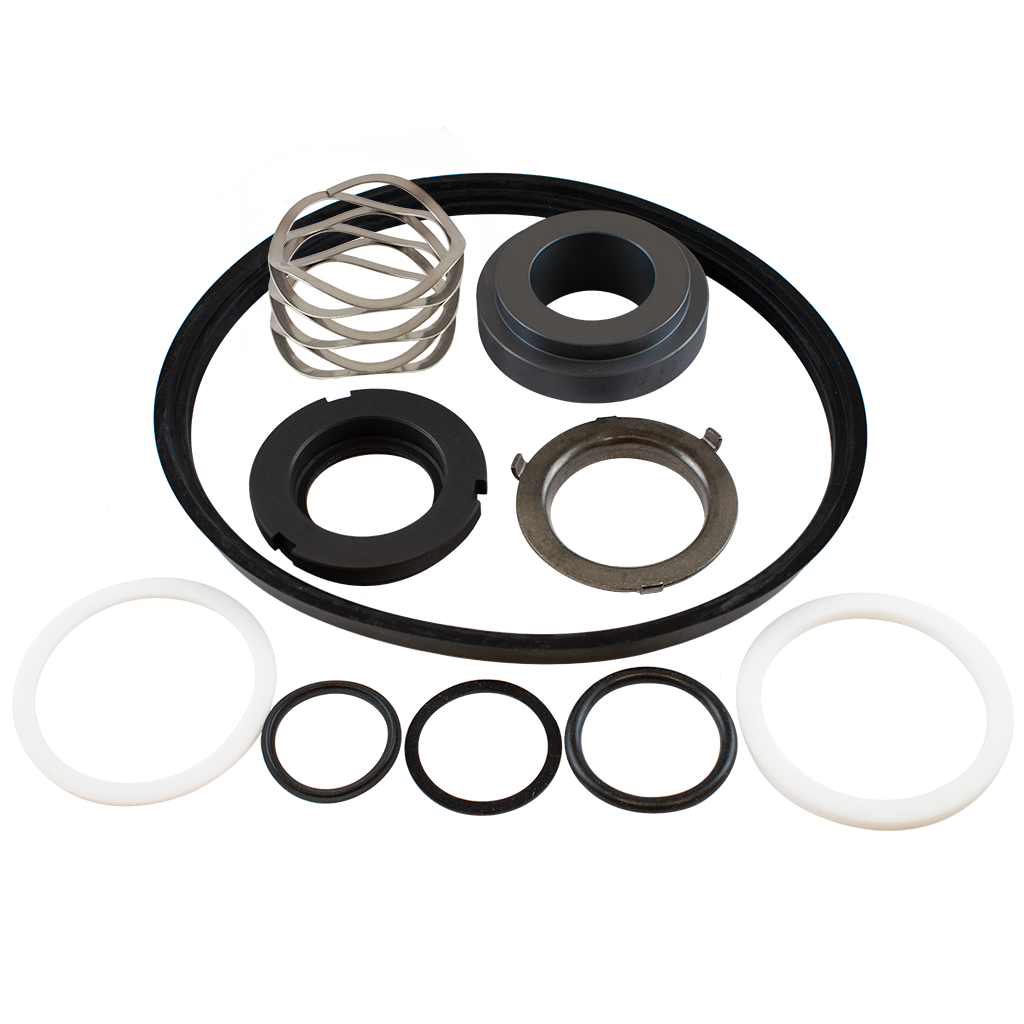

C+ DG Seal kit:

• Casing Gasket (EPDM)
• Spring
• Cup
• Carbon rotating seal
• Silicon carbide stationary seal
• Seal o-ring (EPDM)
• Impeller nut gasket (EPDM)
• Impeller back gasket (EPDM)
• Teflon stationary seal gasket (includes 2)

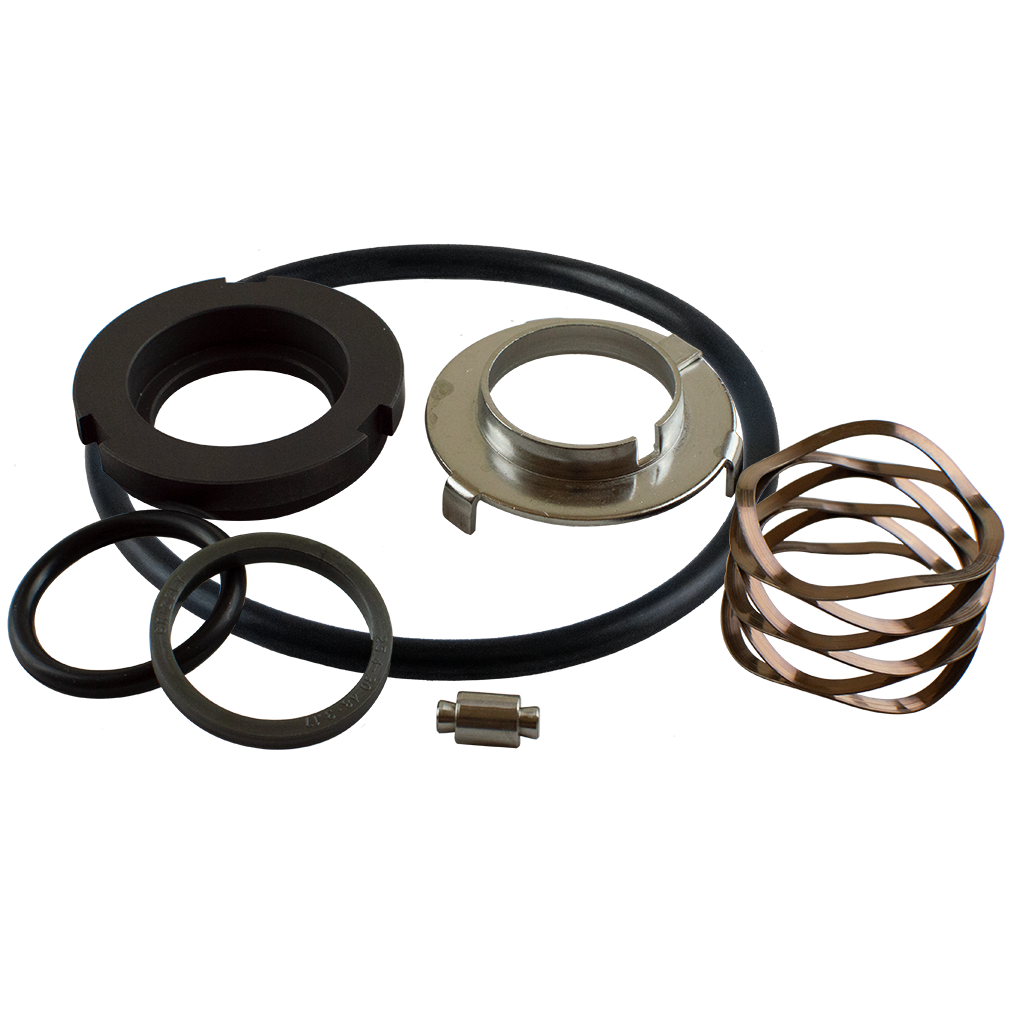

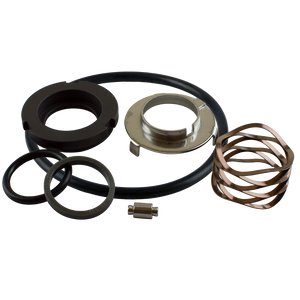

C+100 Ultimate Seal Kit:

• Casing gasket
• Carbon seal
• Cup
• Carbon seal o-ring
• Back up o-ring
• Spring
• Impeller retainer (pin)

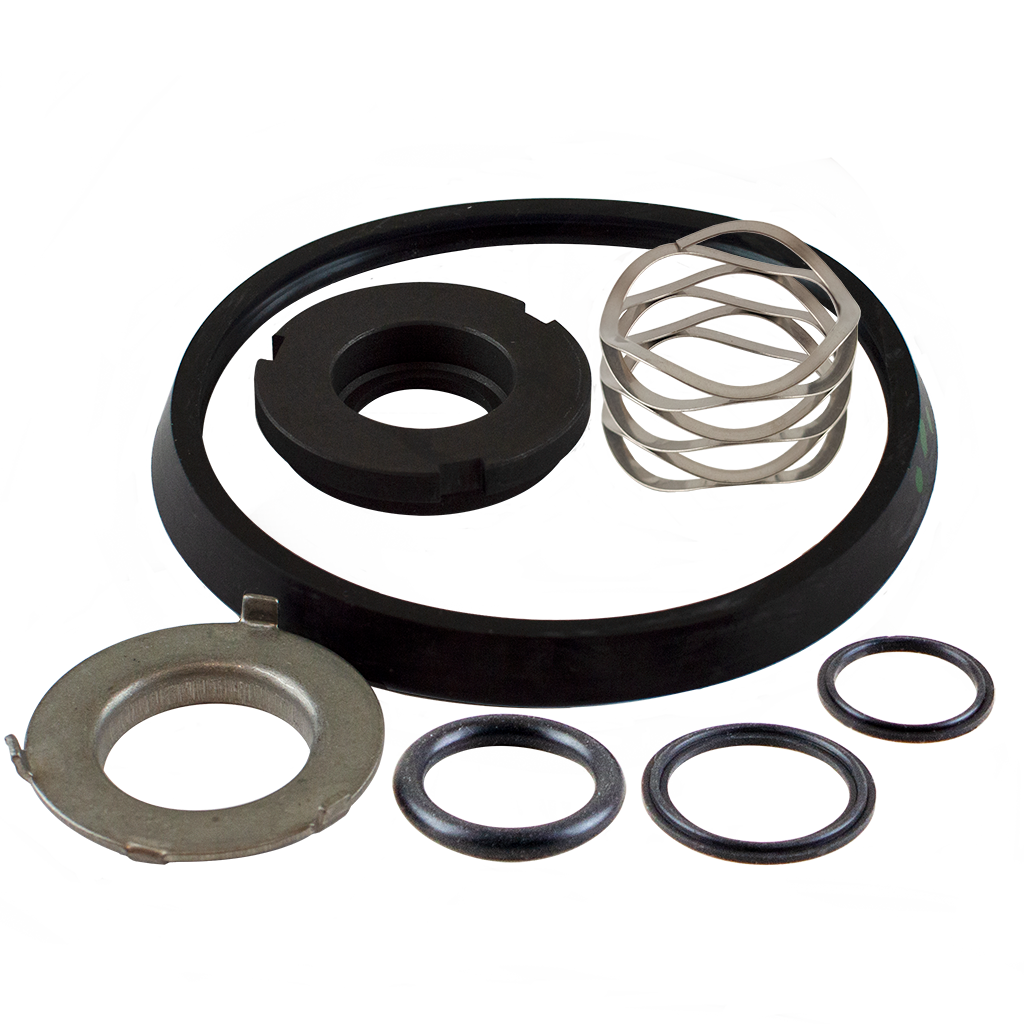

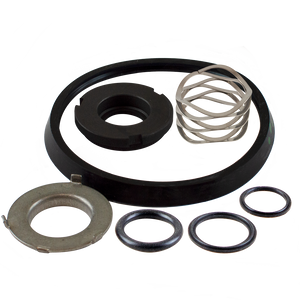

C+ Series Ultimate Seal kit:

• Casing gasket (EPDM)
• Carbon seal
• Carbon seal o-Ring (EPDM)
• Spring
• Cup
• Impeller nut gasket (EPDM)
• Impeller back gasket
