CB+ Conversion Kit

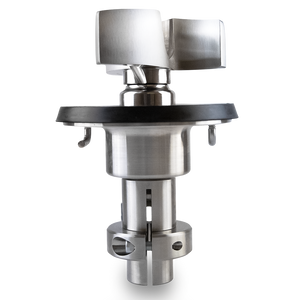

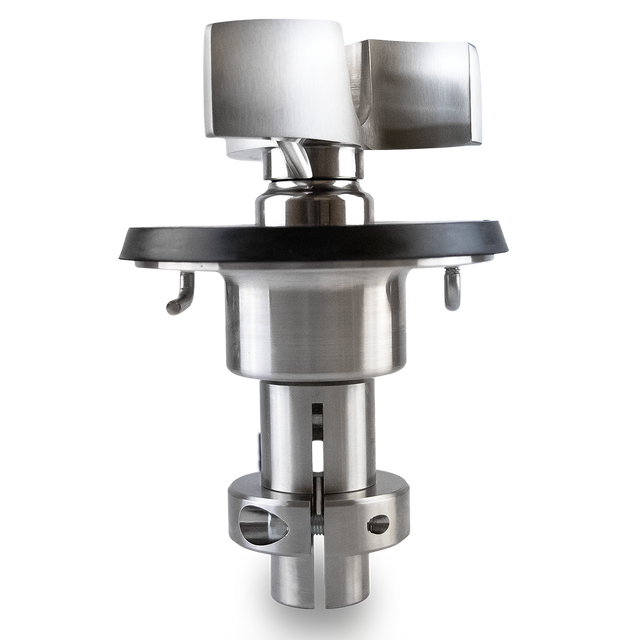

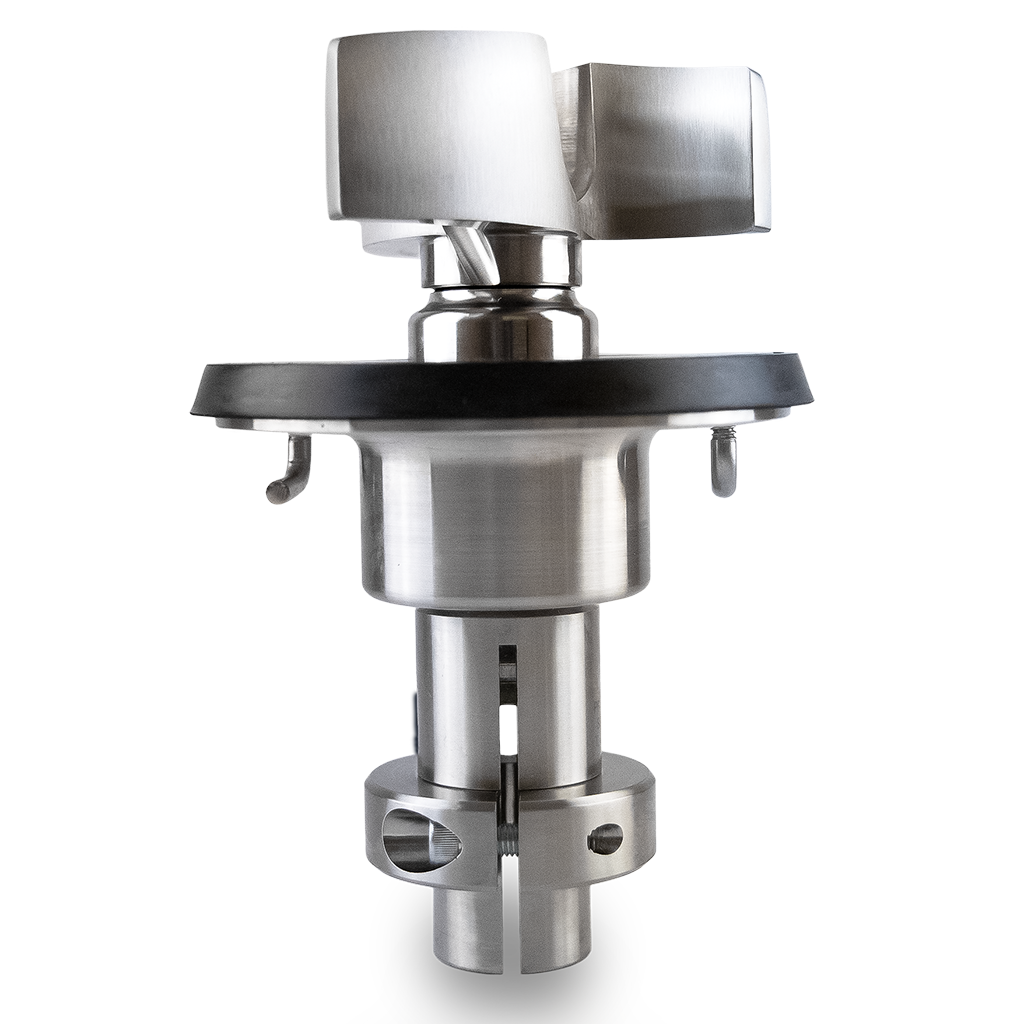

The CB+ Conversion Kit includes all the parts to upgrade a C or C+ Series pump to a CB+ pump. The CB+ has an internal seal that allows for self-cleaning and lubrication. This kit allows you to enjoy the internal seal of a CB+ pump without purchasing an entirely new pump. This conversion kit features the High-Clean Cartridge seal which is easier to clean and more hygienic than a traditional CB+ seal. In addition to converting CPE pumps this kit will also fit most major brands of C-series pumps including Ampco, Q-Pump, SPX, and Topline. The materials are 316L Stainless Steel with EPDM elastomers.

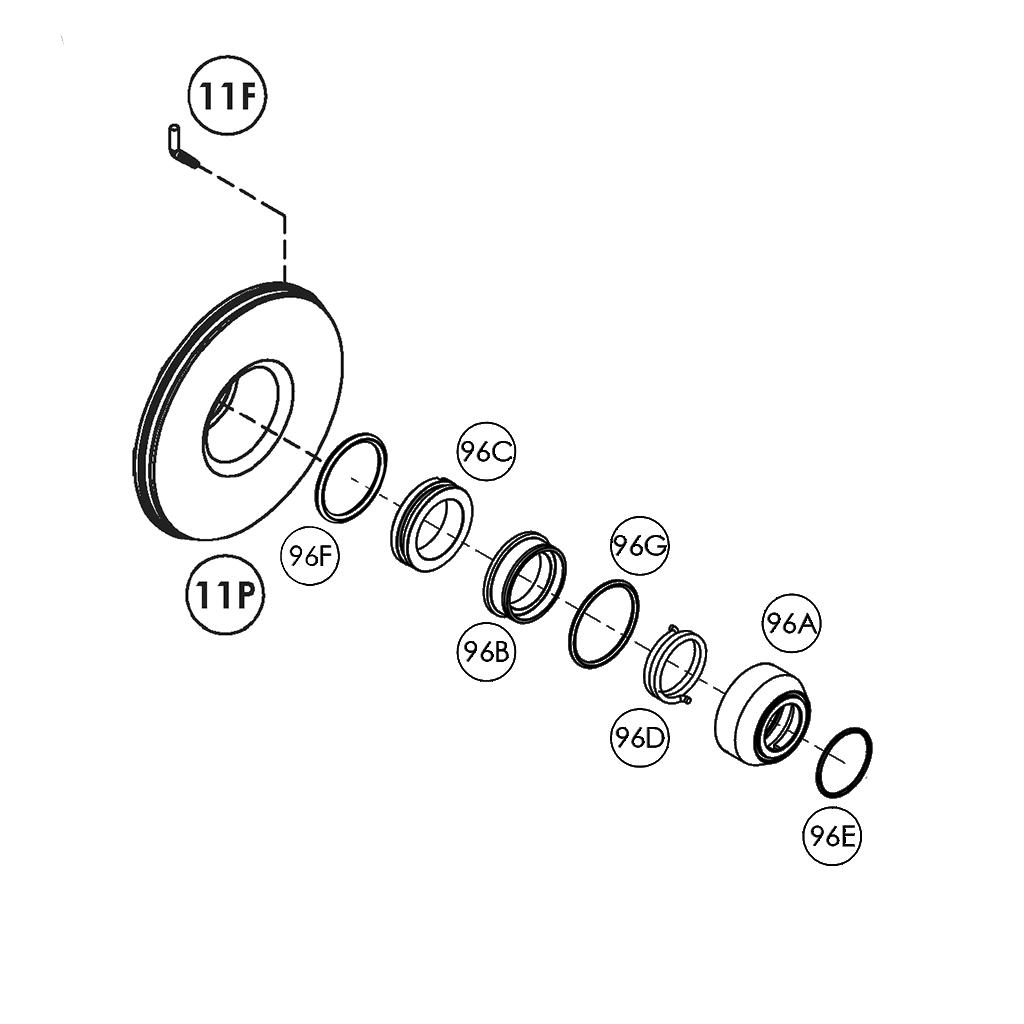

The C+ to CB+ Conversion Kit:

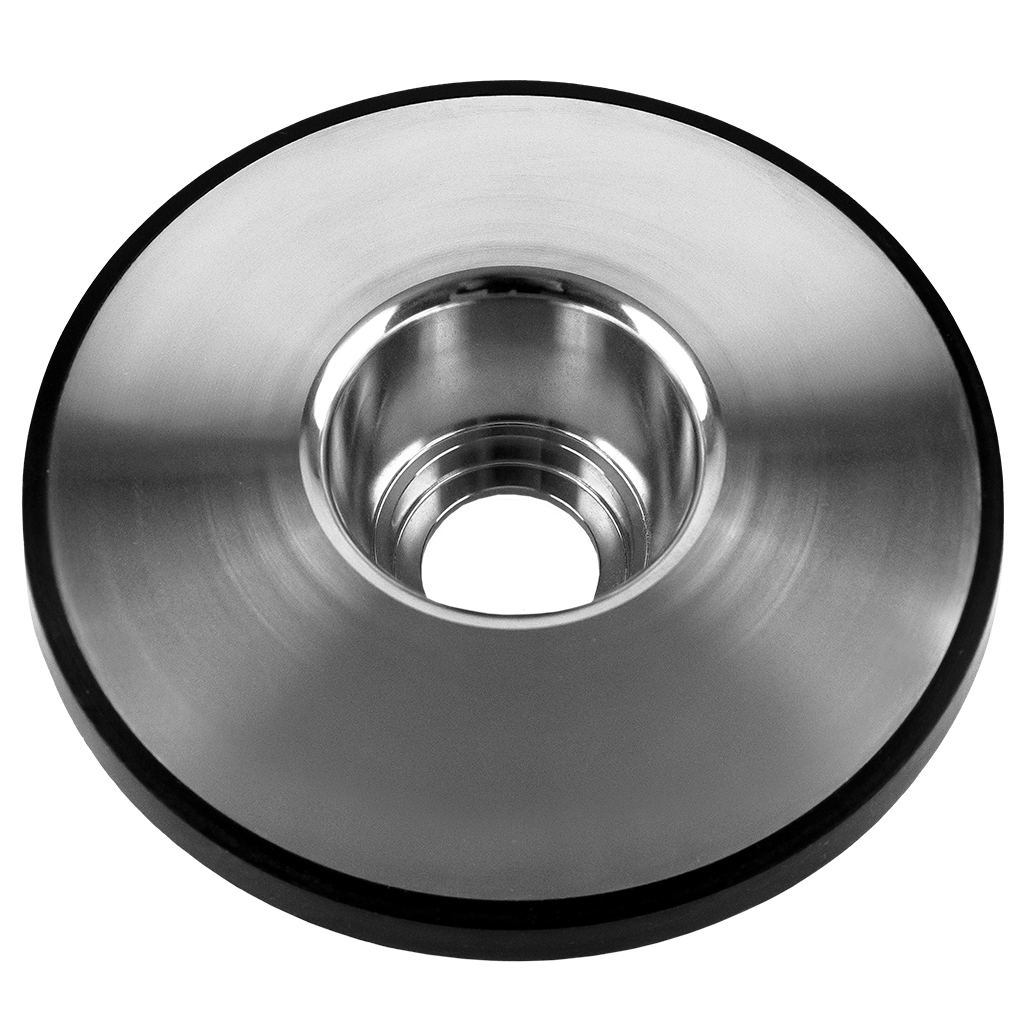

• 11P. Backplate

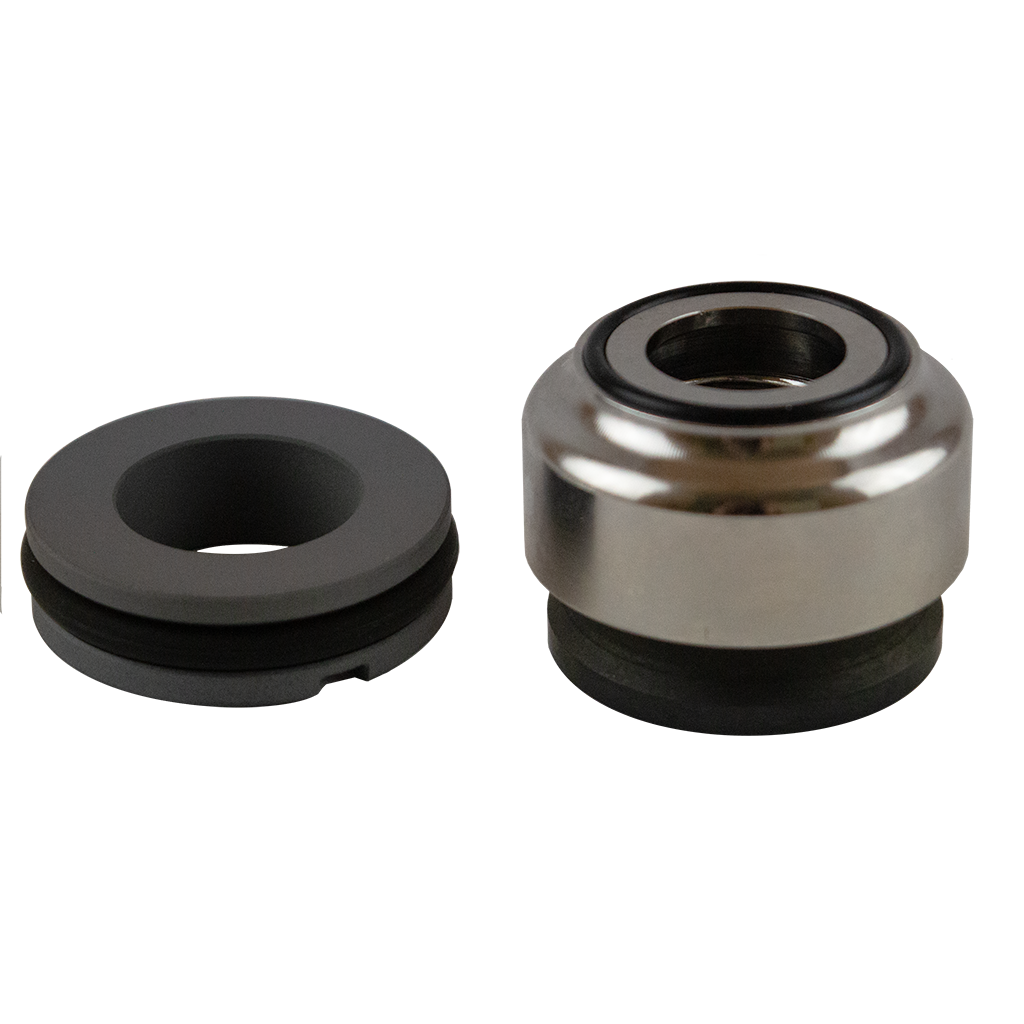

• Stationary seal assembly
• Stationary seal (silicon carbide)
• Seal o-ring (EPDM)
• Rotating Seal Assembly
• Carbon rotary seal
• Seal O-Ring (EPDM)
• Spring
• Rotary Holder
• Rotary Holder O-Ring (EPDM)
• Backup Ring

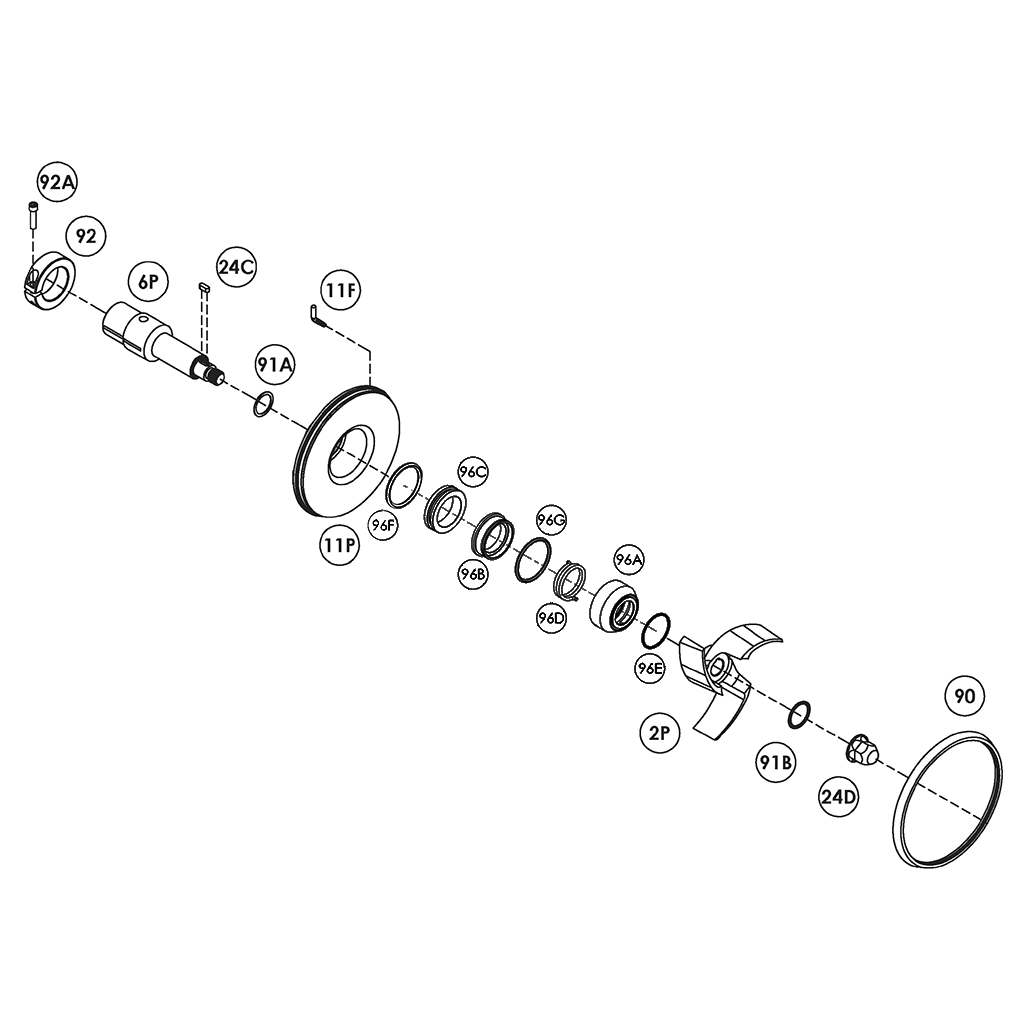

The C to CB+ Conversion Kit:

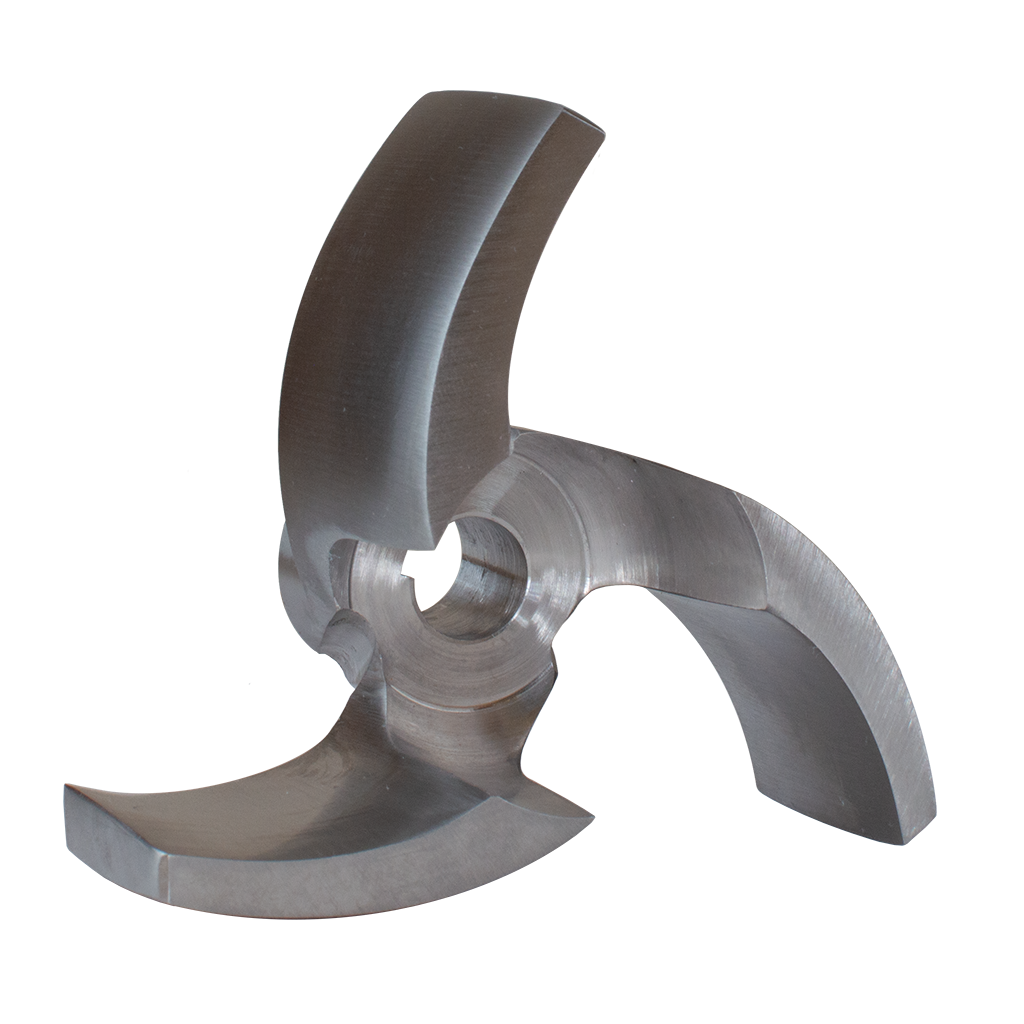

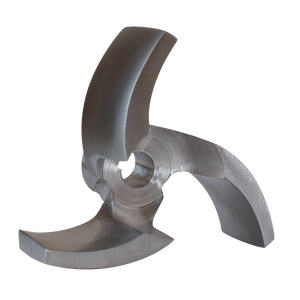

• 2P. Impeller

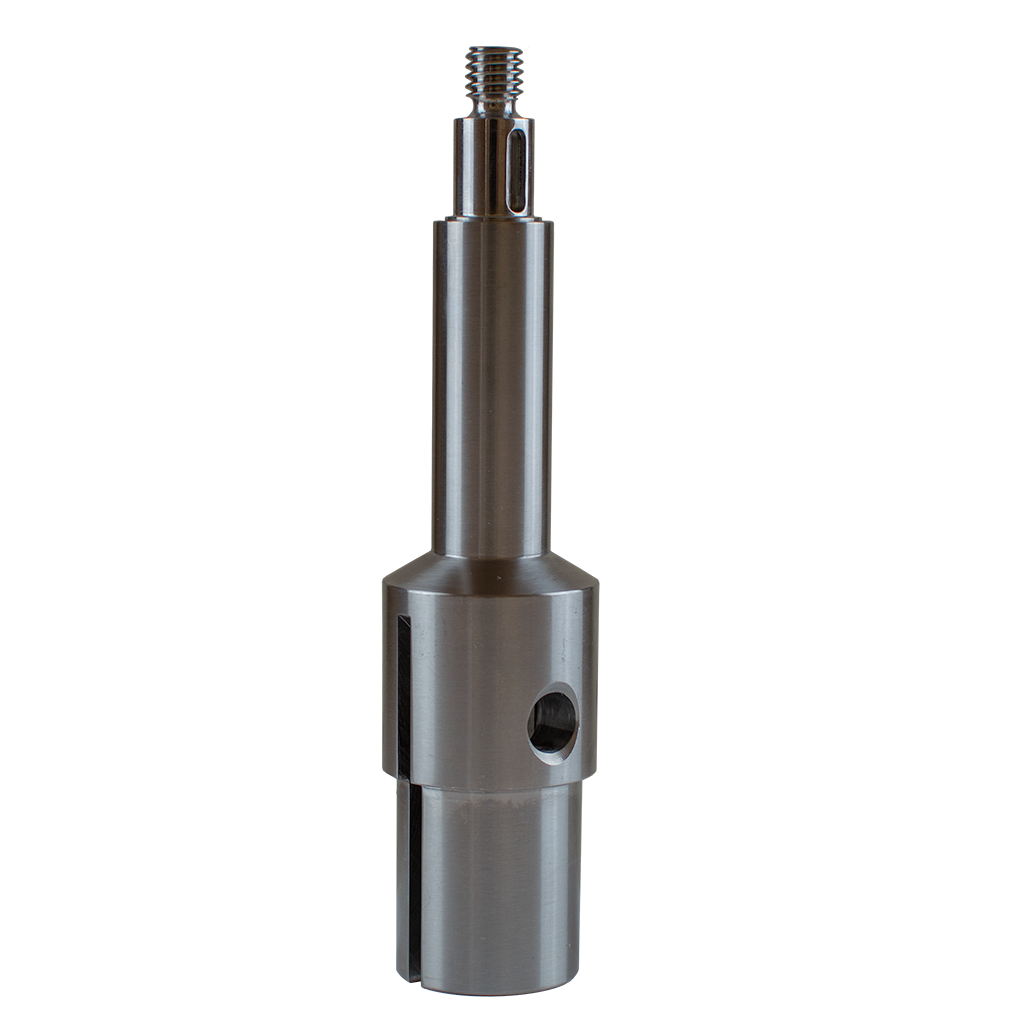

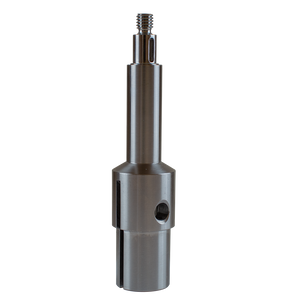

• 6P. Stub Shaft
• 24C. Impeller Key

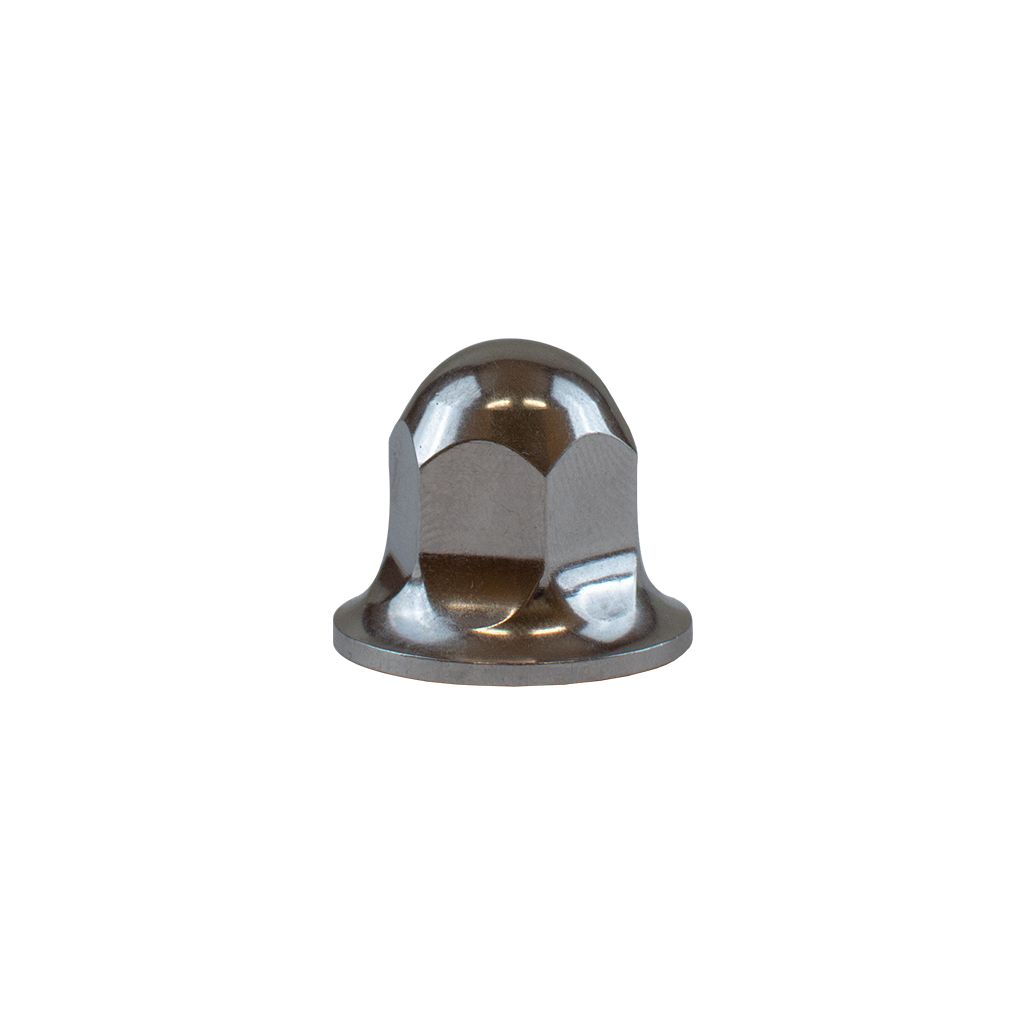

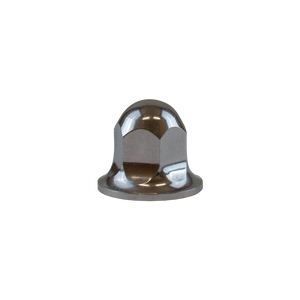

• 24D. Impeller Nut

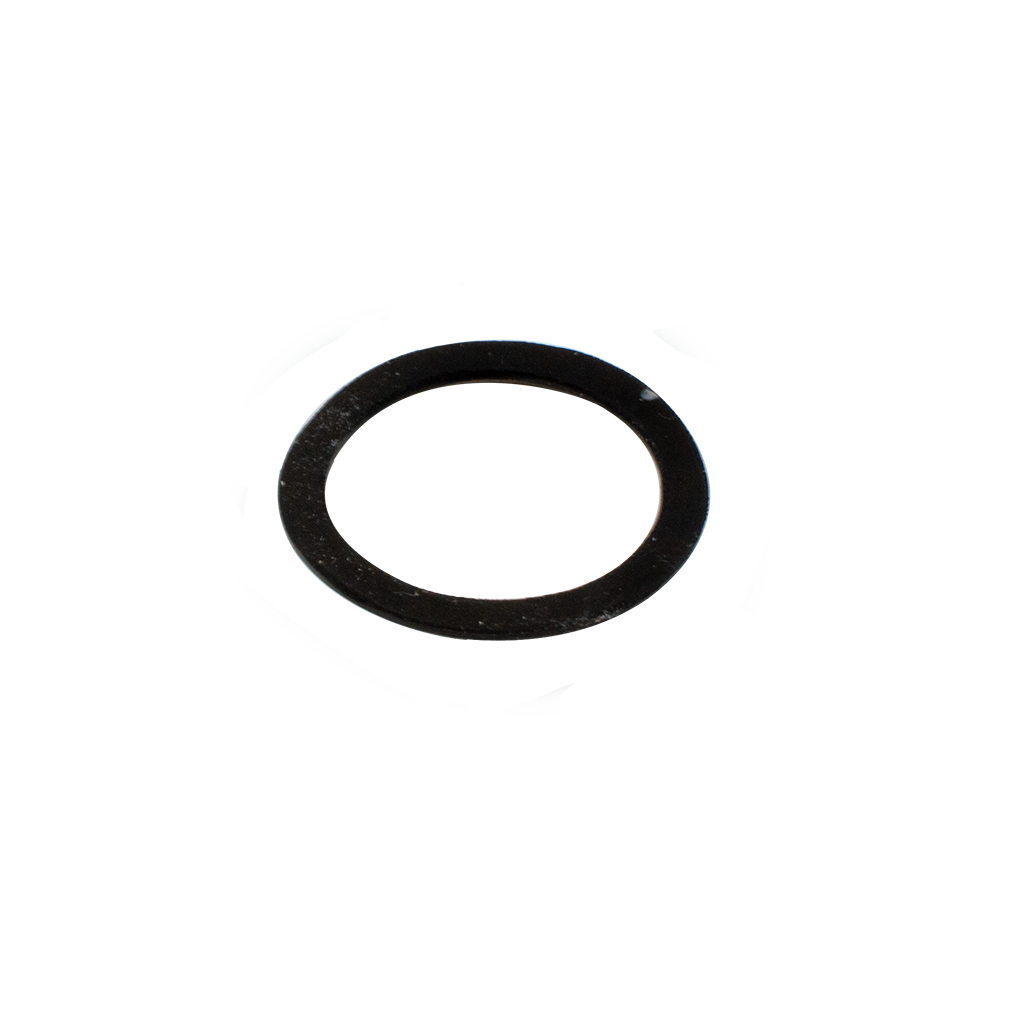

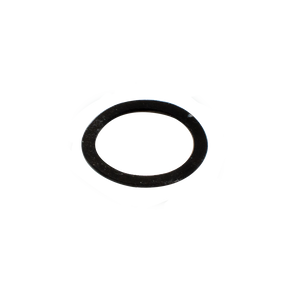

• 91A. Impeller Back Gasket (EPDM)
• 91B. Impeller Nut Gasket (EPDM)

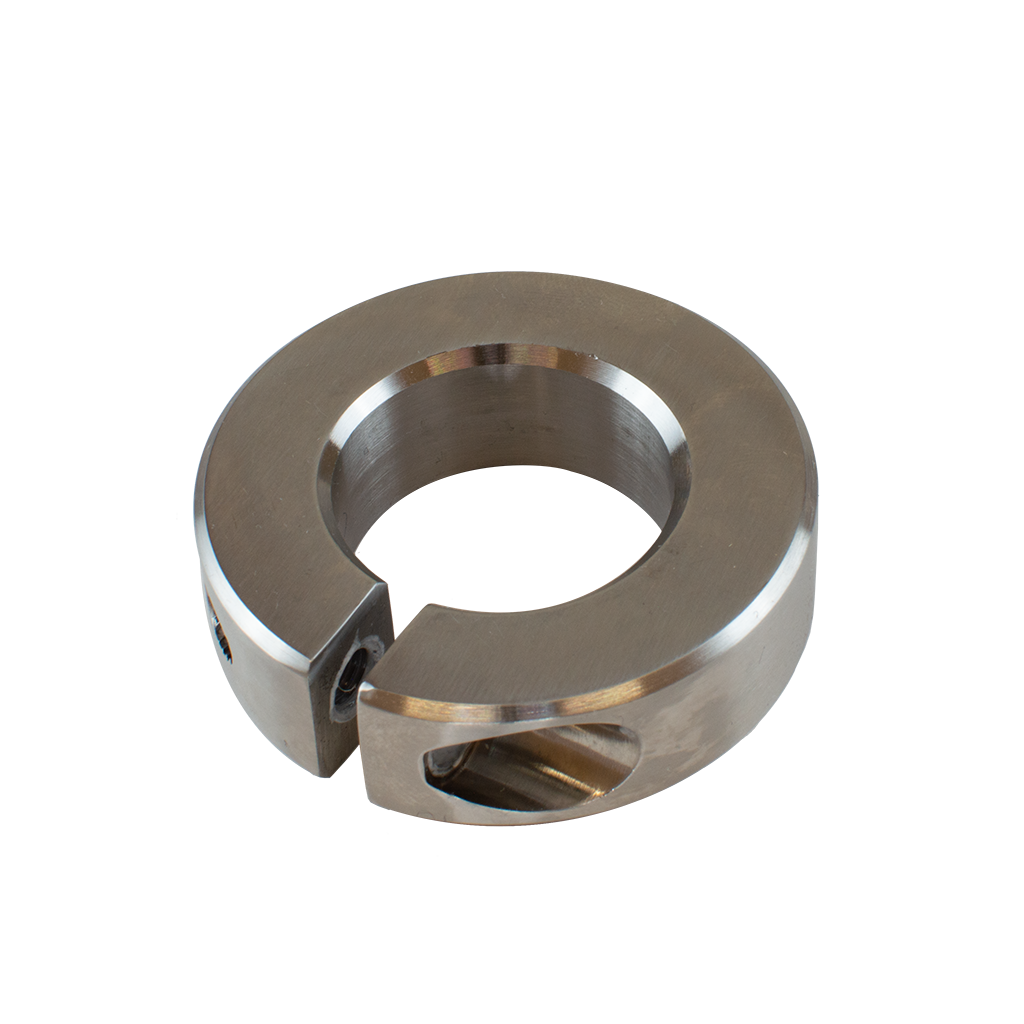

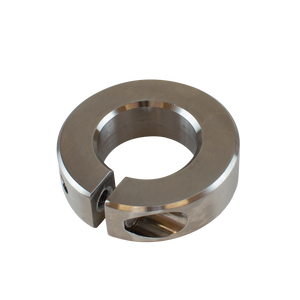

• 92. Shaft Collar
• 92A. Shaft Collar Screw

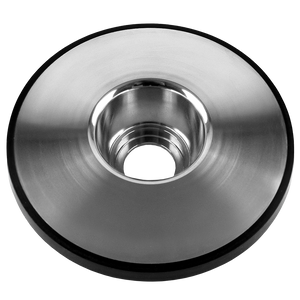

• 11P. Backplate

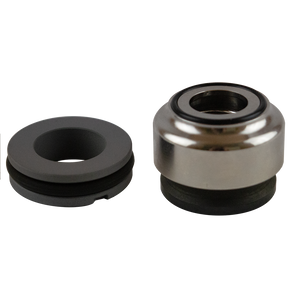

• Stationary seal assembly
• Stationary seal (silicon carbide)
• Seal o-ring (EPDM)
• Rotating Seal Assembly
• Carbon rotary seal
• Seal O-Ring (EPDM)
• Spring
• Rotary Holder
• Rotary Holder O-Ring (EPDM)
• Backup Ring

No manual available for download.
