CB+ Seal Kit

The CB+ seal kit is a maintenance and repair kit for our CB+ pumps and the AMPCO CB+ pumps. The standard CB+ seal is an internal seal with a silicon carbide stationary seal, a carbon rotating seal, and EPDM elastomers. The Ultimate Seal Kit is a complete service kit for pumps that have been in service for at least a year. Cartridge-style seals are featured in our new CB+ pumps. These seals are more hygienic and are easier to fully clean via CIP. All of these seal kits will fit CB+ pumps from CPE Systems, AMPCO, and Q-Pump.

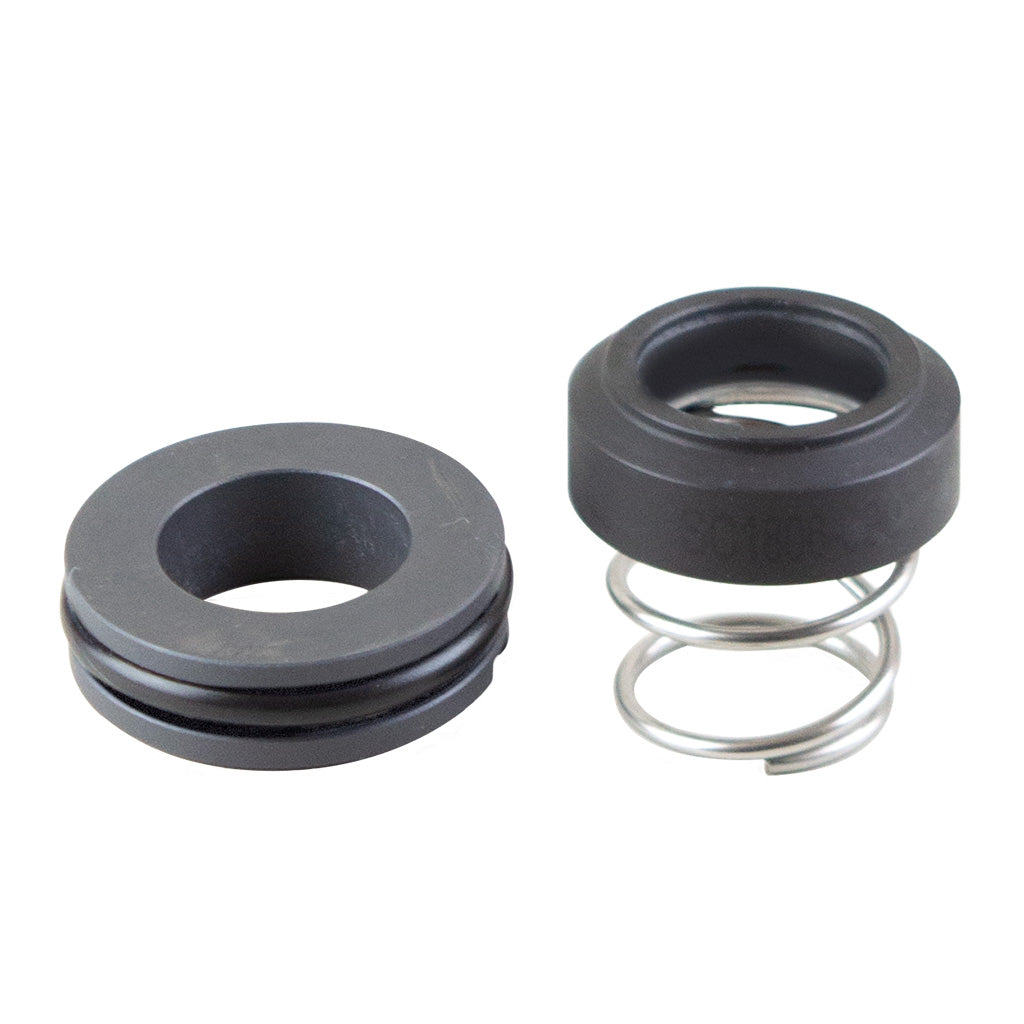

CB+ Original AMPCO Style Mechanical Seal Kit:

• Stationary seal assembly
• Stationary seal (silicon carbide)
• Seal o-ring (viton)
• Rotating seal assembly
• Carbon seal
• Spring
• Backup ring
• Seal o-ring (viton)

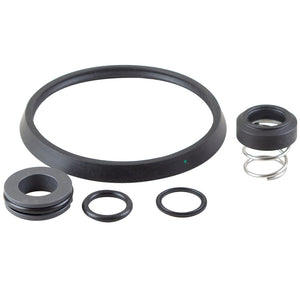

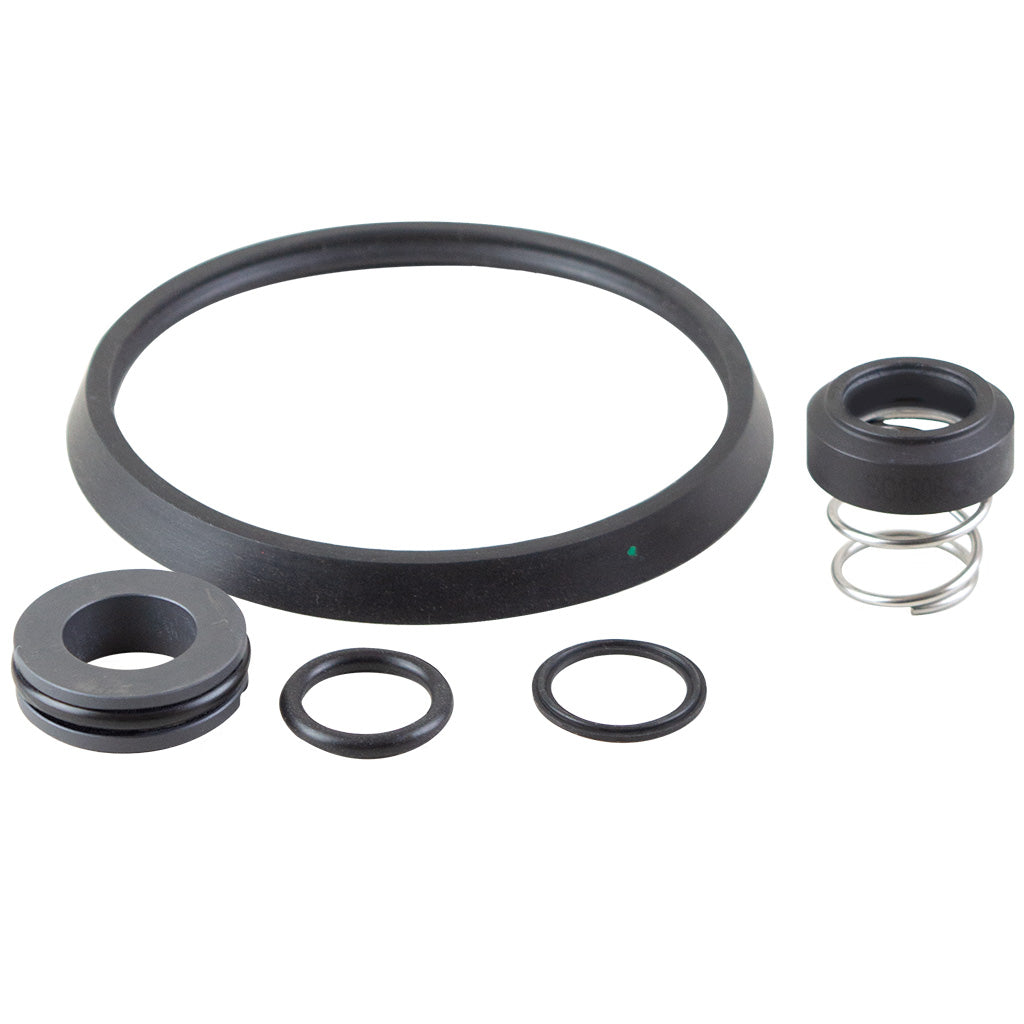

CB+ Original AMPCO Style Ultimate Seal Kit:

• Casing gasket (EPDM)
• Stationary seal (SC)
• Stationary seal (silicon carbide)
• Seal o-ring (viton)
• Rotating seal assembly
  • Carbon seal
  • Spring
  • Backup ring
  • Seal o-ring (viton)
• Impeller nut gasket (EPDM)
• Impeller back gasket (EPDM)

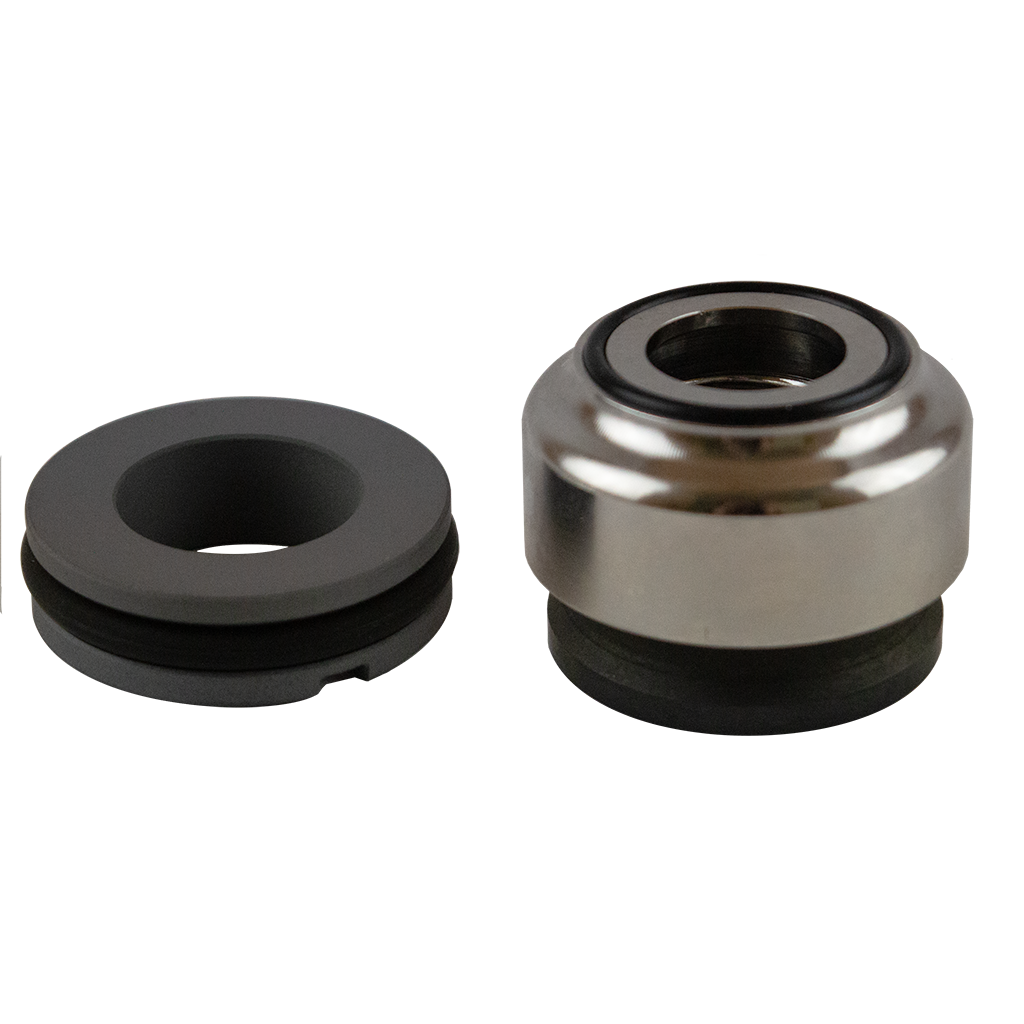

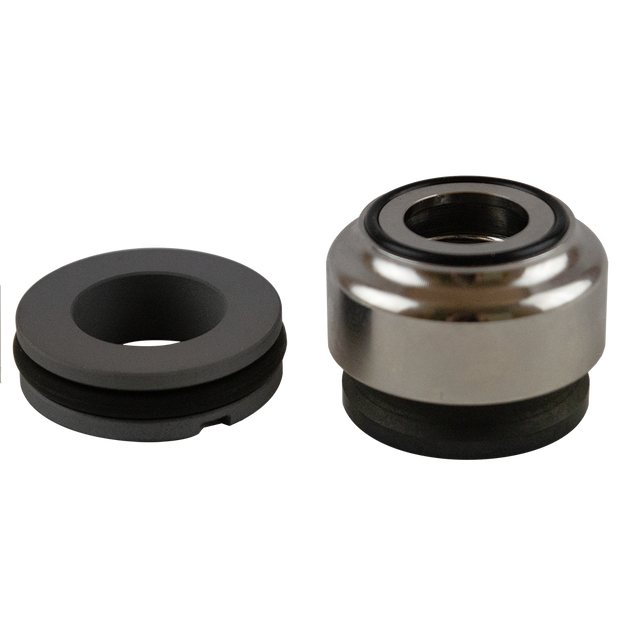

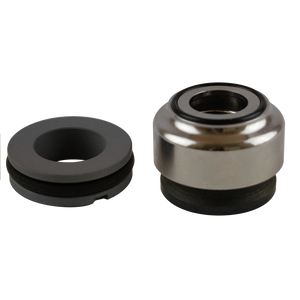

CB+ High Clean Cartridge Mechanical Seal Kit:

• Stationary seal assembly
• Stationary seal (silicon carbide)
• Seal o-ring (EPDM)
• Rotating seal assembly
• Carbon rotary seal
• Seal o-ring (EPDM)
• Spring
• Rotary holder
• Rotary holder o-ring (EPDM)
• Backup ring

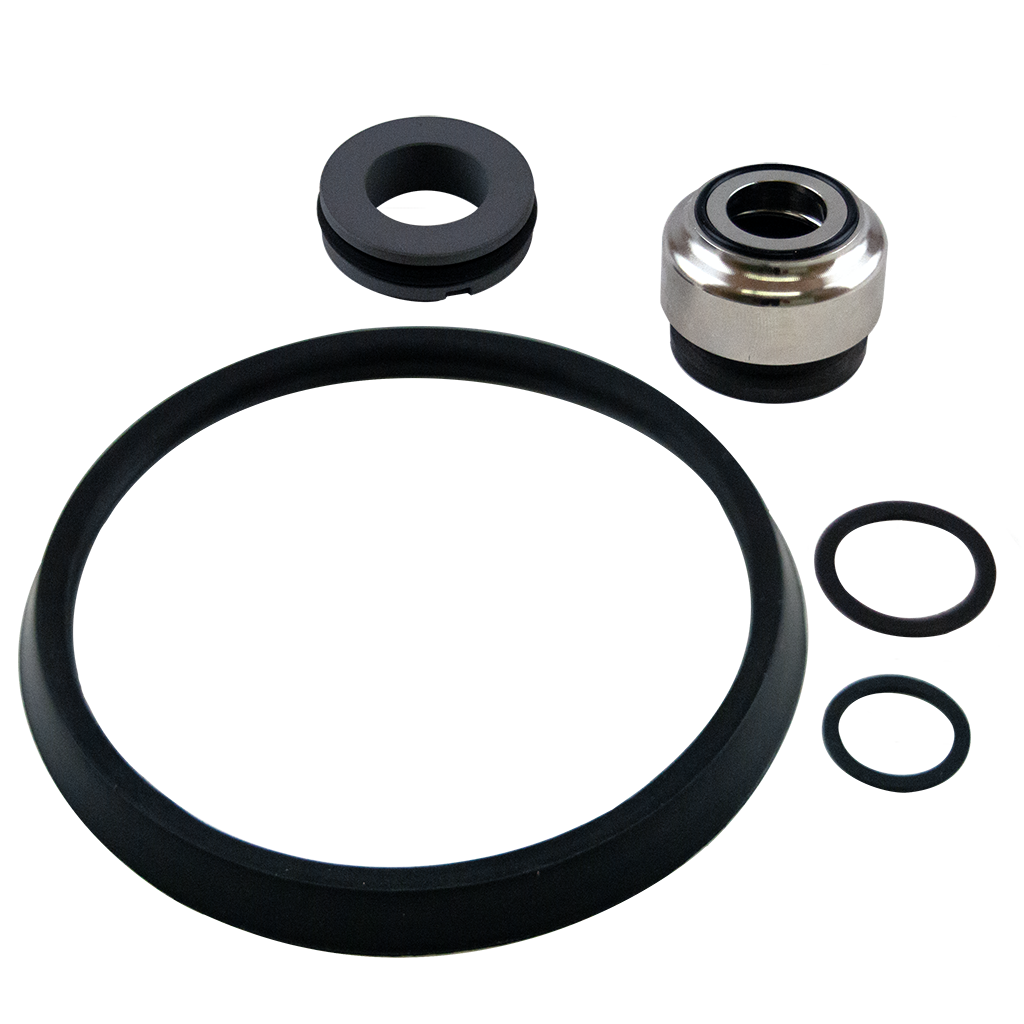

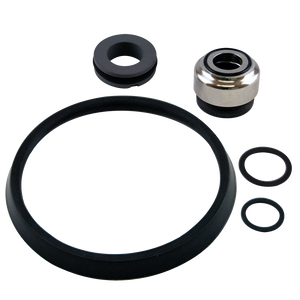

CB+ High Clean Cartridge Ultimate Seal Kit:

• Casing gasket (EPDM)
• Stationary seal (SC)
• Stationary seal (silicon carbide)
• Seal o-ring (EPDM)
• Rotating seal assembly
  • Carbon rotary seal
  • Seal o-ring (EPDM)
  • Spring
  • Rotary holder
  • Rotary holder o-ring (EPDM)
  • Backup ring
• Impeller nut gasket (EPDM)
• Impeller back gasket (EPDM)

No manual available for download.
