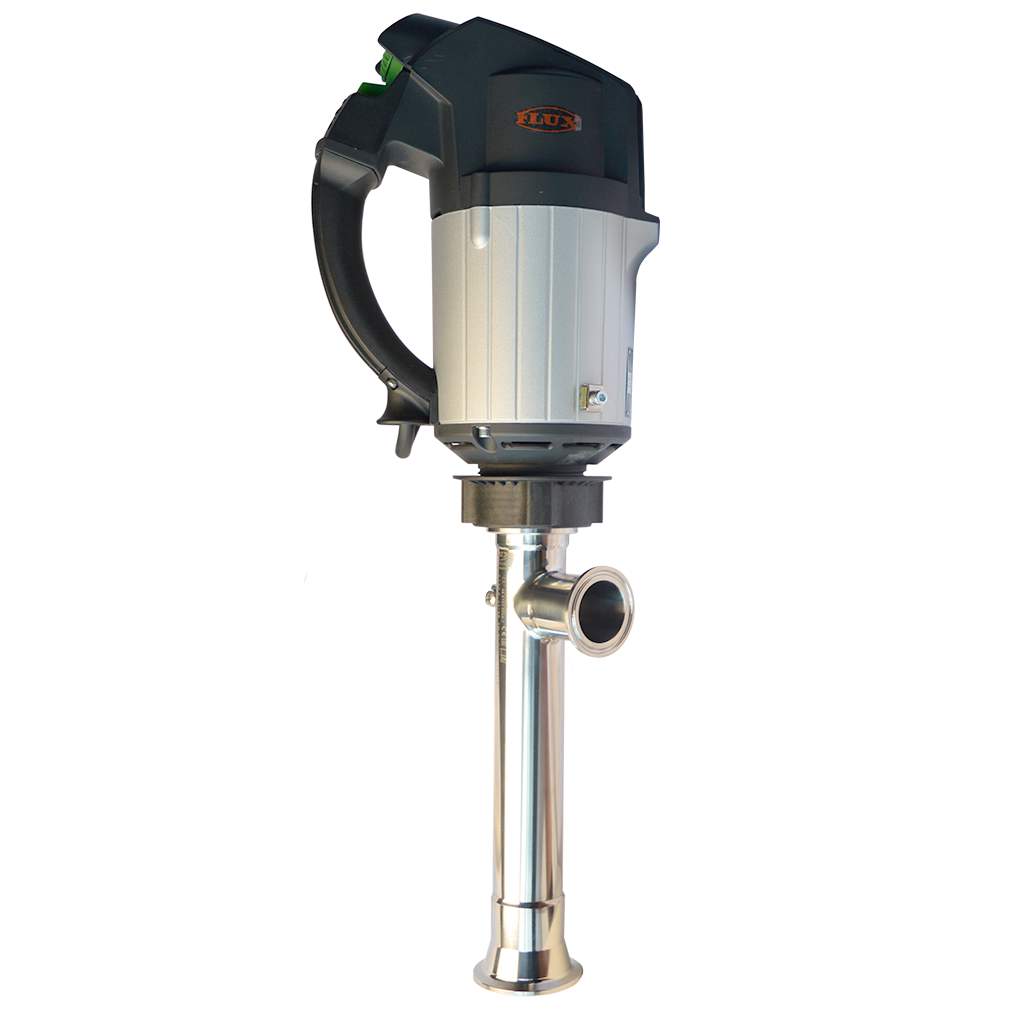

High Proof Alcohol Variable Speed Pump

The High Proof Alcohol Portable Variable Speed Pump Assembly is one of the only variable speed explosion-proof alcohol pumps of its scale on the market. Made for moving small batches of neutral grain spirits in craft distilleries, it provides easy knob-based speed controls that other NGS pumps do not have.

Features:

• Explosion-proof
• Variable Speed
• 220V single phase electric, 230 Watts
• 1 ½” Tri-clamp discharge
• 2” Tri-clamp inlet
• 316 SS / PTFE Fitted / ETFE impeller
• Up to 1000 CPS
• Up to 42 GPM (based on water)
• Up to 30’ head
• Easy to clean – top pull-out
• 220-volt variable speed motor with no-volt release safety circuit
• Tested and certified according to ATEX-Directive 94/9/EC,
  category 2 for use in Zone 1

Seals:

Standard seal

• Material: PTFE / FKM

Ultra low-temperature seal

• Designed for ethanol extraction and can handle ultra-low temperatures
• Material: FEP / PTFE
