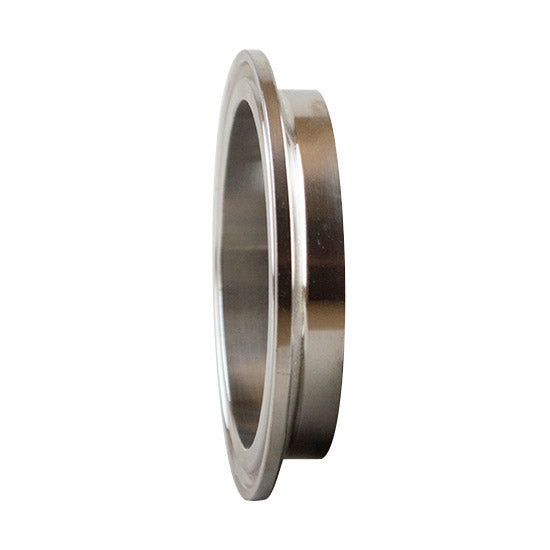

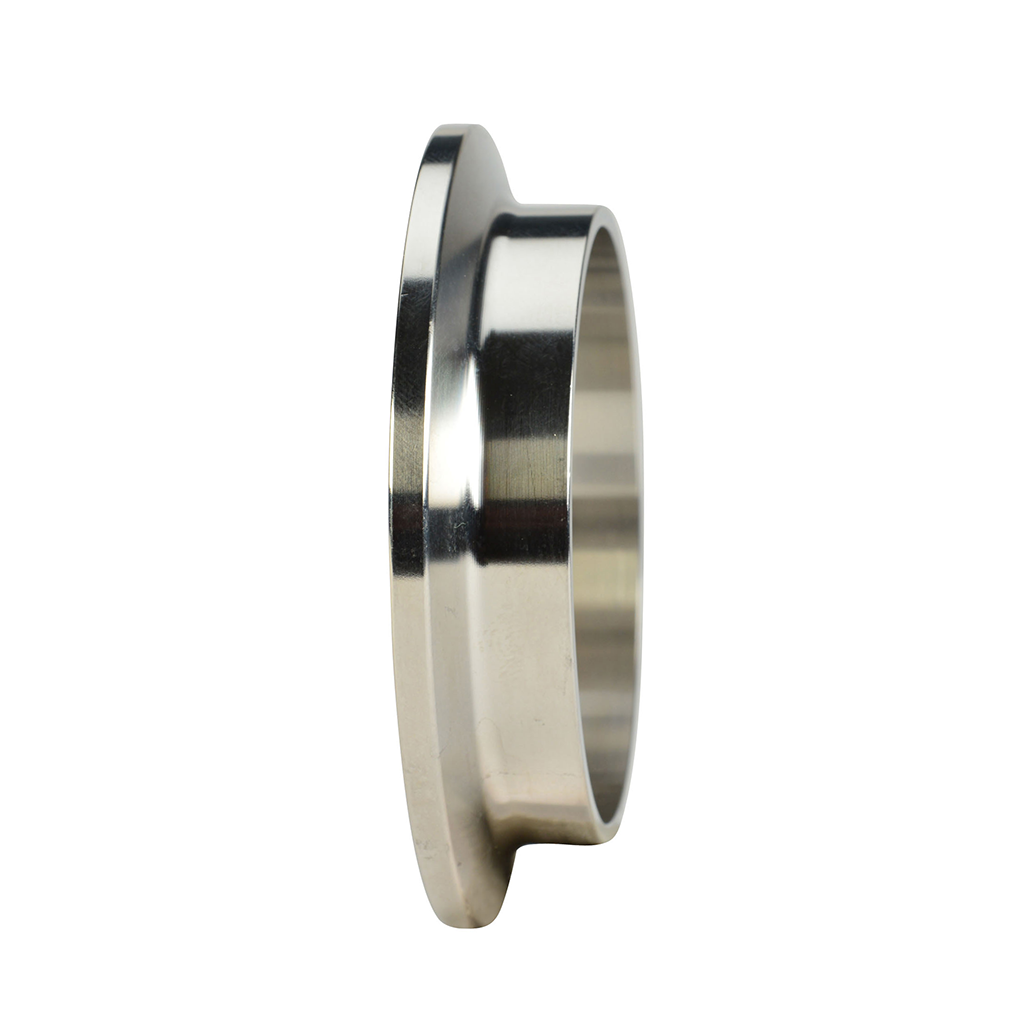

14WMP - Tri-Clamp Short Welding Ferrule
From$3.97
Unit price
/
Unavailable
Description
Description
The 14WMP Tri-Clamp Short Welding Ferrule is a sanitary fitting with both a Tri-Clamp Ferrule and a butt-weld end. This ferrule is available in 316L and 304 SS, and a variety of Tri-Clamp sizes ranging from 1/2" up to 12". This fitting is 3A certified for use in sanitary environments.
Other sizes are available upon request. Please call with any inquiries.

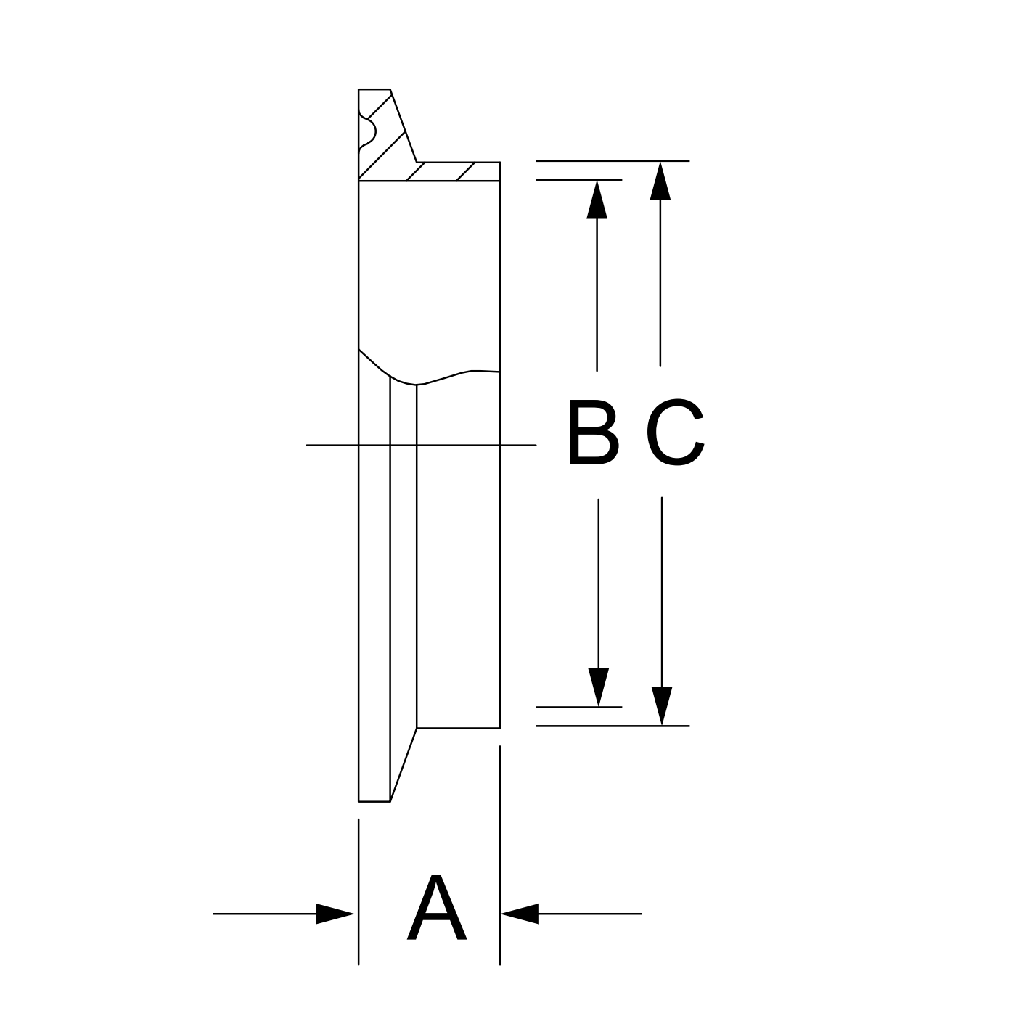

| Tube O.D. | A | B | C |
| 1/2" | 0.50 | 0.37 | 0.50 |
| 3/4" | 0.50 | 0.62 | 0.75 |
| 1" | 0.50 | 0.87 | 1.00 |
| 1-1/2" | 0.50 | 1.37 | 1.50 |
| 2" | 0.50 | 1.87 | 2.00 |
| 2-1/2" | 0.50 | 2.37 | 2.50 |
| 3" | 0.50 | 2.87 | 3.00 |
| 4" | 0.62 | 3.83 | 4.00 |
| 5" | 0.75 | 4.83 | 5.00 |
| 6" | 0.87 | 5.78 | 6.00 |
| 8" | 0.87 | 7.78 | 8.00 |
| 10" | 0.87 | 9.78 | 10.00 |
| 12" | 0.87 | 11.78 | 12.00 |
