Pulse to 4-20 mA Analog Converter Module for Turbine Flow Meters

The Pulse to 4-20 mA Analog Converter Module is an accessory for the G2 industrial meters with a Q9 display that allows it to communicate with most analog process devices. It creates a scaleable analog signal connecting the meter to equipment that requires analog input, such as chart recorders, display equipment, and process control equipment. This module is installed between the turbine and the Q9 display. The analog converter can also provide both scaled and unscaled pulse output. This module is compatible with power inputs ranging from 8 to 32 volts DC, however 24 VDC is recommended.

NOTE: This module is not FM Approved. Using this module with an approved metering system voids FM Approval. Adding a pulse or 4-20ma output to the G2 meter display voids it’s hazardous approval.

Pulse to 4-20 mA Analog Converter Module:

• Circuit assembly
• Enclosure
• Screws

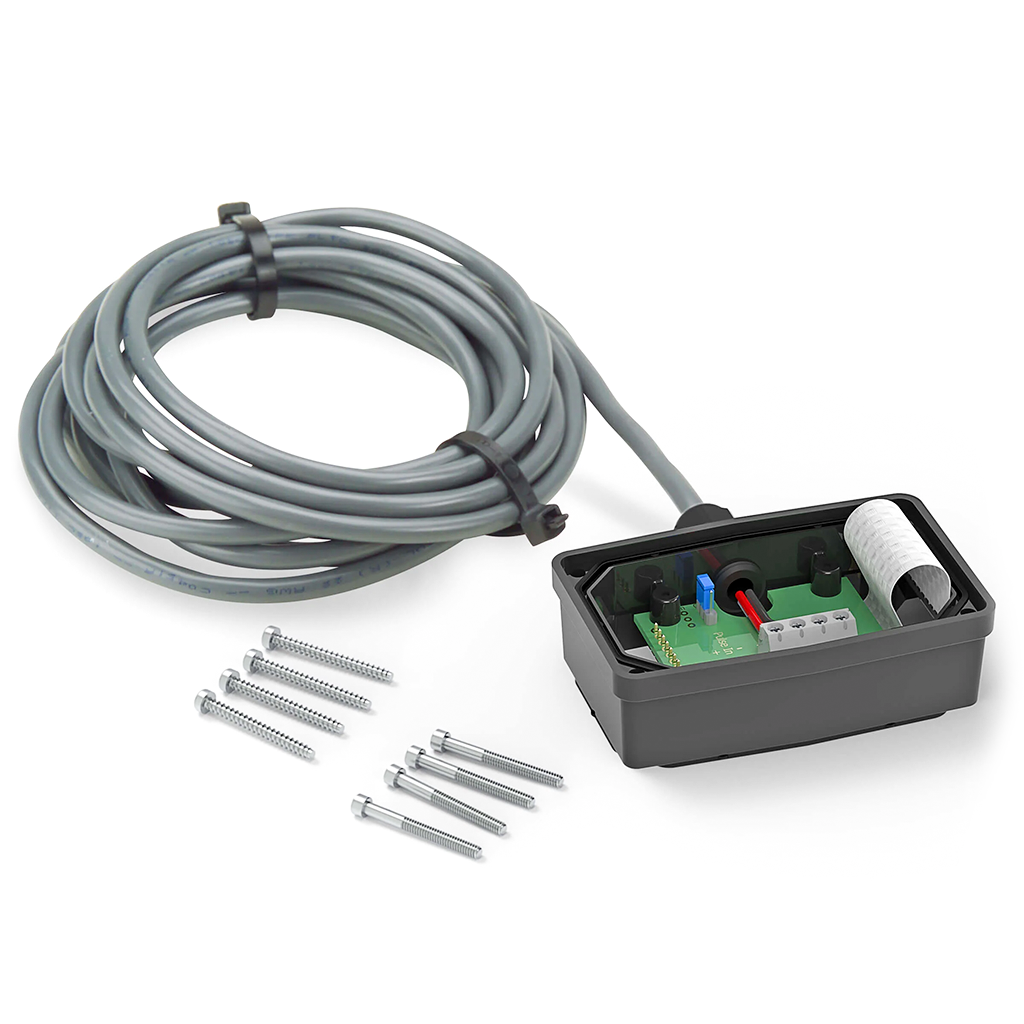

• 10 feet of cable (Belden #9363 STRAIN RELIEF: Hubble PG7)
