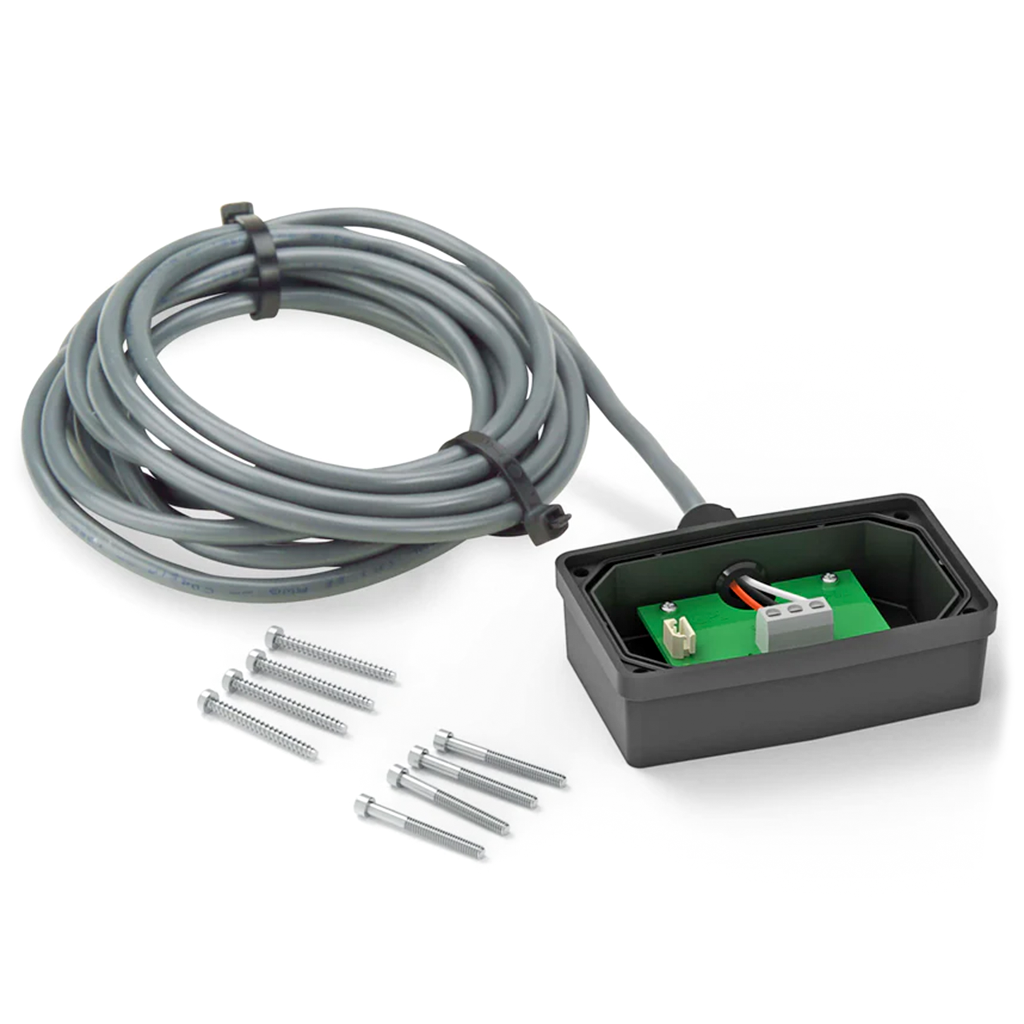

Conditioned Signal Output Module for Turbine Flow Meters

The Conditioned Signal Output Module is an accessory for the G2 flow meter that allows it to communicate with most process control devices. It creates an unscaled, amplified, digital signal for up to 5,000 feet. This product is compatible with select blind (no display) flowmeters, including the G2 turbine meter. See below for a full list of compatible meters. This product is designed for Q Model Flowmeters. For O Model flow meters the required Q9 retrofit coil kit is included.

Technical Specifications:

• Temperature range: -40° F to +185° F (-40° C to +85° C)

• Signal Type: Open collector (NPN)
• Power: External 9 to 35 V
• Connection: Three-wire
• 10 ft cable

 Compatible Flow Meters: (for blind flow meters)

• G2
• A1
• TM
