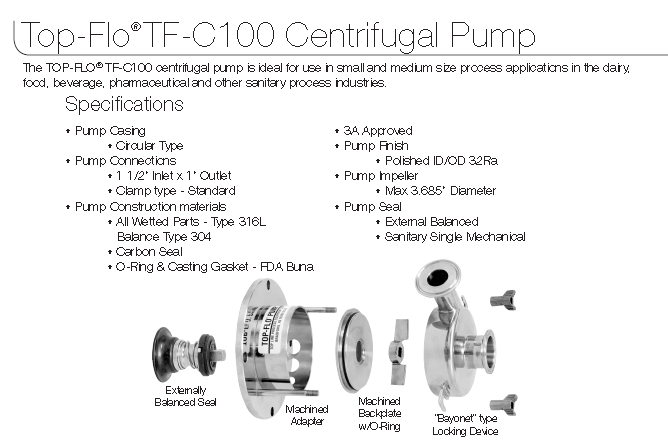

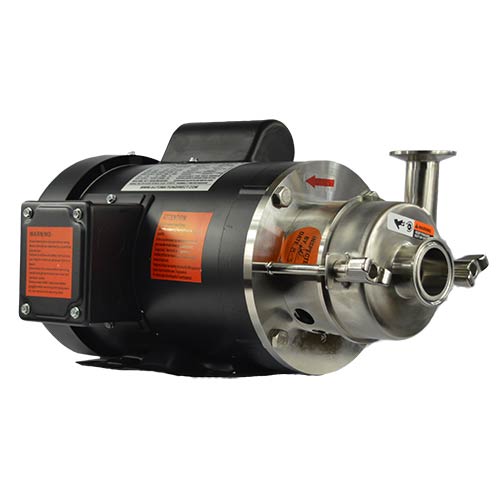

The C100 centrifugal pump is ideal for use in small and medium size process applications in the dairy, food, beverage, pharmaceutical and other sanitary process industries. The C100 Pump has an adapter and backplate made from precision machined stainless steel. An O-ring on the backplate provides a tight, secure seal with the casing for longer trouble-free operation. Includes an IronHorse induction motor.
- 1 1/2" X 1" Tri-Clamp connections
- Single mechanical seal
- single phase 115/230 volt or three phase 230/460 volt, TEFC, 56C motor

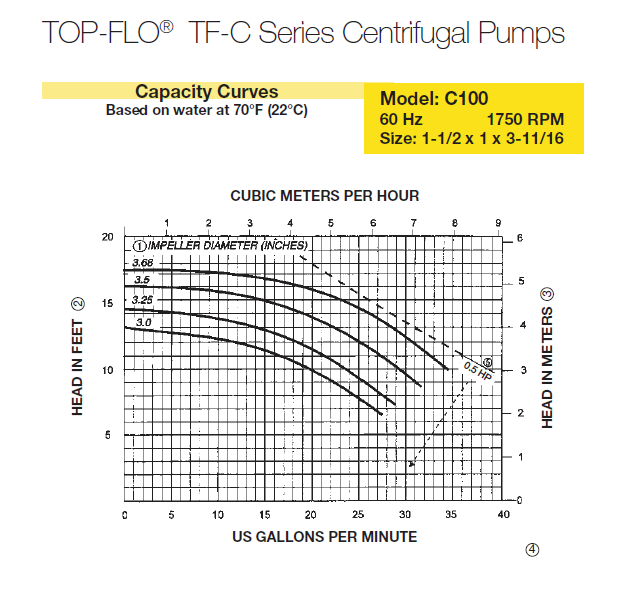

- 1/2 HP 1800 RPM TEFC Motor up to 30 GPM and 8 PSI

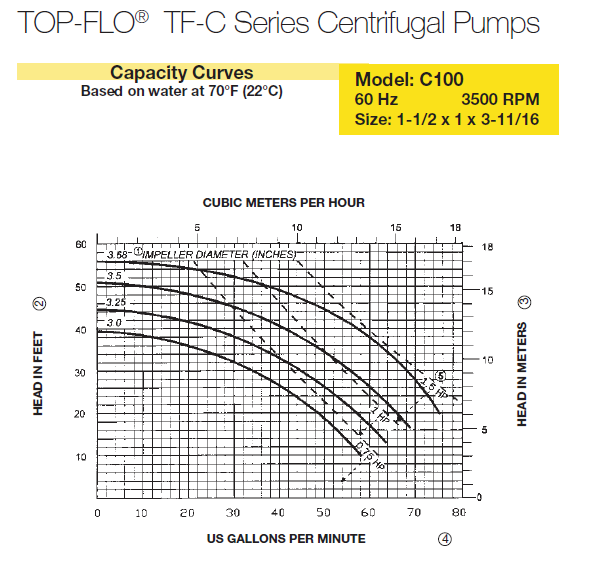

- 3/4 HP 3600 RPM TEFC Motor up to 40 GPM and 25 PSI
- 1 HP 3600 RPM TEFC Motor up to 50 GPM and 23 PSI
- 1 1/2 HP 3600RPM TEFC Motor up to 85 GPM and 18 PSI
