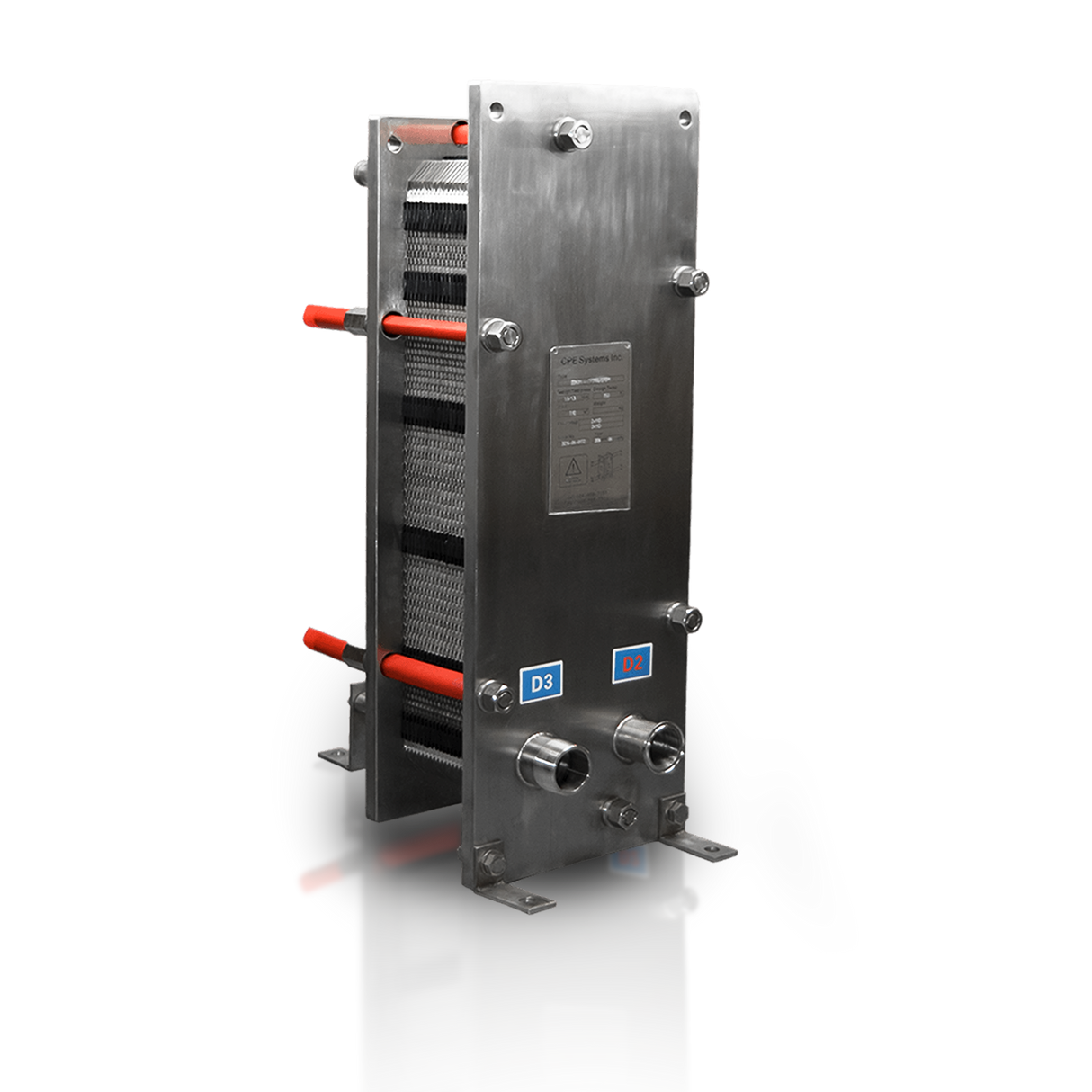

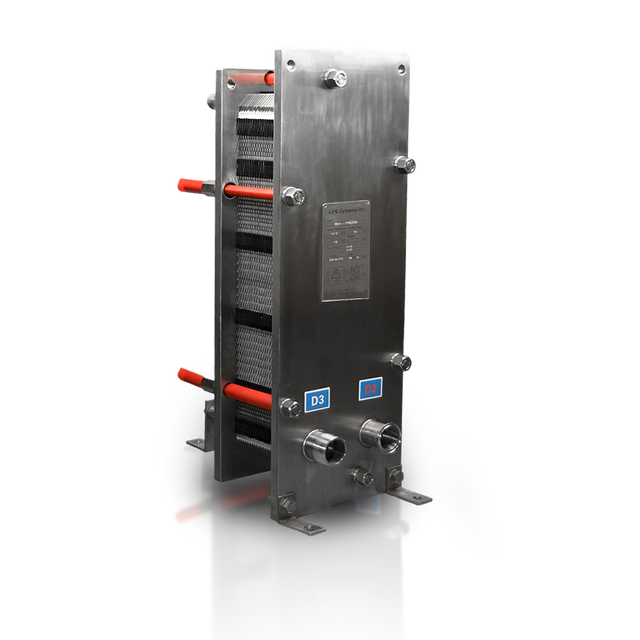

CPE60H-XXD Stainless Steel Plate Heat Exchanger
Regular priceFrom
$5,430.00
Unit price
Description
Description
HEAT EXCHANGER / WORT CHILLER
The CPE60H-XXD stainless steel brewery plate heat exchanger is made for cooling wort from 200° F to 70° F using city water at around 50° F. This heat exchanger is designed so that the discharged water is hot enough to put into your HLT for your next brew. They are designed to cool a batch in approximately 30 minutes.
Frame Material: Stainless Steel
Surface Area: From 34 ft² to 177 ft²
Plates: 0.5mm 316ss,
Gaskets: EPDM clip-on gaskets
Design: Dual pass flow
Connections: 2" Water connections X 2" Tri-Clamp Wort connections
Frame: 18L Frame length, Max plates: 112
