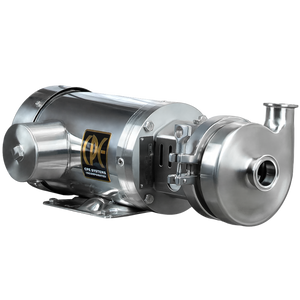

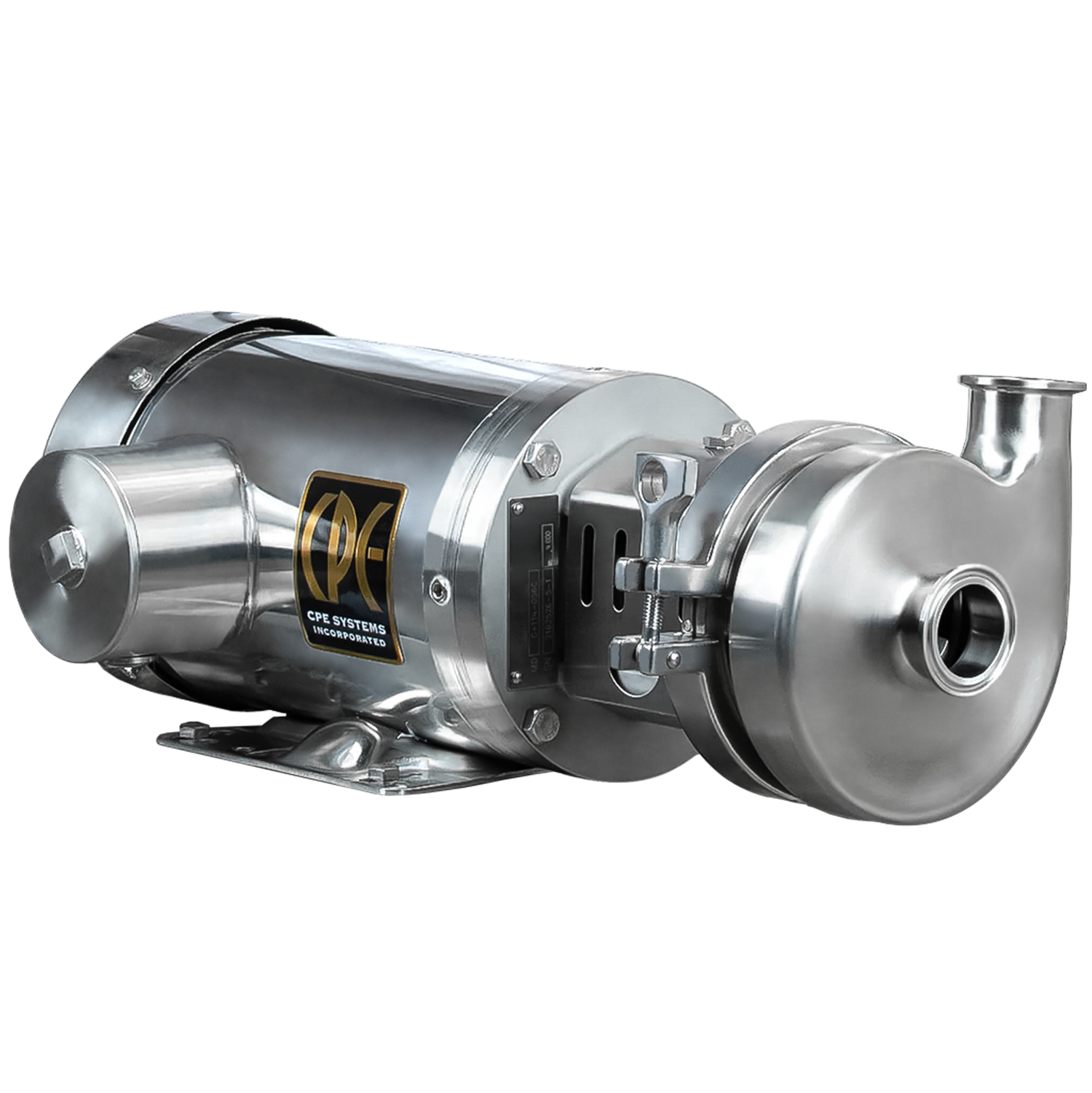

C+114/214MD Centrifugal Pump With SS Washdown Motor

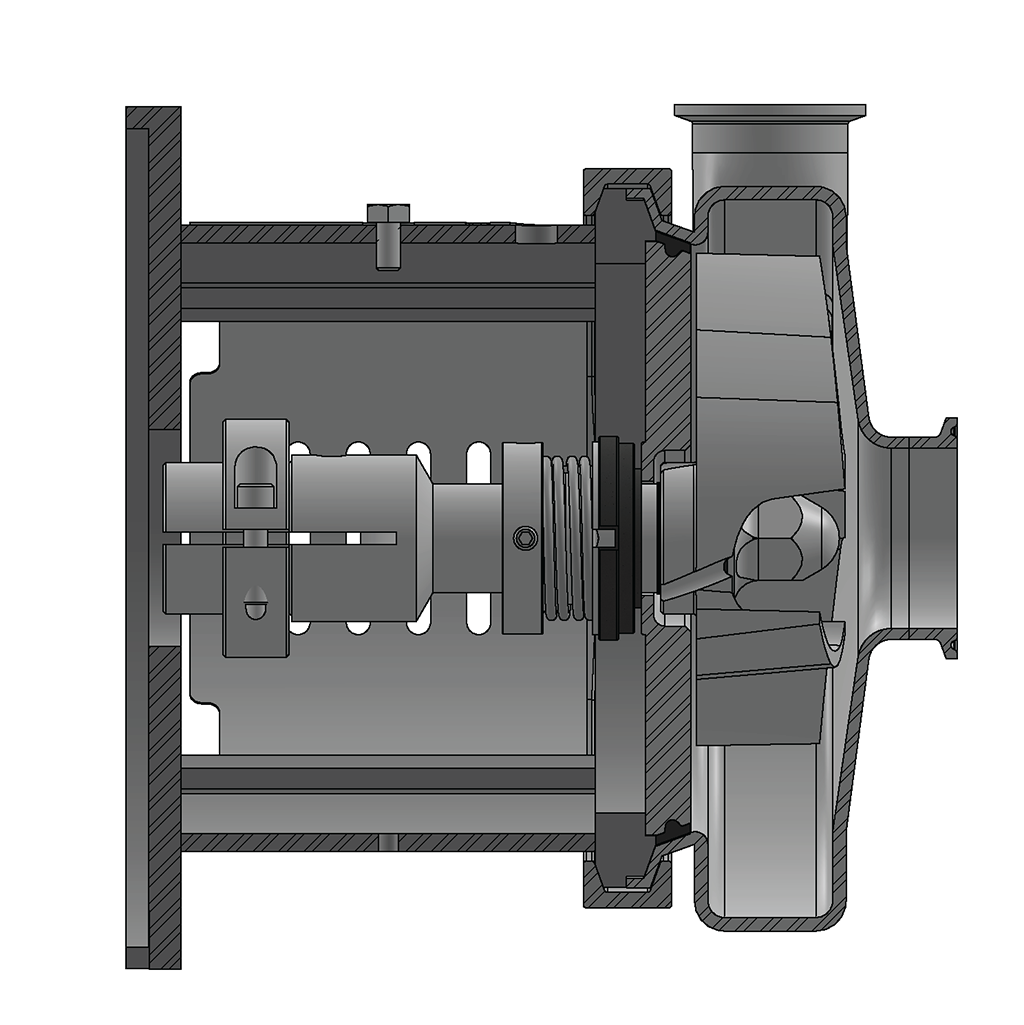

The C+114MD is the original C-series centrifugal pump re-imagined. It has kept the original casing design and popular external mechanical seal options, however, it features a collar that clamps down on the drive shaft over the full 360 degrees removing the minor wobble that can occur from set screwed shafts. The impeller pin was also replaced with a threaded impeller nut that fully secures the impeller in place; there are two specialized gaskets to seal the shaft and to still allow a CIP procedure to clean behind the impeller. The collar and bolted impeller reduce rattling sounds at lower speeds. For special applications requiring larger suction lines, the C+214 features an enlarged 2" inlet. The C+114 pump head is attached to our efficient stainless steel washdown motor.

Technical Specifications

Features:

• Tri-Clamp connections
  • C114 (Standard): 1-1/2" x 1-1/2"
  • C214 (Enlarged inlet): 2" x 1-1/2"
• Stainless steel washdown motor
• 316L stainless steel construction
• 304 stainless steel adapter

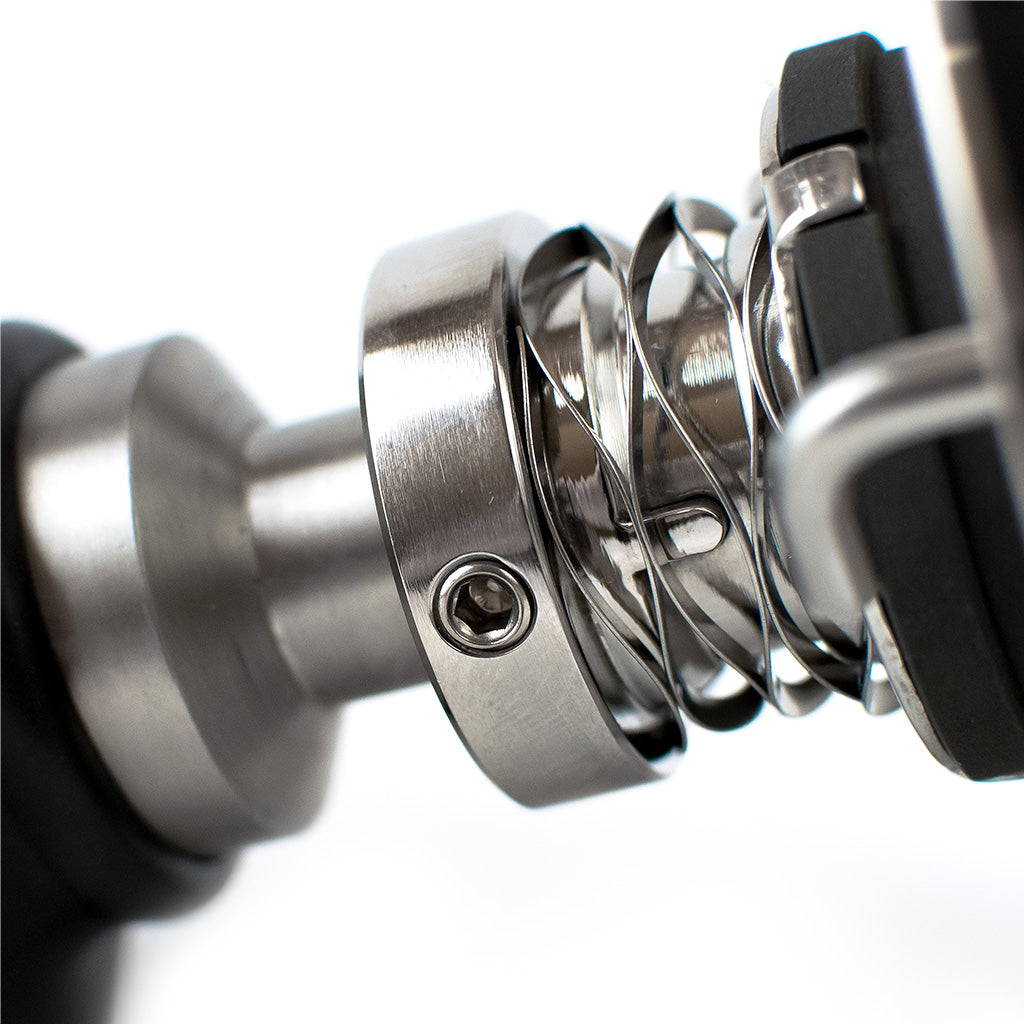

• External mechanical seal

SEAL OPTIONS:

"D" Single mechanical external seal

"DG" Single mechanical external seal with replaceable silicone carbide seat

"F" Single mechanical external seal with water cascade

Horsepower

3/4 HP: The capacity of this pump is 50 GPM and it will put out 45 feet of head pressure, ideal for nano breweries and small wineries.

1 HP: The capacity of this pump is 75 GPM and it will put out 65 ft of head pressure, ideal for microbreweries (5 - 10 BBL) and estate wineries.

1 1/2 HP: The capacity of this pump is 100 GPM and it will put out 75 ft of head pressure, ideal for microbreweries (10 - 15 BBL) and estate wineries.

2 HP: The capacity of this pump is 125 GPM and it will put out 75 ft of head pressure, ideal for microbreweries (> 15 BBL) and larger estate wineries.

3 HP The capacity of this pump is 150 GPM and it will put out 75 ft of head pressure, ideal for large microbreweries (>25 BBL) and larger estate wineries.
