Microbrew 100 Seal Kit

The Microbrew 100 Seal Kit contains the parts needed to maintain and maintenance your MB100 pump. Pump seals do not last forever, and need to be replaced every 6 months or when a noticeable reduction in performance occurs. The MB100 Mechanical Seal kit includes the stationary seal, rotating seal, and elastomers, while the Elastomer Seal Kit contains only the o-rings. The elastomers are available in both Viton and EPDM.

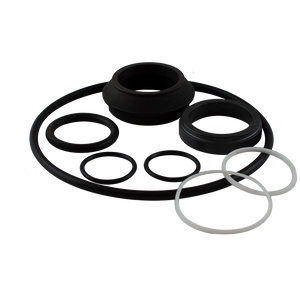

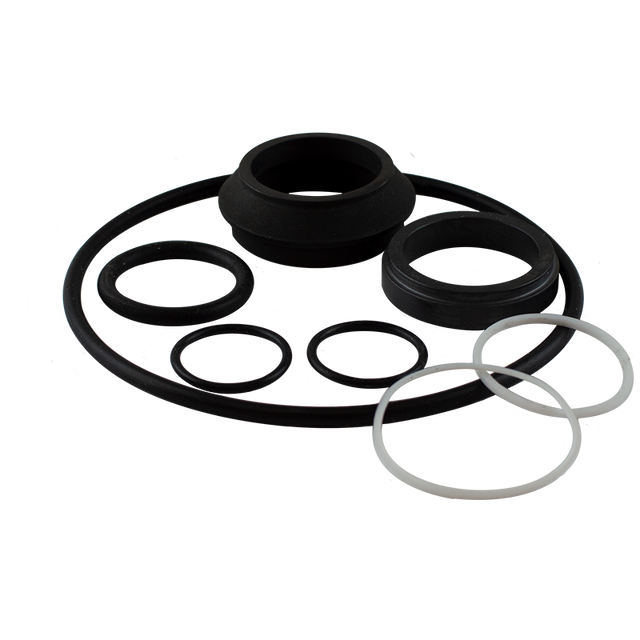

Microbrew 100 Mechanical Seal Kit

• Casing Gasket (Viton or EPDM)
• Rotary Seal (Carbon)
• Stationary Seal (Silicon Carbide)
• Stationary Seal O-rings x 2 (Teflon)
• Rotating Seal O-ring (Viton or EPDM)
• Impeller O-rings x 2 (Viton or EPDM)

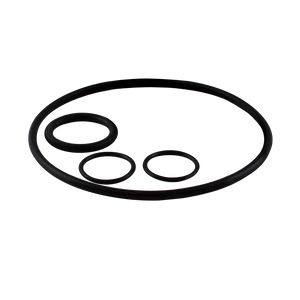

Microbrew 100 Elastomer Seal Kit

• Casing Gasket (Viton or EPDM)

• Rotating Seal O-ring (Viton or EPDM)
• Impeller O-rings x 2 (Viton or EPDM)

ELASTOMER MATERIALS:

The Microbrew Seal kit is available with either EPDM or Viton elastomers.

Viton® is particularly well suited for hot fatty oil products. The temperature range is 0°F to 400°F under continuous duty, however, it can handle up to 600°F for short periods of time. Rated for temperatures from -2° F to 450° F (short term to 600° F).

EPDM  is resistant to most products in the food industry, including ozone and radiation. It is not resistant to organic and non-organic fats and oils. Rated for temperatures from -40°F to 302°F.

No manual available for download.
