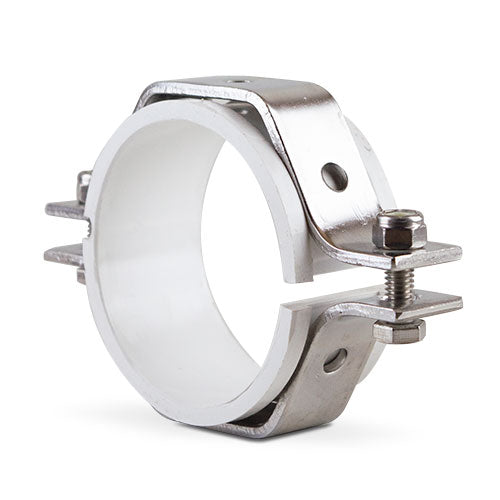

PVCT - Hex Tube Hanger with PVC Sleeve
From$6.22
Unit price
/
Unavailable
Description
Description
The PVCT Hex Tube Hanger with a PVC Sleeve is designed to support process lines in sanitary processing industries. This sanitary hanger can be suspended from a rod or welded into place. The PVCT Hex Tube Hanger is available in a range of sizes between 1/2" and 8". Other sizes are available by special order. Please call with any inquiries.
Hex Tube Hanger w. PVC Sleeve Technical Specifications:
- Temperature Range: 5°F to 175°F
- Sleeve Material: PVC
- Body Material: 304 stainless steel
- Surface finish: Tumbled
- Imperial - 5/16"-18 Bolts and Nuts

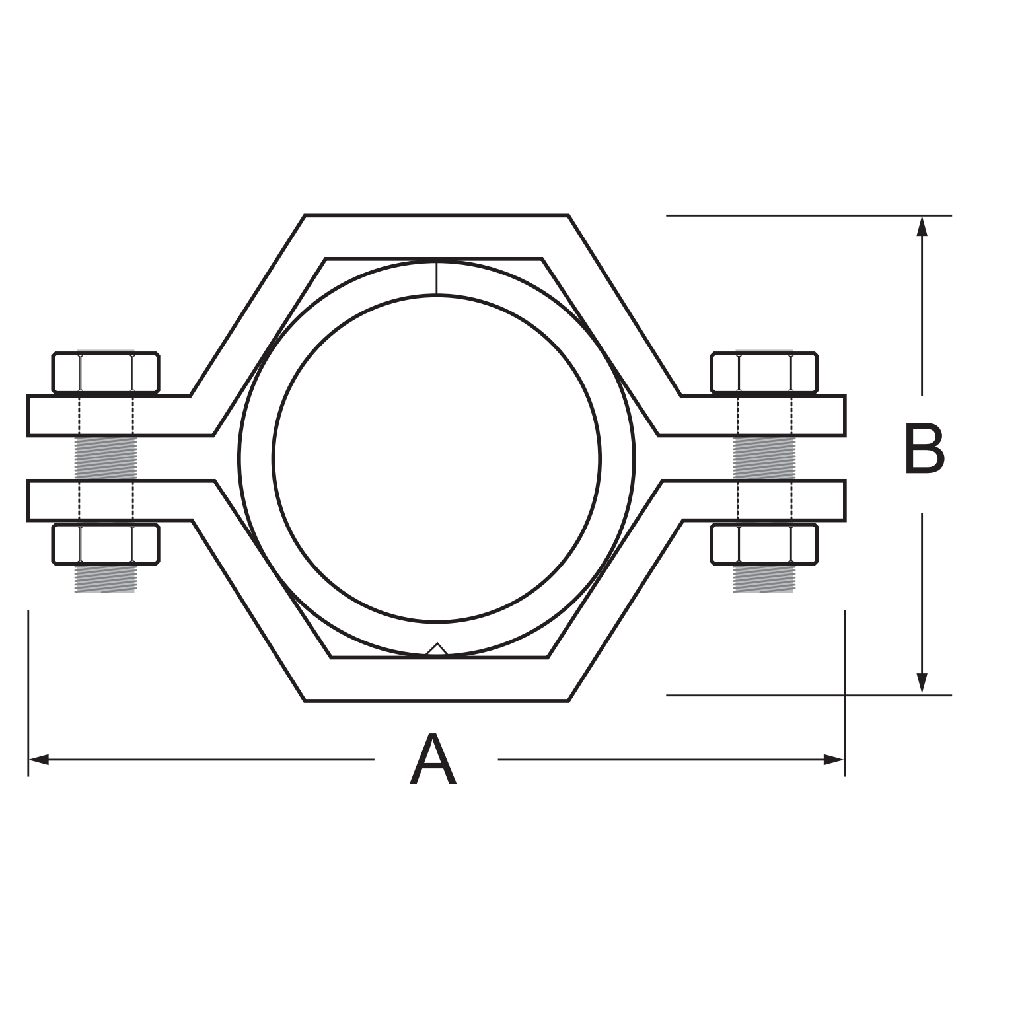

Tube Hanger w. PVC Sleeve Measurements:
| Tube O.D. | A | B |
| 1/2" | 2.52 | 1.00 |
| 3/4" | 2.94 | 1.24 |
| 1" | 3.13 | 1.50 |
| 1-1/2" | 3.70 | 2.00 |
| 2" | 4.28 | 2.50 |
| 2-1/2" | 4.80 | 2.96 |
| 3" | 5.45 | 3.50 |
| 4" | 6.70 | 4.50 |
| 6" | 9.20 | 6.30 |
| 8" | 11.50 | 8.62 |
| 10" | 14.50 | 10.50 |
| 12" | 16.62 | 13.00 |
