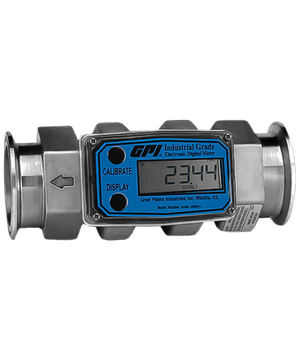

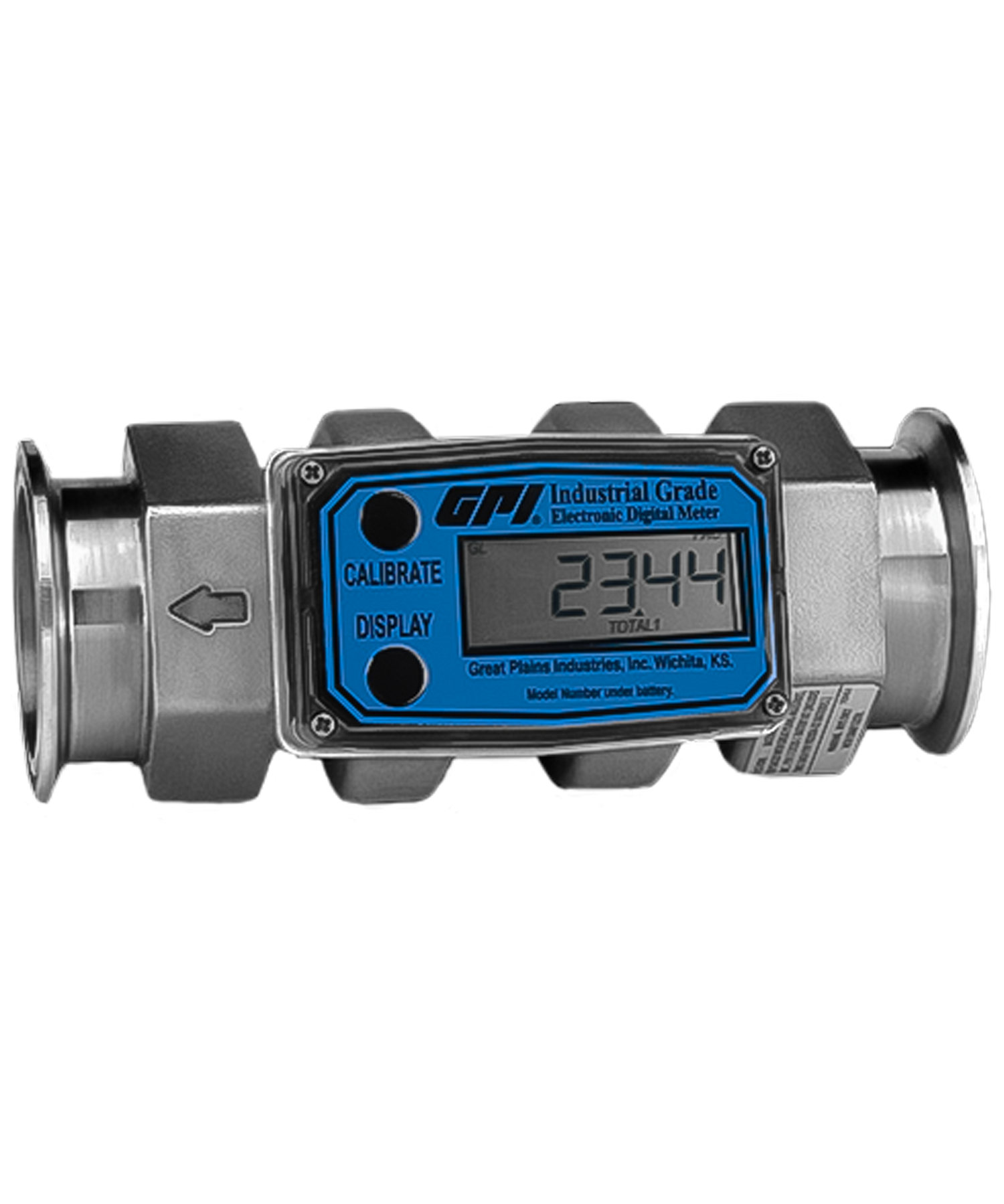

The GPI Stainless Steel Meters with Tri-Clamp fittings can be used in food and beverage applications.
Features and Benefits:
- Tri-Clamp
- Stainless steel
- Modular design allows for use with Output Modules, Sensors and Remote Transmitters.
- 2 Totals (Batch=Resettable, Cumulative=Non-Resettable)
- Rate of Flow. Factory calibrated in gallons and litres.
- Field calibratable. Allows user calibration. Includes non-volatile totals.
- High accuracy meter
- Internal parts are simple to replace for easy maintenance
- Lithium battery life: 5 Years
- Accessories easily upgrade meter

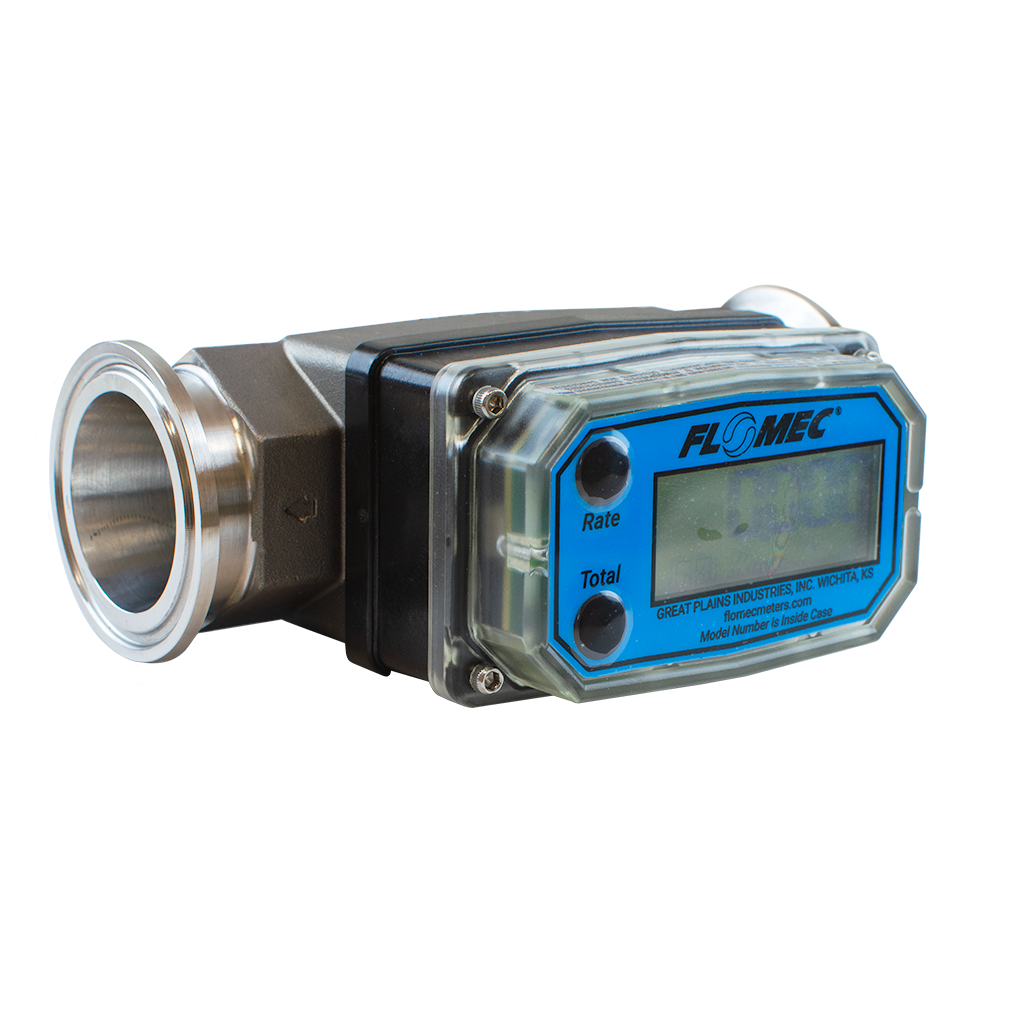

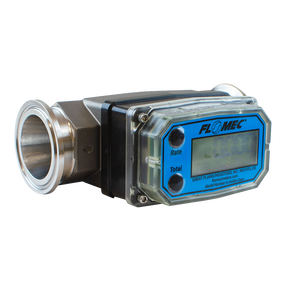

- High temperature riser allows for temperatures up to 85 °C (185°F)
Flow Range
| 1/2" | 1-10 GPM (3.8-37.9 LPM) |
| 3/4" | 2-20 GPM (7.6-75.7 LPM) |
| 1" | 5-50 GPM (18.9-190 LPM) |
| 1-1/2" | 10-100 GPM (38.0-380 LPM) |
| 2" | 20-200 GPM (76-760 LPM) |
