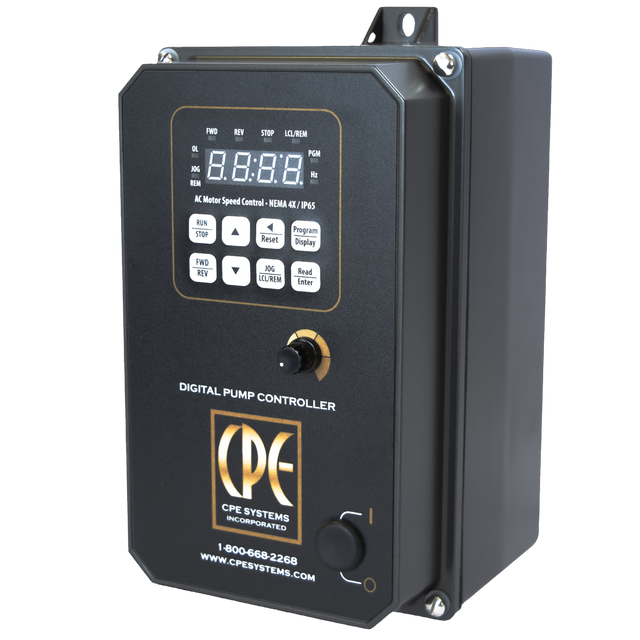

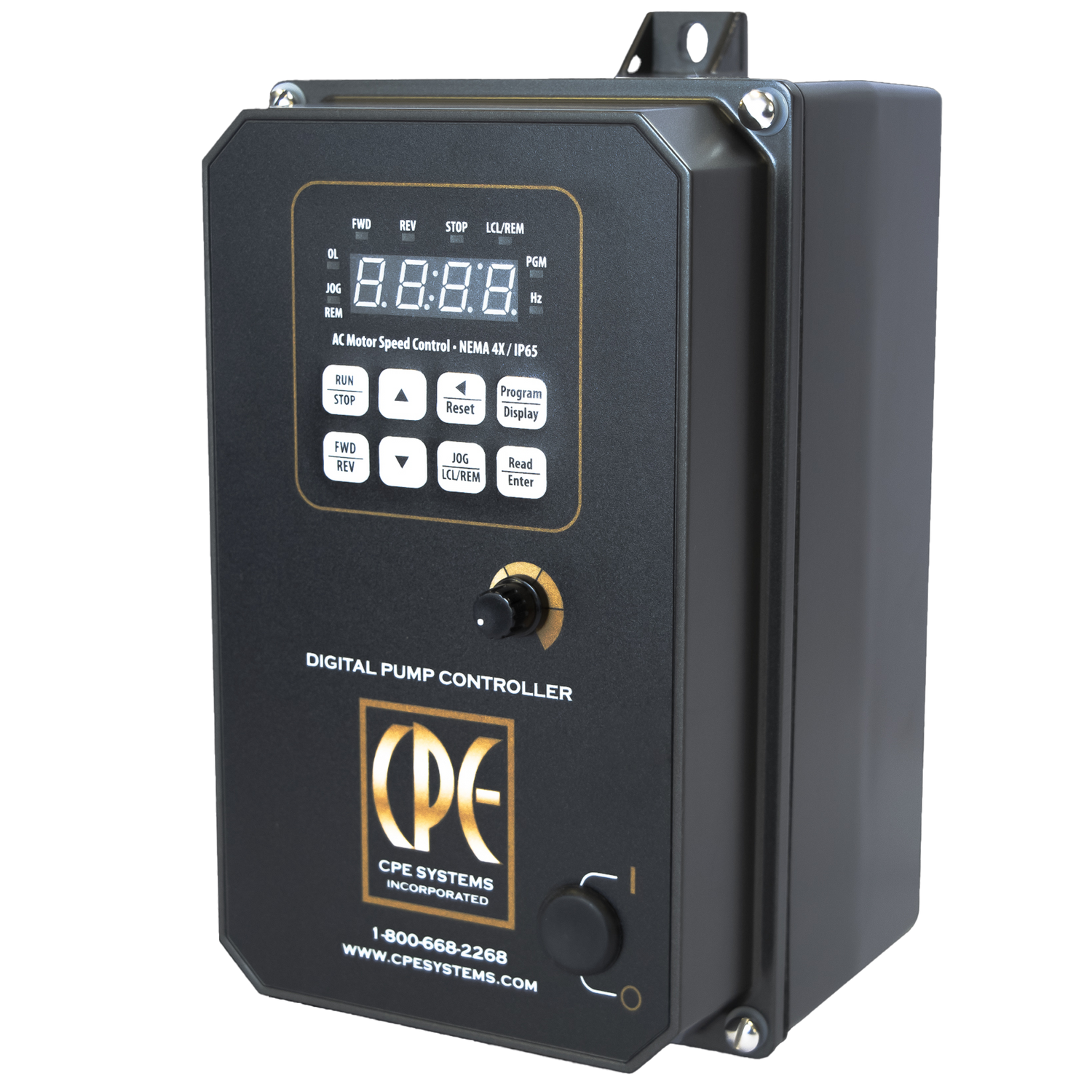

KBDA Digital VFD

(1) • See Reviews
$422.29
SKU: EM/CPEDA-24D
All Products Variable Frequency Drives (VFDs)

The KBDA variable frequency drive is easy to use, easy to install, and programmable.  There are eight models available ranging from 1 to 3 HP, in both single and three phase configurations. The casing is powder-coated aluminum and is NEMA 4X approved for wet locations, both indoor and outdoor.

Description

The KBDA variable frequency drive is easy to use, easy to install, and programmable.  There are eight models available ranging from 1 to 3 HP, in both single and three phase configurations. The casing is powder-coated aluminum and is NEMA 4X approved for wet locations, both indoor and outdoor.

KBDA Specifications:

  • Rugged Die-Cast Aluminum NEMA-4X/IP-65 Enclosure
  • Horsepower: 1HP - 3HP
  • Powerful 200% Starting Torque

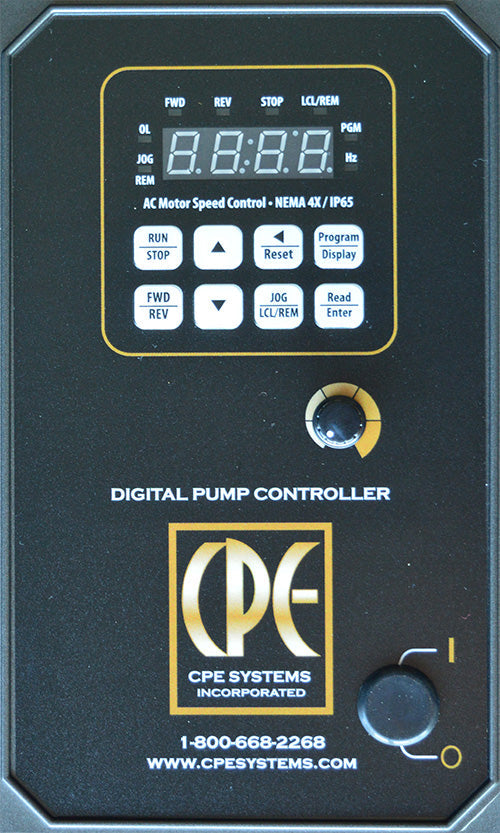

  • Digital Display with LED Status Indicators
  • Agency approvals:  UL, CE, CSA, C-Tick
  • Built-in Potentiometer

KBDA Features:

  • Sensorless Flux Vector Control
  • Electronic Inrush Current Limit (EICLTM) Protection
  • Run/Fault Relay Output Contacts
  • Jog-Local Remote
  • Holding Torque at Zero Speed in "Stop" mode
  • Undervoltage and Overvoltage Protection
  • Short Circuit Protection, phase to phase
  • Ride-Through momentary power loss
  • Regeneration eliminates tripping
Model HP Voltage Size

KBDA-24P

 1  230 Volt Three Phase 9.5" X 5.5" X 5.9"

KBDA-24D

 1 115/230 Volt Single Phase 9.5" X 5.5" X 5.9"

KBDA-27D

 2 115/230 Volt Single Phase 9.8" X 7.6" X 7.3"

KBDA-29(1)P

 3 230 Volt Single Phase 9.8" X 7.6" X 7.3"

KBDA-29P

 3 230 Volt Three Phase 9.8" X 7.6" X 7.3"

KBDA-42

 1 460 Volt Three Phase 9.5" X 5.5" X 5.9"

KBDA-45

 3 460 Volt Three Phase 9.5" X 5.5" X 5.9"

Specifications
  • Rugged Die-Cast Aluminum NEMA-4X/IP-65 Enclosure
  • Horsepower: 1HP - 3HP
  • Powerful 200% Starting Torque
  • Digital Display with LED Status Indicators
  • Agency approvals:  UL, CE, CSA, C-Tick
  • Built-in Potentiometer

Manuals

No manual available for download.

Reviews (1)

Customer Reviews

Based on 1 review
0%
(0)
100%
(1)
0%
(0)
0%
(0)
0%
(0)
D
Dylan Badger

However it is programmed, it isn't working well with our pump, even though it was simply replacing the exact same VFD we had beforehand. I've tried calling CPE systems to get a technician to help me adjust it but haven't been able to get through, and haven't received a call back.

Update: It seems like it was just at the factory default programming. And it was wired in a way where it ran in reverse. We originally bought the pump from CPE, so when we bought the new VFD we were told it would be wired and programmed to work best with our specific pump. But that got missed. So if you order one of these, make sure to stress that the VFD needs to be programmed for you. Now the VFD and pump work fine. But there was a month of frustration, where we kept calling CPE and couldn't get through, left many messages, and never received a call back. Eventually I emailed Tony and he got back to me and was able to troubleshoot the VFD. But we didn't have a pump for a month because none of the technicians got back to us.
