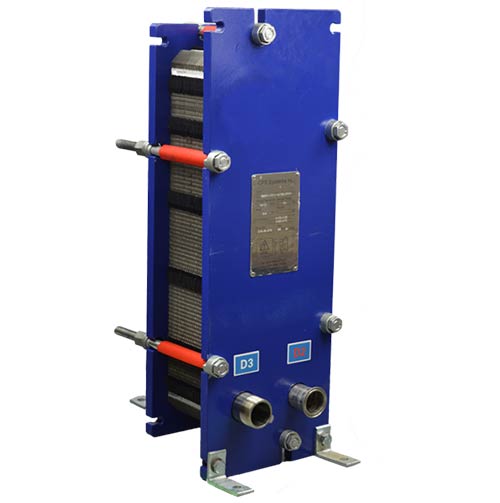

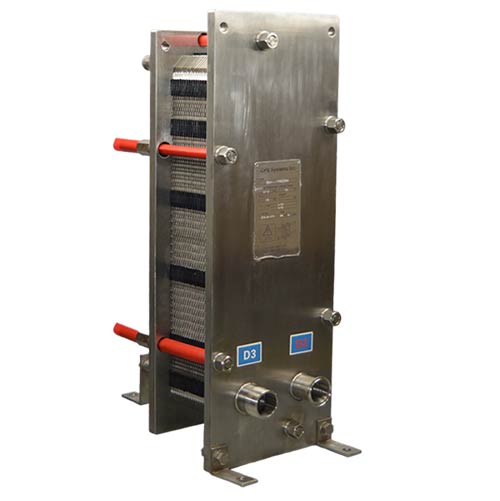

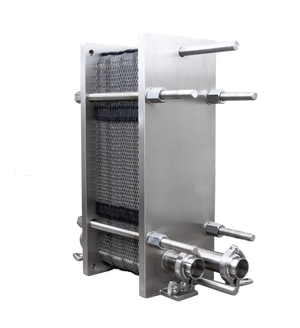

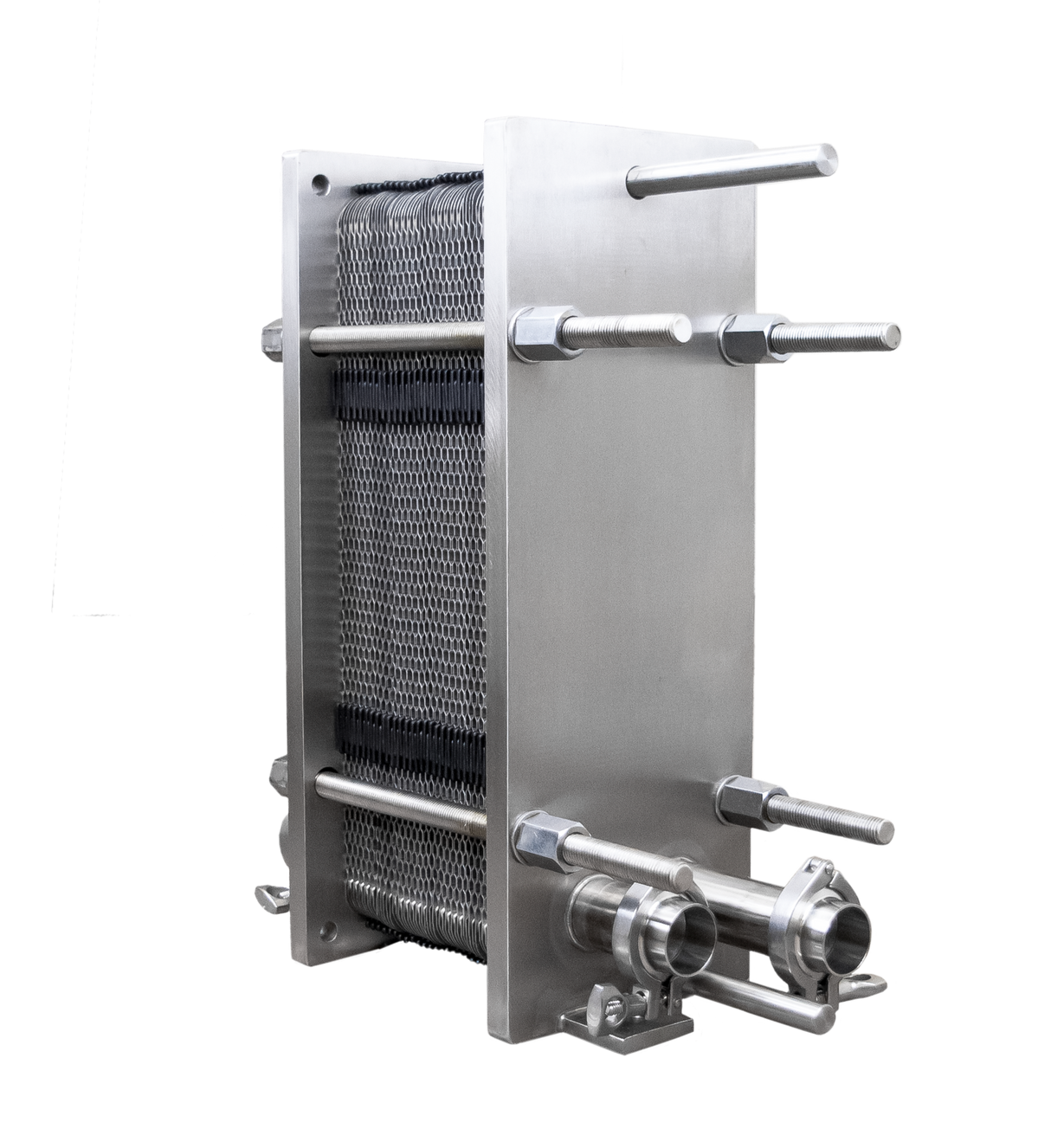

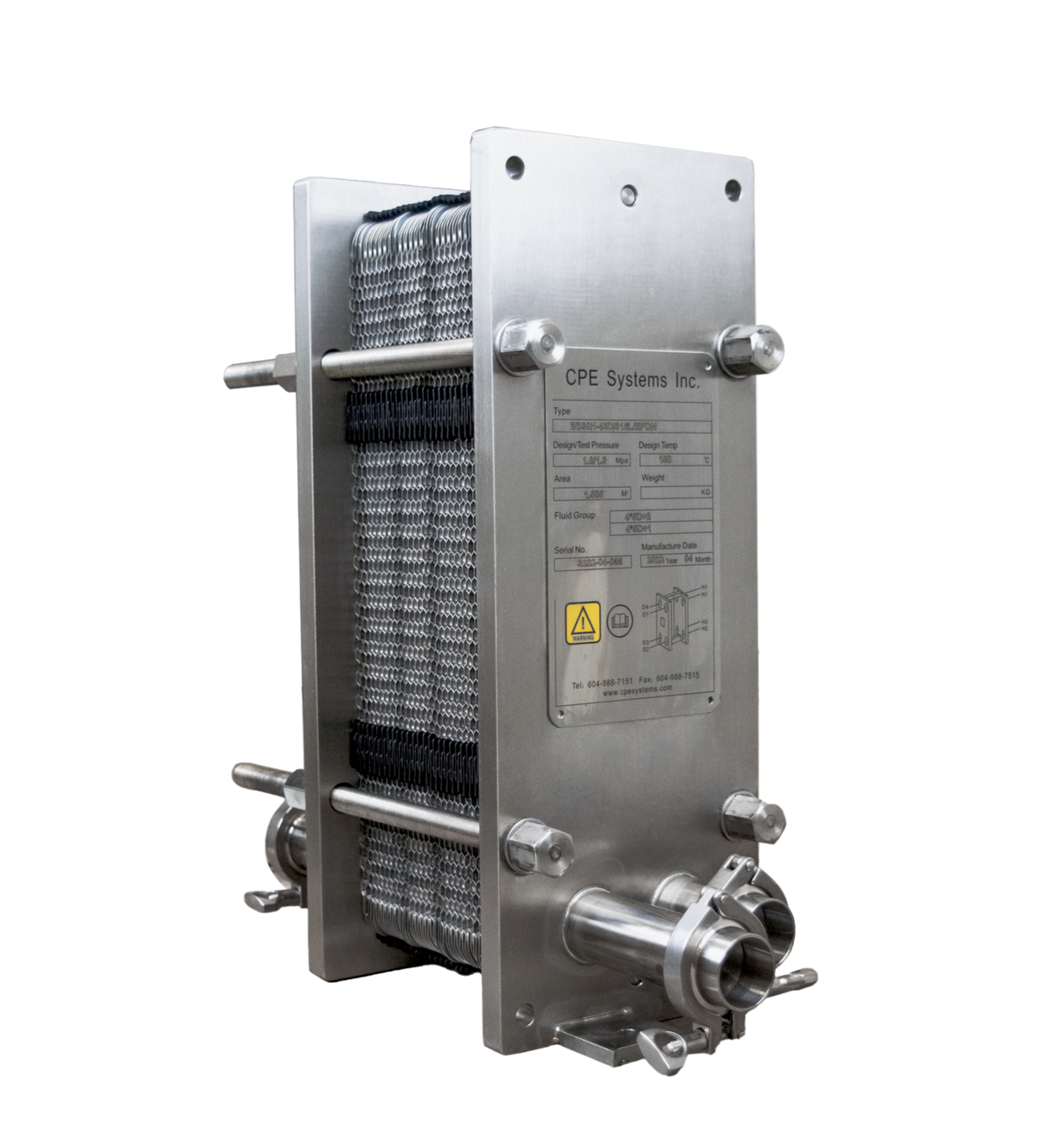

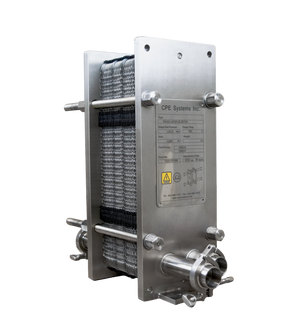

CPE30H-XXD Stainless Steel Plate Heat Exchanger



This is a stainless steel brewery heat exchanger for cooling wort from 200F to 70F using city water at around 50F. This heat exchanger is designed so that the discharged water is hot enough to put into your HLT for your next brew. They are designed to cool a batch in approximately 30 minutes.

Technical Specifications

Frame Material: Stainless Steel

Surface Area: From 6.5 ft² to 20 ft²

Plates: 0.5mm 316ss,

Gaskets: EPDM clip on gaskets

Design: Dual pass flow

Connections: 1.5" Tri-Clamp Water connections X 1.5" Tri-Clamp Wort connections

Frame: 12L Frame length, Max plates: 60
