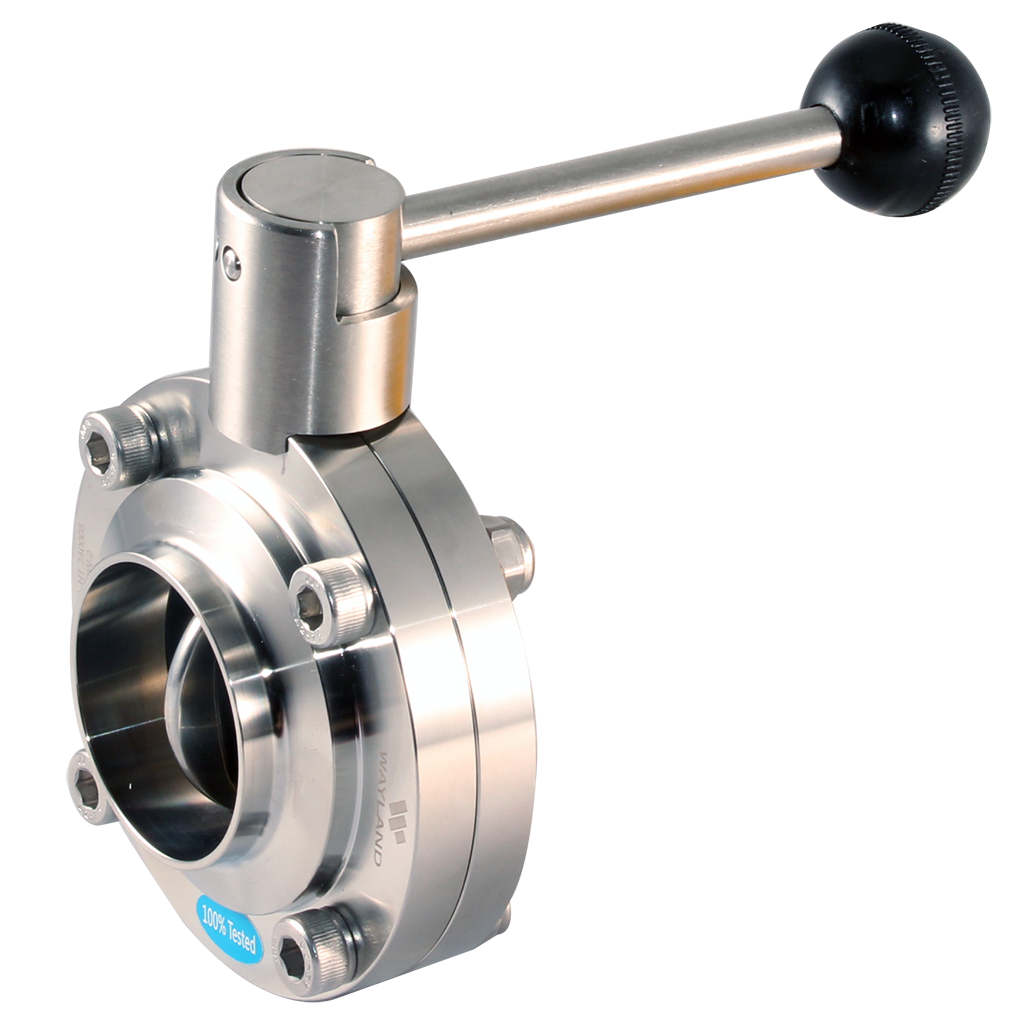

Butt-Weld Butterfly Valve - Pull Handle

$152.88
SKU: BV/W6BFVBW-E-1-PH
Valves
Size
Elastomer Material

The Butt-Weld Butterfly Valve is a manually operated bi-directional flow valve with a four position pull handle. Designed for sanitary industries, you can customize this valve to your application with a selection of seat materials, sizes, construction materials, connections, and handles. The butterfly valve has a streamlined, reliable, durable design that is field-serviceable and has low resistance to flow.  If you require a different size or fitting please contact our sales team.

Description

The Butt-Weld Butterfly Valve is a manually operated bi-directional flow valve with a four position pull handle. Designed for sanitary industries, you can customize this valve to your application with a selection of seat materials, sizes, construction materials, connections, and handles. The butterfly valve has a streamlined, reliable, durable design that is field-serviceable and has low resistance to flow. If you require a different size or fitting please contact our sales team.

Size Pressure Rating (PSI) Flow Coefficient (Cv) Weight (lbs) Break Torque (lbs) - EPDM Break Torque (lbs) - Silicone Break Torque (lbs) - FKM
0.5" 150 8 2.40 35 15 25
0.75" 150 20 2.31 45 18 35
1" 160 23 3.06 75 20 70
1.5" 160 80 2.90 130 40 125
2" 160 230 3.65 165 55 175
2.5" 140 264 4.14 210 70 220
3" 140 372 4.99 350 165 310
4" 140 800 7.82 540 350 450
6" 110 1200 16.54 1550 700 750
8" 110 2110 28.40 680 520 550

Specifications
  • Sizes: 1", 1.5", 2", 2.5, 3", 4", 6" (0.5", 0.75", and 8" available by special order only)
  • Material: 316L
  • Seat Material: EPDM, Silicone, or FKM (Viton)
  • Connections: Butt-Weld (Tri-Clamp is also available)
  • Handle: 4-position pull handle (Stainless trigger handle and black plastic trigger handle also available)
  • Manual operation
  • Minimum/Maximum Temperature Range
    EPDM: -40°F - 266°F
    Silicone: -76°F - 392°F
    FKM: -4°F - 392°F
  • Recommended Operating Temperature Range
    EPDM: -4°F - 230°F
    Silicone: -13°F - 284°F
    FKM: -4°F - 302°F
